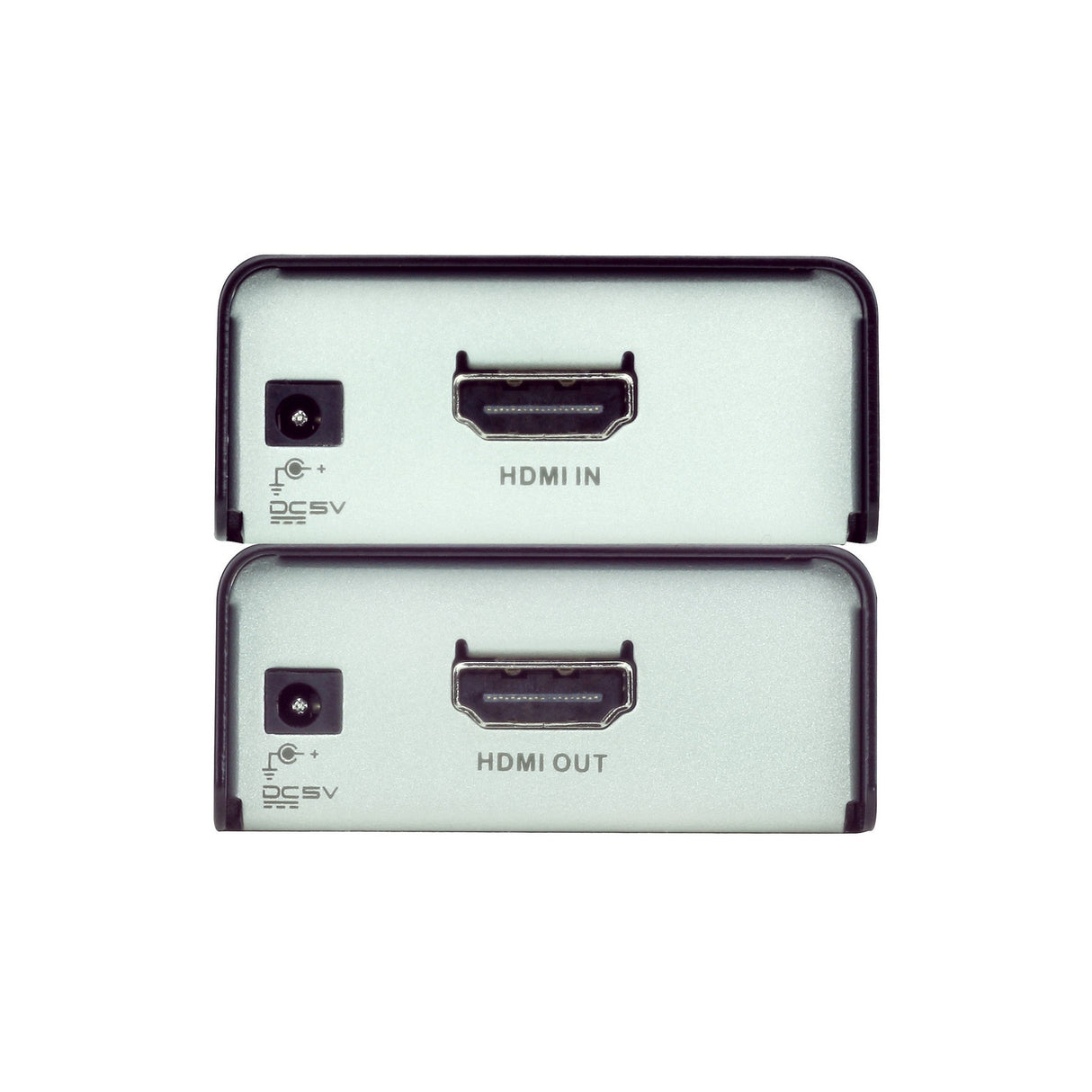

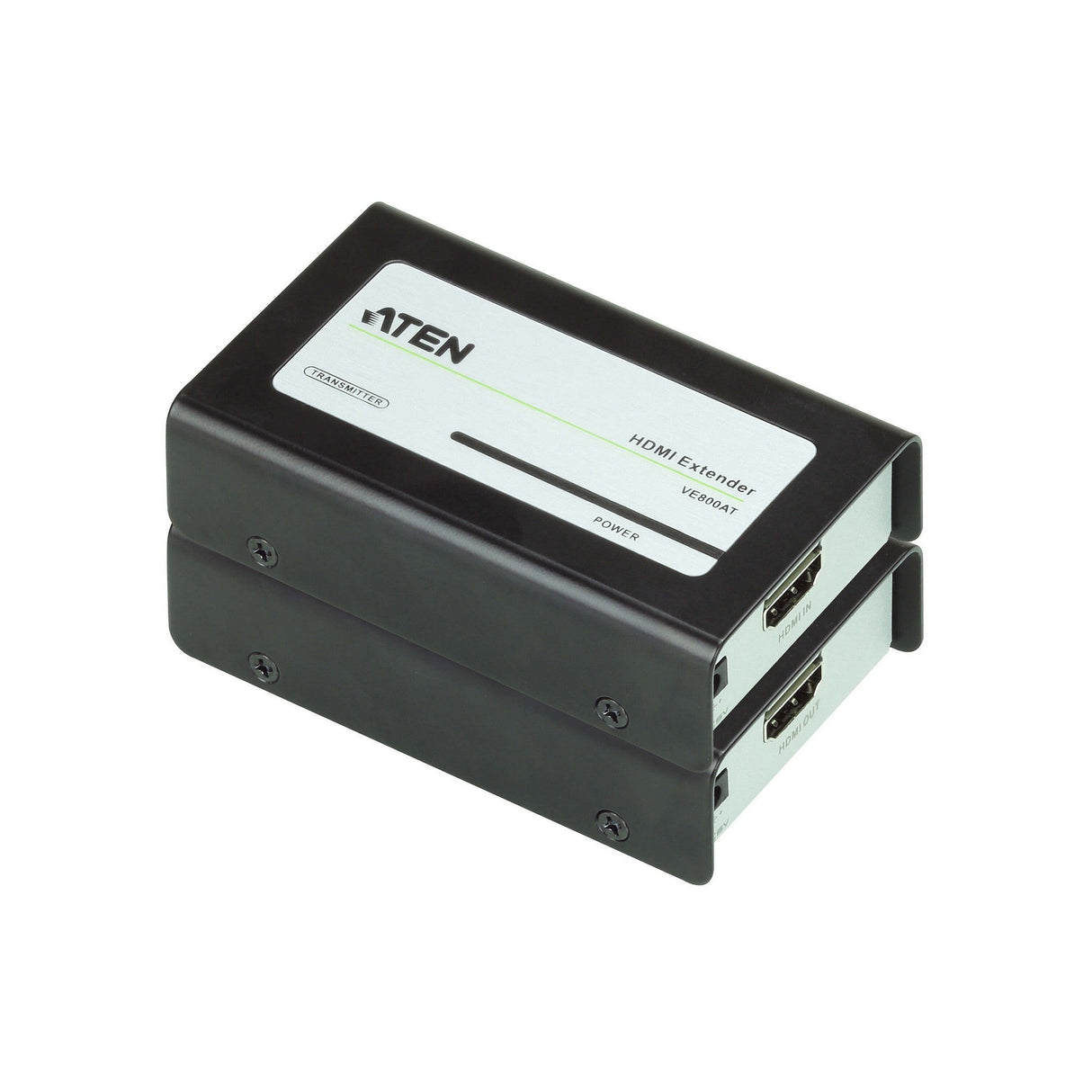

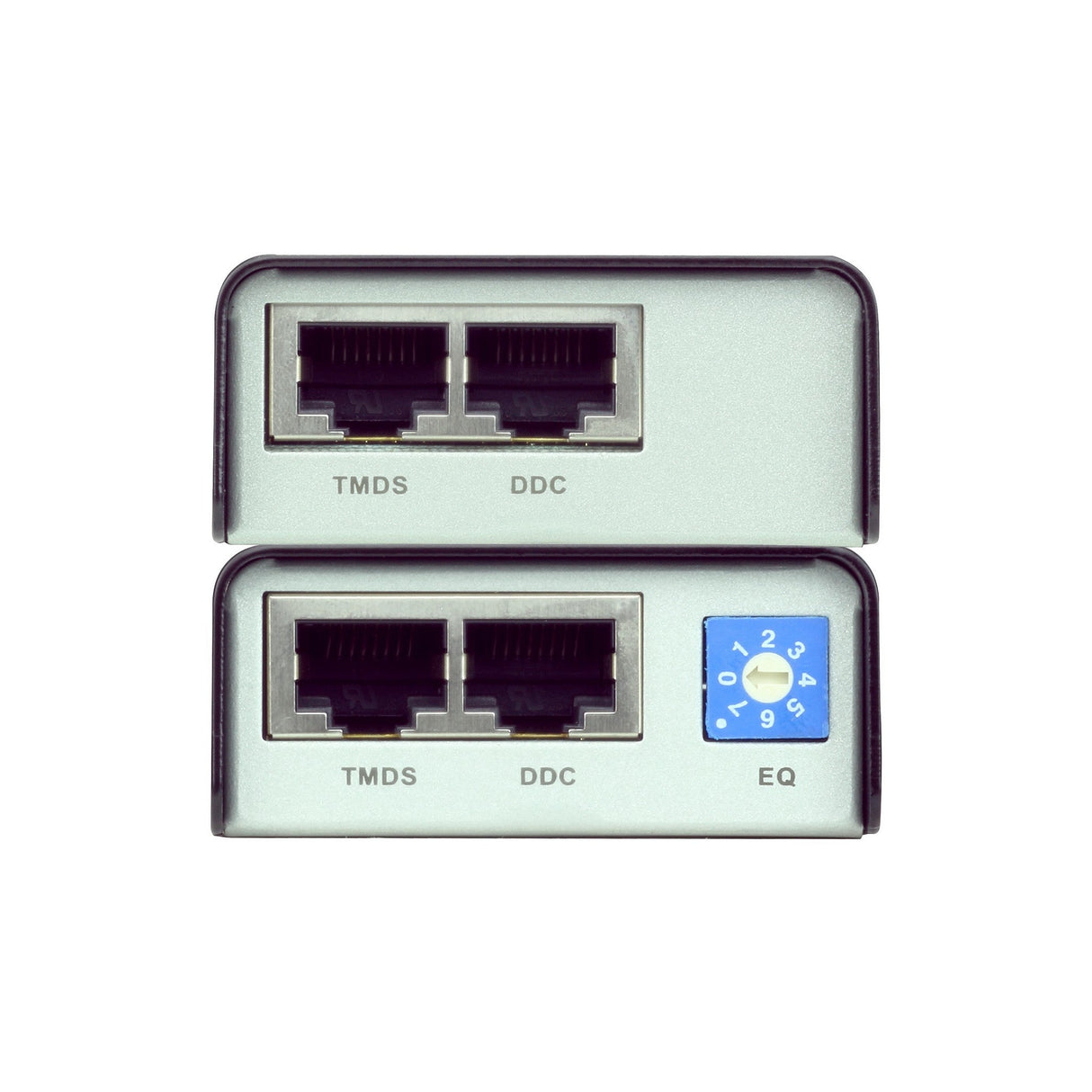

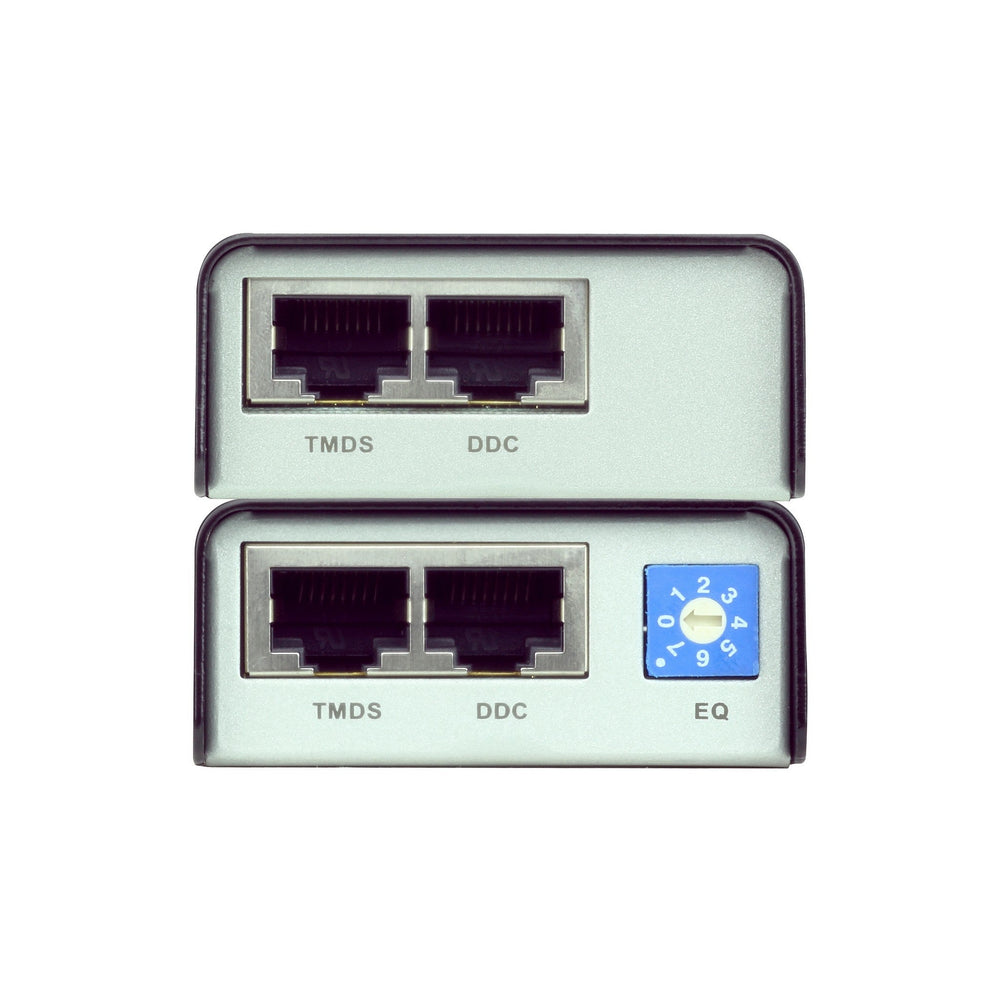

ATEN VE800A Cat5 HDMI Extender up to 200 Feet

ATEN VE800A Cat5 HDMI Extender up to 200 Feet

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire

Key Features

• Extends the distance between HDMI source and HDMI display
• Uses Cat 5e cable to connect the local and remote units
• Features ATEN EDID technology that allows transmission over one Cat 5e cable
• Extend 1080p by 130 ft. (40 m); extend 1080i (HDTV) by 196 ft. (60 m)
• Superior video quality - 1920 x 1200, up to 1080p
• HDMI (3D, Deep Color); HDCP Compatible
• Supports Dolby True HD and DTS HD Master Audio
• 8 segment equalization adjustment switch optimizes display quality
• DDC compatible

Technical Specifications

VE800AT
Power: 1 x DC Jack
EQ Switch: N/A
Power: 1 (Orange)
On Line: N/A
Video: 1920x 1200
Power Consumption: DCSV, 1W
Operating Temperature: 0-50 degrees C
Storage Temperature: -20-60 degrees C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.4 lb
Dimensions (L x W x H): 3.5 x 2.2 x 0.9 in

VE800AR
Power: 1 x DC Jack
EQ Switch: 1 x Knob
Power: 1 (Orange)
On Line: 1 (Green)
Video: 1920 x 1200
Power Consumption: DC5V, 0.75W
Operating Temperature: 0-50 degrees C
Storage Temperature: -20-60 degrees C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.4 lb
Dimensions (L x W x H): 3.5 x 2.2 x 0.9 in
