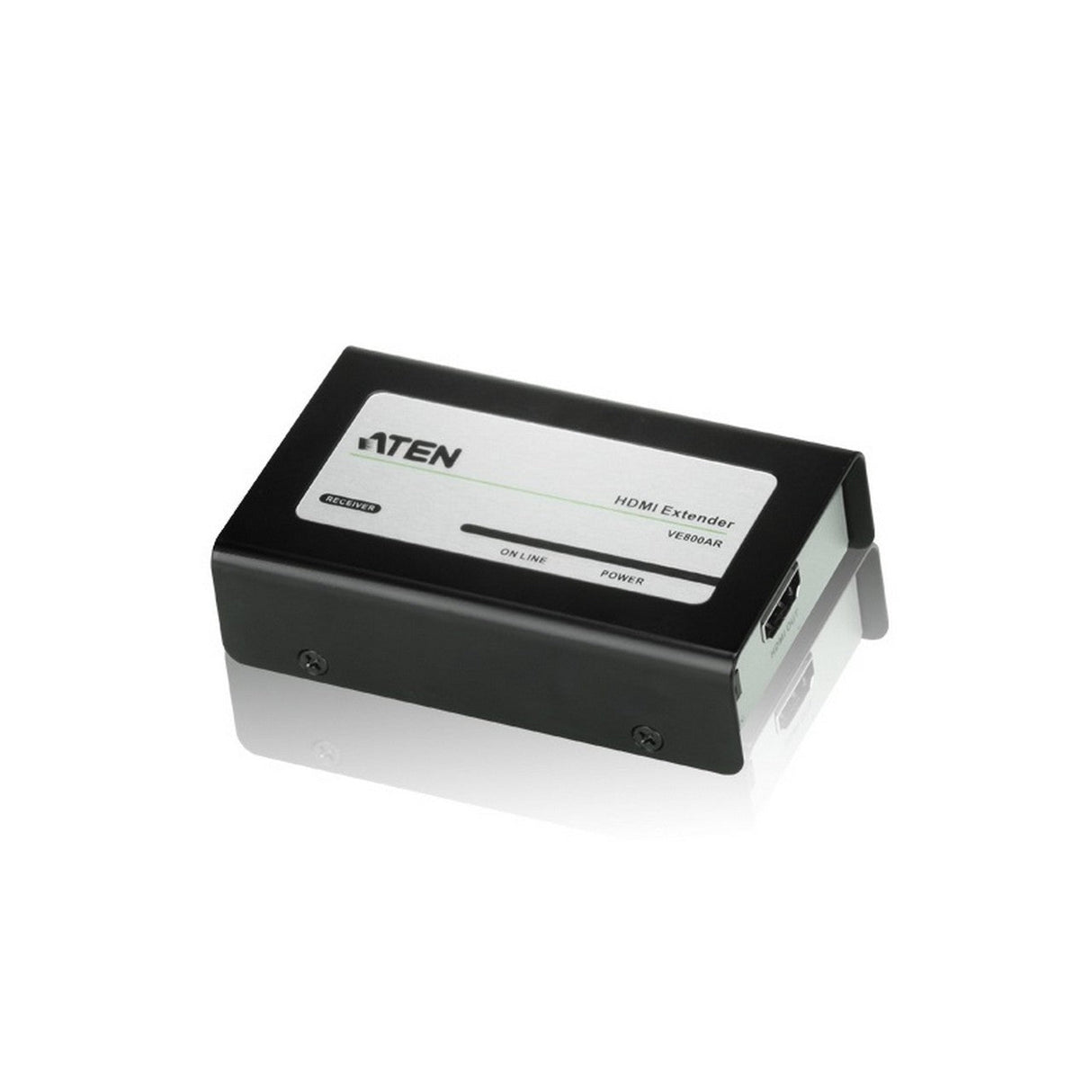

Aten VE800AR HDMI Cat 5 Receiver
The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Key Features
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality - 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Technical Specifications
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D, Deep Color)
HDCP
Compatible
Max. Resolutions / Distance
Up to 1080p@40m; 1080i@60m
Audio
Output
1 x HDMI Type A Female (Black)
Power
Connectors
1 x DC Jack (Black)
Consumption
5 VDC, 0.75W
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.16 kg ( 0.35 lb )
Dimensions (L x W x H)
9.00 x 5.50 x 2.30 cm
(3.54 x 2.17 x 0.91 in.)
Carton Lot
5 pcs
