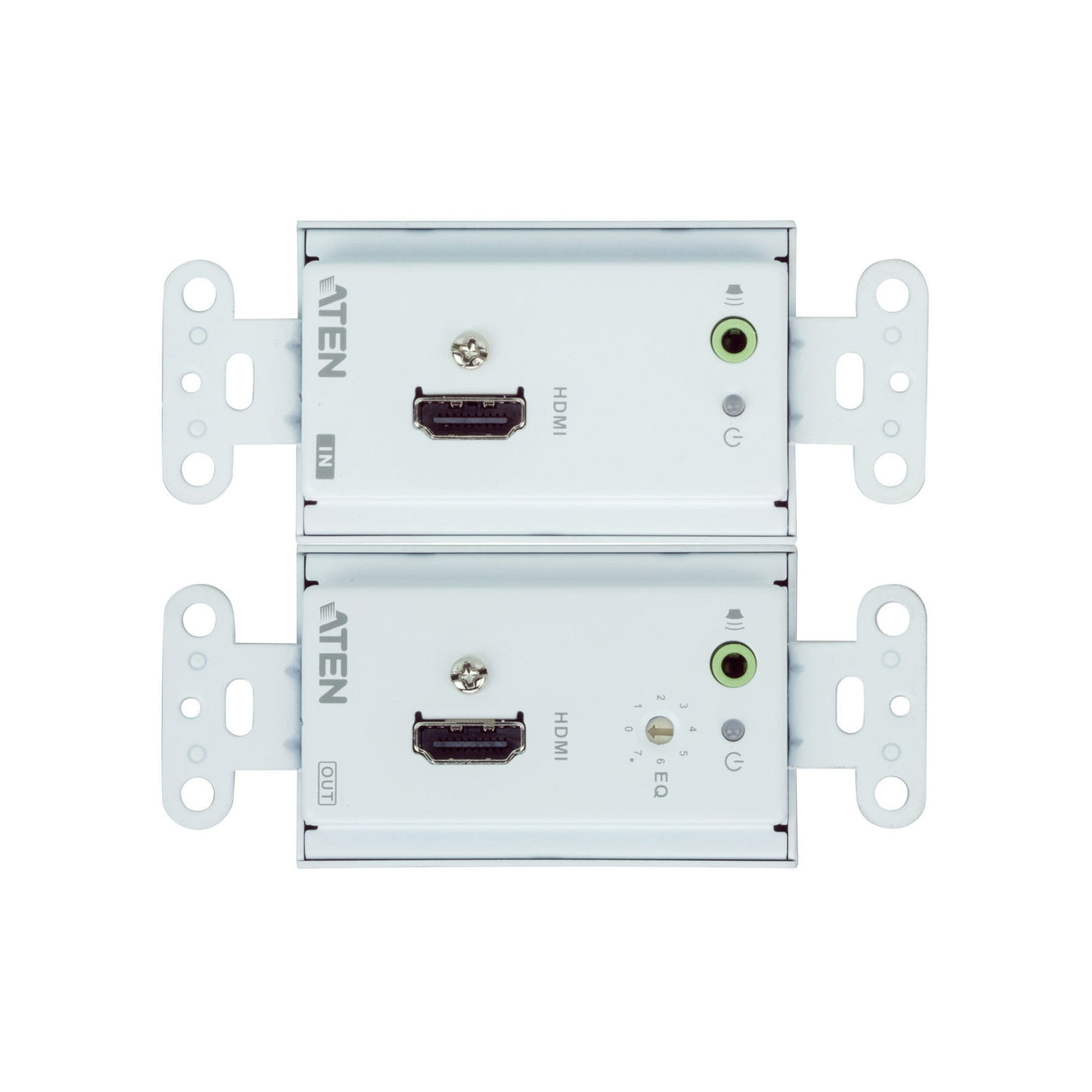

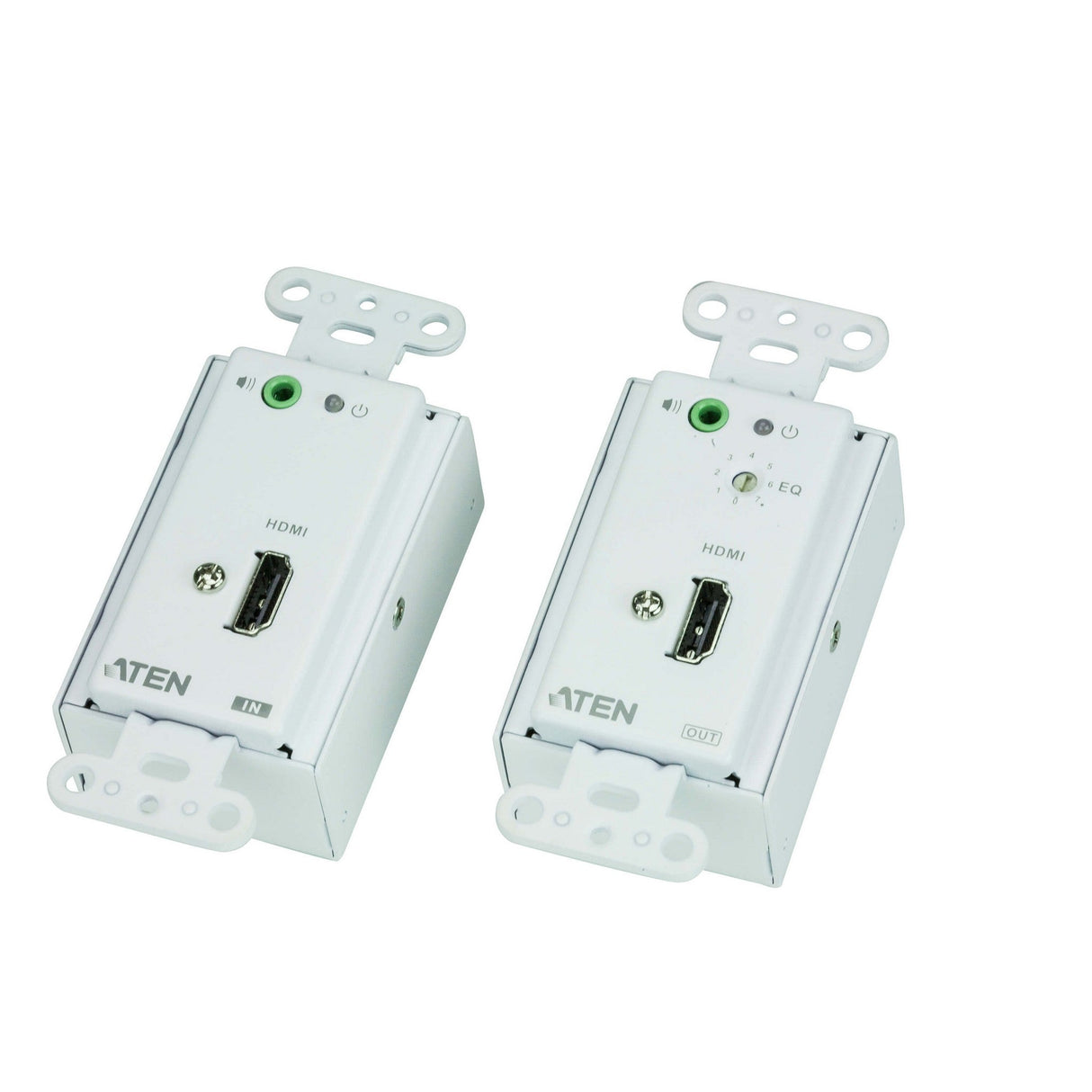

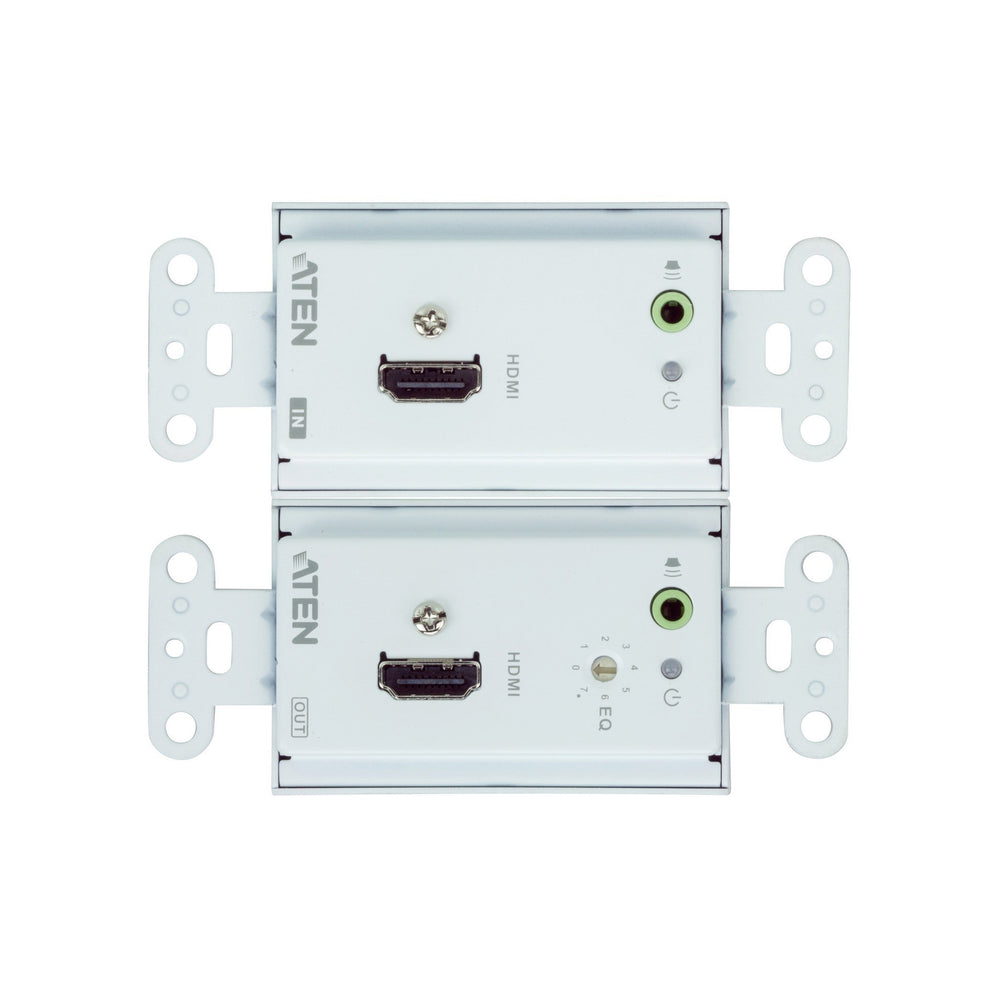

ATEN VE806 HDMI over Cat5 Extender Wall Plate

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 200 feet (60m) using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.

The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Key Features

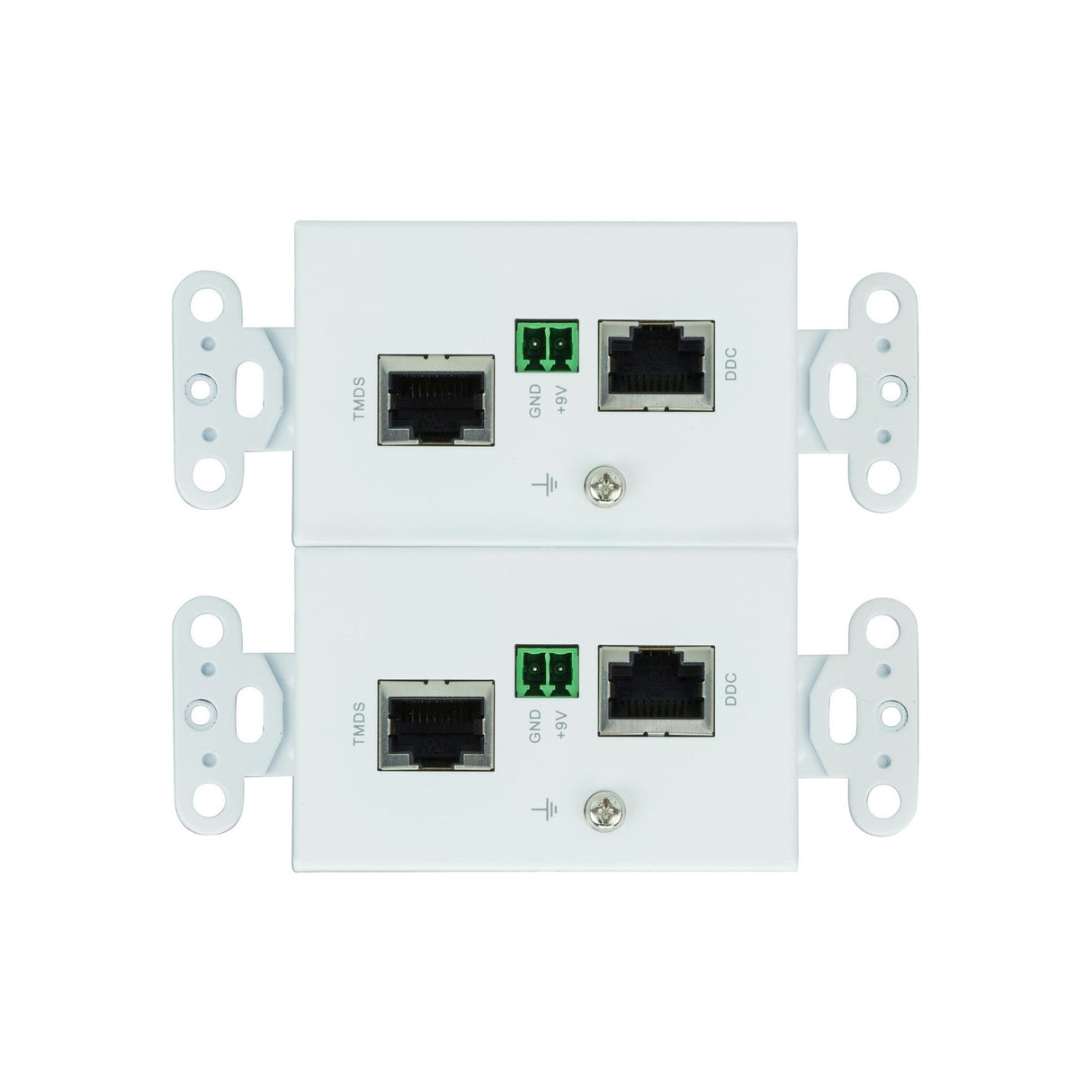

• Uses two Cat 5e cables to connect the local and remote units one to transmit video and audio; and another for power *
• Remotely powered from either the Transmitter or Receiver side **
• Extends the distance between HDMI source and HDMI display
• Superior video quality up to 1080p@60Hz 140 feet(40m), 1080i@60Hz 200 feet(60m)
• HDMI (3D, Deep Color); HDCP Compatible
• 8 segment equalization adjustment switch optimizes display quality
• Supports wide screen formats
• Supports hot-plugging
• Decora type design is easily configurable to fit various wall plates
• LED indication of power sources / connection status
• Supports stereo audio
• Built-in 8KV/15KV ESD protection
• Easy installation
• Wall mountable type for a neat and cleaner installation
• Plug-and-play no software installation required

Technical Specifications

VE806T
Operating Temp.: 0-50°C
Storage Temp. : -20-60°C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.4 lb. (0.17 kg)
Dimensions(L x W x H) : 4.1 x 1.7 x 1.6 in. (10.41 x 4.40 x 4.00cm)

VE806R
Operating Temp.: 0-50°C
Storage Temp. : -20-60°C
Humidity: 0-80% RH, Non-condensing
Housing: Metal
Weight: 0.4 lb. (0.17 kg)
Dimensions(L x W x H) : 4.1 x 1.7 x 1.6 in. (10.41 x 4.40 x 4.00cm)
