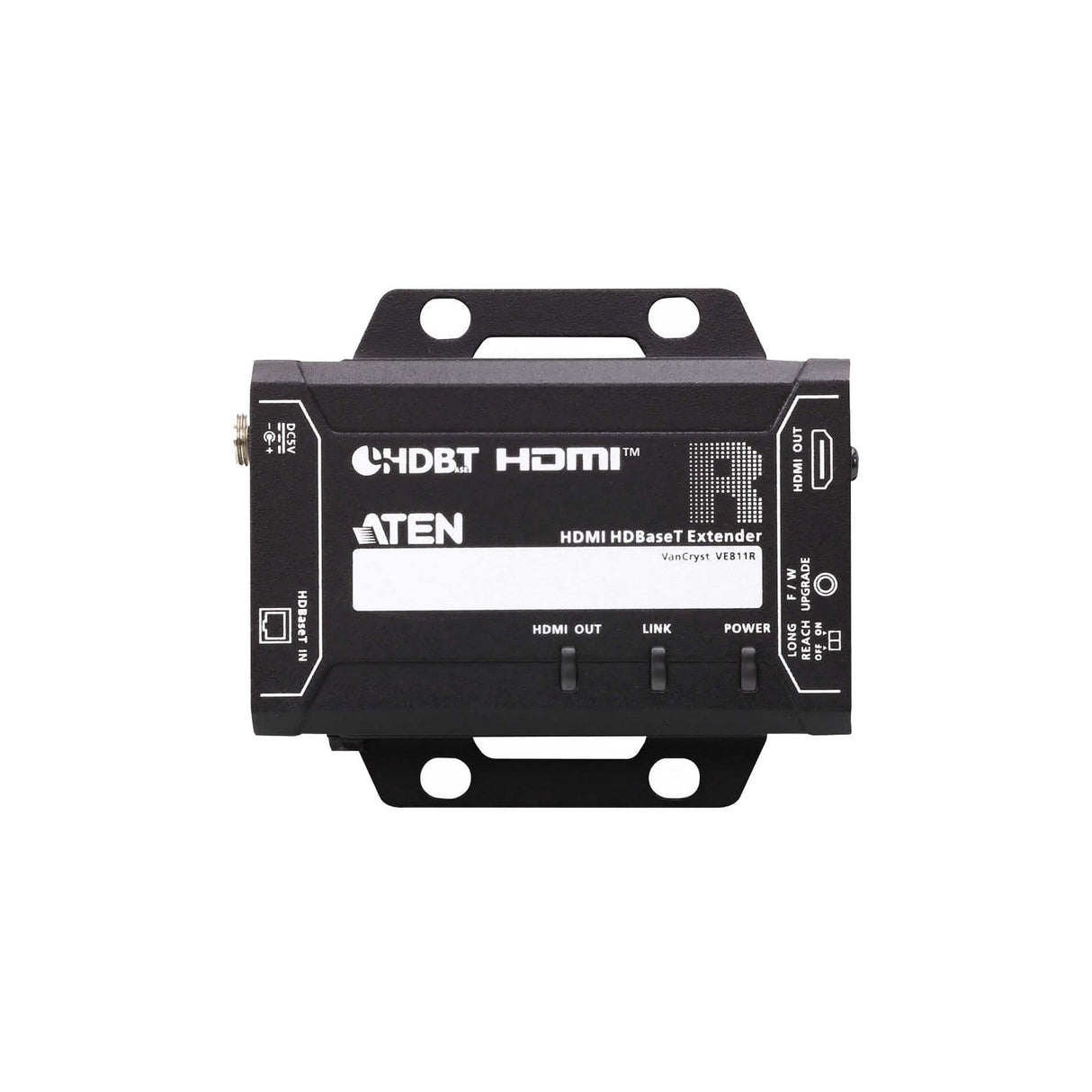

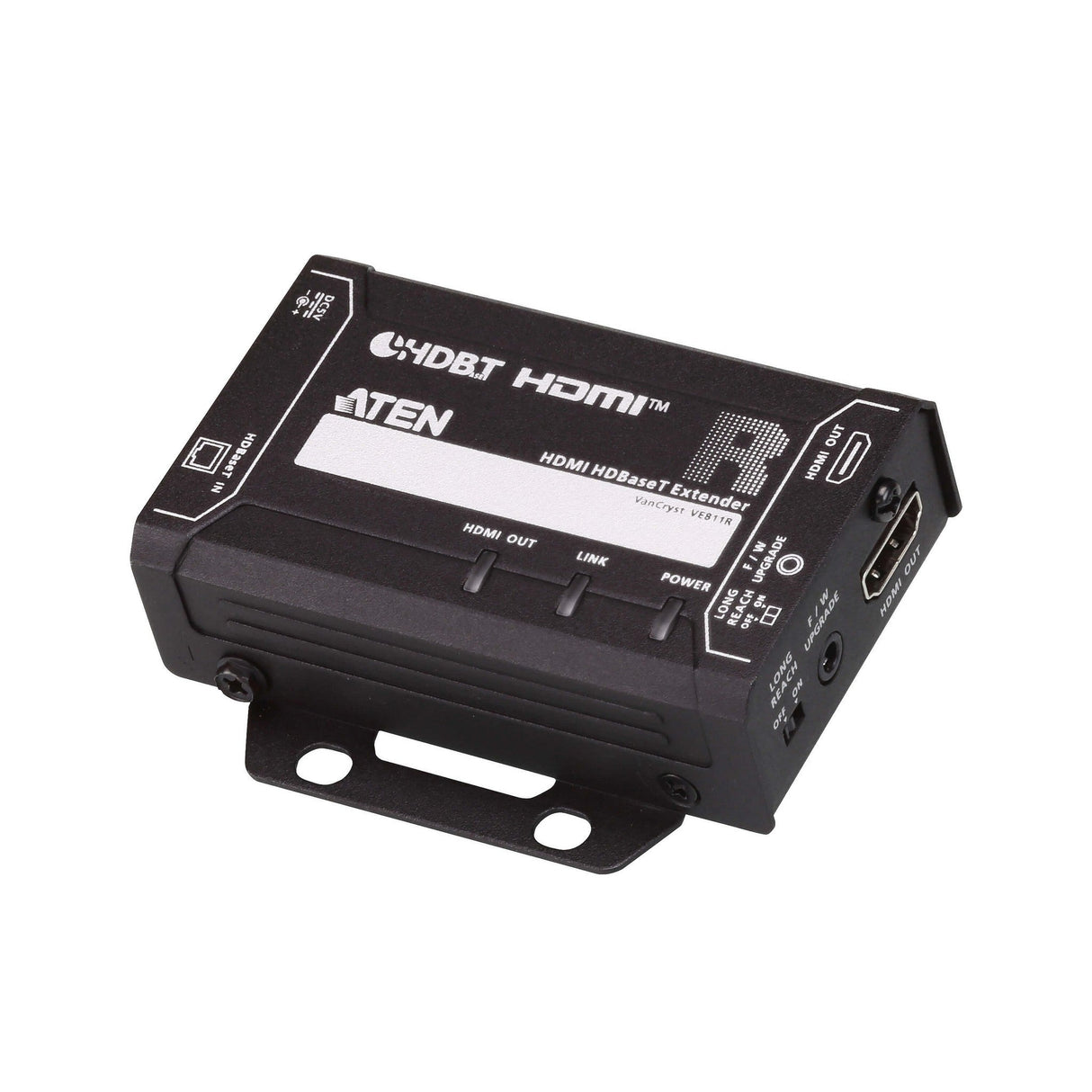

ATEN VE811R HDMI HDBaseT Receiver

The ATEN VE811R HDMI HDBaseT Receiver guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811R meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today’s digital trends, the VE811R is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

Key Features

• HDBaseT Connectivity - extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep Color, 4K)
• HDCP 2.2 compatible
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
• Supports wide screen format
• Plug and play - no software required
• Built- in 8KV/ 15 KV ESD protection
• Rack Mountable

Technical Specifications

Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
3 m (2L-7D03H)
Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output
1 x HDMI Type A Female (Black)

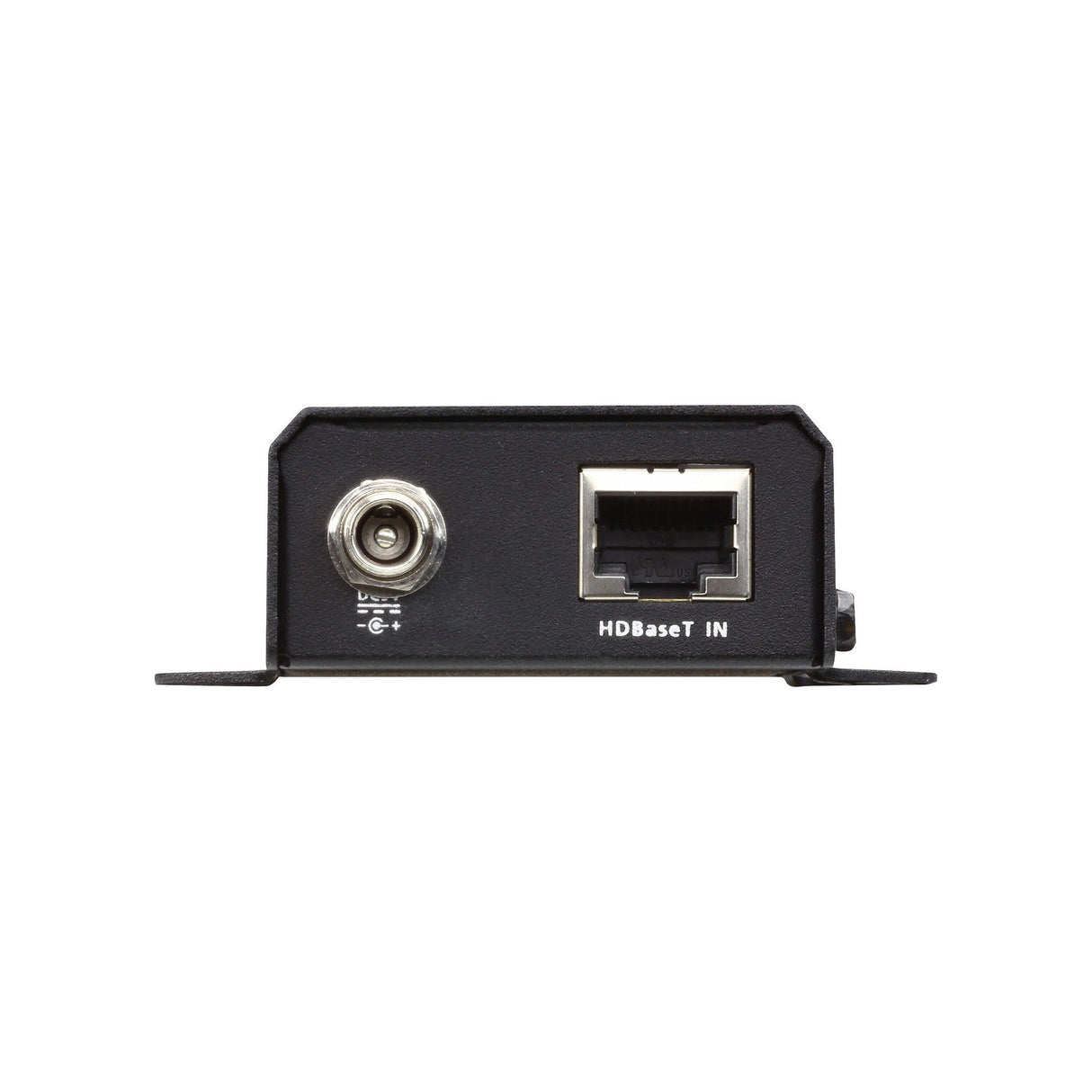

Connectors
Unit To Unit
1 x RJ-45 Female
Firmware Upgrade
1 x Mini Stereo Jack Female (Black)
Power
1 x DC Jack (Black) with locking

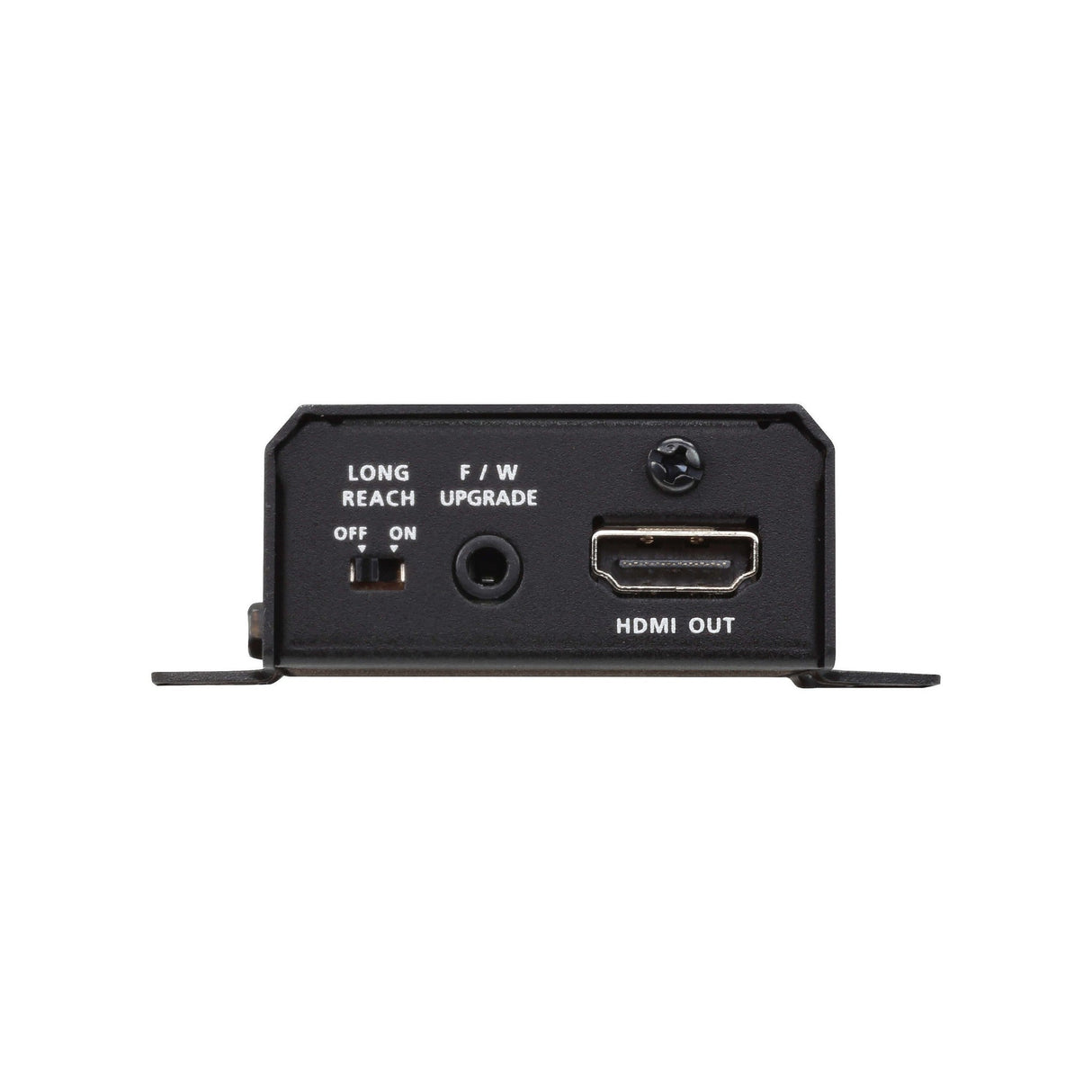

Switches
Long Reach Mode Switch
1 x Slide Switch - ON/OFF
Power Consumption
DC5V:3.84W:18BTU
Environmental
Operating Temperature
0 - 40C
Storage Temperature
-20 - 60C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.17 kg ( 0.37 lb )
Dimensions (L x W x H) with bracket
8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket
8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)
