Aten VE812T HDMI 4K HDBaseT Transmitter
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

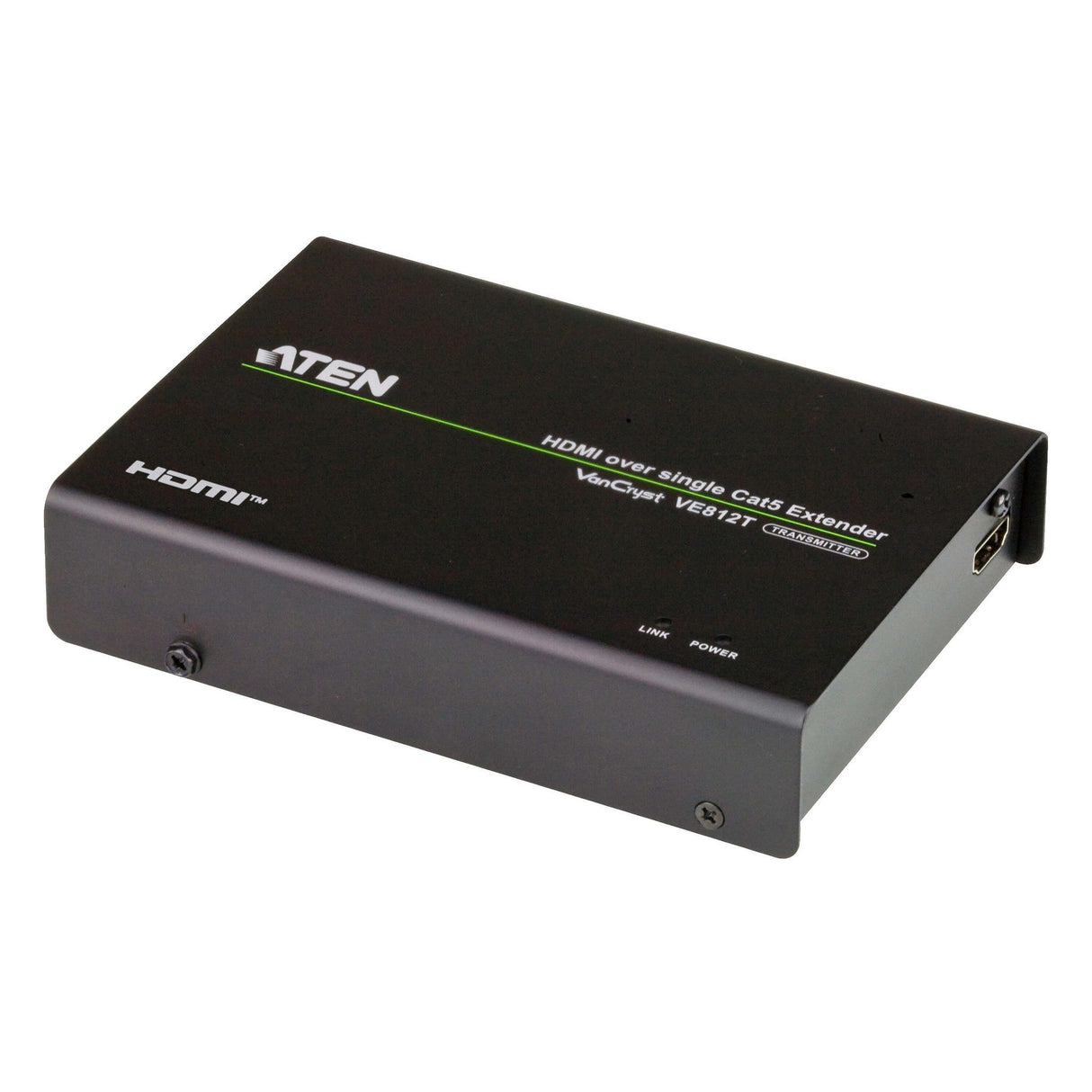

Aten VE812T HDMI 4K HDBaseT Transmitter
The VE812T HDMI Over Single Cat 5 Transmitter supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812T not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
Key Features
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340MHz bandwidth for high-performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Technical Specifications
Video Input
Interfaces

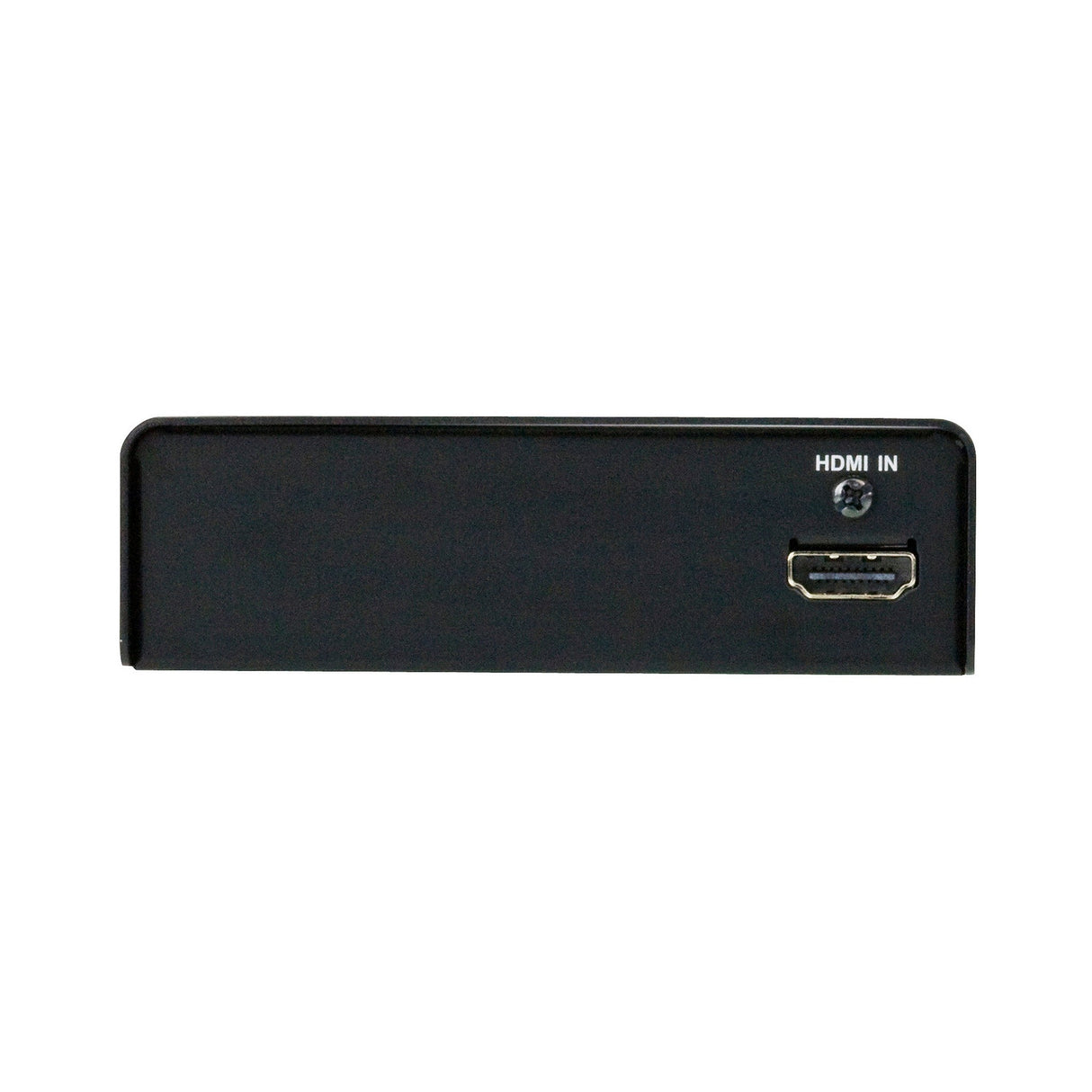

1 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
1.8 m
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP
Compatible
Consumer Electronics Control
(CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
Power

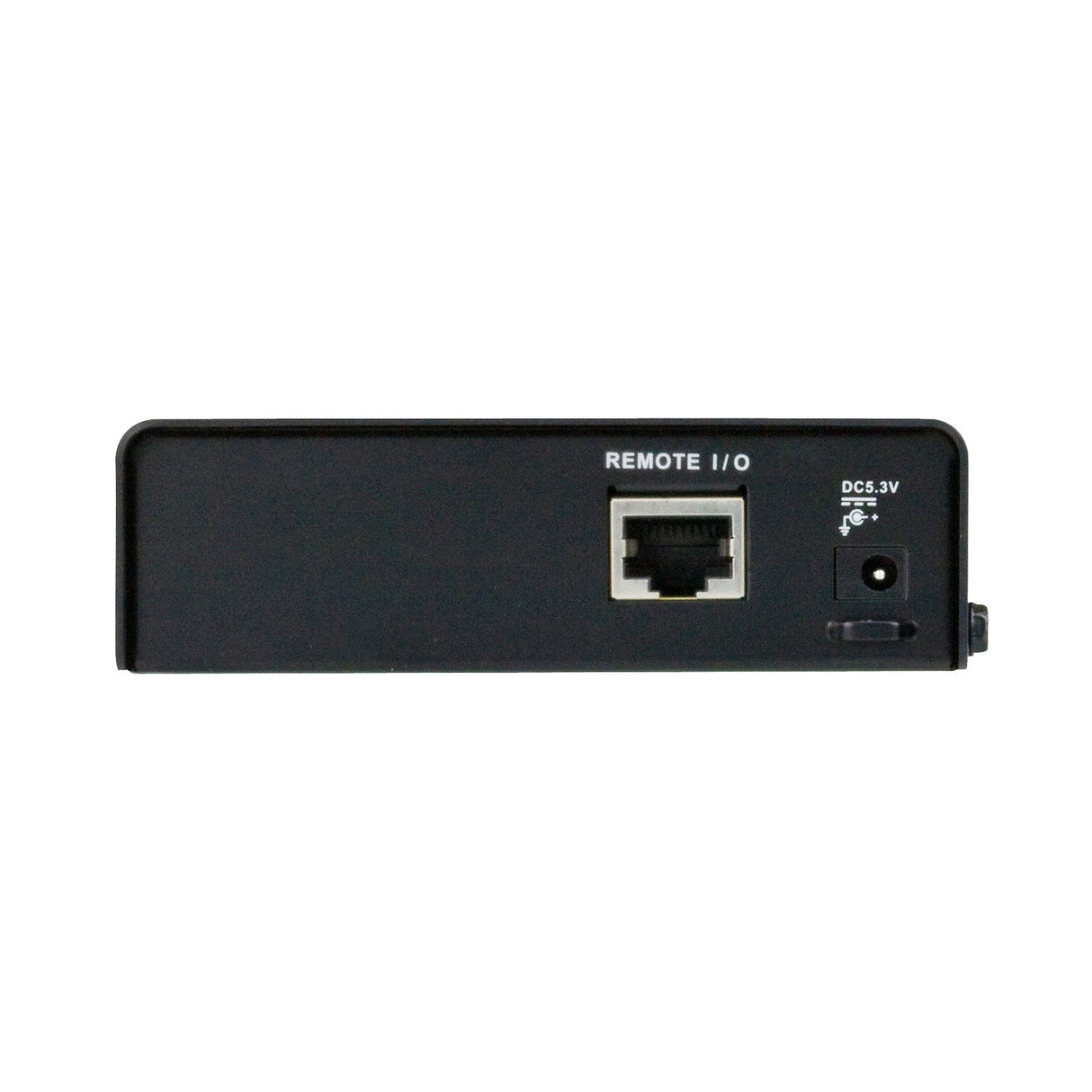

Connectors
1 x DC Jack (Black)
Consumption
5.3 VDC, 1.9W
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.41 kg ( 0.9 lb )
Dimensions (L x W x H)
14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot
5 pcs
