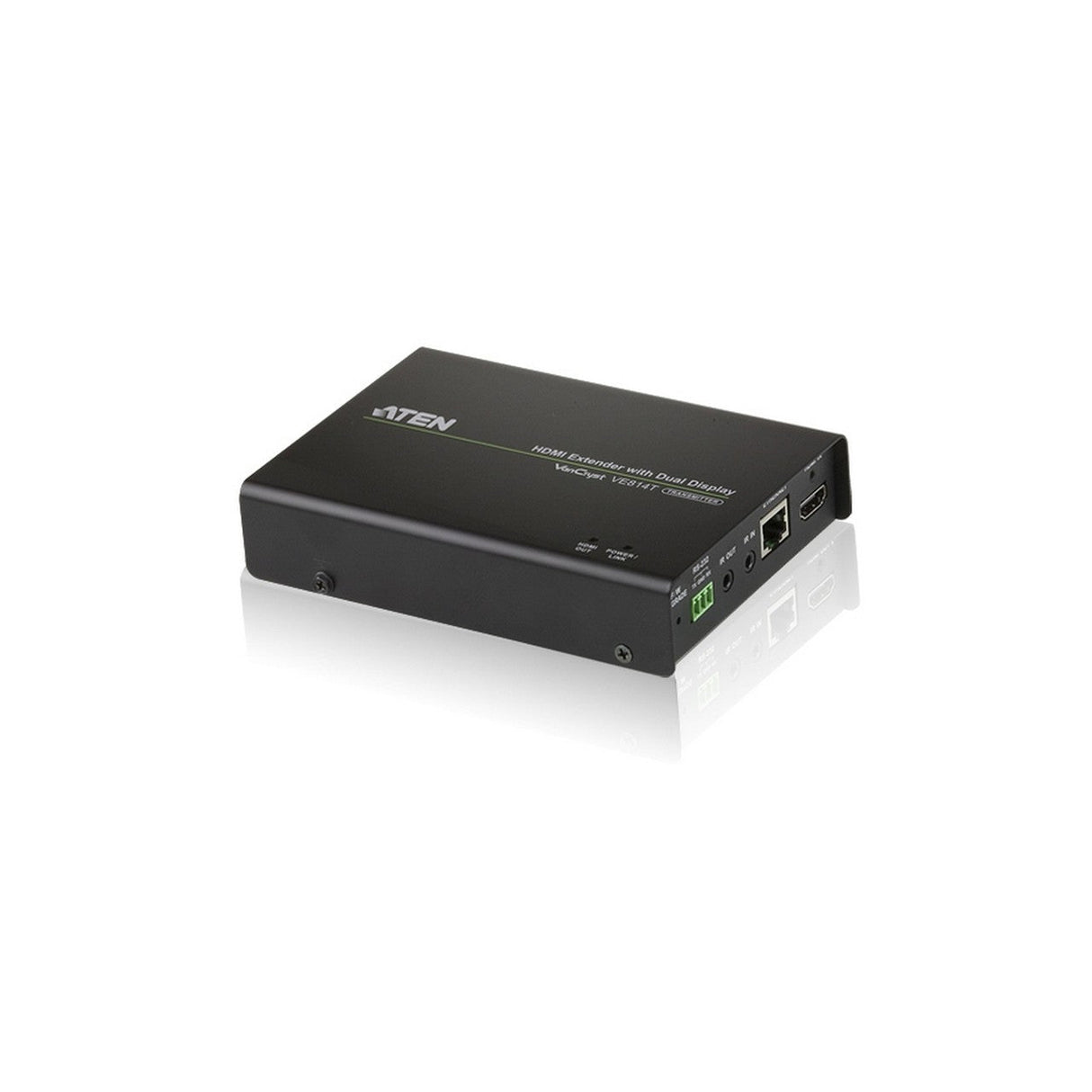

Aten VE814T HDMI HDBaseT Transmitter with Dual Output

Place your HDMI displays up to 100 meters away from your HDMI source devices with the VE814T HDMI Transmitter over single Cat 5 with Dual Display. Connecting to the VE814R receiver via affordable and easily available Cat 5e/6 cable, your media can be streamed to up to three HDMI displays dual displays connected to the receiver and another to the transmitter.

The VE814T also carries an Ethernet pass-through port for Internet connectivity, as well as RS-232 and IR signaling pass-through, which allows you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814T is HDMI (3D, Deep Color, 4Kx2K) and HDCP compatible, ensuring superior video quality and peak performance from your HDMI displays.

Key Features

• Extends the distance between HDMI source and HDMI display
• Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
• Anti-jamming resists signal interference during high-quality video transmissions using HDBaseT technology
• Supports one local and two remote displays
• Supports two IR channels for bi-directional IR signal transmission
• Extends Ethernet communication with pass-through port
• HDMI (3D, Deep Color,4kx2k); HDCP Compatible
• Long distance transmission up to 100 m
• Supports wide screen
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
• Supports up to 340 MHz bandwidth for high-performance video
• EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
• RS-232 Serial Port for serial device peripherals, such as touch screens, bar coders scanners, and so on
• Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
• Easy to install no software required
• Rack Mountable

Technical Specifications

Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
1.8 m
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
Output
1 x HDMI Type A Female (Black)
Control
RS-232
1 x Terminal Block, 3 Pole
IR
2 x Mini Stereo Jack Female (Black)
Ethernet
1 x RJ-45 Female
Power
Connectors
1 x DC Jack
Consumption
5.3 VDC, 8.5W
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.46 kg ( 1.01 lb )
Dimensions (L x W x H)
14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot
5 pcs
