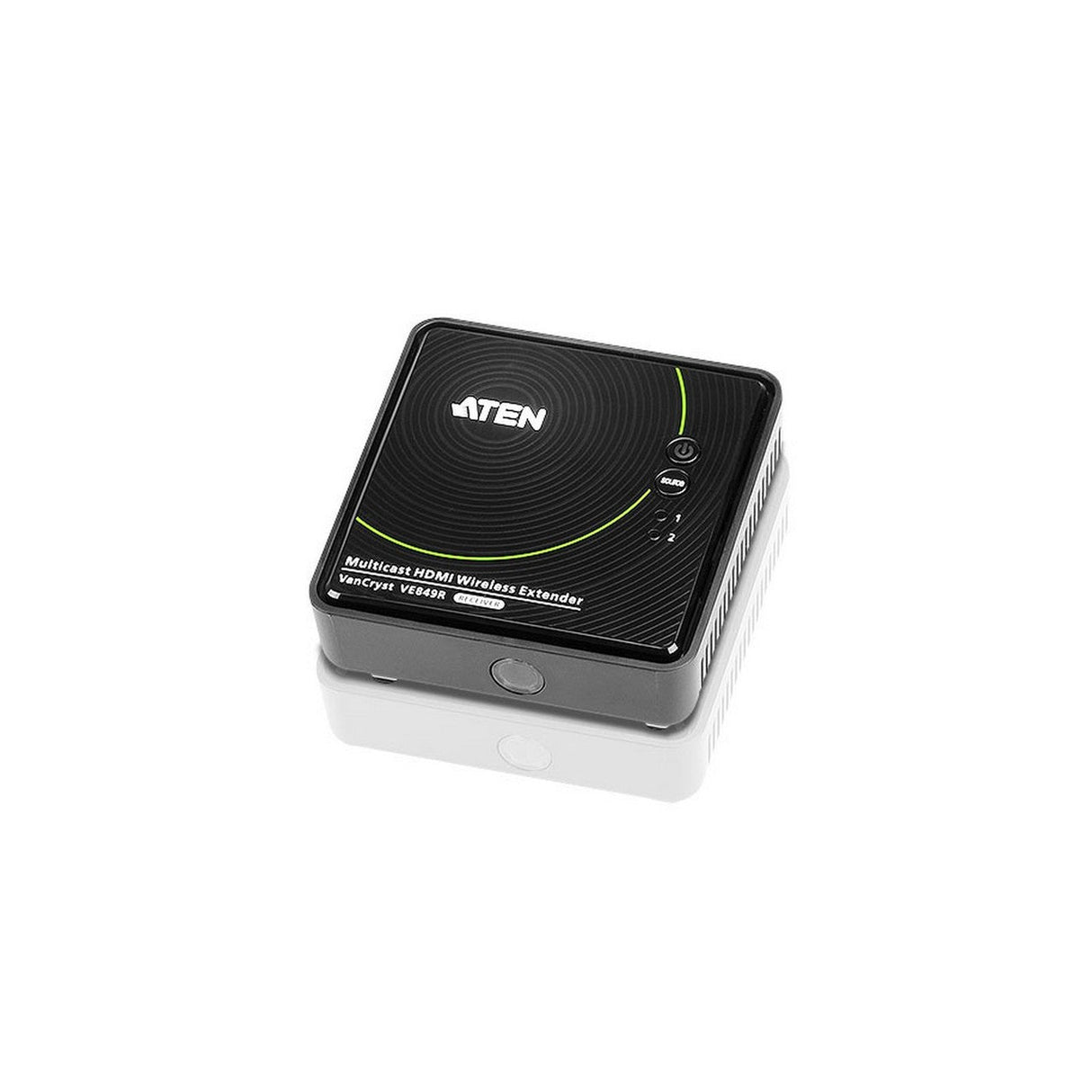

Aten VE849R | Multicast HDMI Wireless Receiver with IR Remote
Aten VE849R Multicast HDMI Wireless Receiver with IR Remote
The VE849R Multicast HDMI Wireless Receiver, when used in unison with the VE849T transmitter, allows you to position HDMI displays up to 30m* away from HDMI sources. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to remote HDTVs) wirelessly, while ensuring crystal clear image quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side, making watching up to one local and four wirelessly connected HDTVs simultaneously a breeze!
Key Features
- Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
- Wirelessly extend four HDMI displays up to 30m* from the HDMI source
- Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
- Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
- Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
- Wireless 3D supported
- Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
- Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
- Keeps home theater electronic devices neatly out-of-sight
- Built-in IR receiver with IR blaster cable allows control of remote source devices
- WHDI Technology - Low latency <1ms
- HDCP compatible
- No software or driver installation needed
Technical Specifications
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D)
HDCP Compatible
Max. Resolutions / Distance
Up to 1080p@30m
Audio
Output
1 x HDMI Type A Female (Black)
Control
IR
1 x 2.5mm Mini Stereo Jack Female (Black)
Power
Connectors
1 x DC Jack (Mini USB)
Consumption
5 VDC, 7.5W (Mini USB)
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.33 kg ( 0.73 lb )
Dimensions (L x W x H)
9.50 x 9.50 x 3.50 cm
(3.74 x 3.74 x 1.38 in.)
