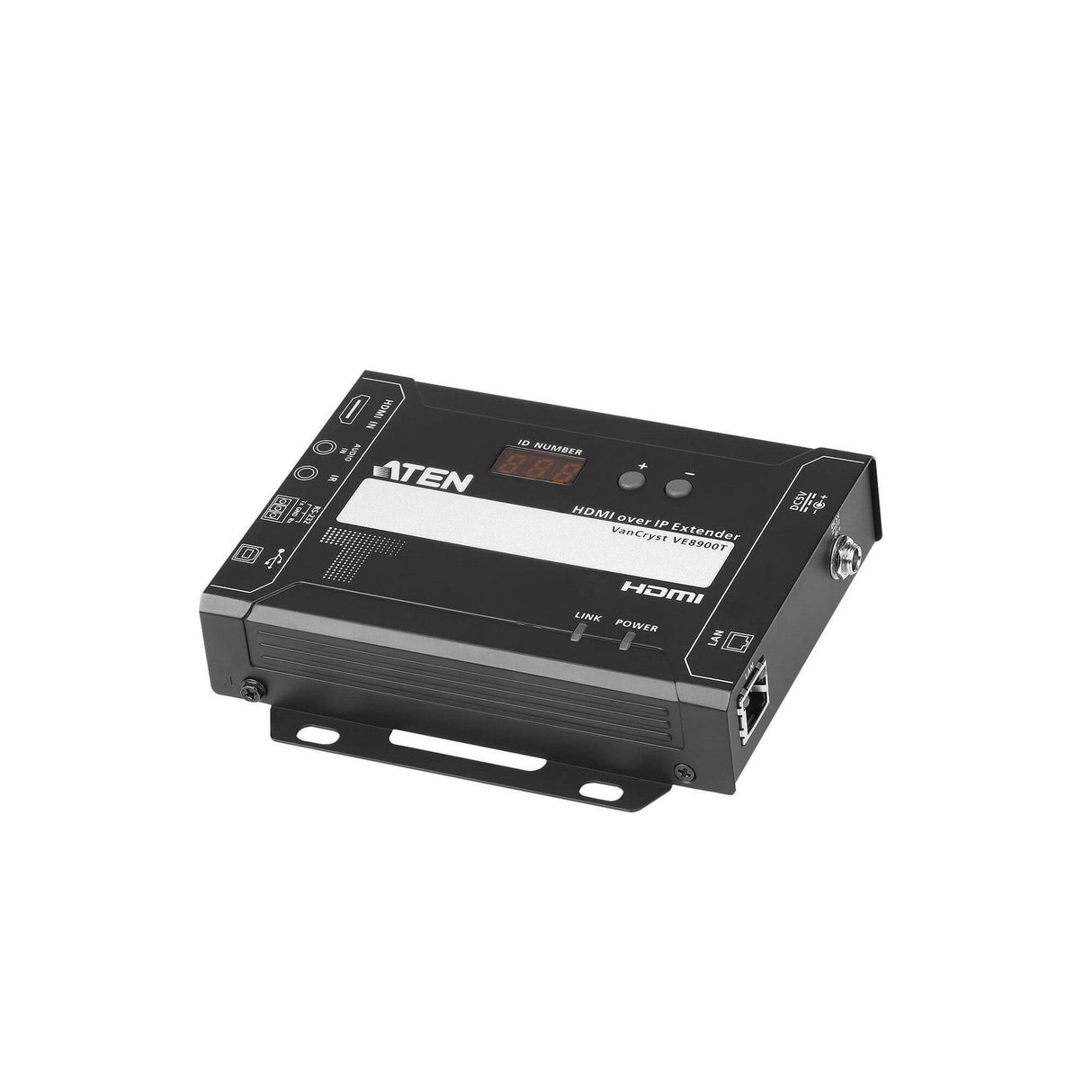

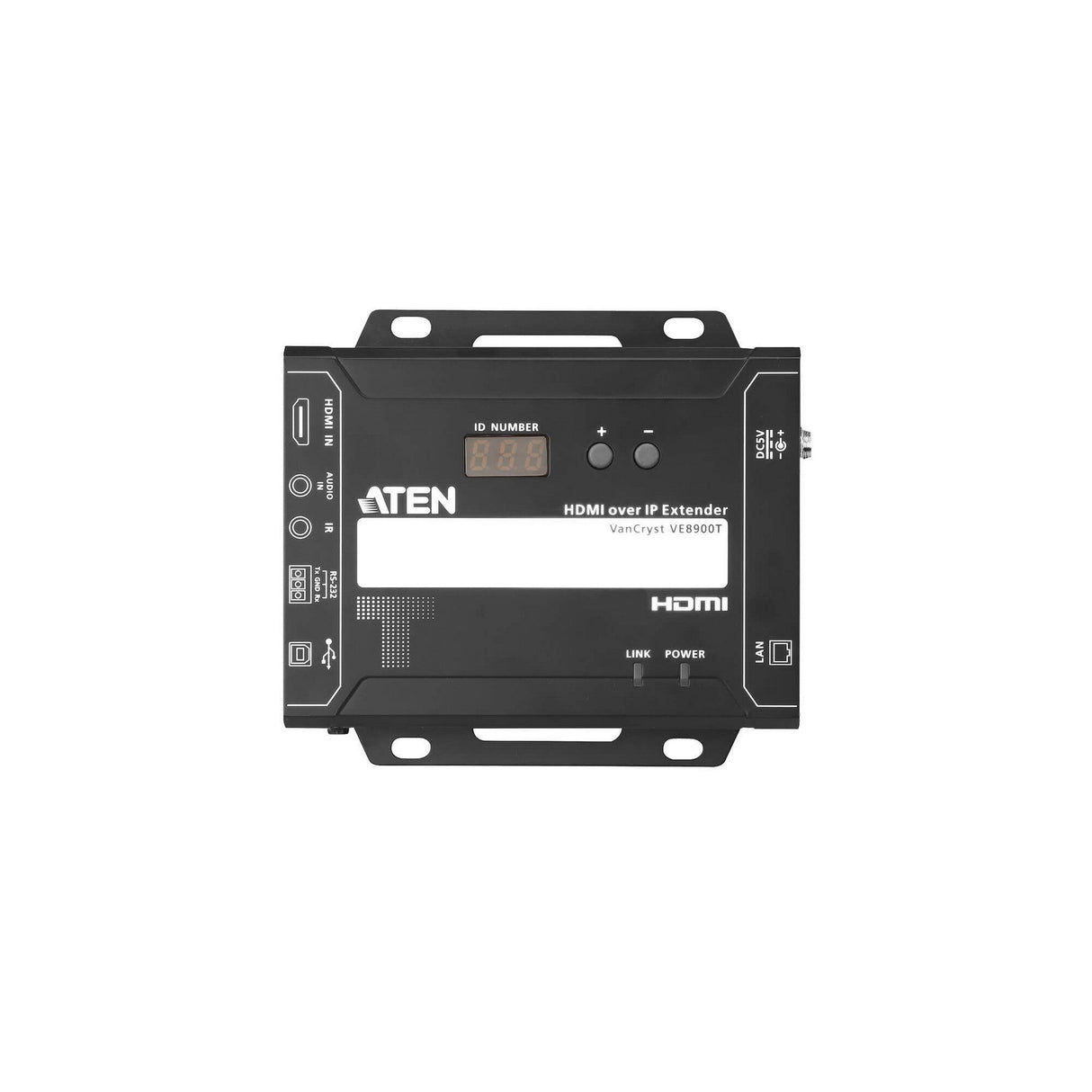

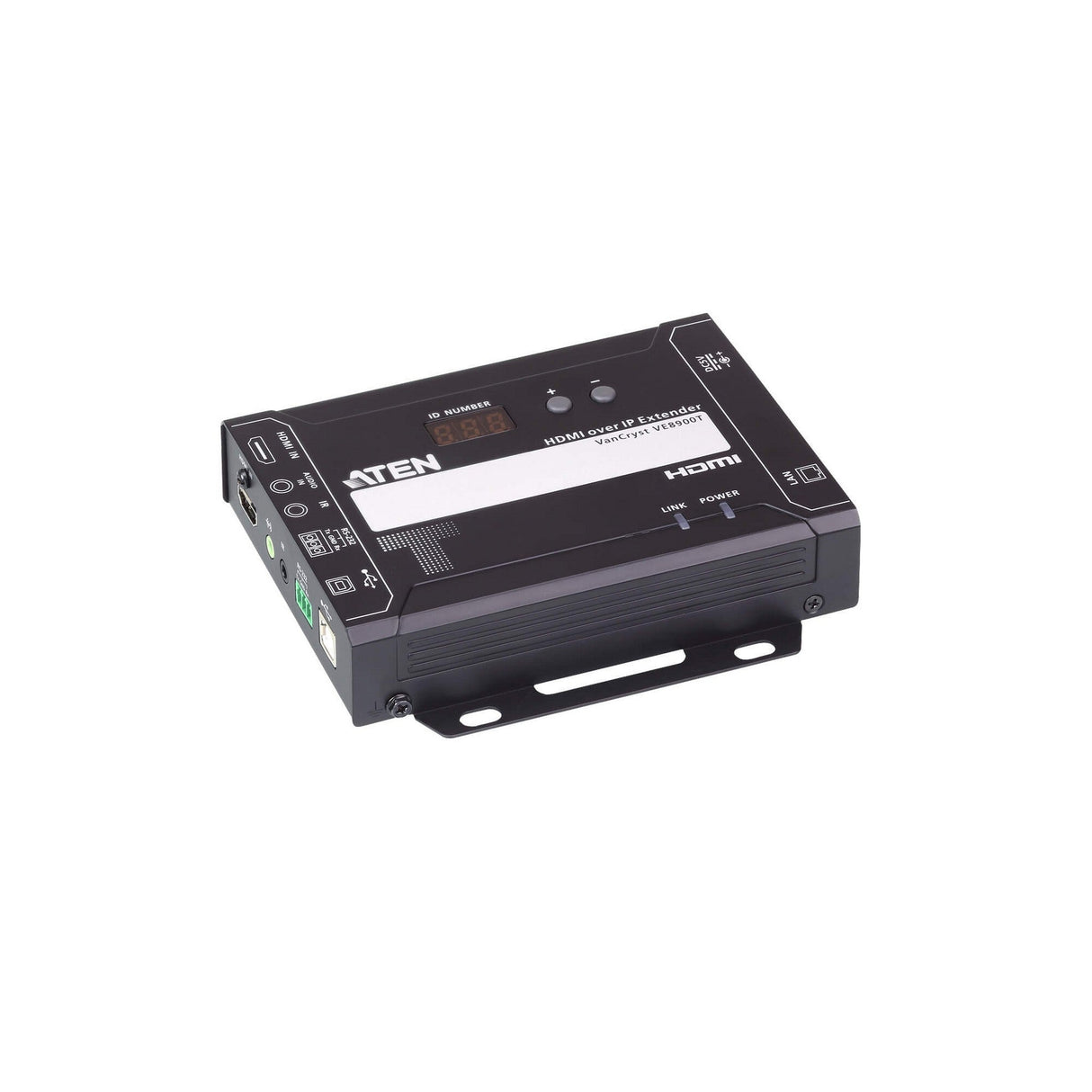

ATEN VE8900T HDMI over IP Transmitter
ATEN VE8900T HDMI over IP Transmitter
Free Shipping
ATEN VE8900T HDMI over IP Transmitter
The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*. Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Key Features
- Lightweight Compression with Ultra-low Latency
- Delivers visually lossless high-quality video up to 1080p @ 60 Hz
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Limitless Scalability and Flexibility
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
Technical Specifications

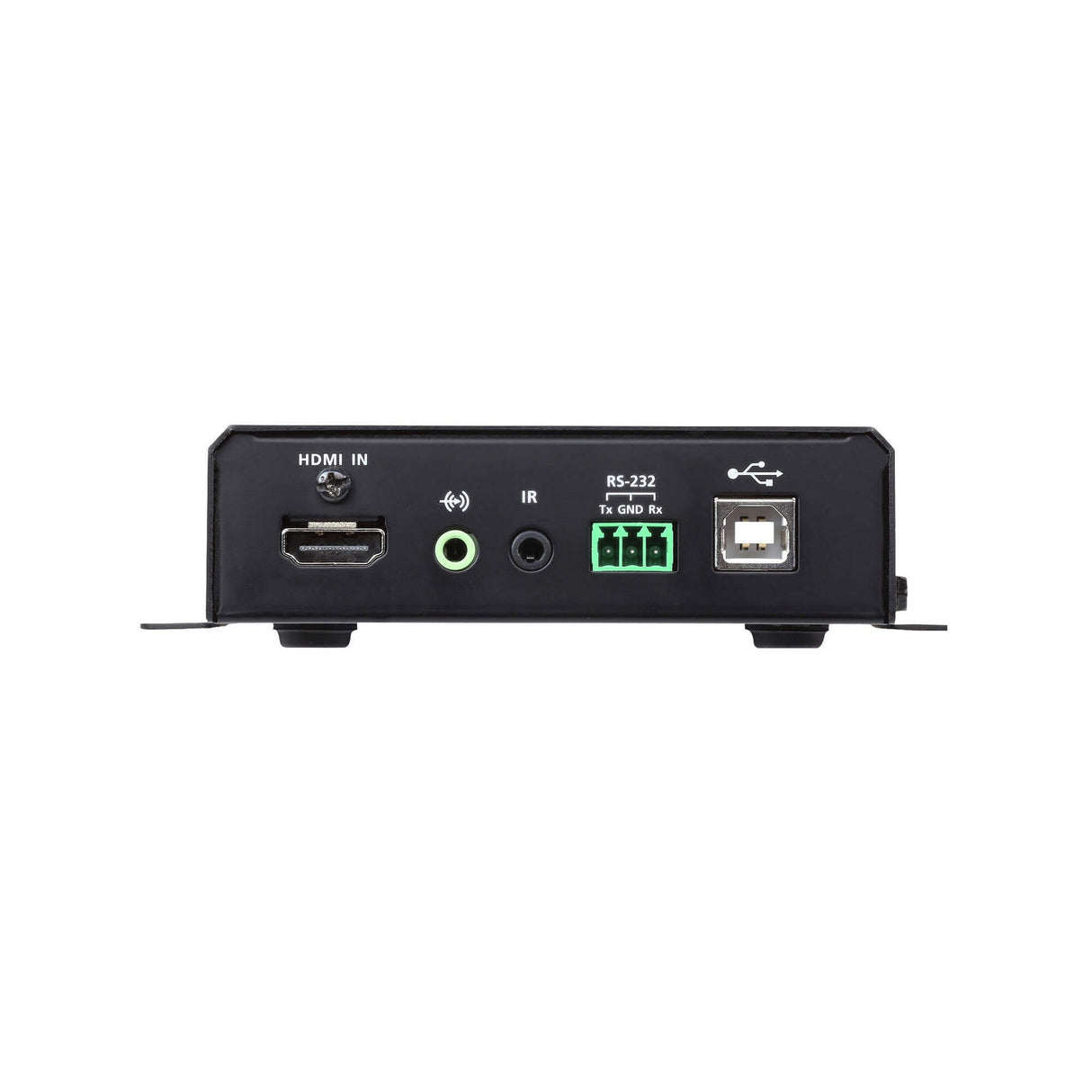

Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
3 m (2L-7D03H)
Video
Max. Data Rate
Average: 150 ~ 500Mbps
Compliance
HDMI
HDCP Compatible
Max. Resolutions / Distance
Up to 1080p@100m (Cat 5e/6, point to point)
Audio
Input
1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors

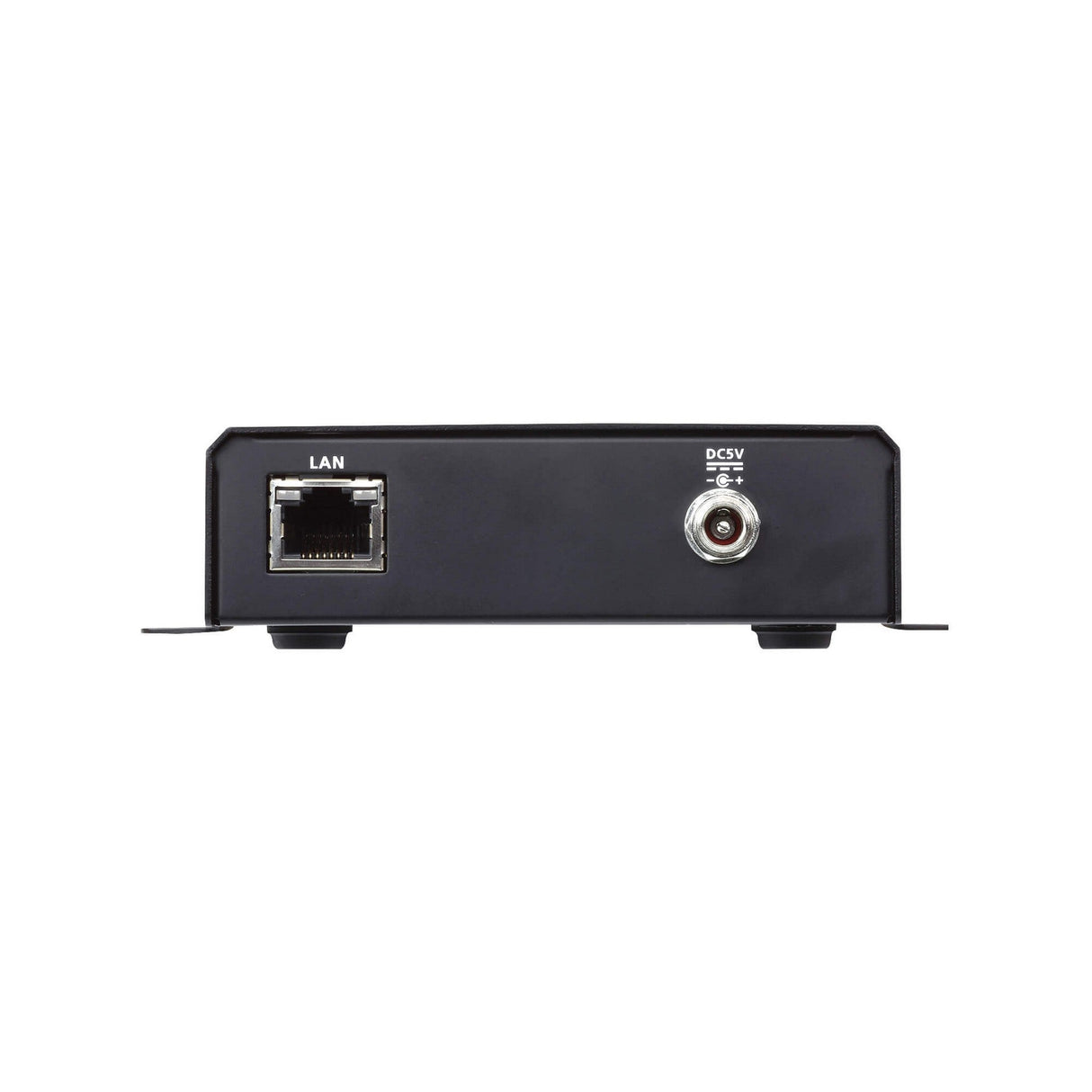

Unit To Unit
1 x RJ-45 Female
Power
1 x DC Jack (Black) with locking
Control
IR
1 x Mini Stereo Jack Female (Black)
RS-232
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB
1 x USB Type B Female (White)
Pushbuttons
ID Number Selection
2 x Push buttons
Power Consumption
DC5V:3.07W:14BTU
Environmental
Operating Temperature
0 - 40C
Storage Temperature
-20 - 60C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.50 kg ( 1.1 lb )
Dimensions (L x W x H) with bracket
14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket
13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
