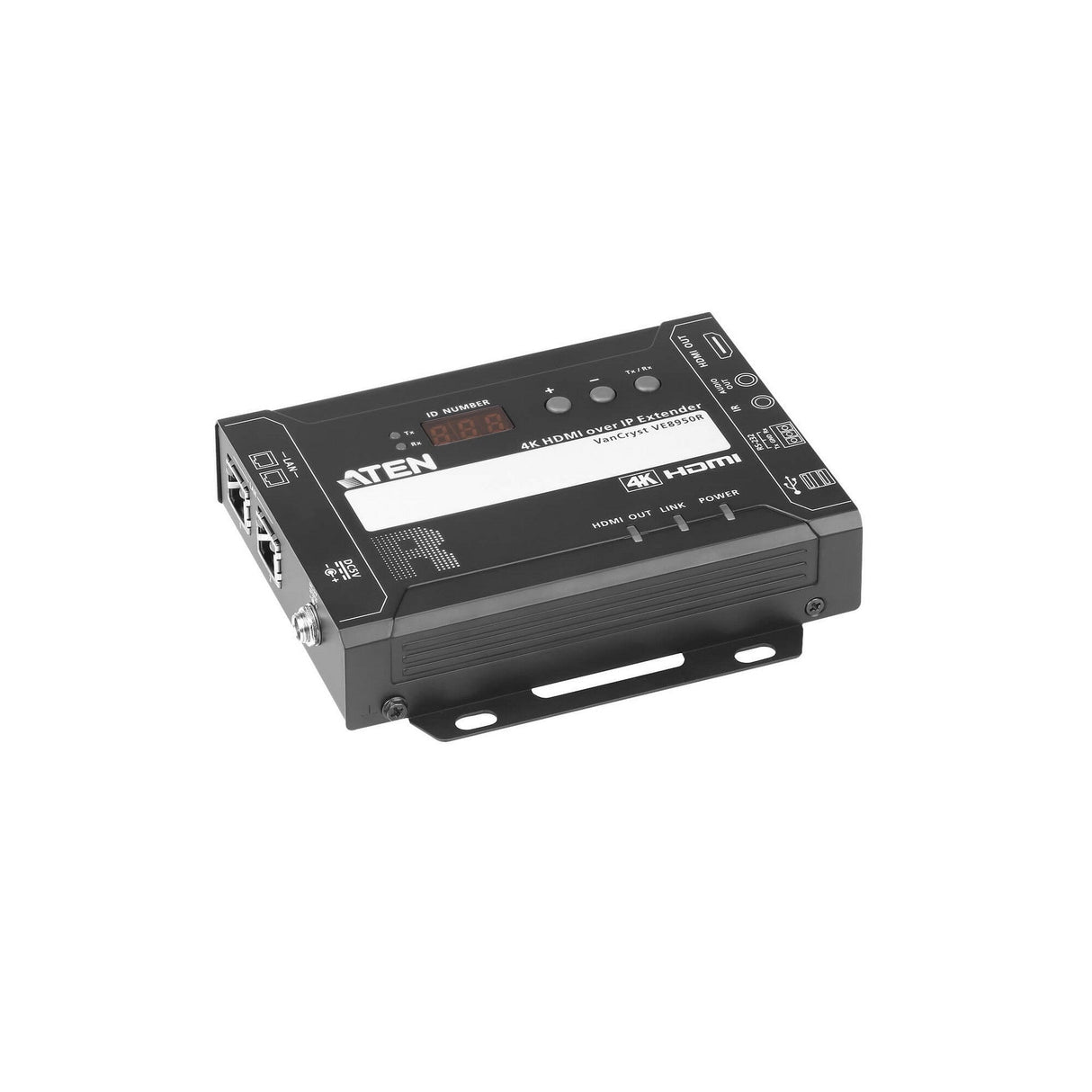

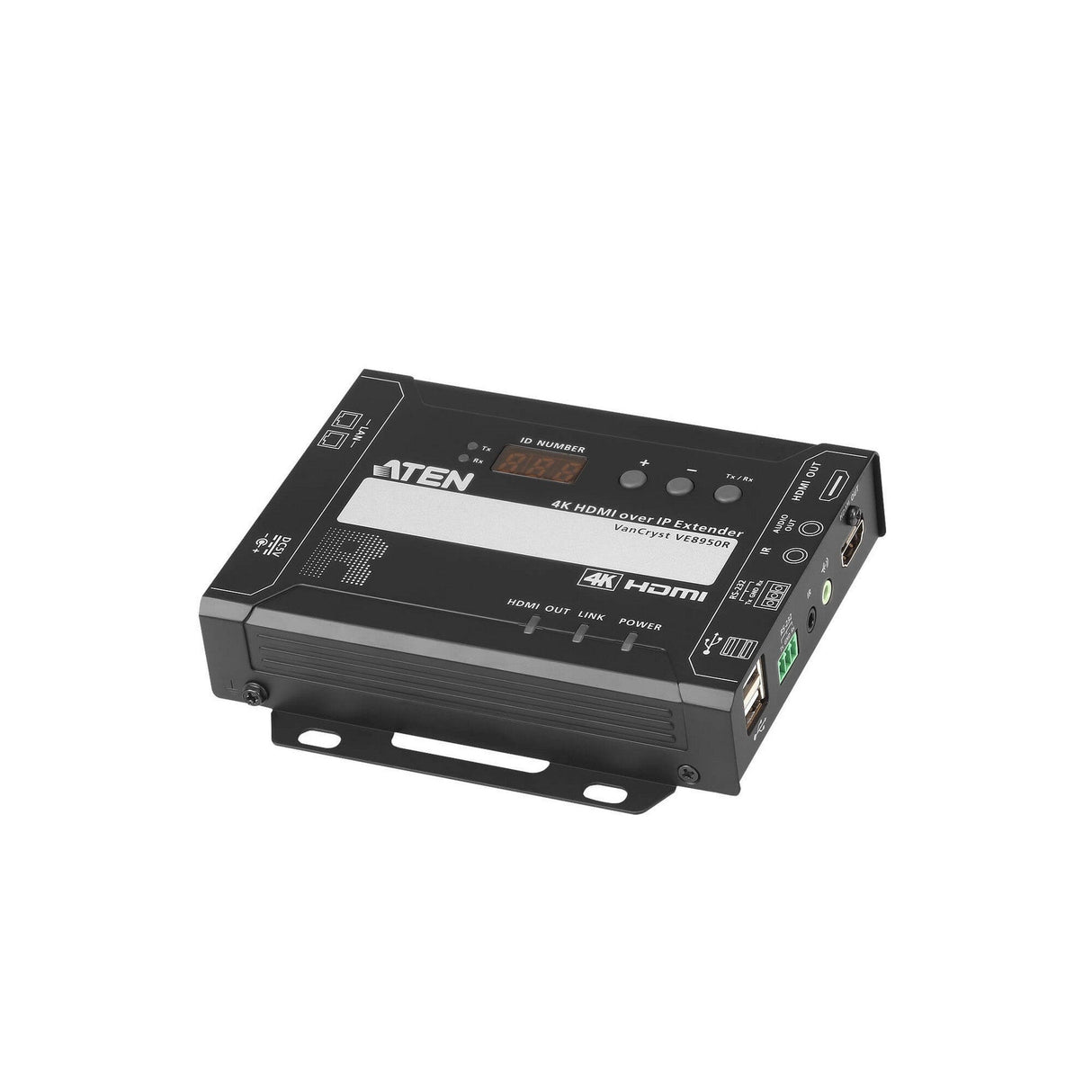

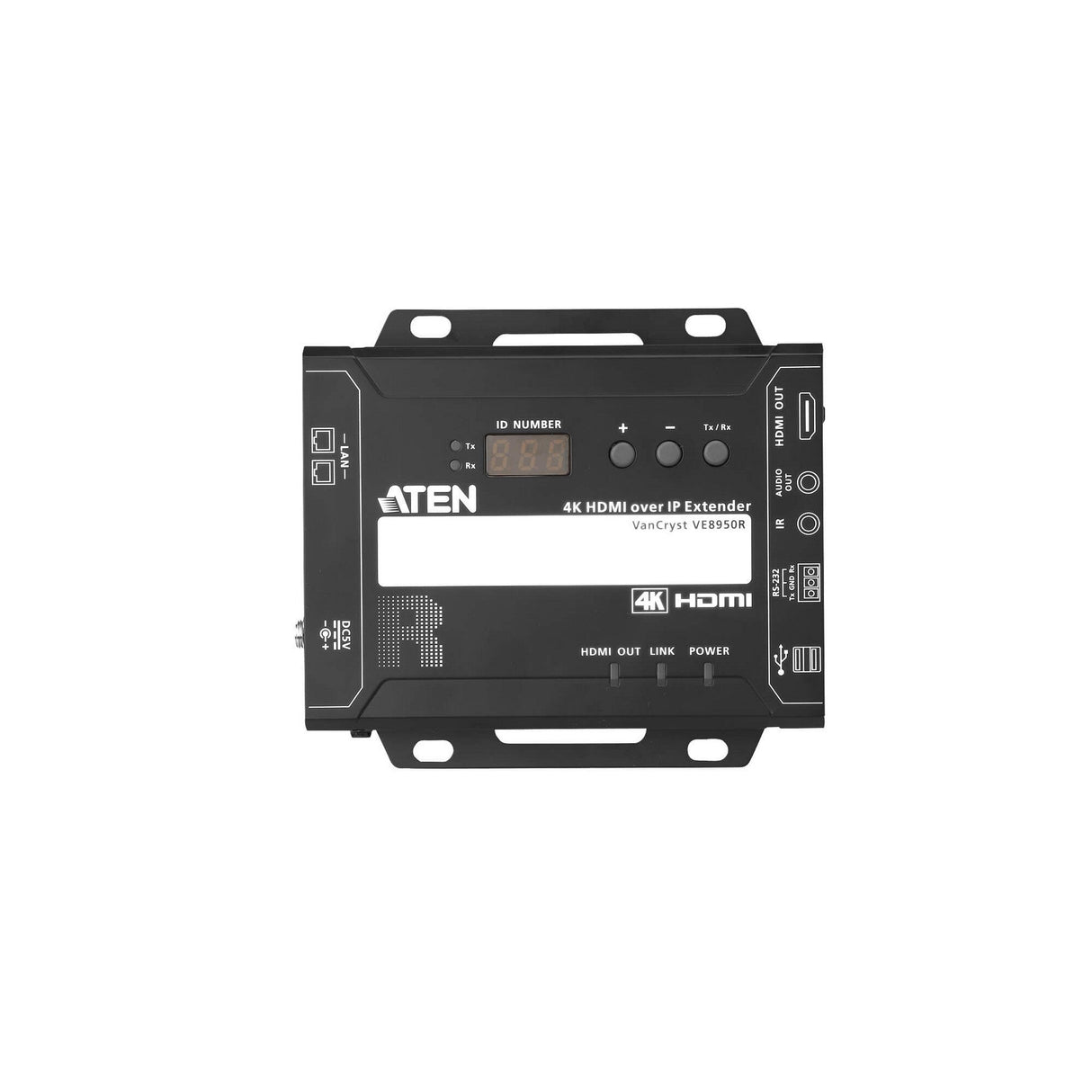

ATEN VE8950R 4K HDMI over IP Receiver

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*. Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

Key Features

• Lightweight Compression with Ultra-low Latency
• Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
• Ensures stunning quality video using ATEN advanced video lossless compression technology
• EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
• Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
• Limitless Scalability and Flexibility
• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
• Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
• Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*

Technical Specifications

Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
3 m (2L-7D03H)
Video
Max. Data Rate Average: 150 ~ 500Mbps
Compliance
HDMI
HDCP Compatible
Max. Resolutions / Distance
Up to 4K@100m (Cat 5e/6, point to point)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

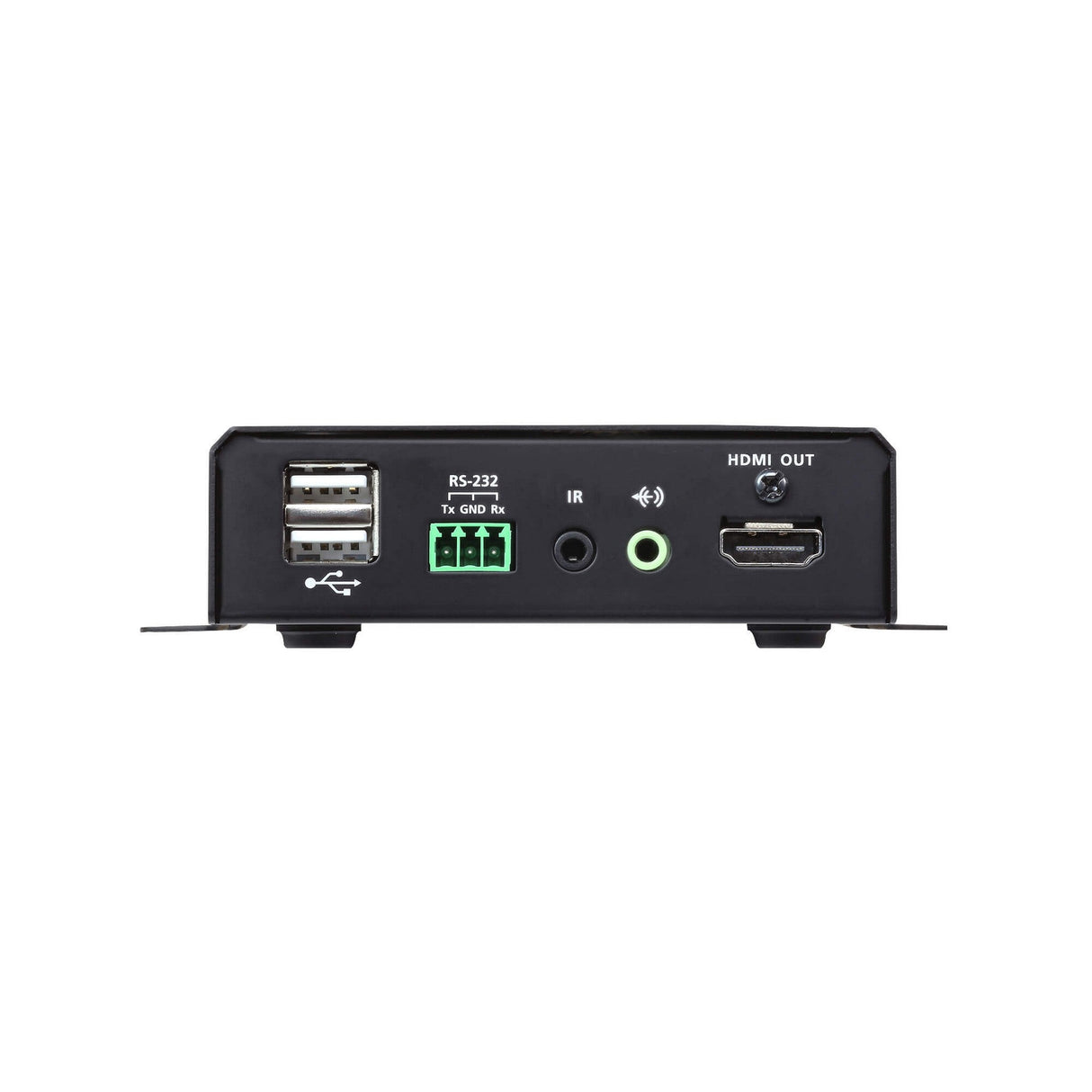

Audio
Output
1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

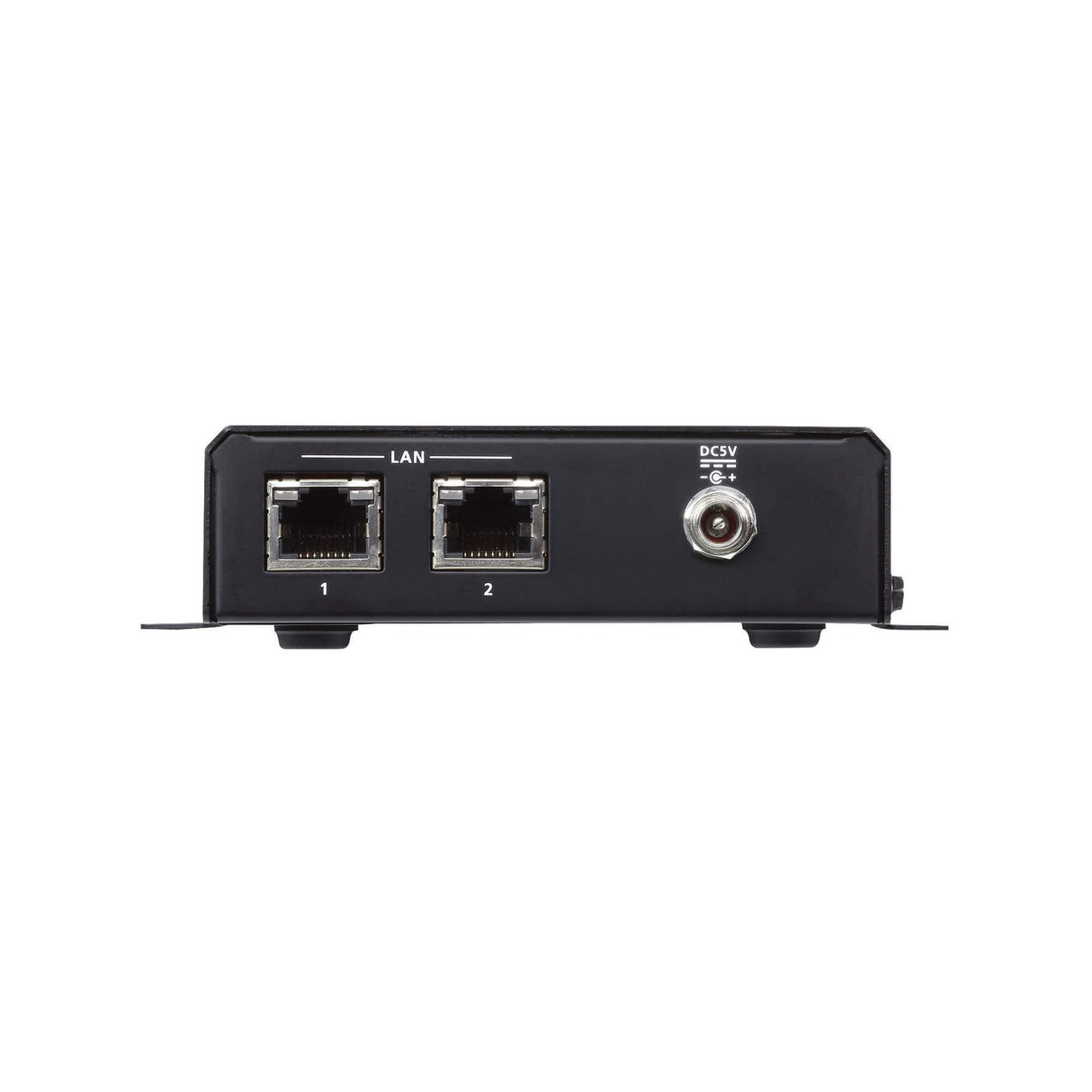

Connectors
Unit To Unit
2 x RJ-45 Female
Power
1 x DC Jack (Black) with locking
Control
IR
1 x Mini Stereo Jack Female (Black)
RS-232
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB
2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection
3 x Push buttons
Power Consumption
DC5V:4.53W:43BTU
Environmental
Operating Temperature
0 - 40C
Storage Temperature
-20 - 60C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket
14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket
13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
