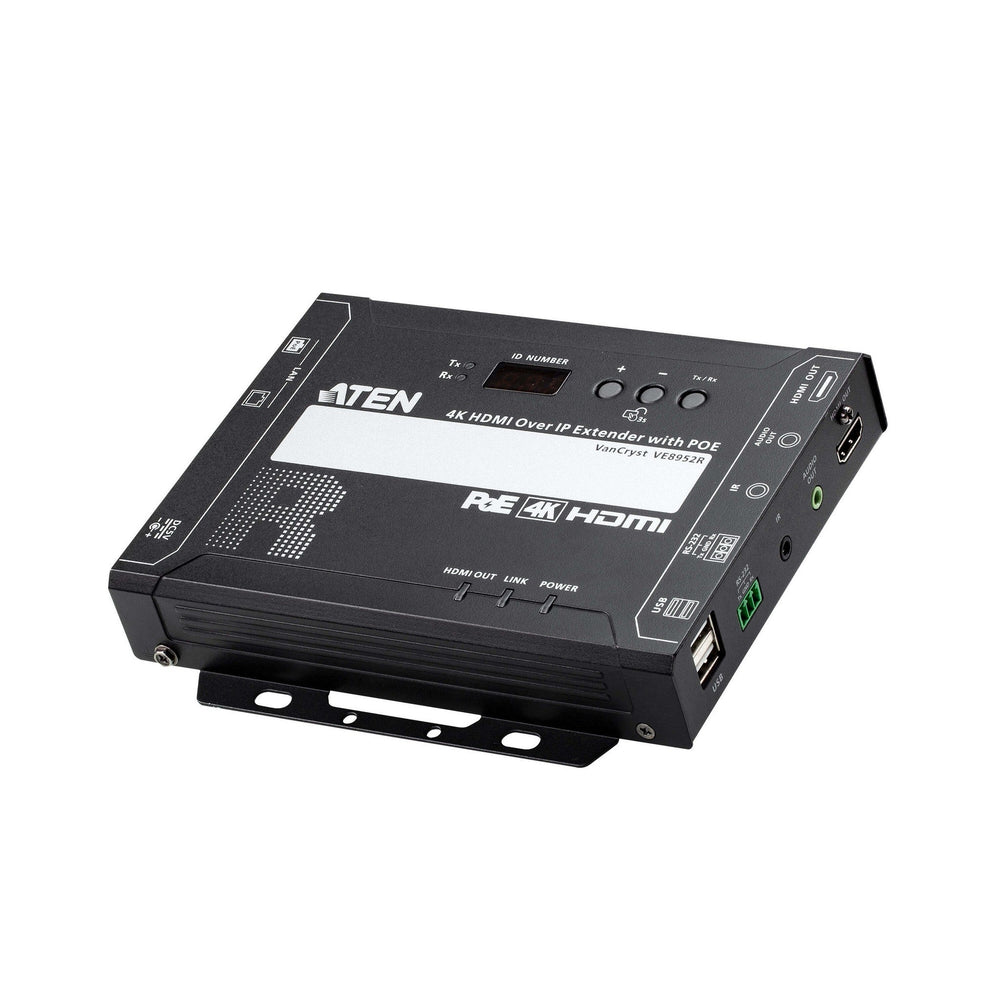

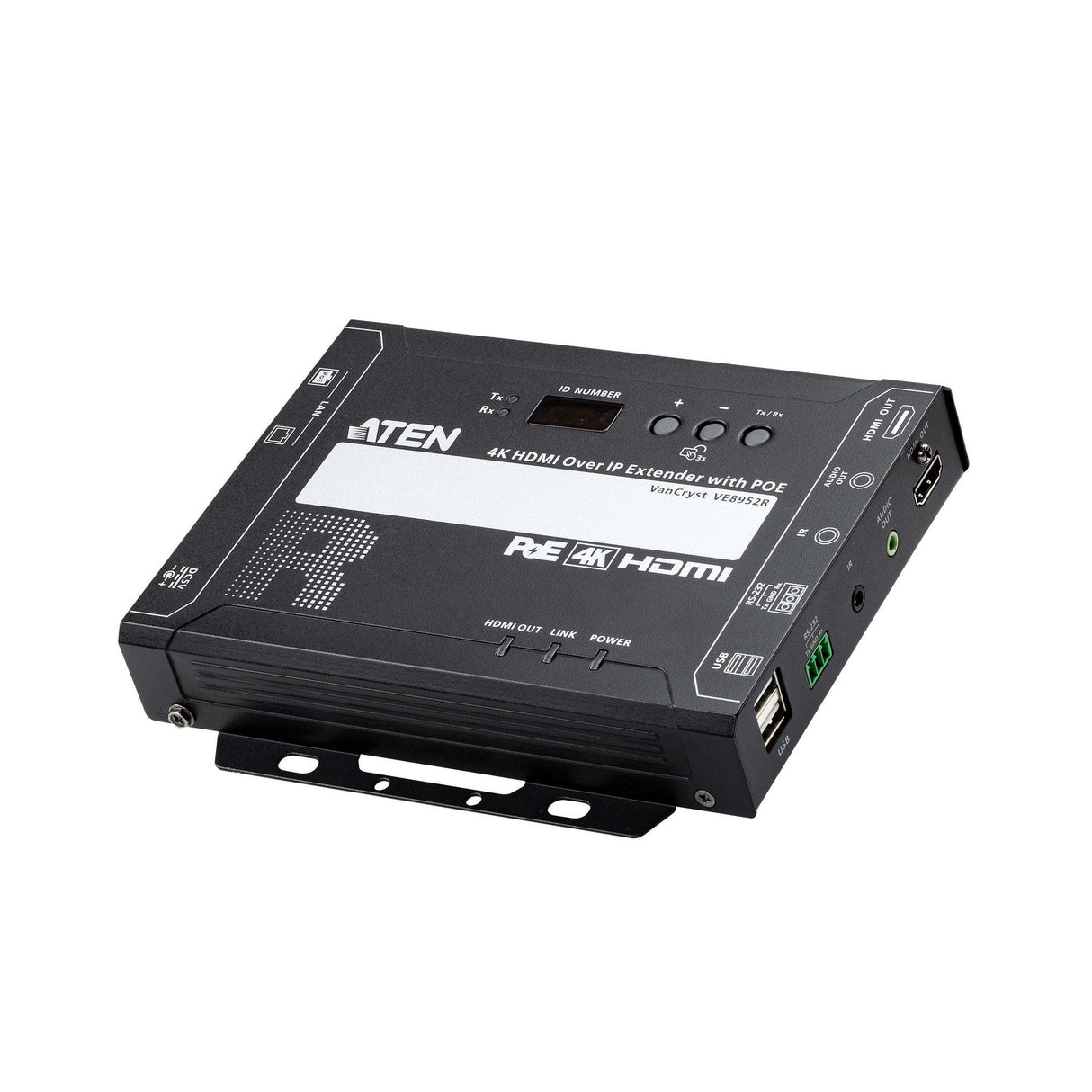

ATEN VE8952R 4K HDMI over IP Receiver with PoE

ATEN VE8952R 4K HDMI over IP Receiver with PoE

The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.

From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.

Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.

Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.

Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

Key Features

• Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
• Ensures stunning quality video using ATEN advanced video lossless compression technology
• EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
• Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
• Locate VE8952 anywhere without having to install additional power cabling and outlets
• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
• Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
• Mix and match the latest 4K displays. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*
• Integrated solution - Compatible with ATEN Control System, allowing users to directly operate VE8900/VE8950/VE8952 via CLI Telnet, RS-232 protocol, or Mobile Control App
• Effortless operation - One click to effectively operate VE Manager, TV, projector, source player, and related equipment’s via touch panel and keypad

Technical Specifications

Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
3 m
Video
Max. Data Rate
Average: 150 ~ 500Mbps
Compliance
HDMI
HDCP Compatible
Max. Resolutions / Distance
Up to 4K@100m (Cat 5e/6, point to point)
*4K supported
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

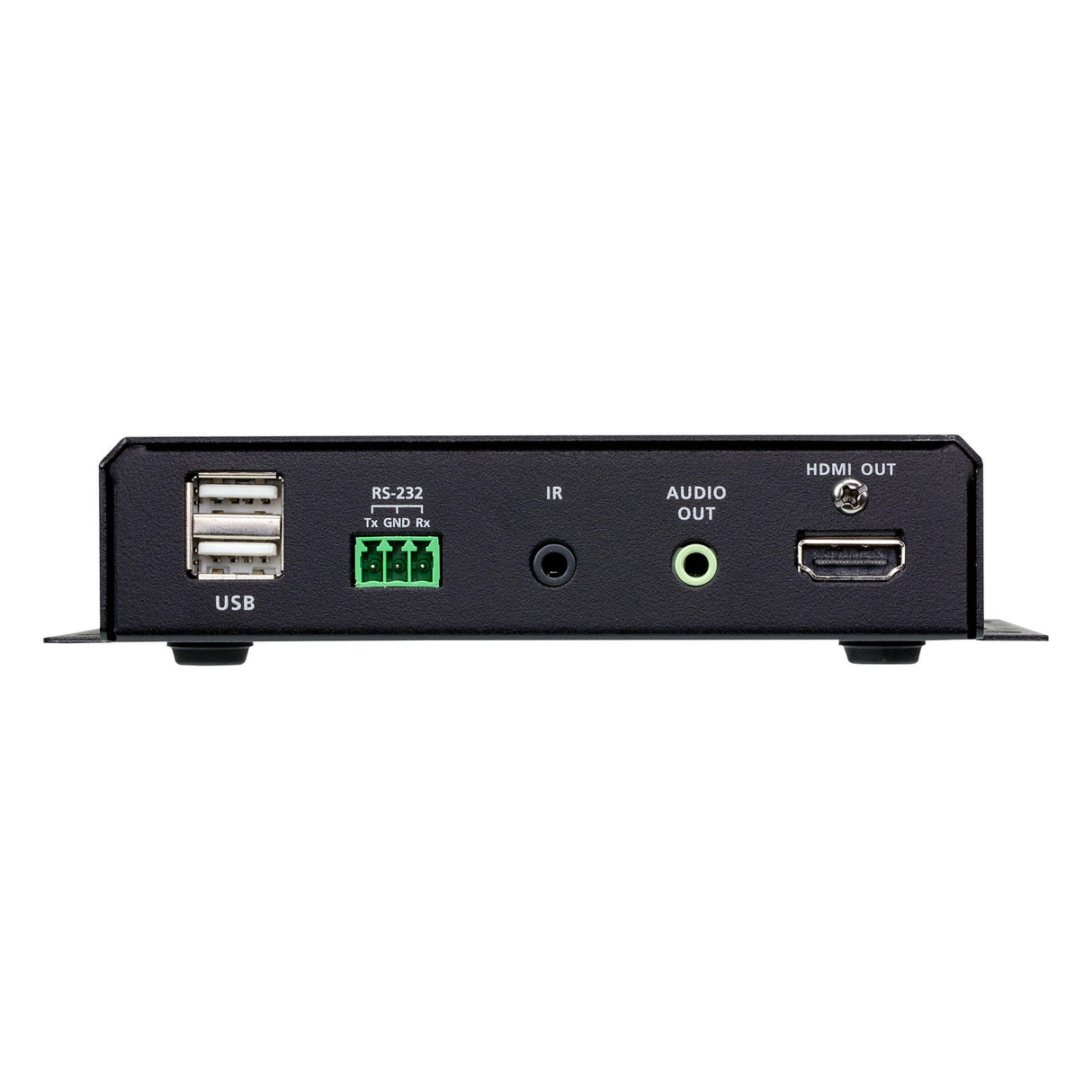

Audio
Output
1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

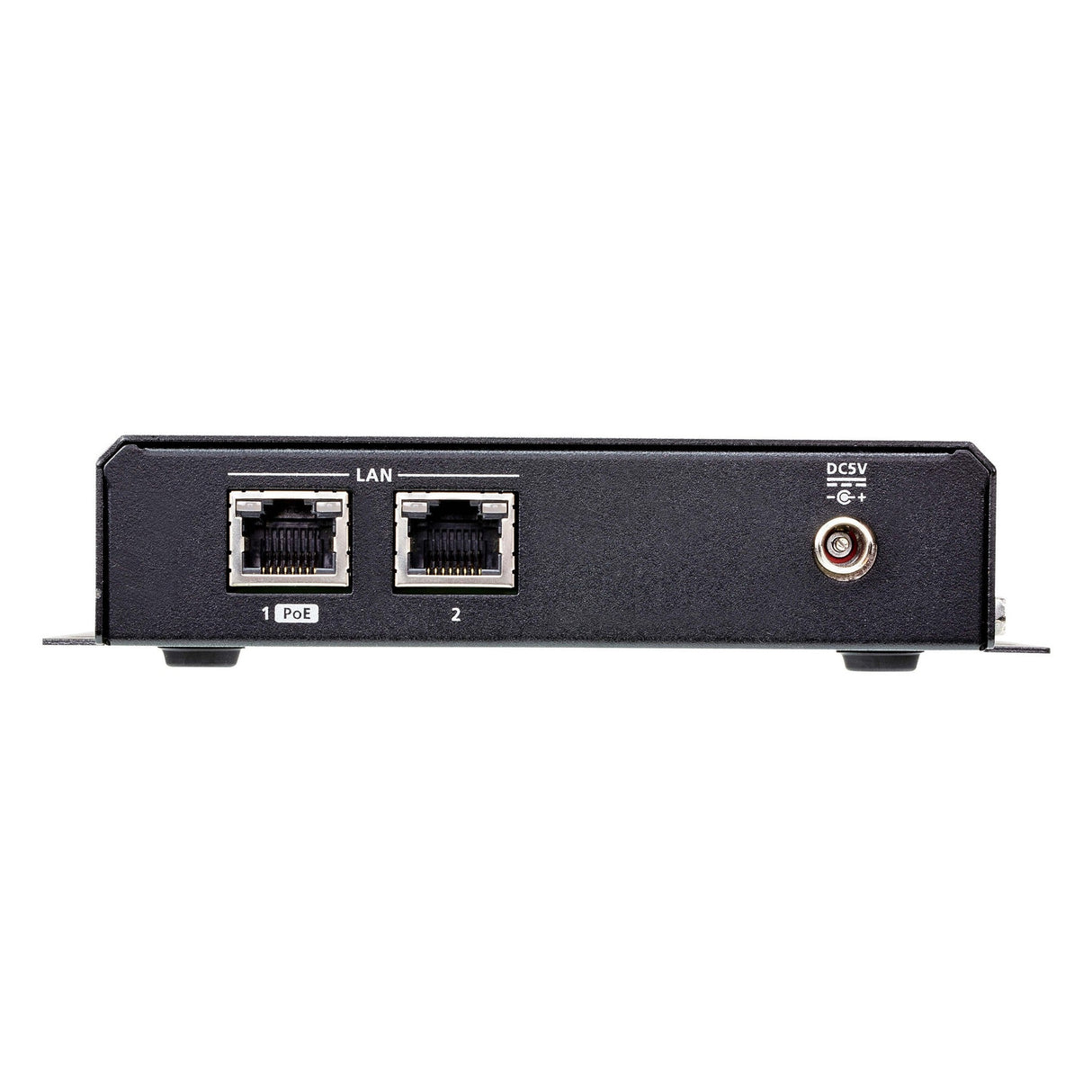

Connectors
Unit To Unit
2 x RJ-45 Female
Power
1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over Ethernet, POE)
Control
IR
1 x Mini Stereo Jack Female (Black)
RS-232
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB
2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection
3 x Push buttons
Power Consumption
DC5V:5. 22W:46BTU
POE:6. 52W:52BTU
Environmental
Operating Temperature
0 - 40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.68 kg (1.5 lb)
Dimensions (L x W x H) with bracket
17.02 x 14.69 x 3.00 cm (6.7 x 5.78 x 1.18 in.)
Dimensions (L x W x H) without bracket
16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
