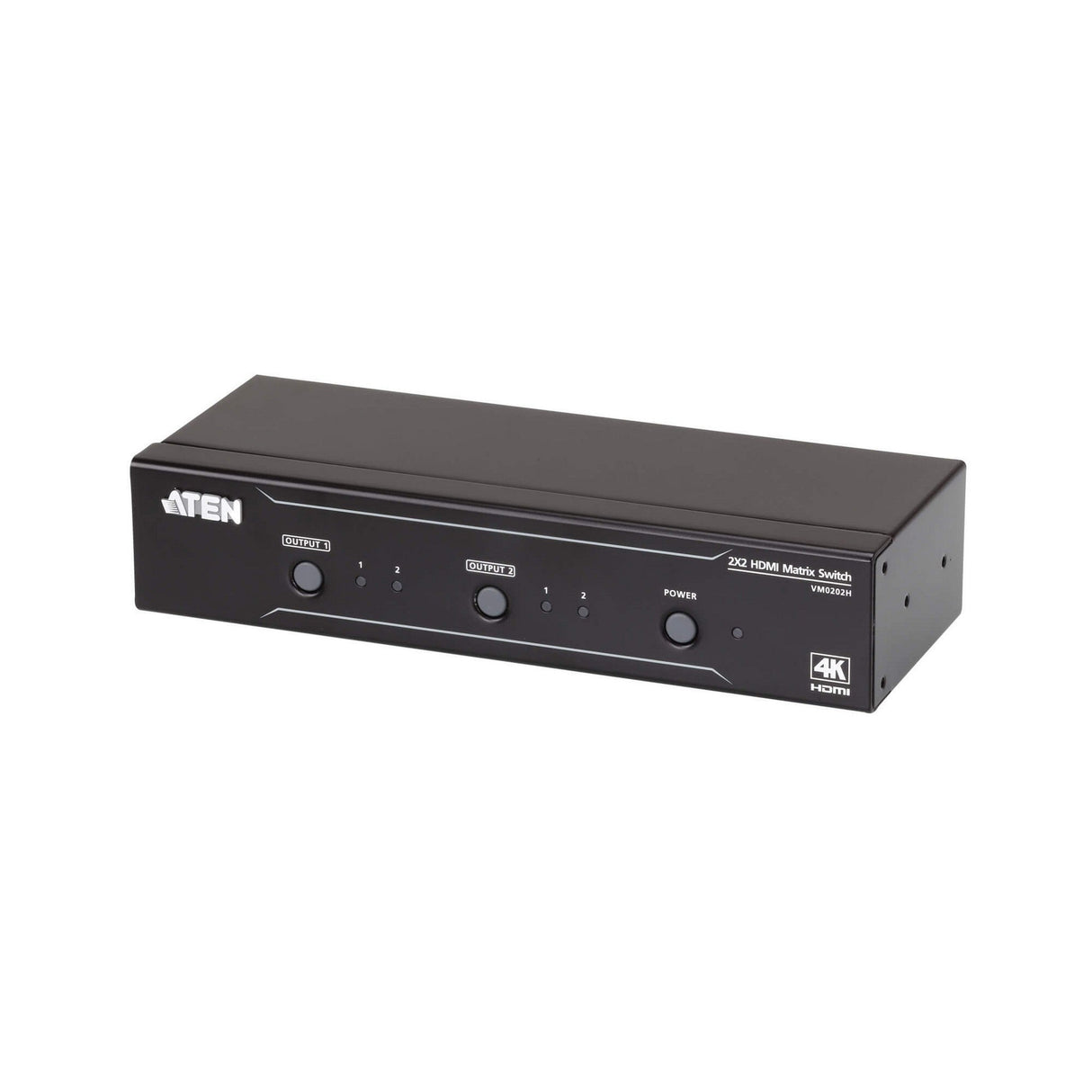

ATEN VM0202H 2 x 2 4K HDMI Matrix Switch
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.
Key Features
- Connects 2 HDMI sources to any 2 HDMI displays
- HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
- Supports computer and video resolutions up to 4K
- Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
- Supports long distance transmission at a distance up to 15 meters

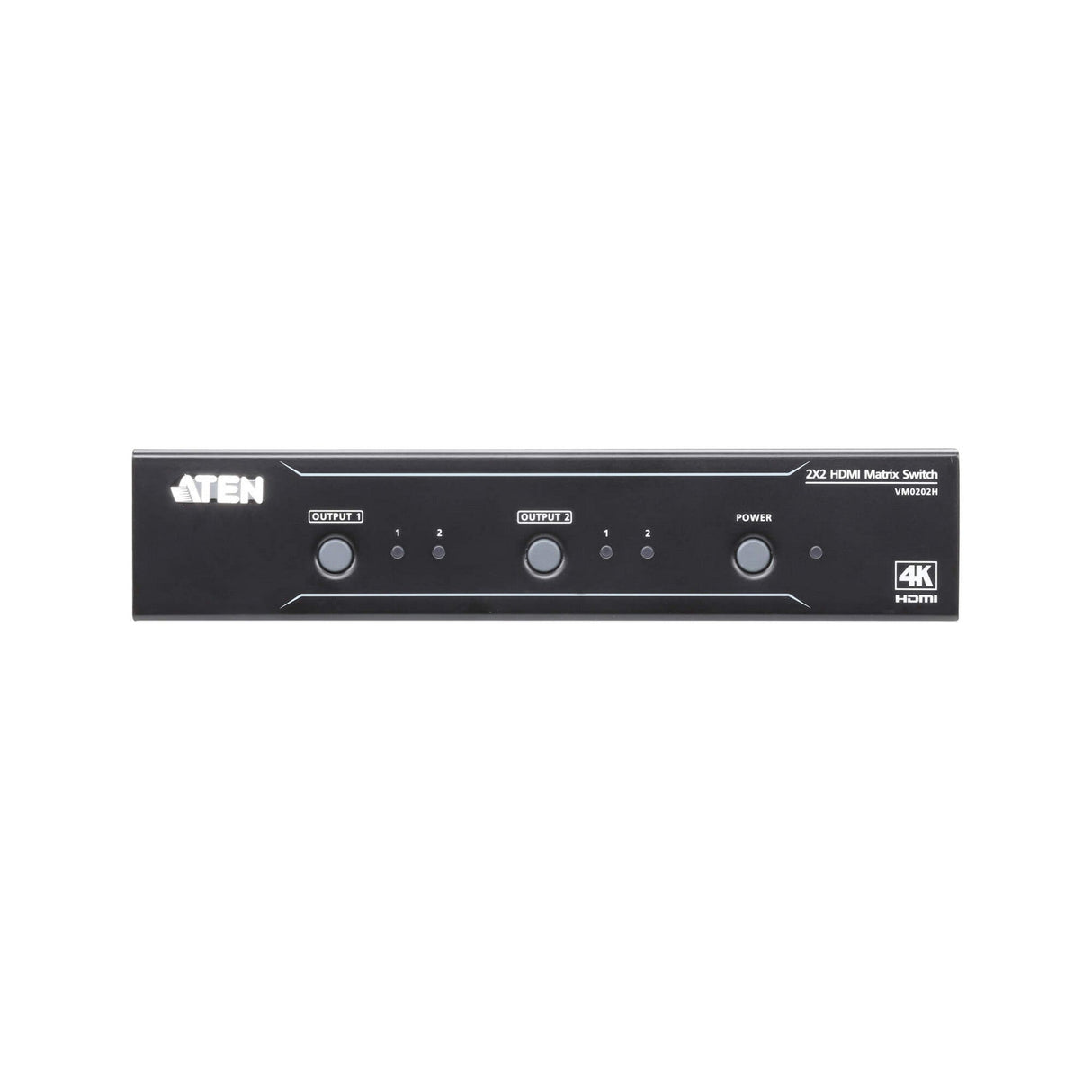

- Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro HDMI cable lock for securing HDMI cable connections
- All- metal casing
- Firmware upgradable
- Rack mountable
Technical Specifications

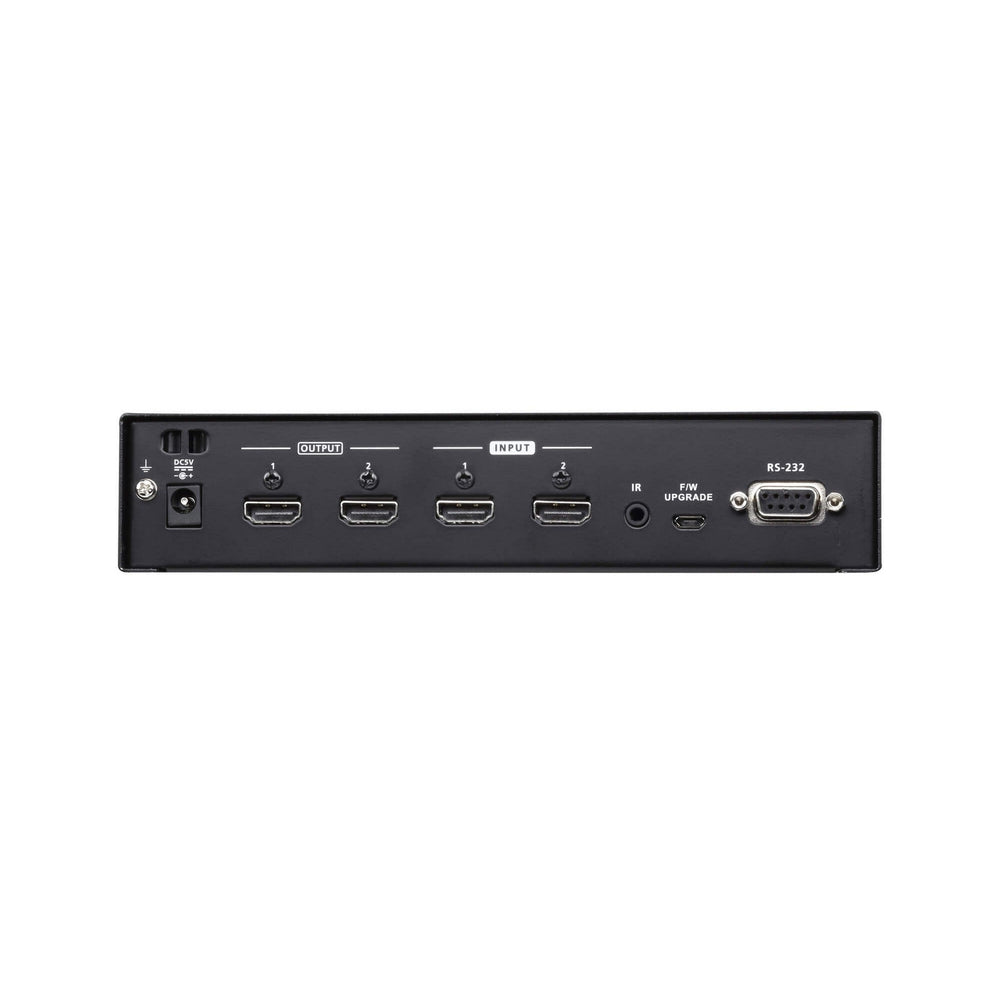

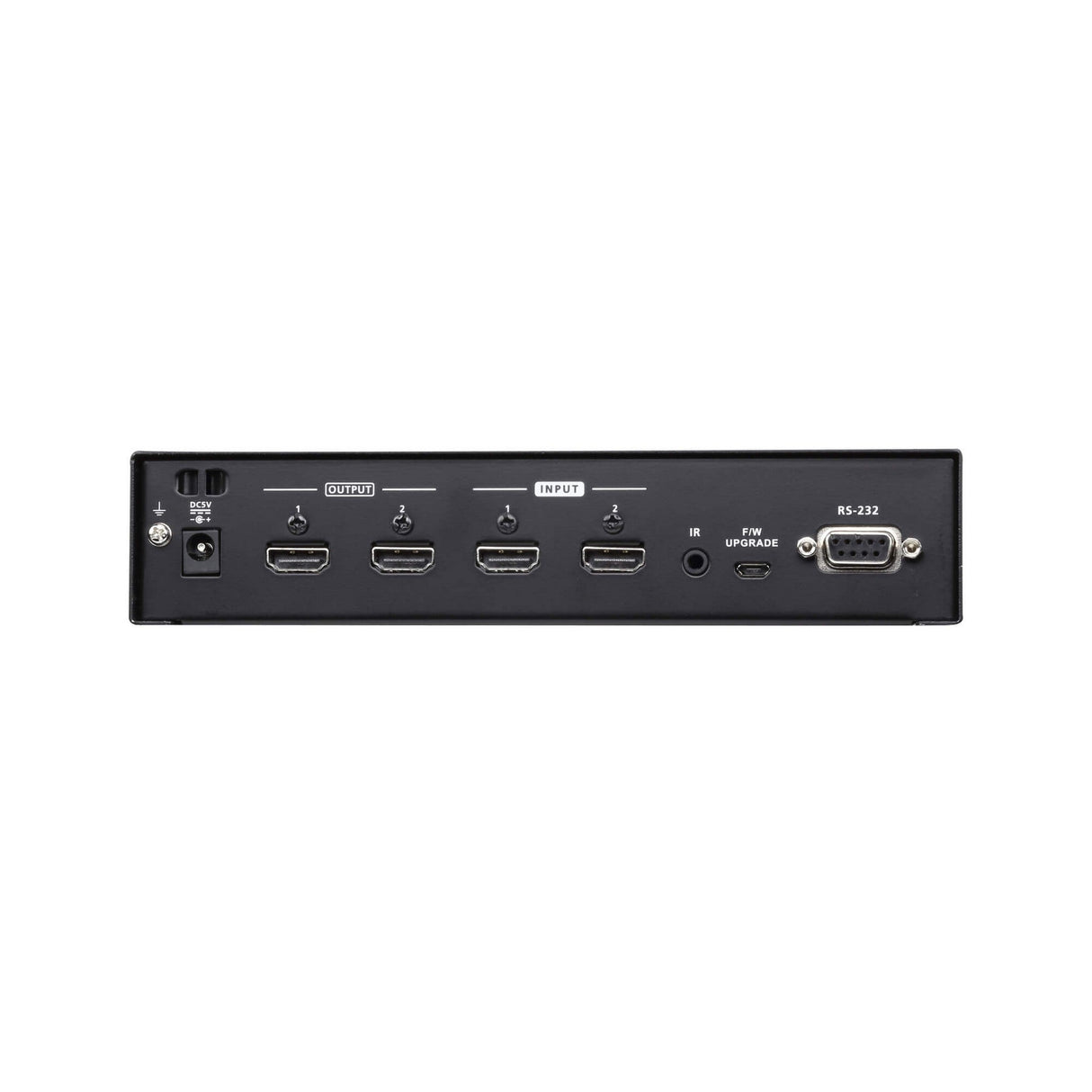

Video Input
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
1.8 m
Video Output
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
15 m
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance
Up to 15 m
Control
USB
1 x Micro USB
F/W upgrade
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
EDID Settings
EDID Mode: Default / Port1 / Remix
Carton Lot
5 pcs
Physical Properties
Weight
0.58 kg ( 1.28 lb )
Housing
Metal
Dimensions (L x W x H)
20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
Power
Connectors
1 x DC Jack (Black)
Consumption
5VDC ; 4.3W
Environmental
Operating Temperature
0-40C
Storage Temperature
-20 - 60C
Humidity
0 - 80% RH, Non-Condensing
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
