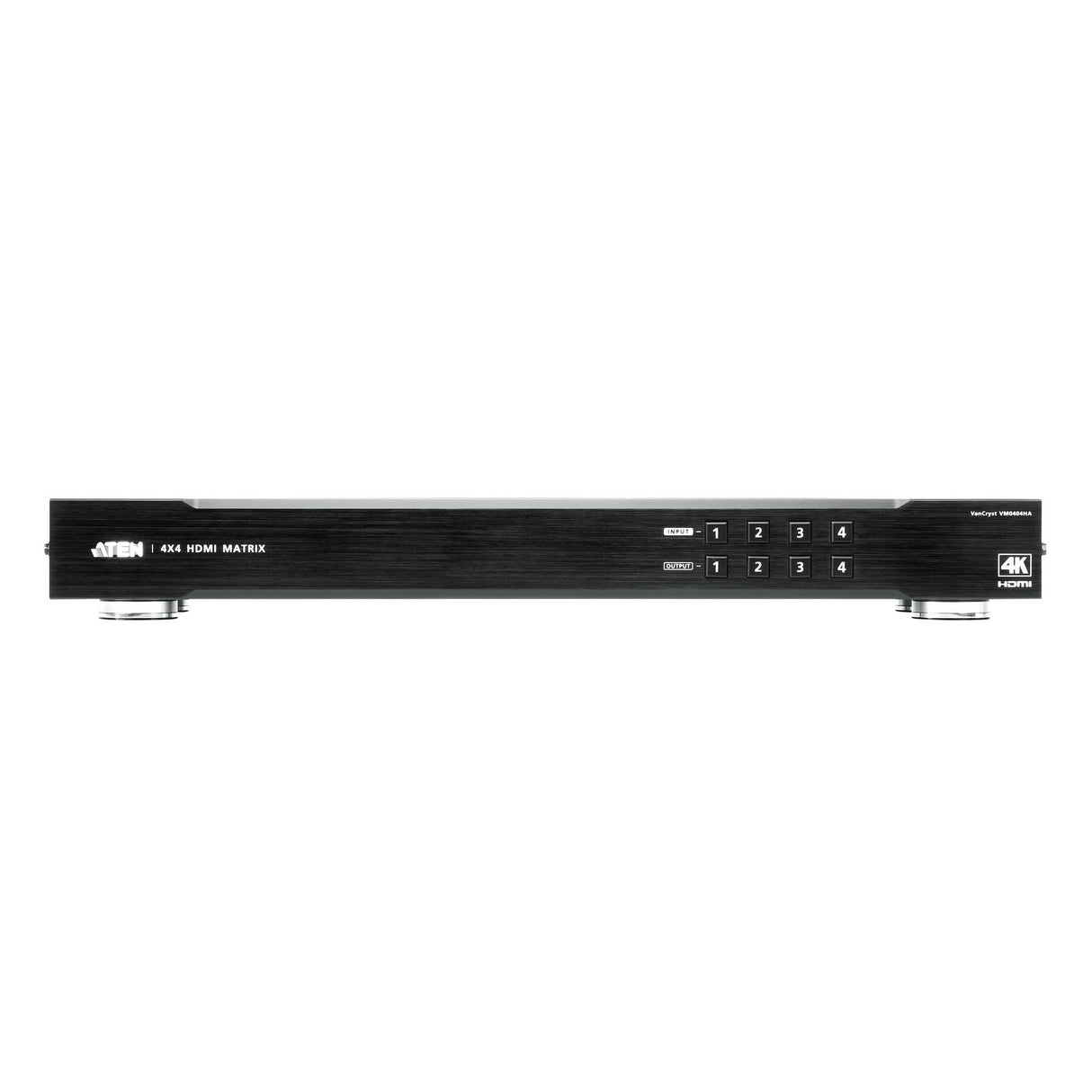

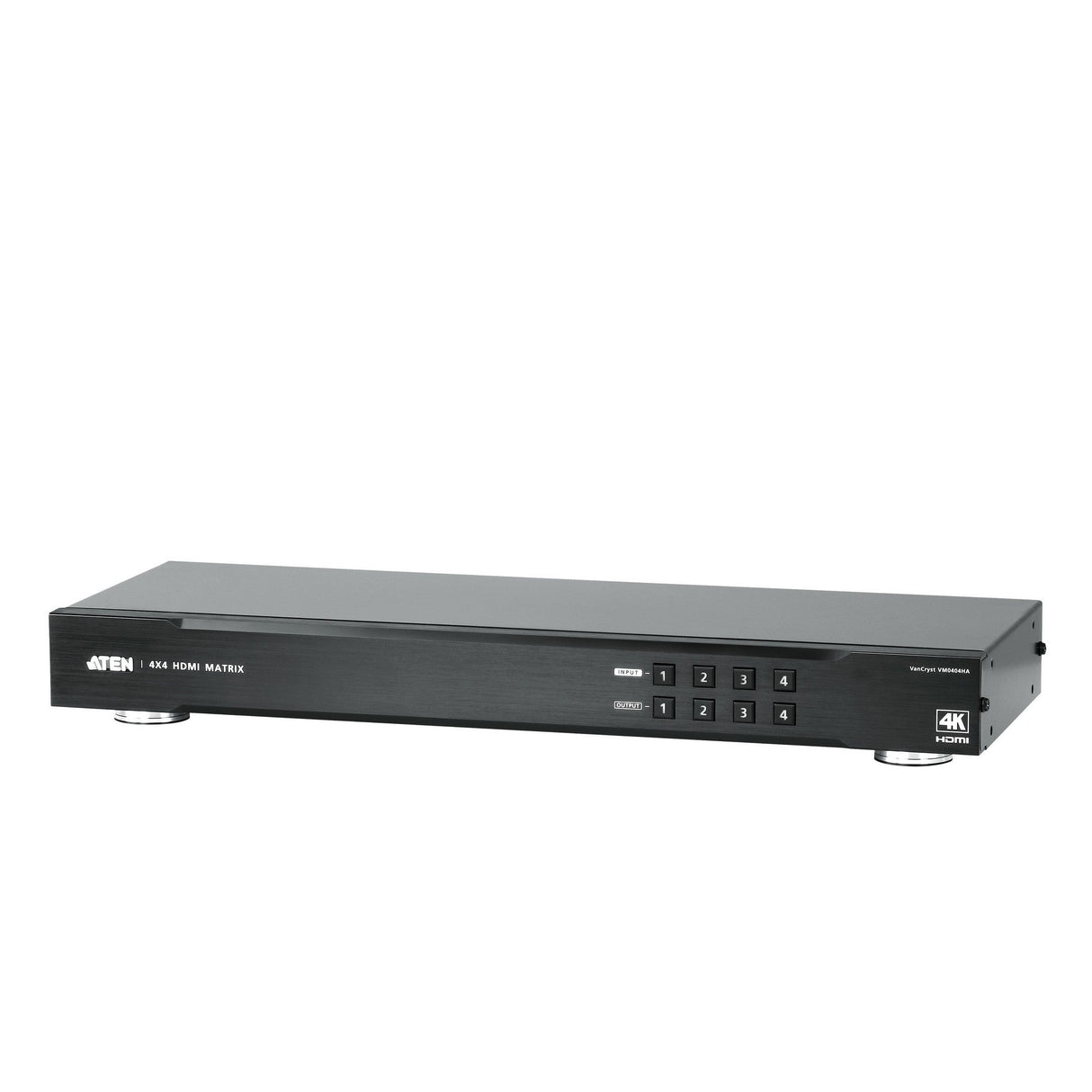

ATEN VM0404HA 4x4 4K HDMI Matrix Switch

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more. The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.

Key Features

• Connects any of 4 HDMI sources to any of 4 HDMI displays
• Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
• EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
• Multiple Control Methods - system management via front-panel pushbuttons, IR remote and RS-232 control
• Supports Dolby True HD and DTS HD Master audio
• Signaling rates up to 3.4 Gbits for fl awless 4K output
• HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
• Supports ATEN’s LockPro HDMI cable lock for secure HDMI cable connections
• ESD protection for HDMI
• Firmware upgradeable
• Rack Mountable (1U design)

Technical Specifications

Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
5 m
Video Output
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100
Max. Distance
15 m
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance
Up to 15 m
EDID Settings
EDID Mode: Default / Port1 / Remix
Control
USB
1 x Micro USB
F/W upgrade
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Carton Lot
3 pcs
Housing
Metal
Weight
2.02 kg ( 4.45 lb )
Dimensions (L x W x H)
43.72 x 16.29 x 4.40 cm
(17.21 x 6.41 x 1.73 in.)

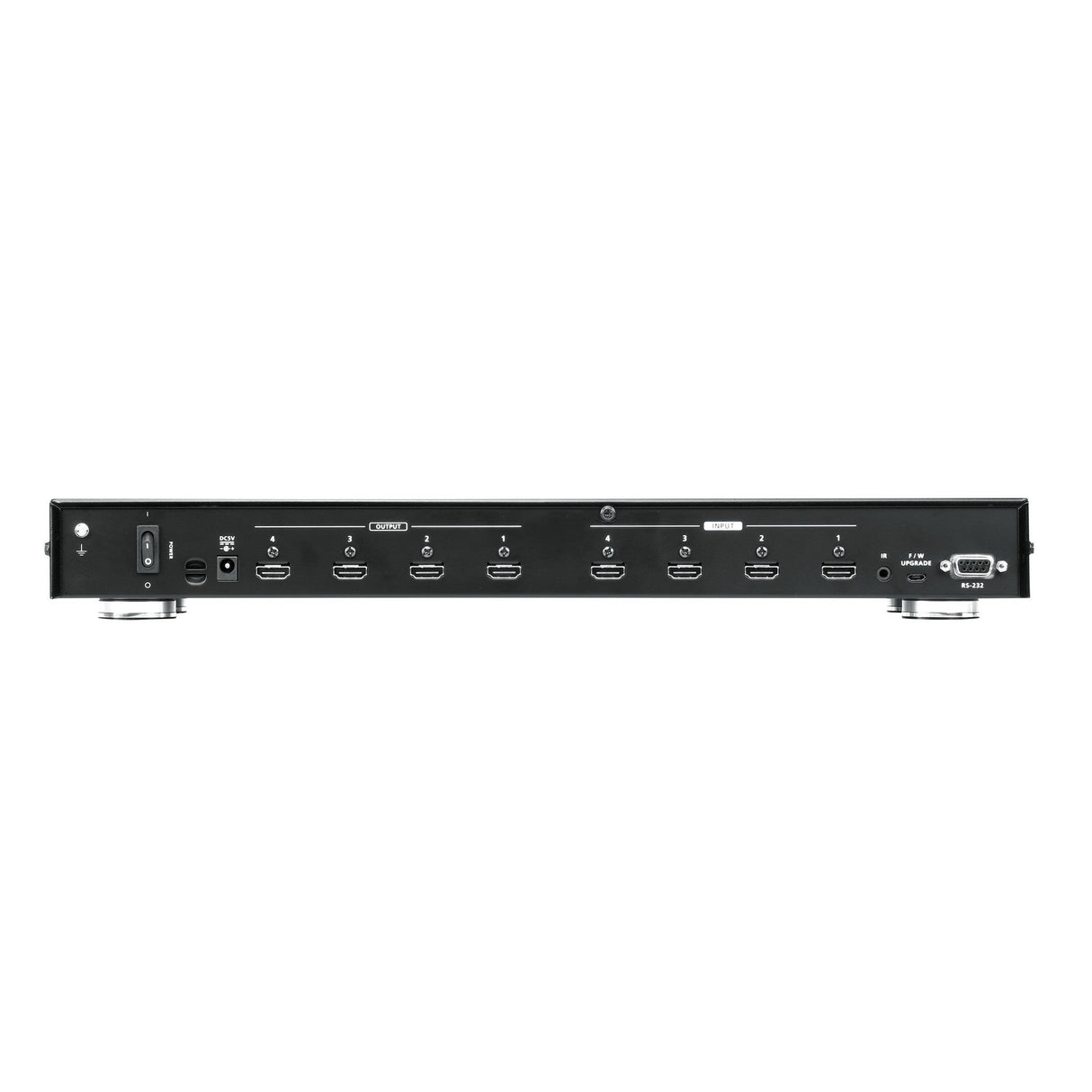

Connectors
Power
1 x DC Jack (Black)
Power Consumption
DC5V:9.62W:45BTU
Environmental
Operating Temperature
0-40C
Storage Temperature
-20 - 60C
Humidity
0 - 80% RH, Non-Condensing
