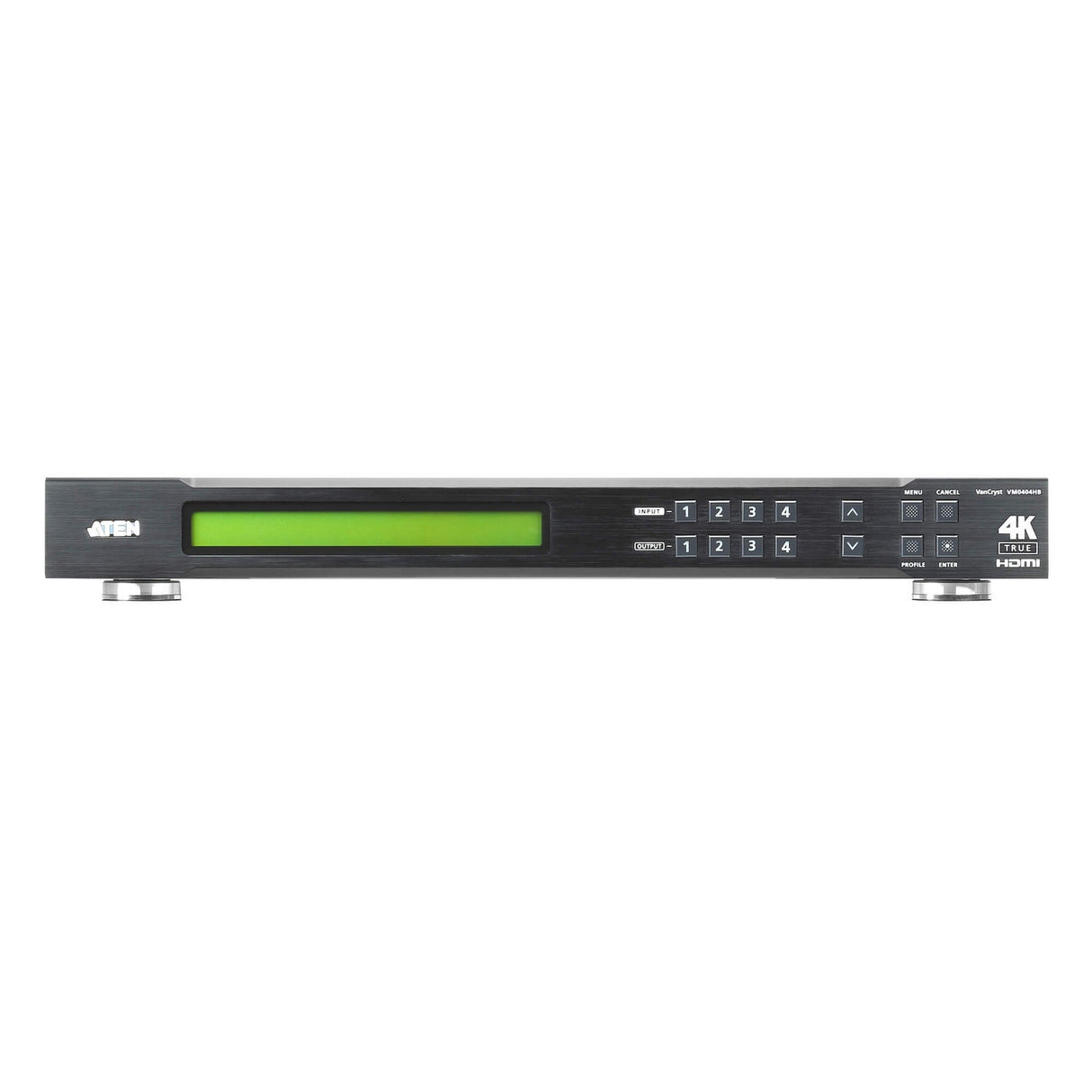

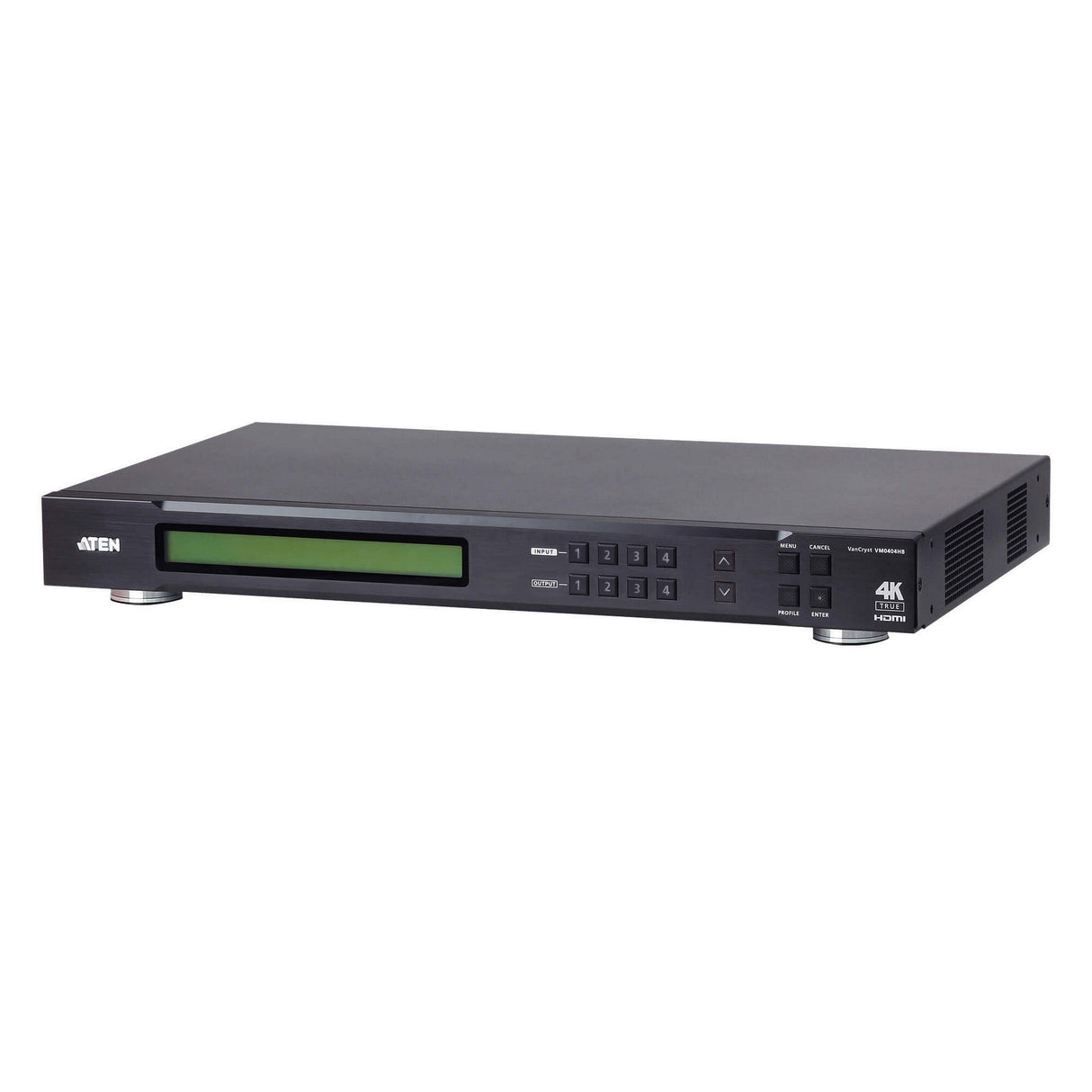

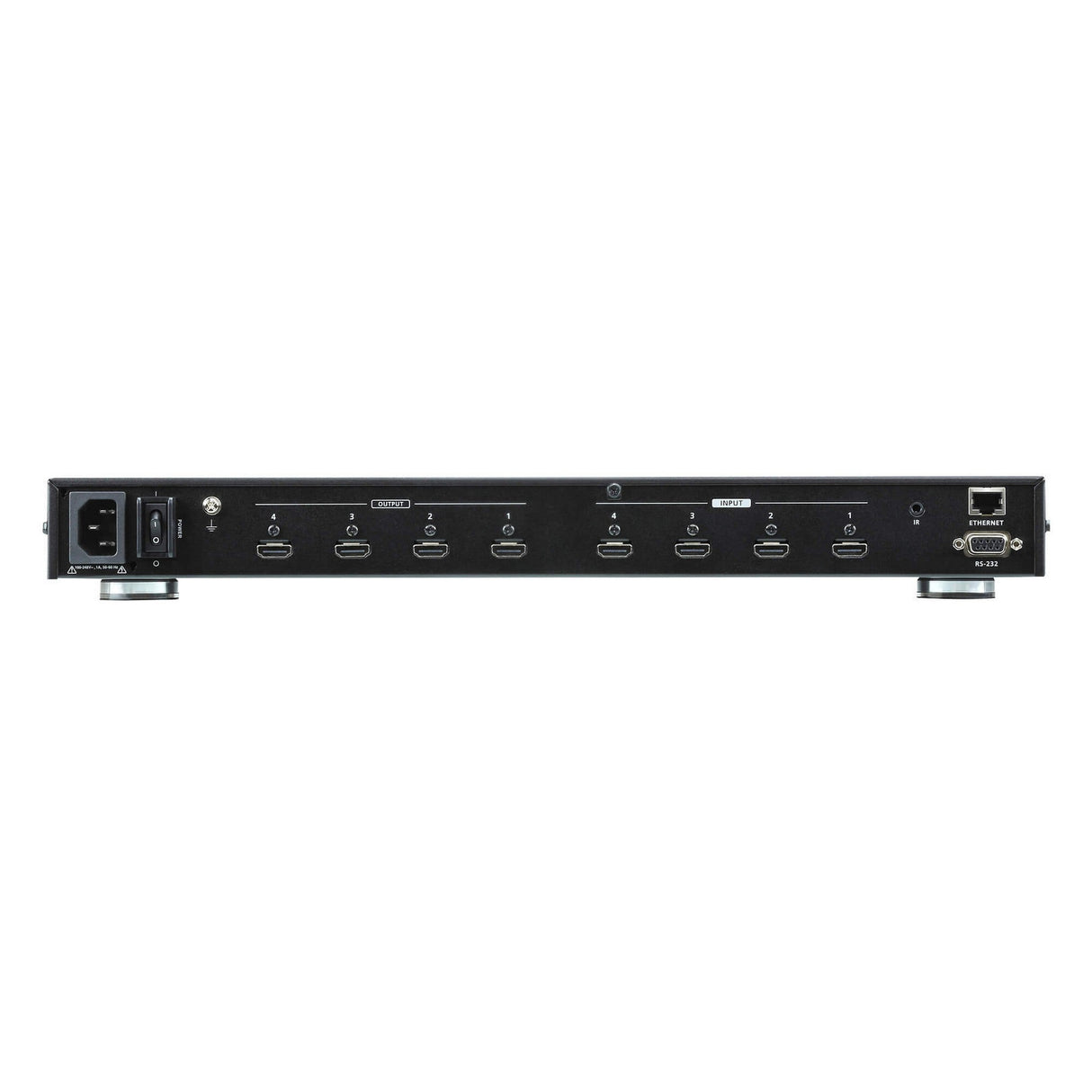

ATEN VM0404HB 4 x 4 True 4K HDMI Matrix Switch
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
ATEN VM0404HB 4 x 4 True 4K HDMI Matrix Switch
ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.
Key Features
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Multiple Control Methods - system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection - switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
- Supports ATEN’s LockPro HDMI cable lock for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)
Technical Specifications
Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces
4 x HDMI Type A Female (Black)
Max. Distance
5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance
100 Ω
Video
Max. Pixel Clock
600 MHz
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Compliance
HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Ethernet
1 x RJ-45 Female
EDID Settings
EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Environmental
Operating Temperature
0-40 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Storage Temperature
-20 - 60 Degrees C
Physical Properties
Weight
2.47 kg (5.44 lb)
Housing
Metal
Dimensions (L x W x H)
43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 in.)
Connectors
Power
1 x 3-Prong AC Socket
Carton Lot
1 pc
Power Consumption
AC110: 17.8W:83BTU
AC220:17. 6W:83BTU
Power
Maximum Input Power Rating
100-240 VAC; 50-60 Hz; 1.0A
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
