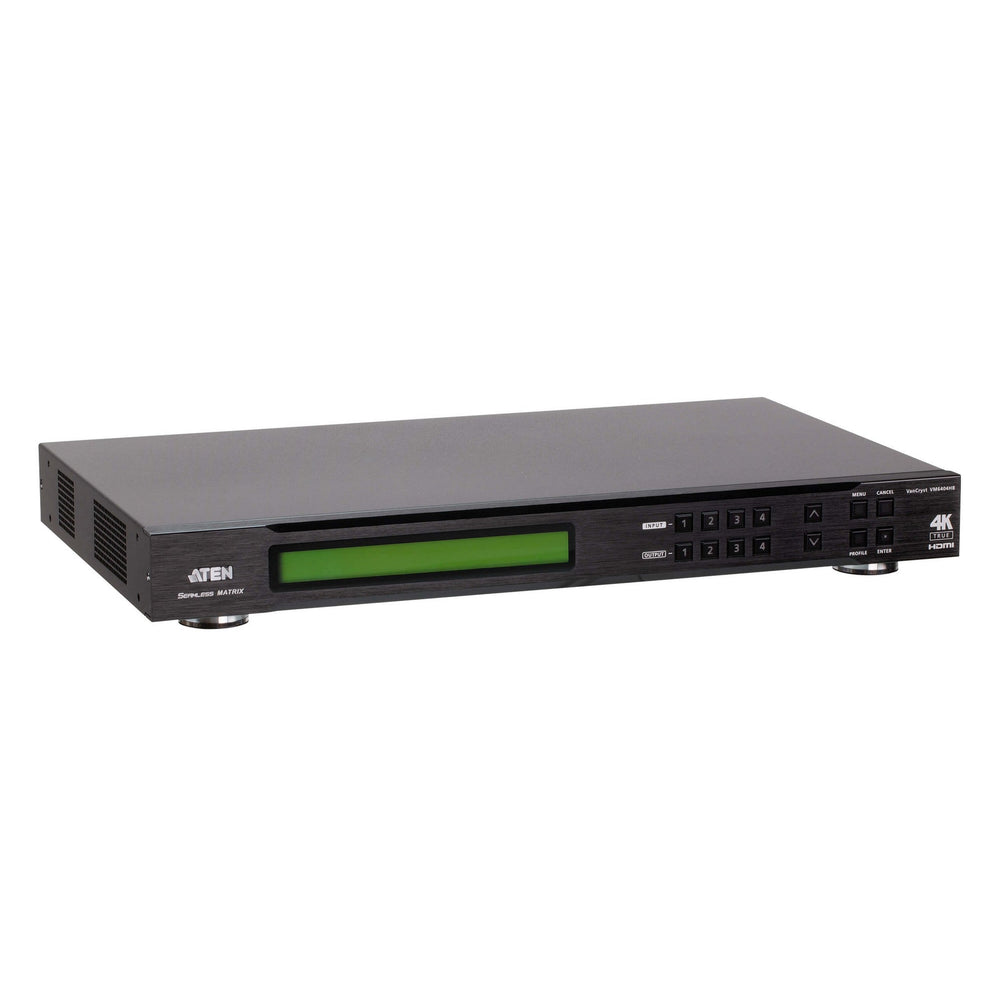

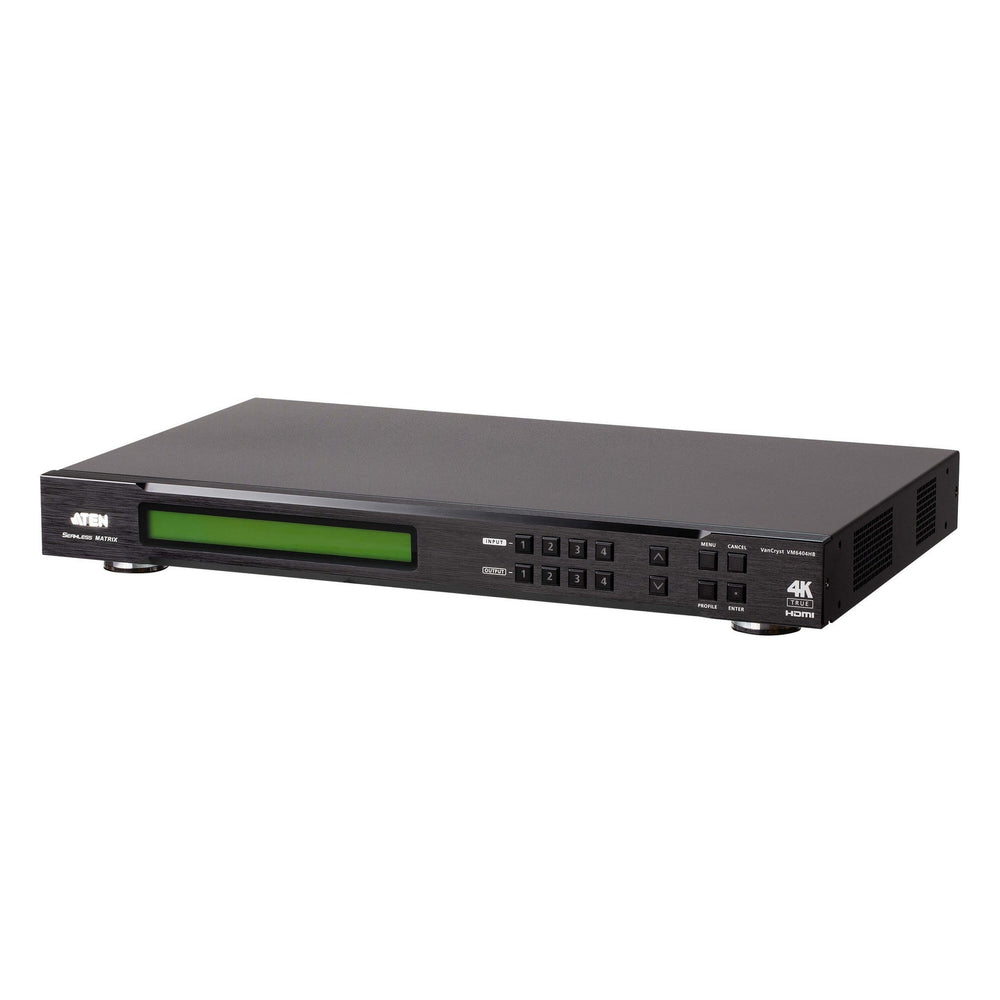

ATEN VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler

ATEN VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler

True 4K Pro AV solutions with High Dynamic Range (HDR) technology are the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN’s VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.

The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless Switch that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404HB easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up - such as for stage presentations, digital classroom, video conference rooms, and any installation that requires real-time synchronization.

Key Features

• 4 x 4 HDMI input/output connections

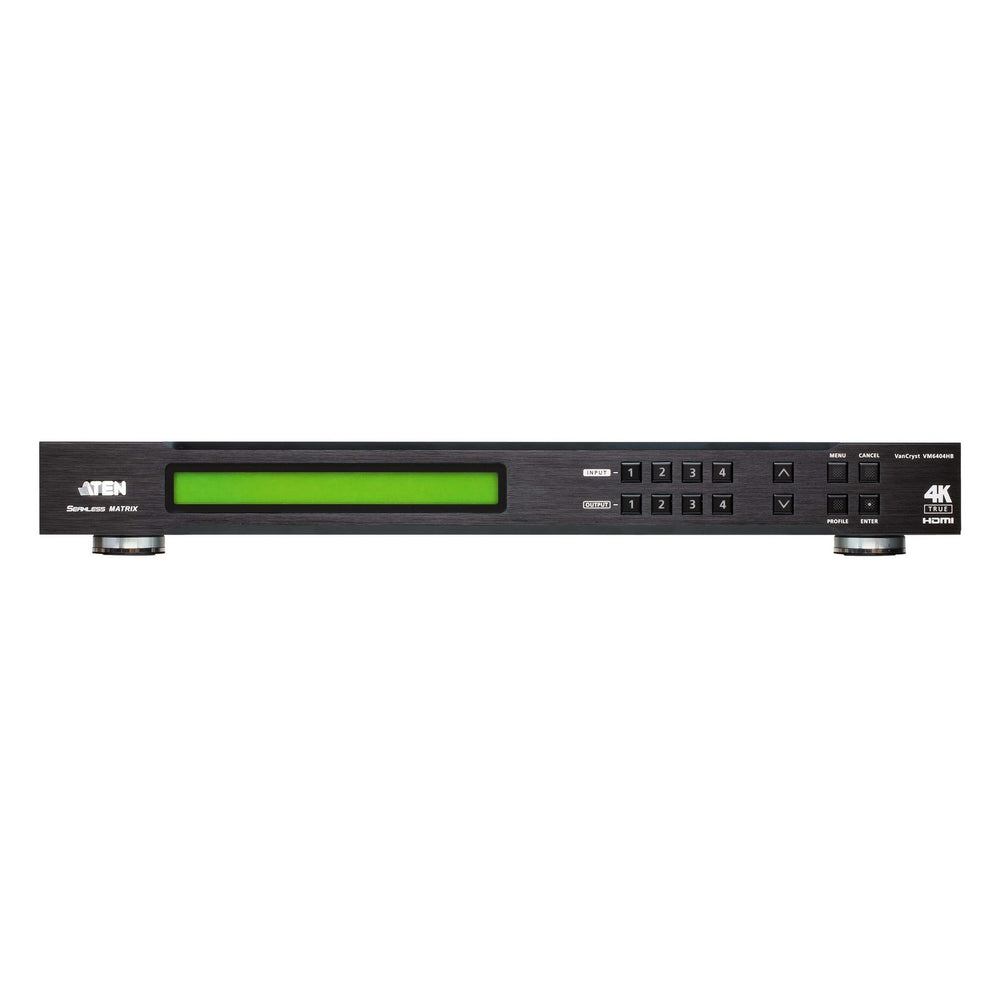

• Multiple Control Methods - system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet
• View and control via ATEN Video Matrix Control App in a swift and agile way
• True 4K Resolutions -handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
• 4K Scaler -features a 4K video scaler to convert input resolutions to the optimum display resolutions
• Seamless Switch -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• Video Wall -allows you to create custom video wall layouts via intuitive web GUI*
• True 4K EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• FrameSync -prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
• Audio-enabled - HDMI audio can be extracted to stereo audio
• HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
• Consumer Electronics Control (CEC) support
• ESD protection for HDMI
• Rack-mountable (1U design)

Technical Specifications

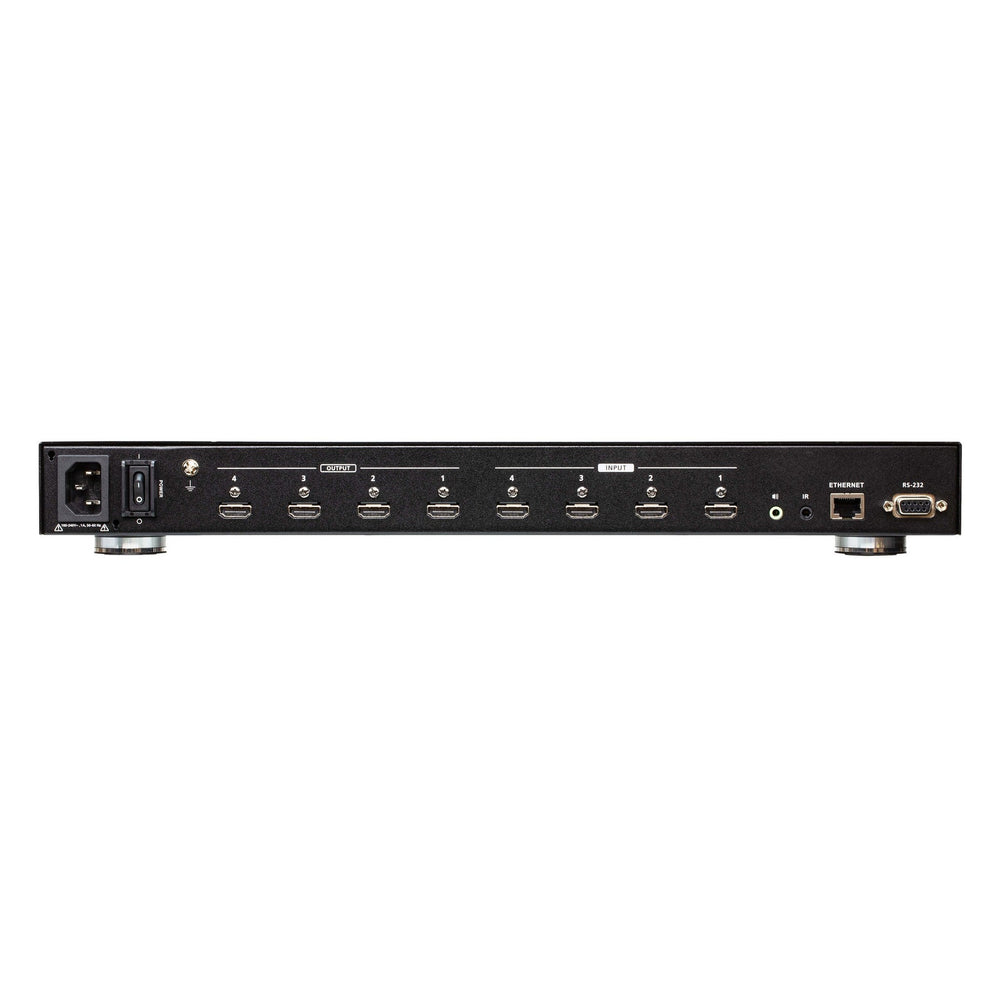

Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m
Video Output
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m
Video
Max. Data Rate
18.0 Gbps (6.0 Gbps per lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
Up to 5.0 m
Audio
Output
1x Mini Stereo Jack Female
Control
RS-232
Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Ethernet
1 x RJ-45 Female
EDID Settings
EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Connectors
Power
1 x 3-prong AC Socket
Power
Maximum Input Power Rating
100-240 VAC;50-60Hz;1.0A
Power Consumption
AC110V:43. 7W:205BTU
AC220V:43. 1W:202BTU
Environmental
Operating Temperature
0-40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
3.52 kg (7.75 lb)
Dimensions (L x W x H)
43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)
Carton Lot
1 pc
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
