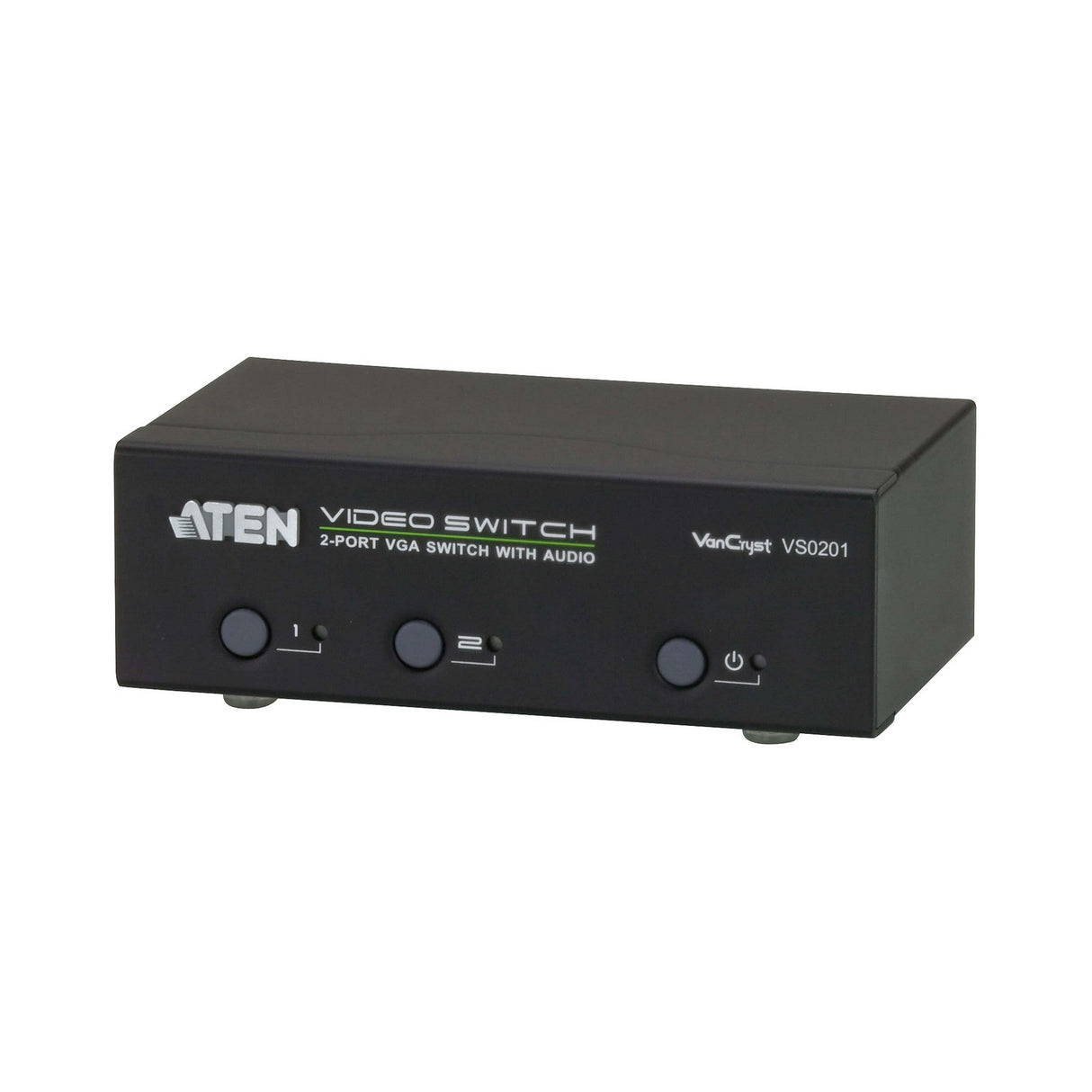

Aten VS0201 2 Port VGA Audio Switch
VS0201 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0201 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.
Key Features
- Displays the video output of two computers on a single monitor or projector

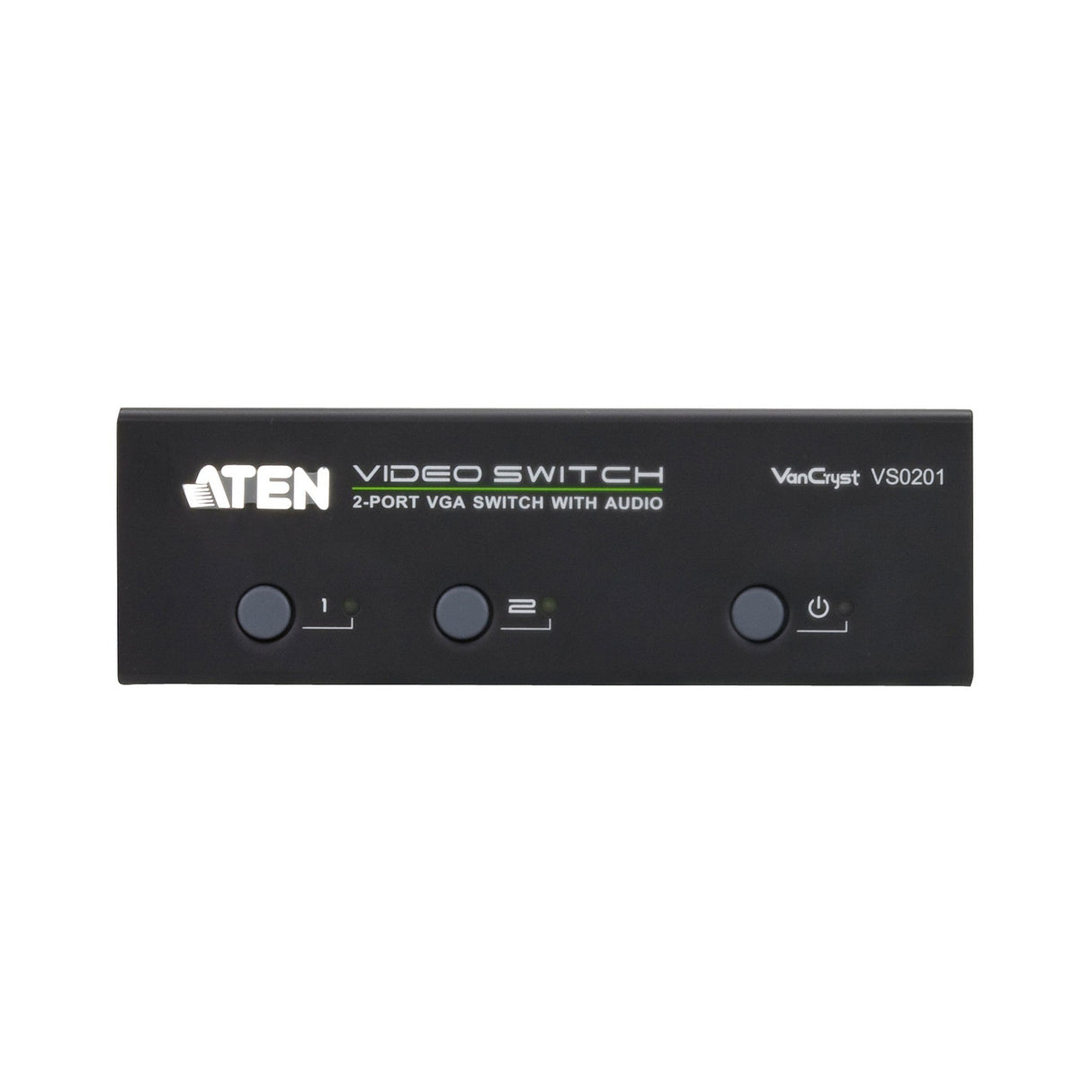

- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Superior video quality up to 1920 x 1440
- Long-distance transmission up to 65 m *
- Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSync Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control **
- Supports stereo audio
- DDC compatible
- Supports up to 300MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play no software installation required
Technical Specifications

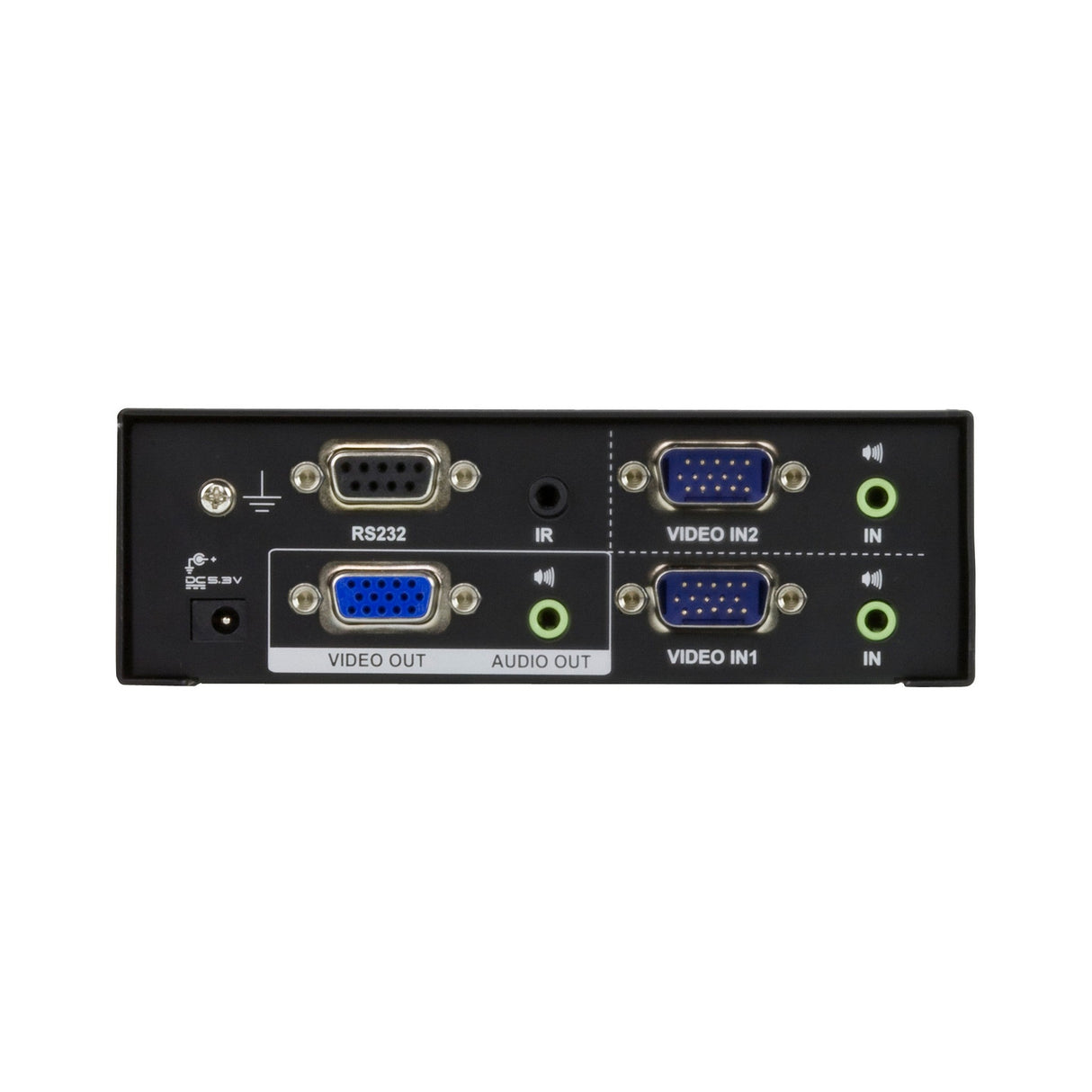

Video Input
Interfaces
2 x HDB-15 Male (Blue)
Impedance
75
Max. Distance
1.8 m
Video Output
Interfaces
1 x HDB-15 Female (Blue)
Impedance
75
Max. Distance
30 m
Video
Max. Bandwidth
300 MHz
Max. Resolution
Up to 1920 x 1440
Max. Distance
Up to 30 m
Audio
Input
2 x Mini Stereo Jack Female (Green)
Output
1 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Power
Connectors
1 x DC Jack
Consumption
5.3 VDC, 0.55W
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.45 kg ( 0.99 lb )
Dimensions (L x W x H)
13.00 x 7.61 x 4.40 cm
(5.12 x 3 x 1.73 in.)
Carton Lot
5 pcs
