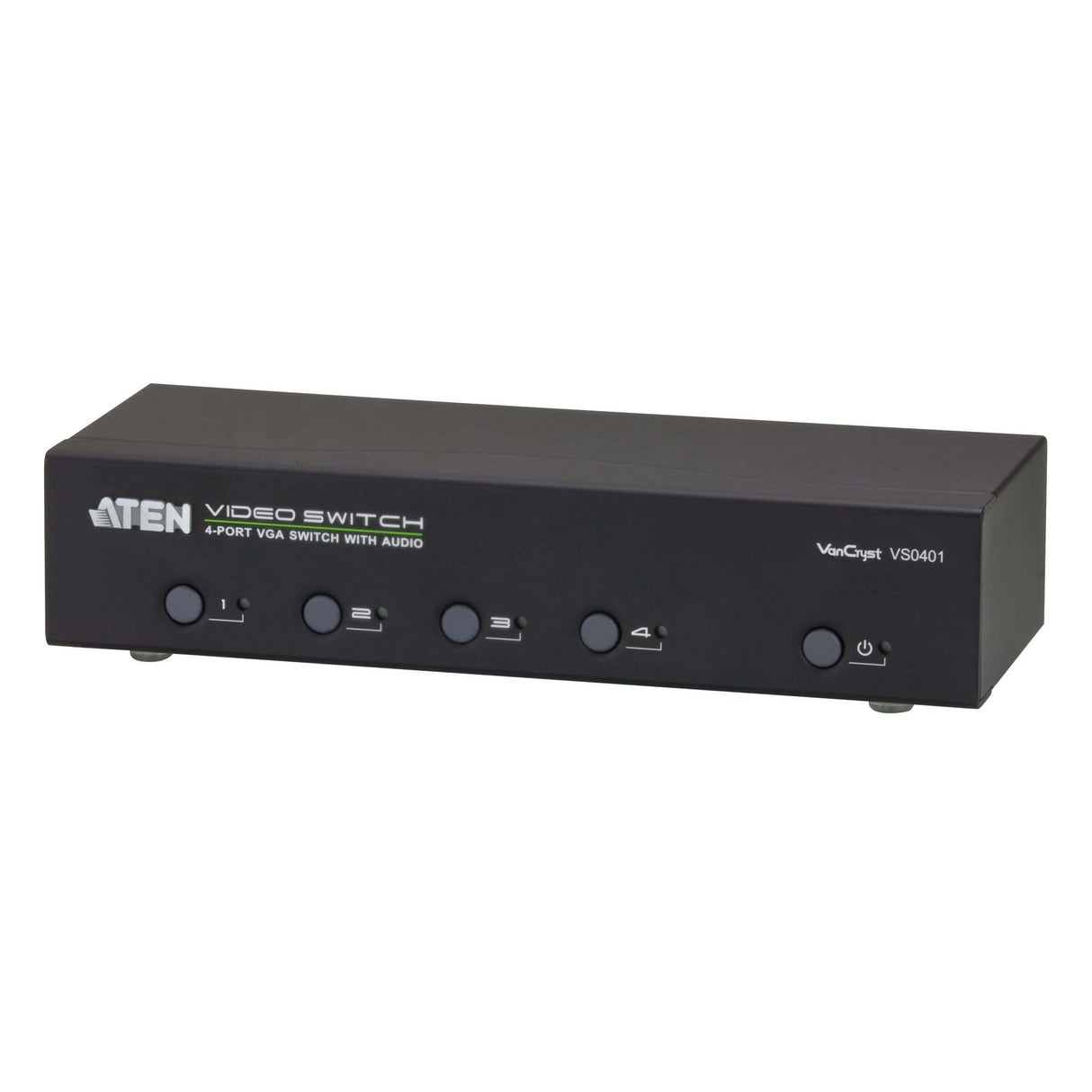

ATEN VS0401 4 Port VGA Switch with Audio
The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.
The VS0401 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.
Key Features
- Displays the video output of four computers on a single monitor or projector
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Superior video quality ā up to 1920 x 1440
- Long-distance transmission ā up to 65 m *
- Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSyncā¢ ā Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control **
- RS-232 Control:
Power On Detection ā if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on
source
Auto Switching ā sets the priority for auto switching to a connected port
Pushbutton Lock ā locks use of the front panel pushbuttons - Supports stereo audio
- DDC compatible
- Supports up to 300MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play ā no software installation required
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Technical Specifications
Display Connections : 4

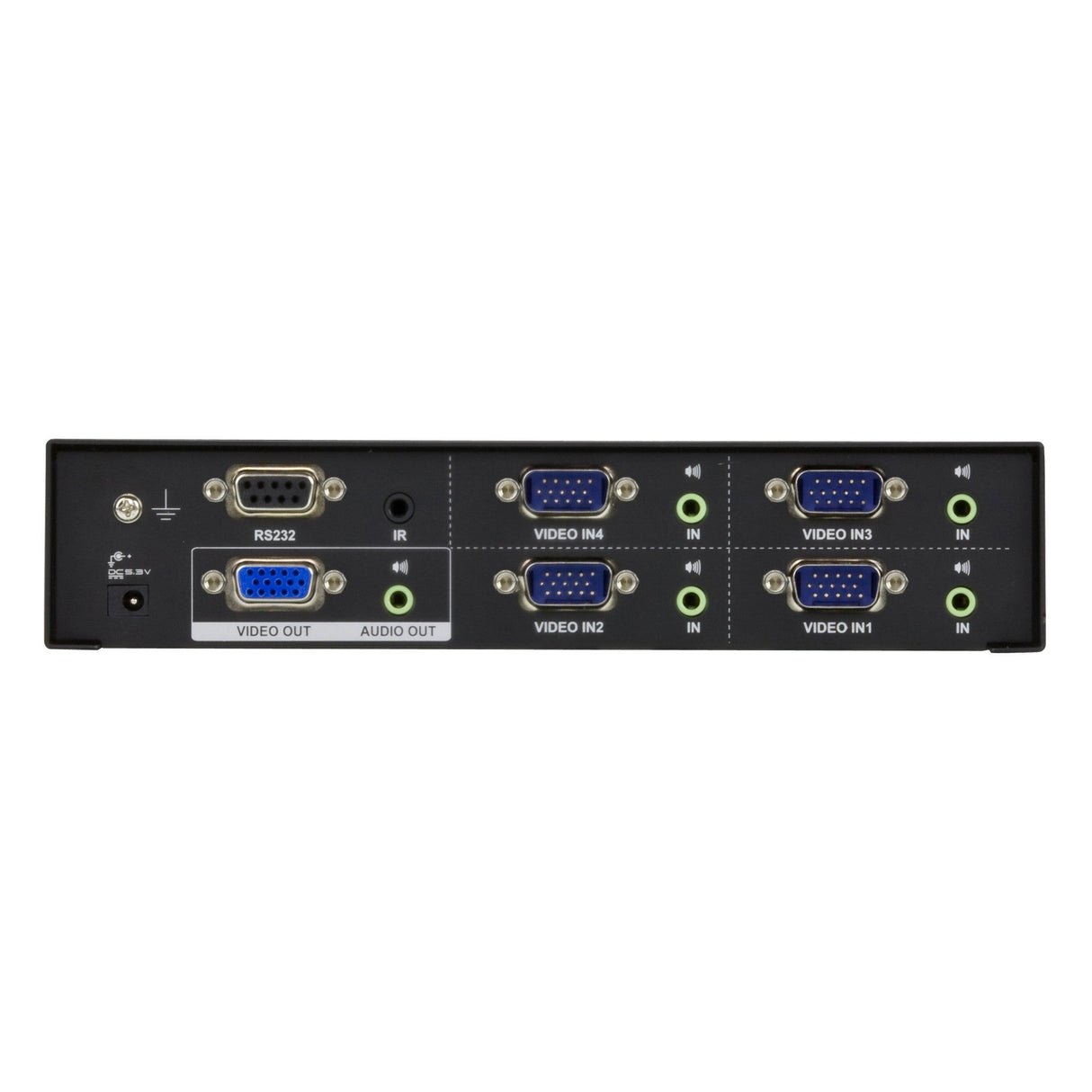

Connectors
Input
Video : 4 x HDB-15 Male (Blue)
Audio : 4 x Mini Stereo Jack Female (Green)
Output
Video : 1 x HDB-15 Female (Blue)
Audio : 1 x Mini Stereo Jack Female (Green)
RS-232 Port : 1 x DB-9 Female (Black)
IR Input port : 1 x Mini Stereo Jack Female (Black)
Power : 1 x DC Jack
Switches

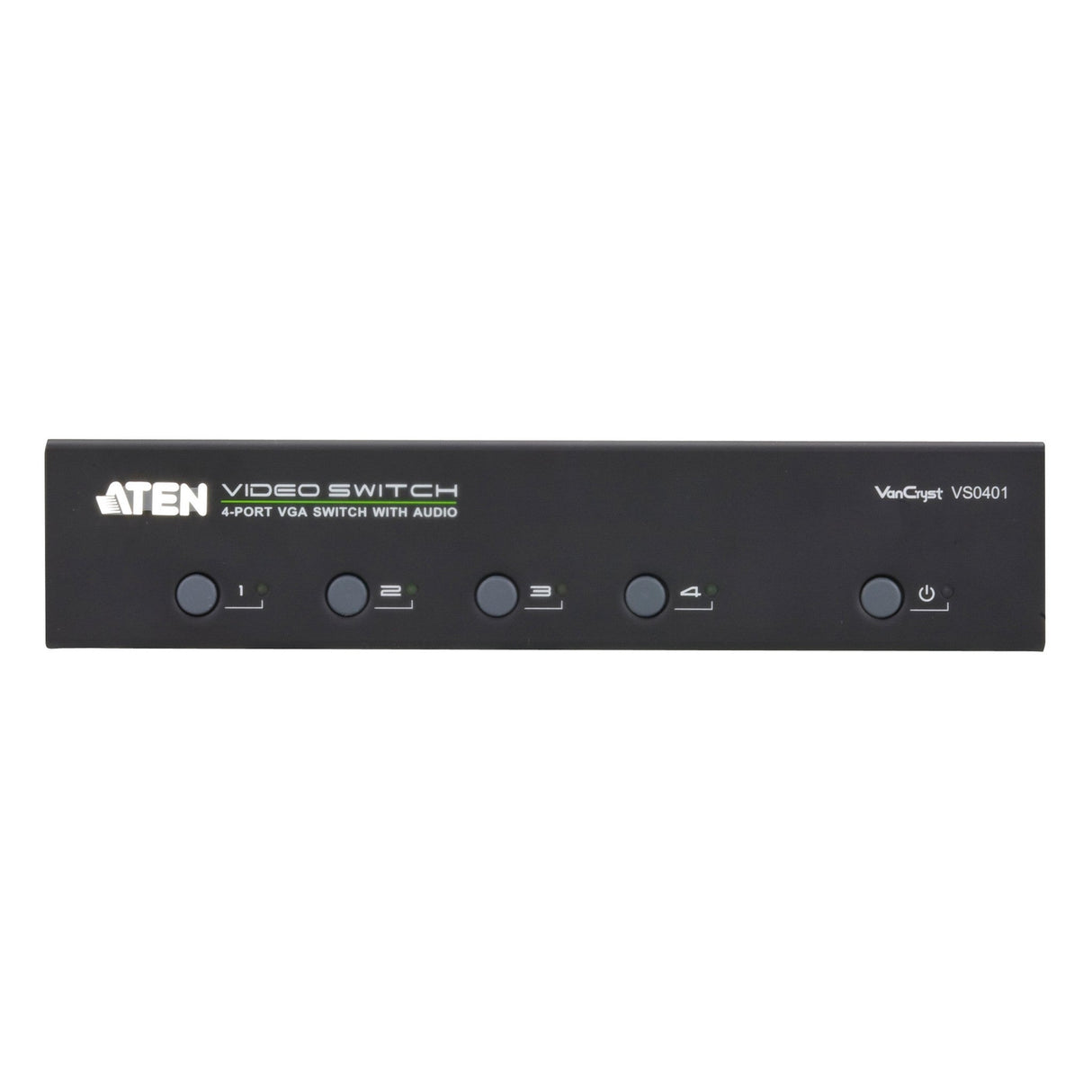

Port Selection : 4 x Pushbuttons
Power : 1 x Pushbuttons
LEDs
Selected : 4 (Green)
Power : 1 (Green / Orange)
Video
1920 x 1440 at 30 m
1280 x 1024 at 65 m
Power Consumption : DC5.3V, 0.55W
Environment
Operating Temp. : 0-50Ā°C
Storage Temp. : -20-60Ā°C
Humidity : 0ā80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.66 kg
Dimensions (L x W x H)
20.00 x 7.61 x 4.40 cm
