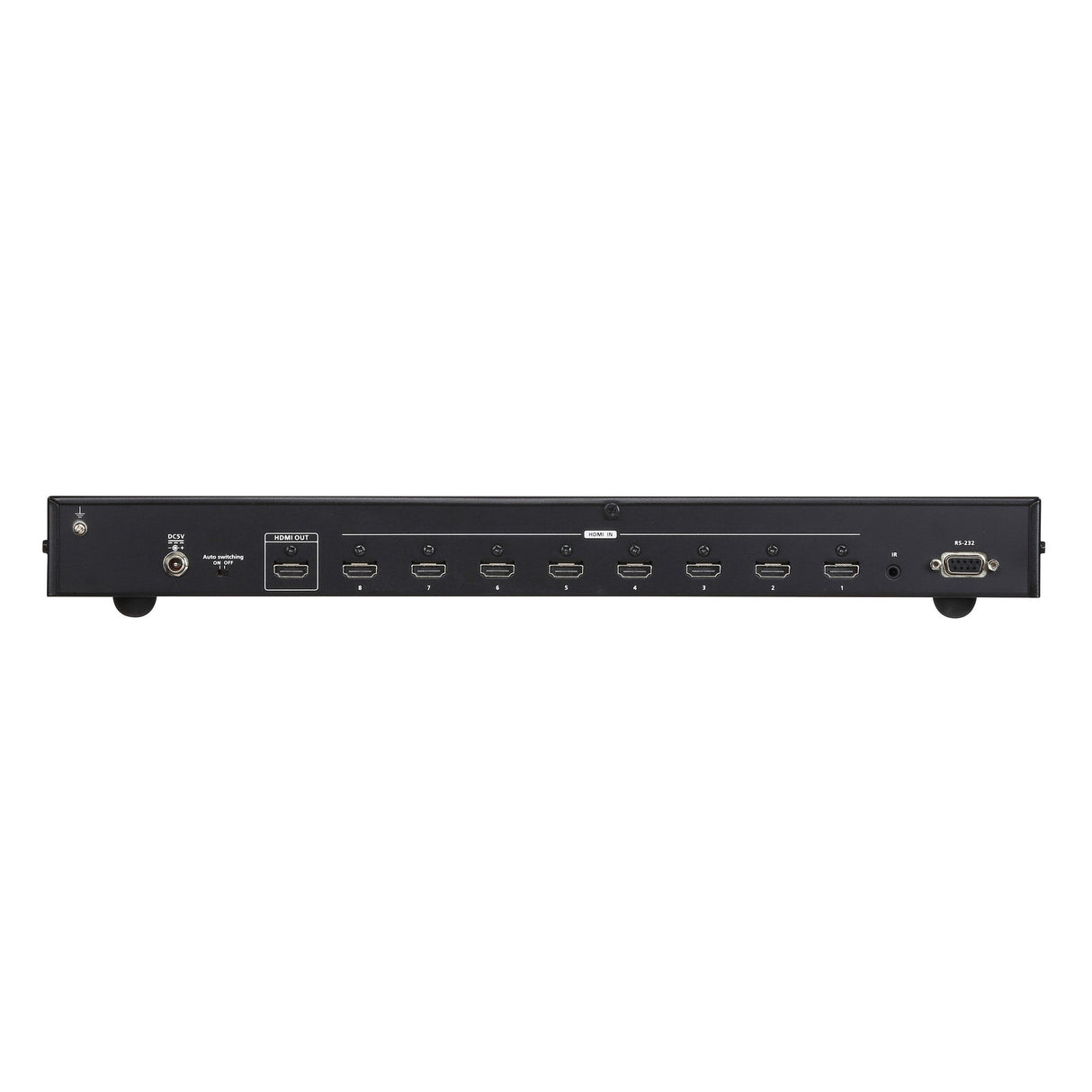

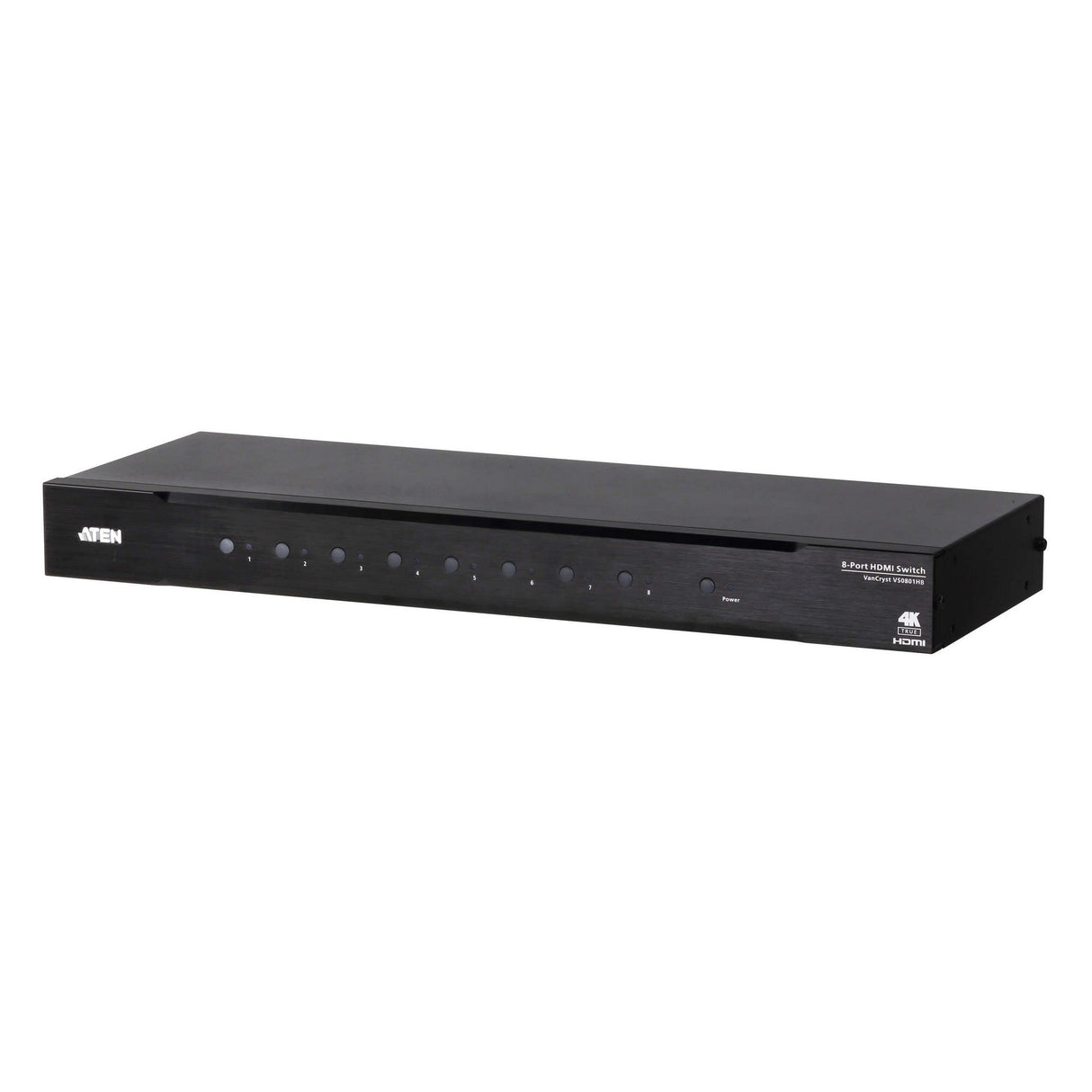

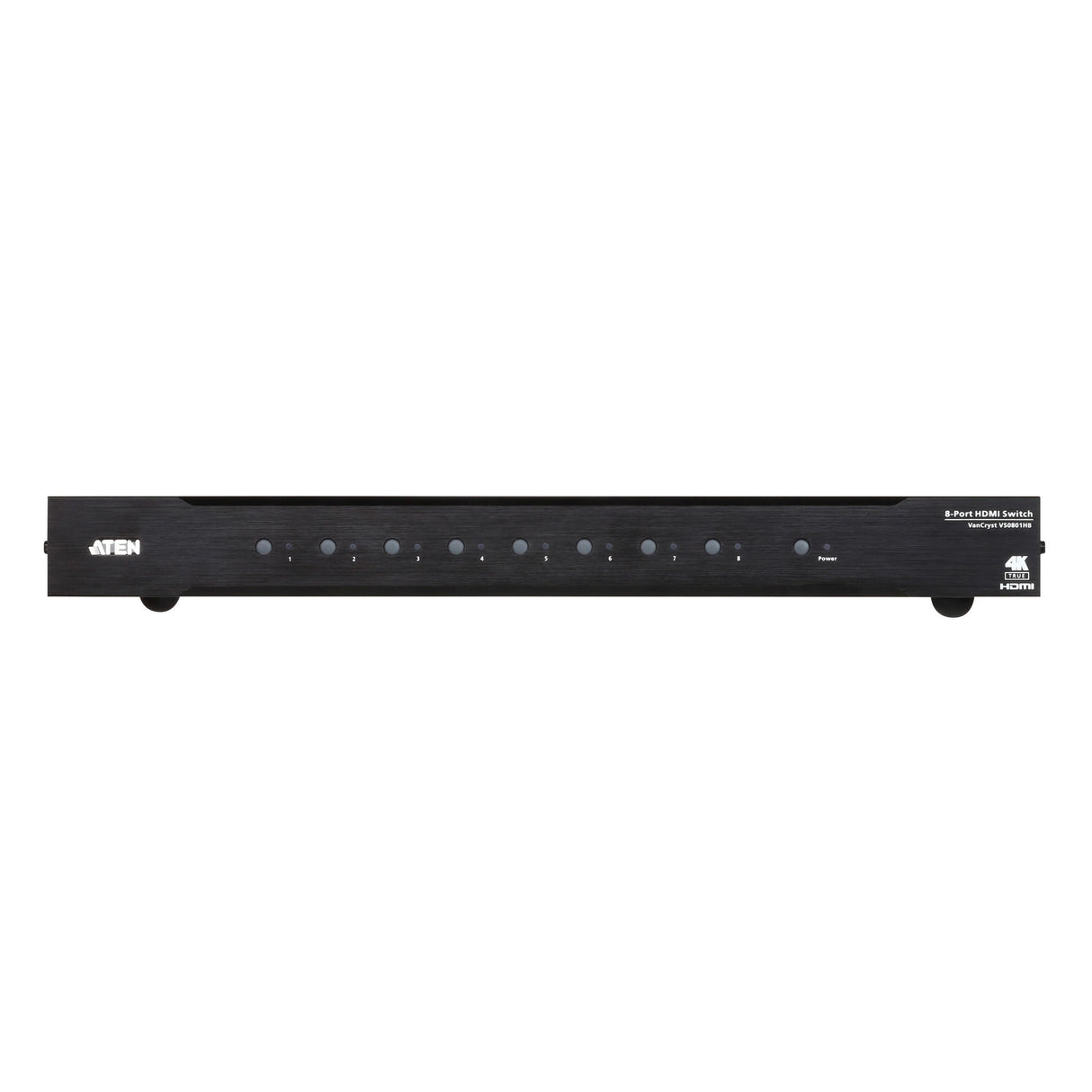

ATEN VS0801HB 8-Port True 4K HDMI Switch
Description
Description
ATEN VS0801HB 8-Port True 4K HDMI Switch
The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It'supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Key Features
- Allows up to 8 HDMI sources to be connected to one HDMI display
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
- Supports HDR10+
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- Supports IR extension
- Clear LED indication of device status
- Plug-and-play
- Rack Mountable
Technical Specifications
Switches
DIP
1 x Auto Switch ON / OFF
Video Input
Interfaces
8 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Connectors
Power
1 x DC Jack (with locking)
Power Consumption
DC5.3V:3. 73W:17BTU
Environmental
Operating Temperature
0 - 40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
2.14 kg (4.71 lb)
Dimensions (L x W x H)
43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.)
Carton Lot
3 pcs
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
