ATEN VS1204T | 4 Port AV Over Cat 5 Splitter
ATEN VS1204T | 4 Port AV Over Cat 5 Splitter
Free Shipping

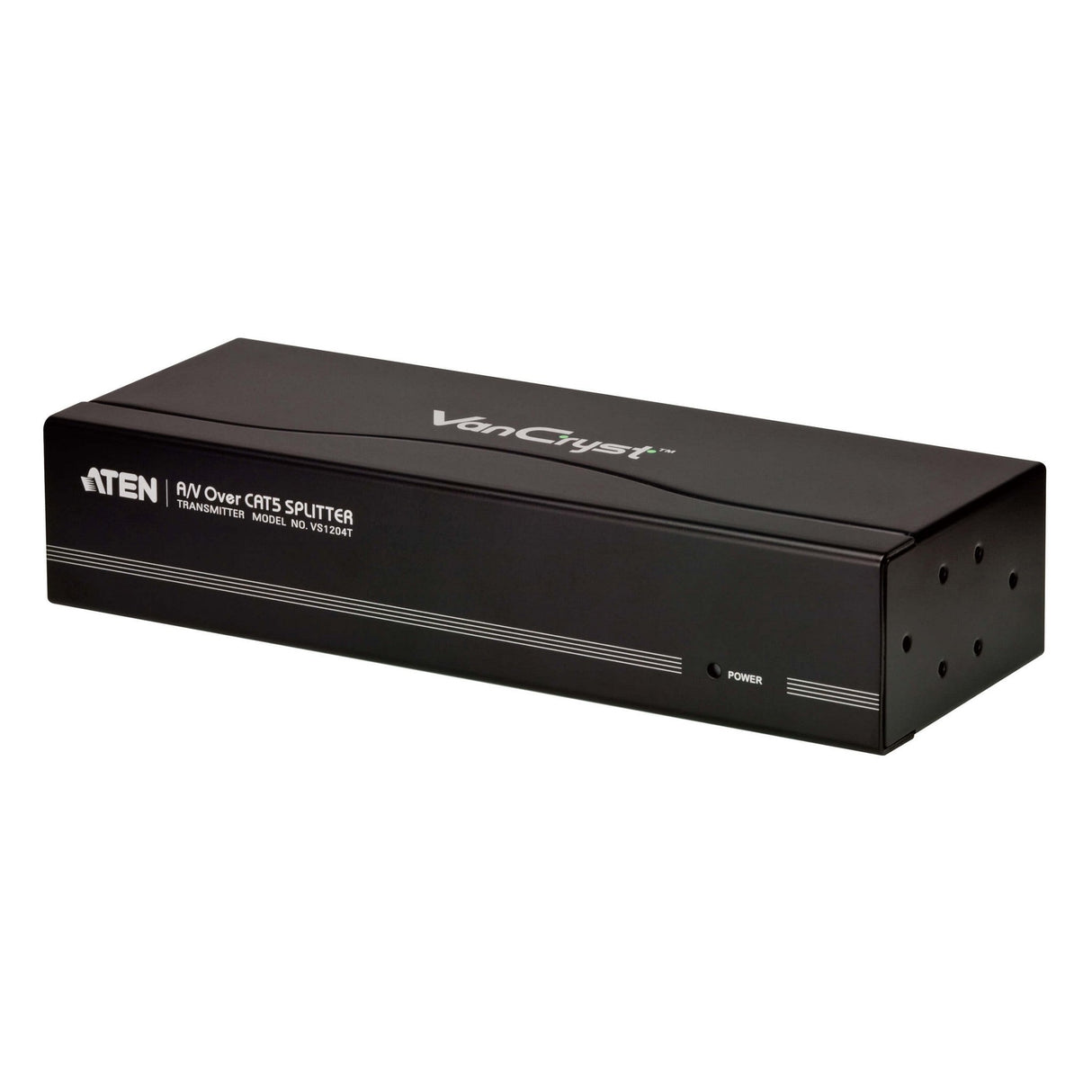

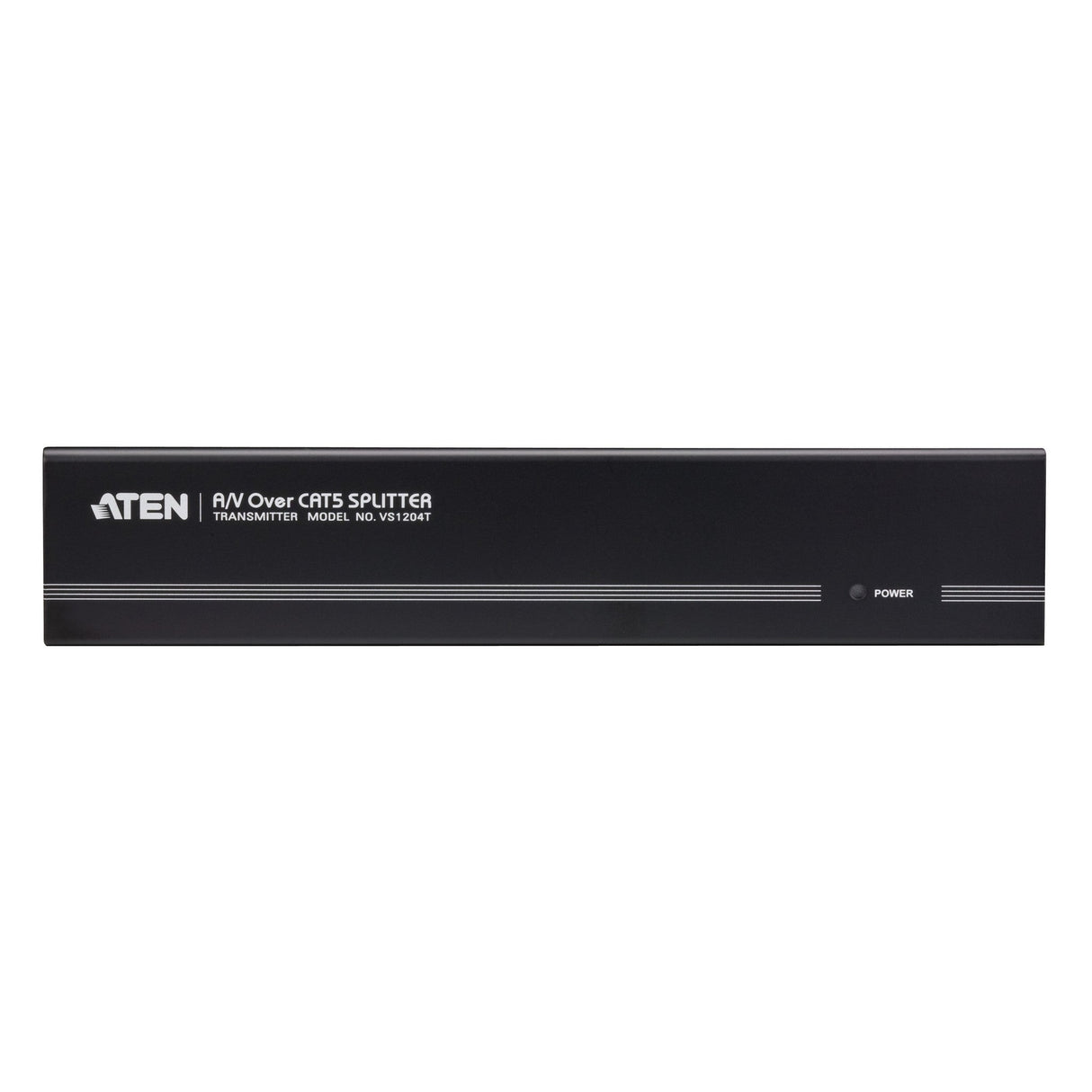

ATEN VS1204T 4 Port AV Over Cat 5 Splitter
The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
Key Features
- One audio/video input to 4 audio/video outputs via Cat 5e cable
- Supports local display + 4 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Technical Specifications

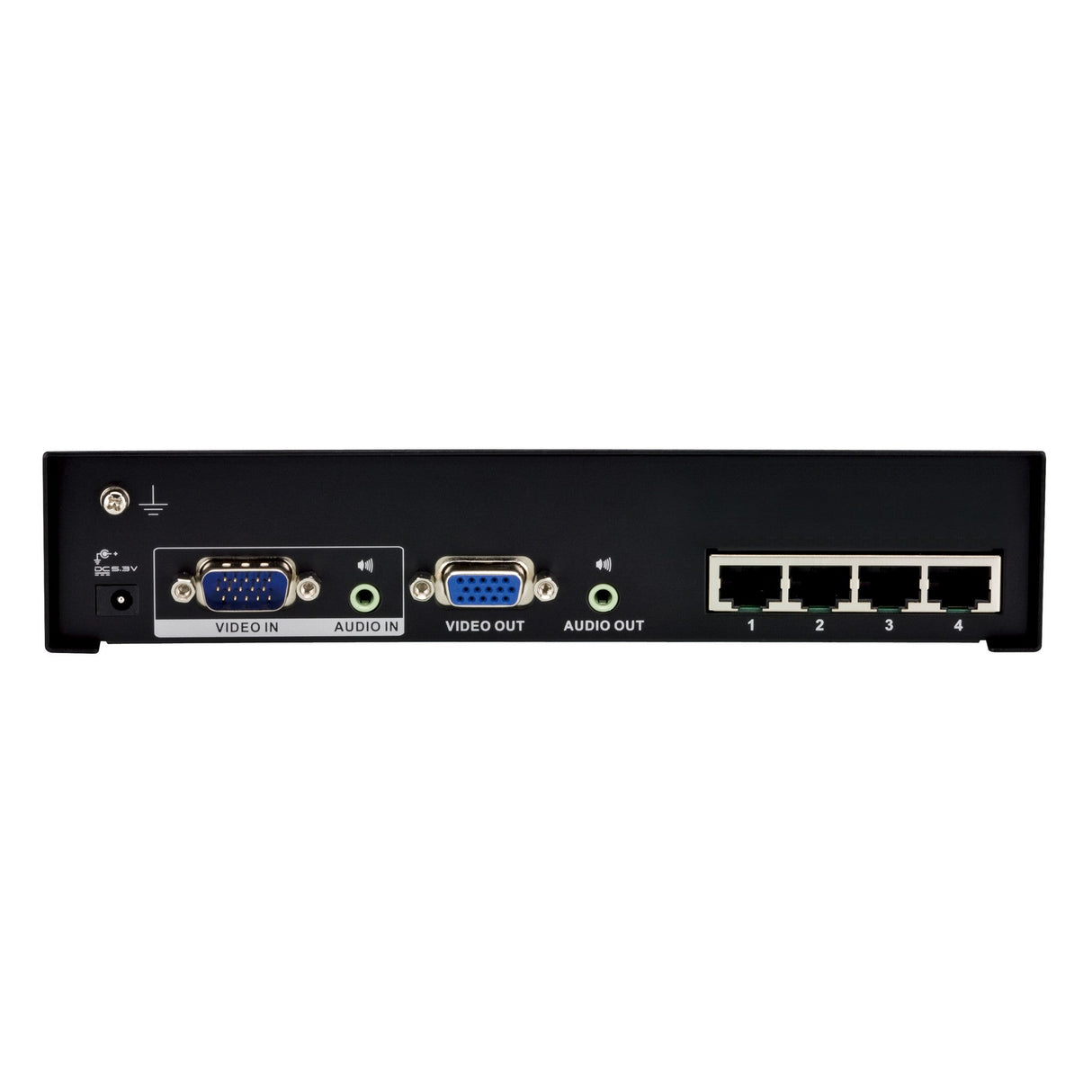

Connectors
Video In : 1 x HDB-15 Male (Blue)
Video Out : 1 x HDB-15 Female (Blue)
Audio In : 1 x Mini Audio Jack Female (Green)
Audio Out : 1 x Mini Audio Jack Female (Green)
Unit to Unit : 4 x RJ-45 Female
Power : 1 x DC Jack
LEDs
Power : 1 (Green)
Video : 1920x1200 @ 60Hz
Cable Distance : 300 m
Power Consumption : DC5.3V, 1.33 W
Environment
Operating Temp. : 0-50°C
Storage Temp. : -20-60°C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.59 kg
Dimensions ( L x W x H ) : 20.00 x 7.51 x 4.20 cm
