ATEN VS132A | 2 Port Video Splitter

ATEN | SKU: ATEN-SPLTR-VS132A
$7800

Estimated Shipping Widget will be displayed here!

Condition: New

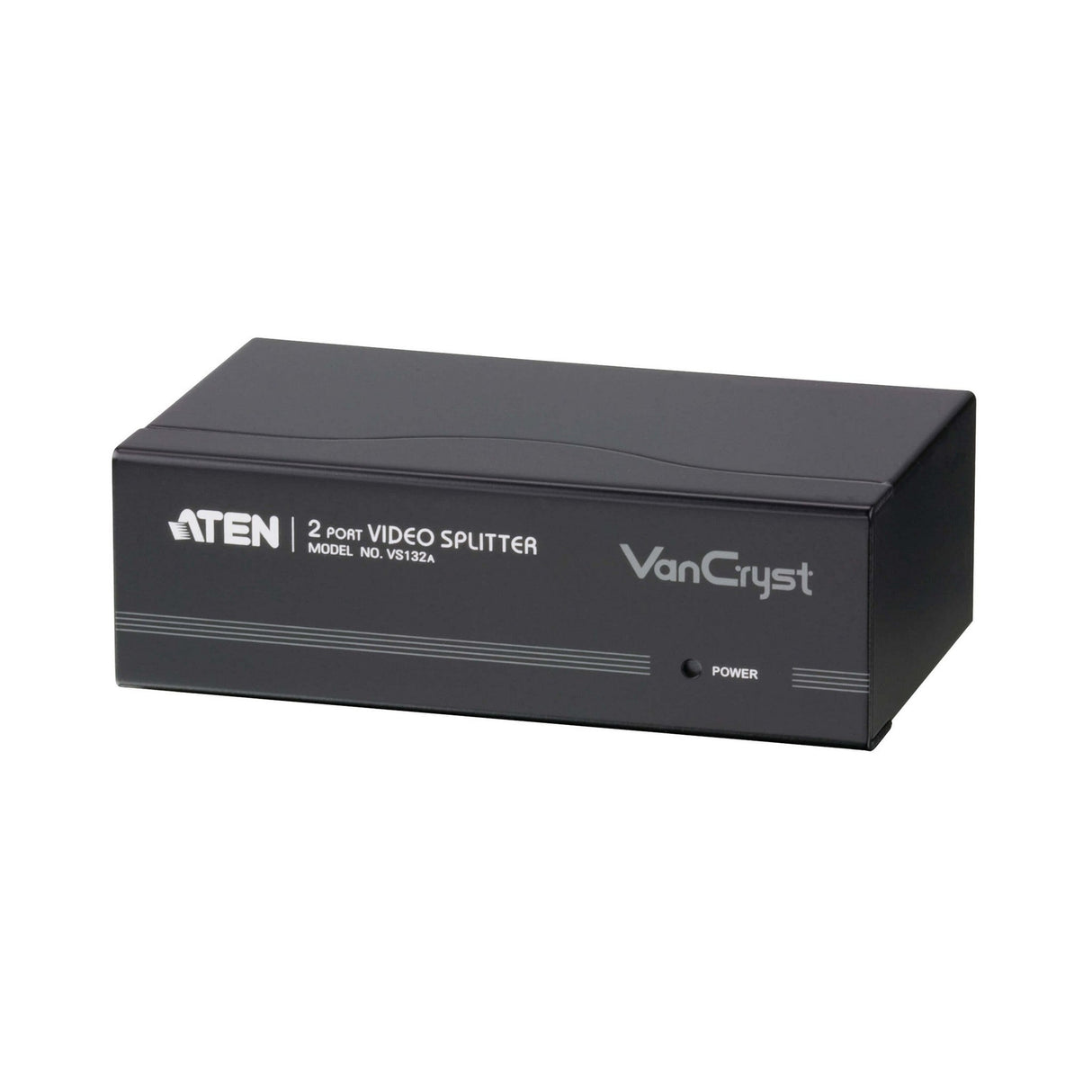

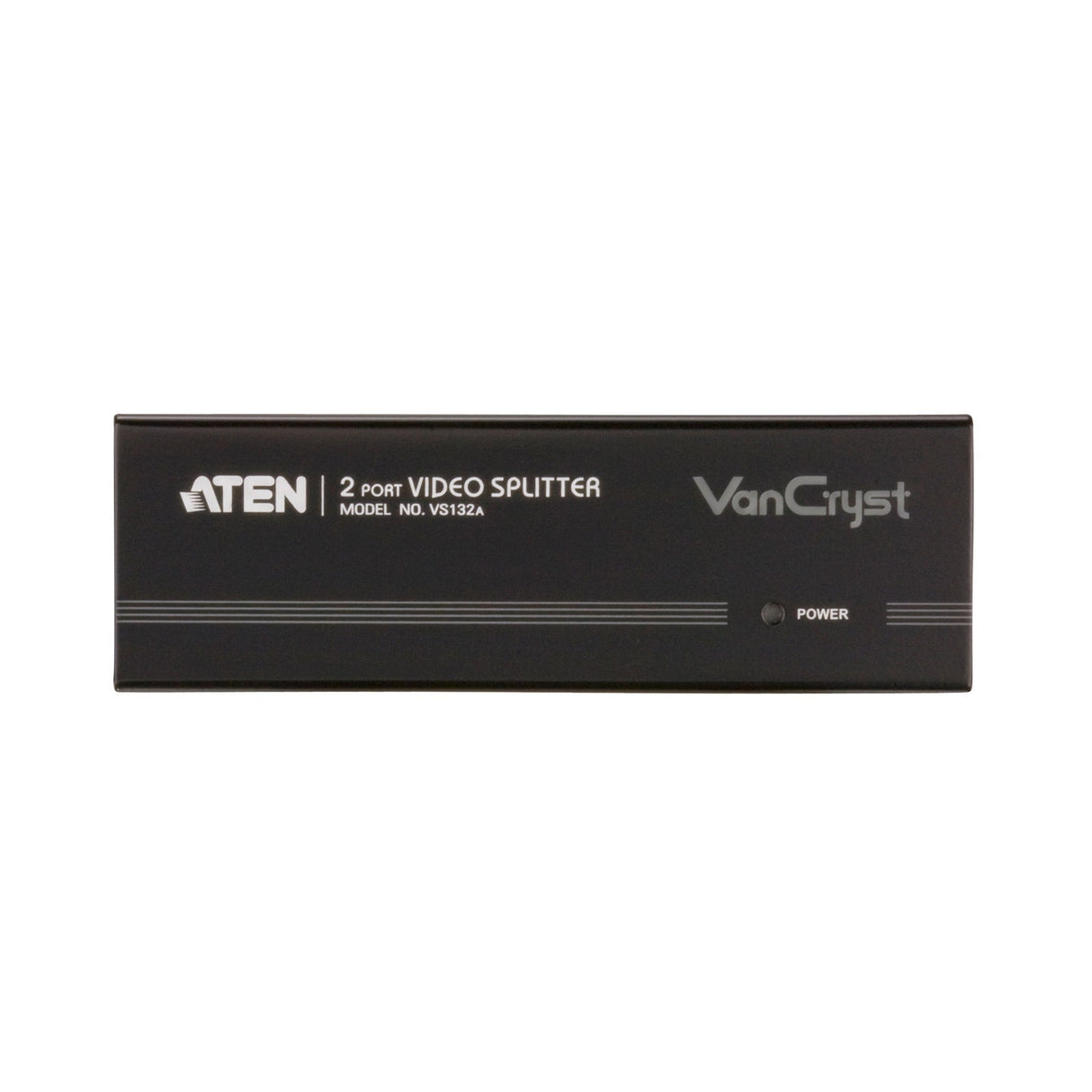

ATEN VS132A 2 Port Video Splitter

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Key Features

  • One video input to 2 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels - provides up to 8 video signals
  • Long distance transmission - up to 65m *
  • Superior video quality - up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
  • All-metal casing

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Technical Specifications

Display Connections : 2 / 8*

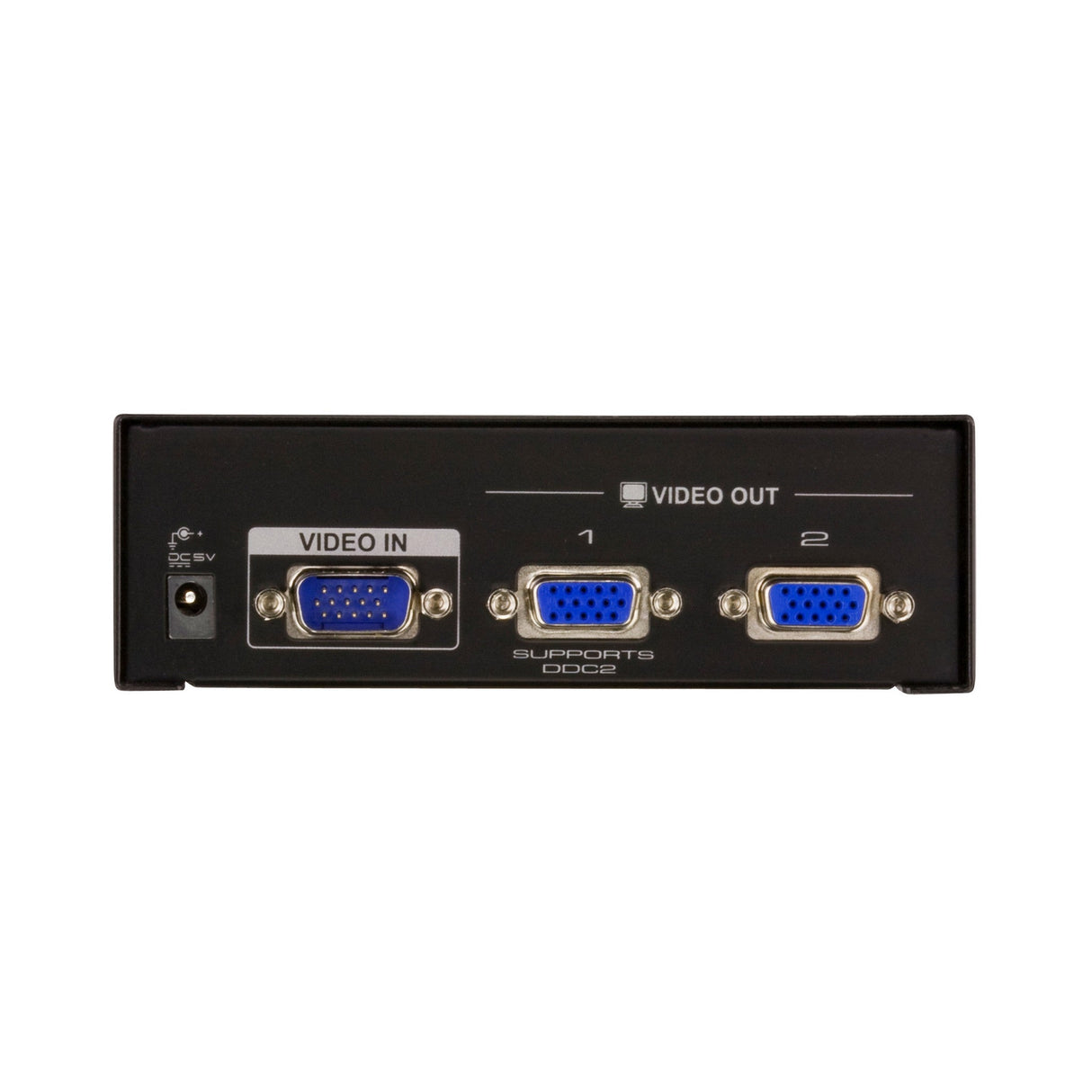

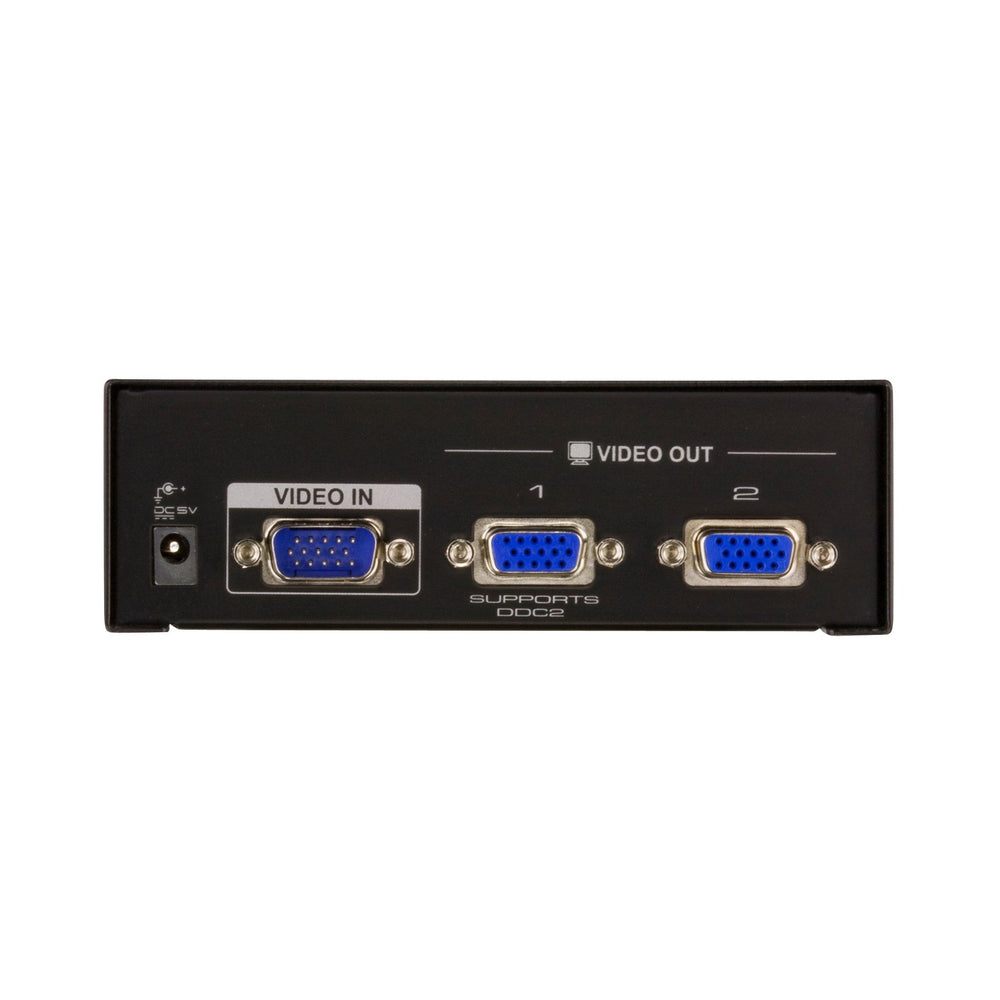

Connectors
Video In : 1 x HDB-15 Male (Blue)
Video Out : 2 x HDB-15 Female (Blue)
Power : 1 x DC Jack (Black)
LEDs
Power : 1 (Green)
Video
Bandwidth : 450 MHz
Resolution : 2048 x 1536 @ 60Hz
Signal Type : VGA, XGA, SVGA, UXGA, QXGA, WUXGA, Multisync, DDC2B**
Signal Range : 65 m
Power Consumption : DC5V, 0.78W
Environment
Operating Temp. : 0-50C
Storage Temp. : -20-60C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.42 kg
Dimensions (L x W x H) : 13.00 x 7.51 x 4.40 cm
