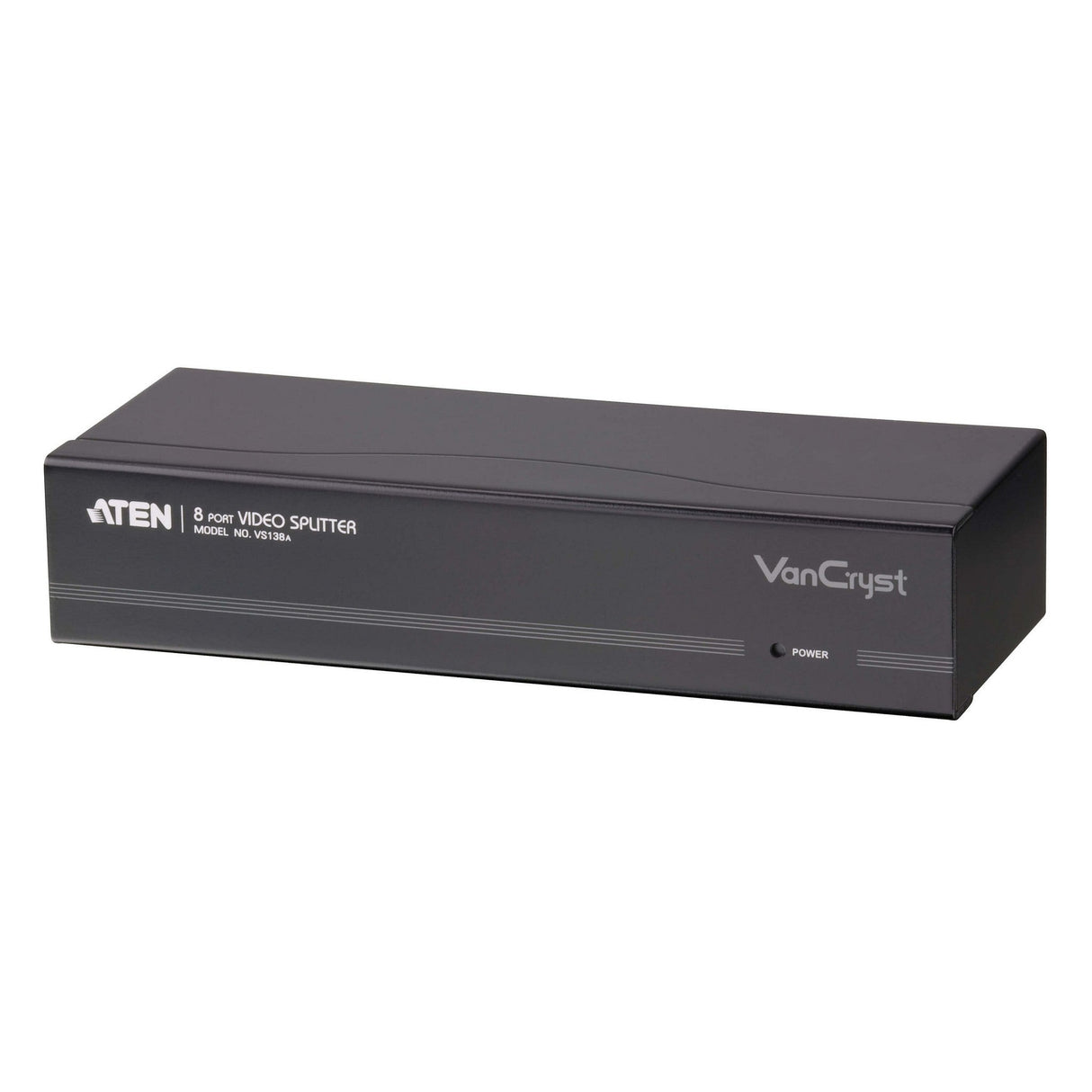

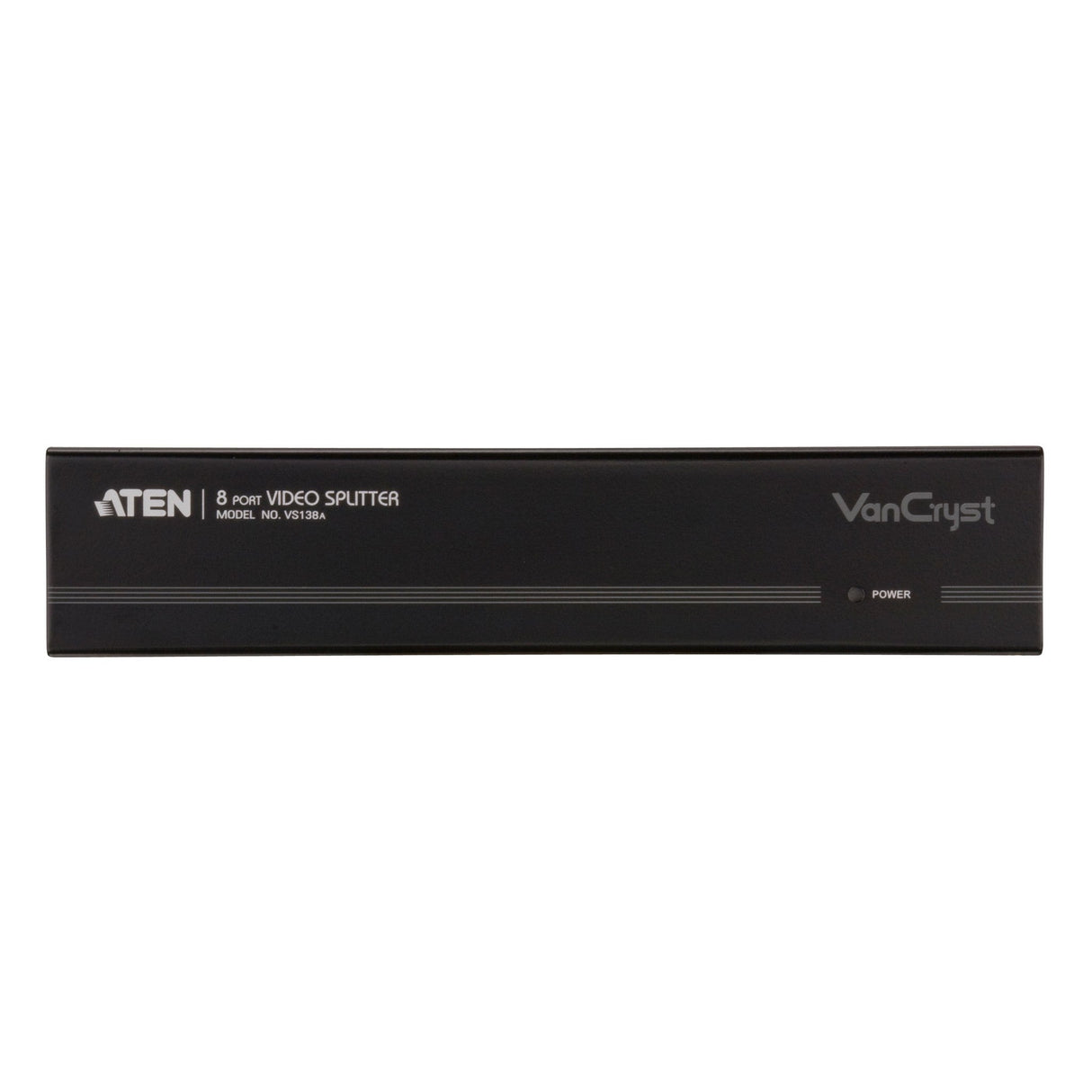

ATEN VS138A 8 Port Video Splitter
The VS138A Video Splitter is a boosting device that duplicates a video signal from one source to 8 output devices. Cascadable to three levels, the VS138A provides up to 512 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS138A is your best choice.
Key Features
- One video input to 8 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 512 video signals
- Long distance transmission - up to 65m *
- Superior video quality - up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
- All-metal casing
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Technical Specifications
Display Connections : 8 / 512*

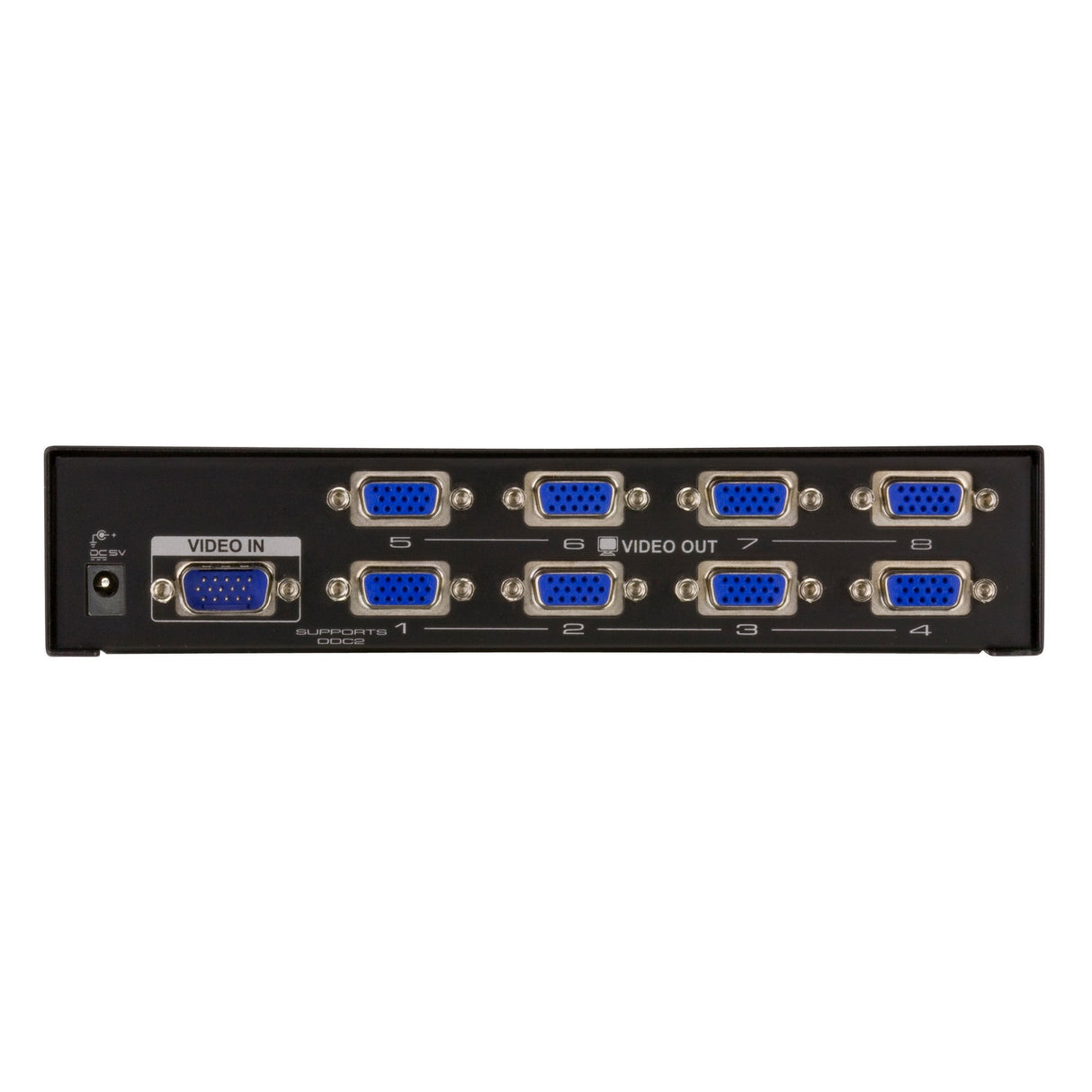

Connectors
Video In : 1 x HDB-15 Male (Blue)
Video Out : 8 x HDB-15 Female (Blue)
Power : 1 x DC Jack (Black)
LEDs : Power 1 (Green)
Video
Bandwidth : 450 MHz
Resolution : 2048 x 1536 @ 60Hz
Signal Type : VGA, XGA, SVGA, UXGA, QXGA, WUXGA, Multisync, DDC2B**
Signal Range : 65 m
Power Consumption : DC5V, 2.25W
Environment
Operating Temp. : 0-50°C
Storage Temp. -20-60°C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.69 kg
Dimensions (L x W x H) : 20.00 x 7.51 x 4.20 cm
