Description

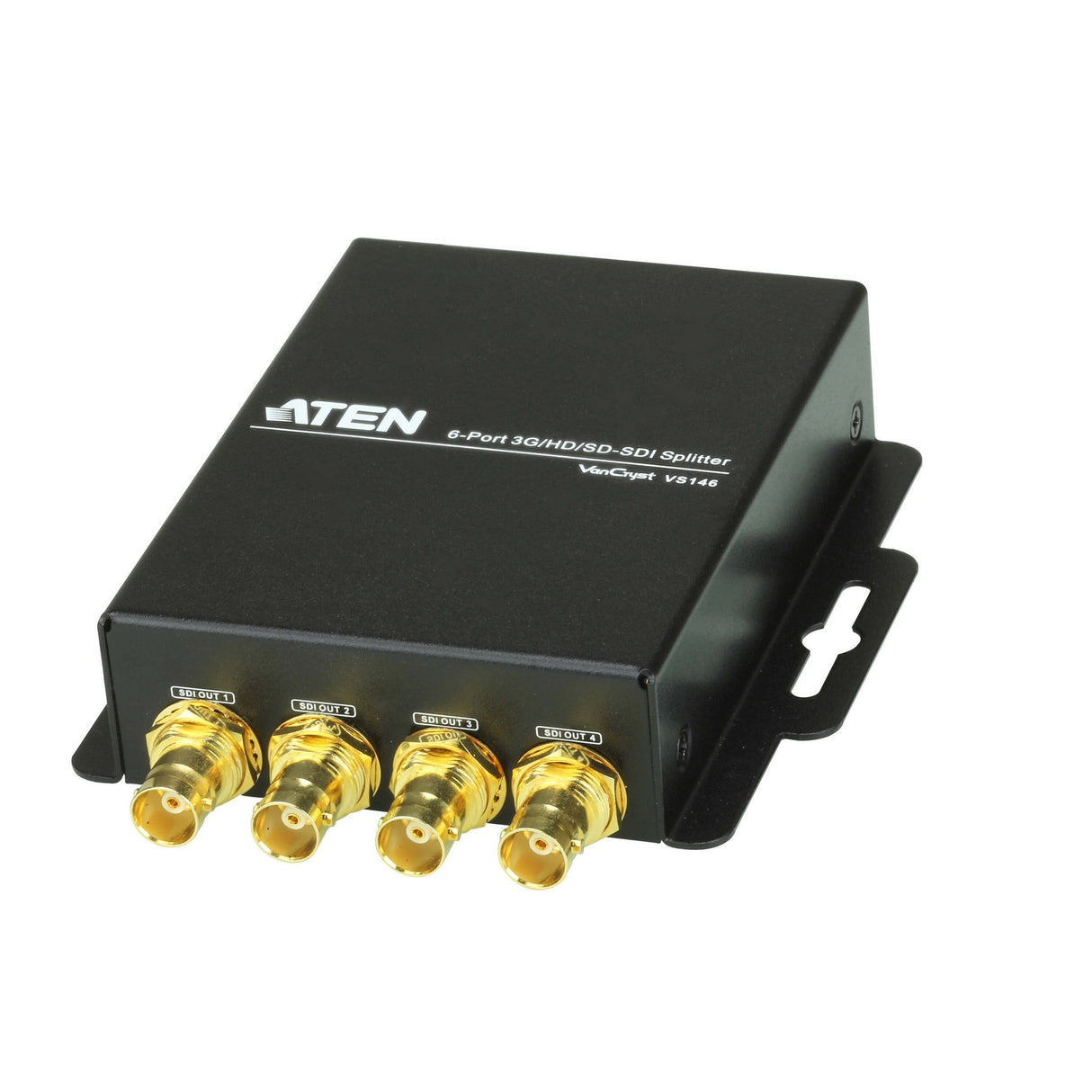

ATEN VS146 6 Port 3G HD SD-SDI Splitter
The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to splIt'signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
Key Features
- One video inputs to 6 video outputs
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
- Reclocking SDI signals for cascading and thus longer transmission
- Supported SDI formats:
- SD-SDI (SMPTE 259M, up to 270Mbps)
- HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
- 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
- Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
- Features automatic detection of 3G/HD/SD-SDI signals
- LED indication of power status and SDI signal
- Locking power connector for secure communications
- Passes all ancillary data
Technical Specifications

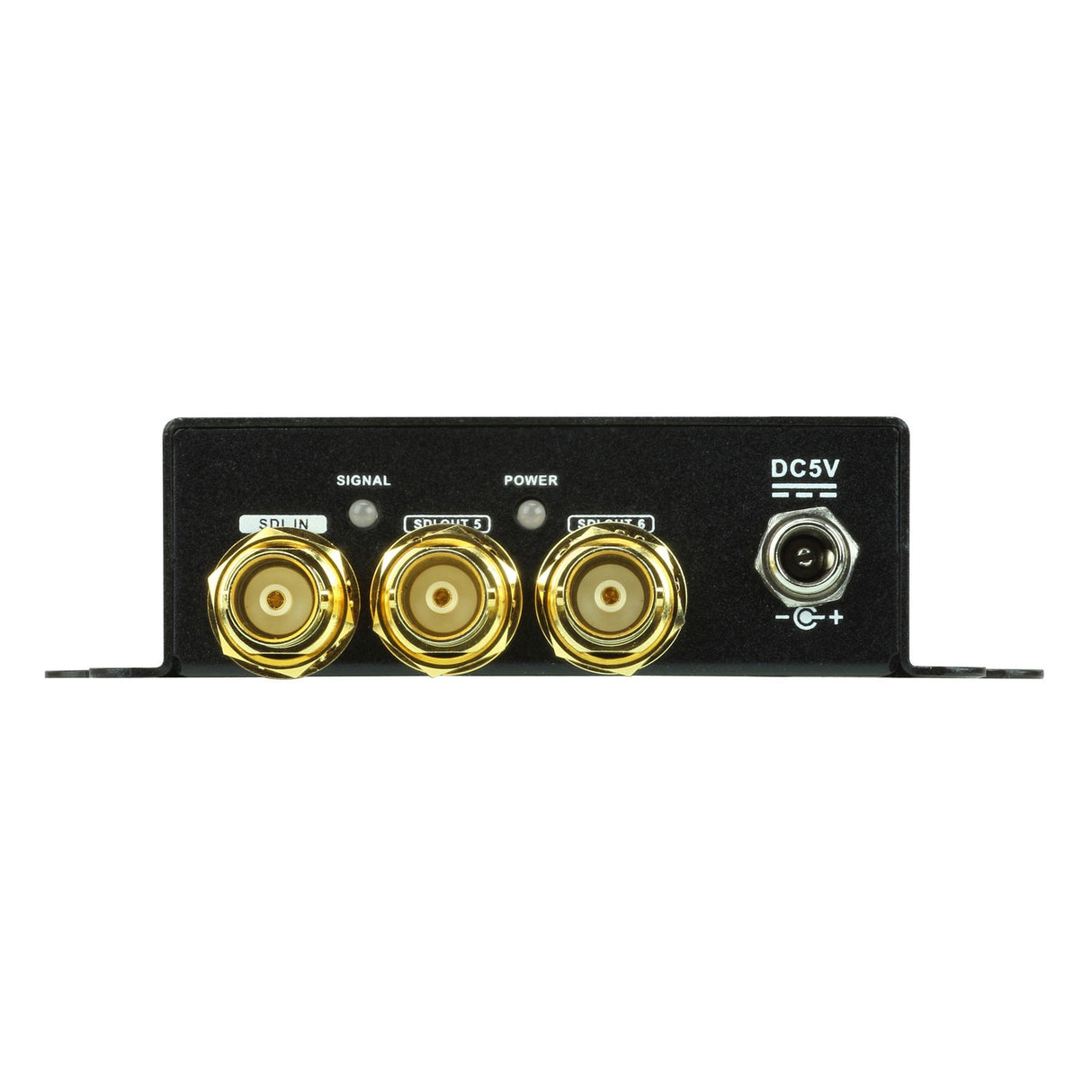

Connectors
SDI In : 1 x BNC (Gold)

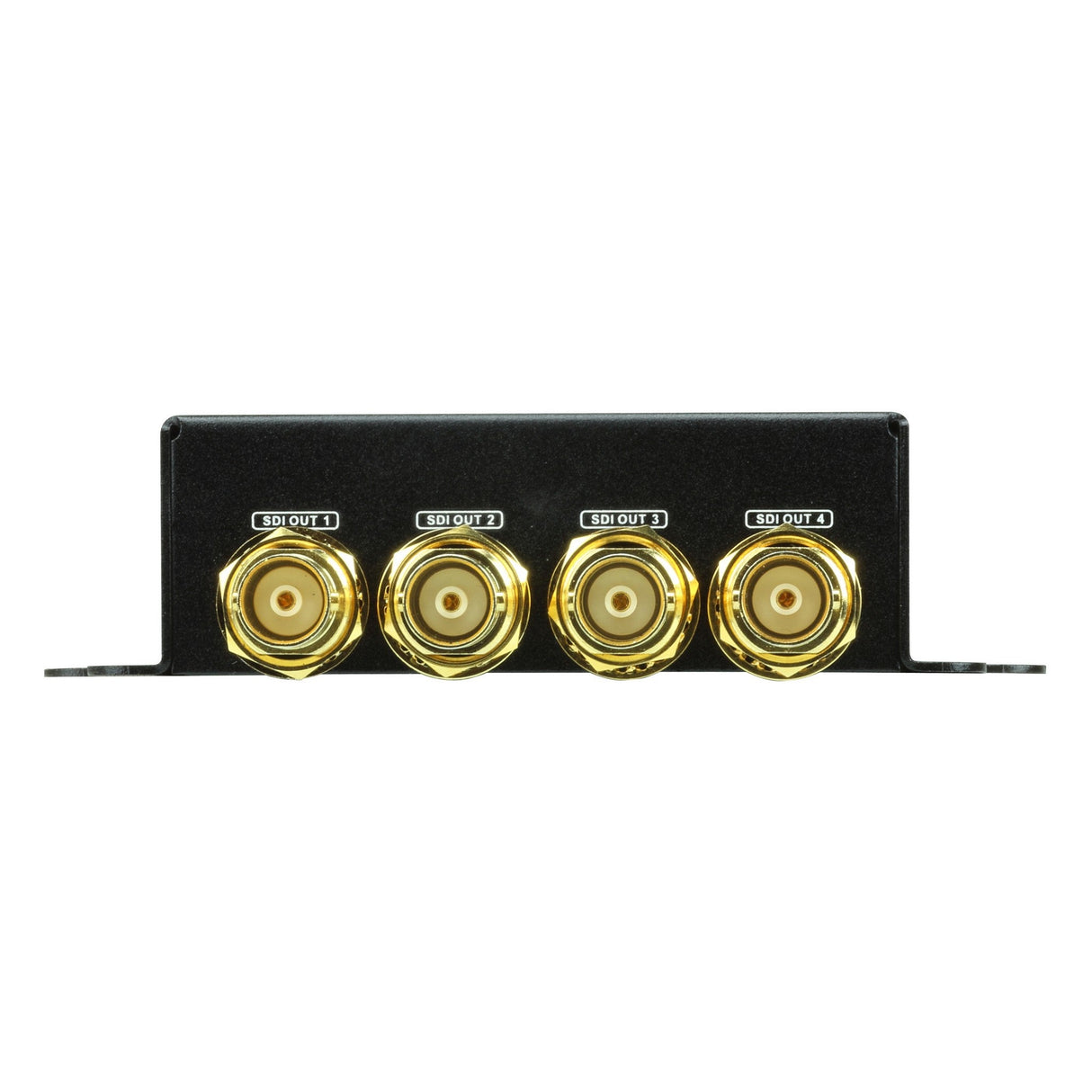

SDI Out : 6 x BNC (Gold)
Power : 1 x DC Jack
LEDs
Power : 1 (Orange)
Signal : SD 1 (Orange)
3G/HD : 1 (Green)
Power Consumption : DC5V, 10W
Environment
Operating Temp. : 0-40°C
Storage Temp. : -20-60°C
Humidity : 20–90% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.31 kg
Dimensions (L x W x H) : 14.50 x 8.00 x 2.50 cm
