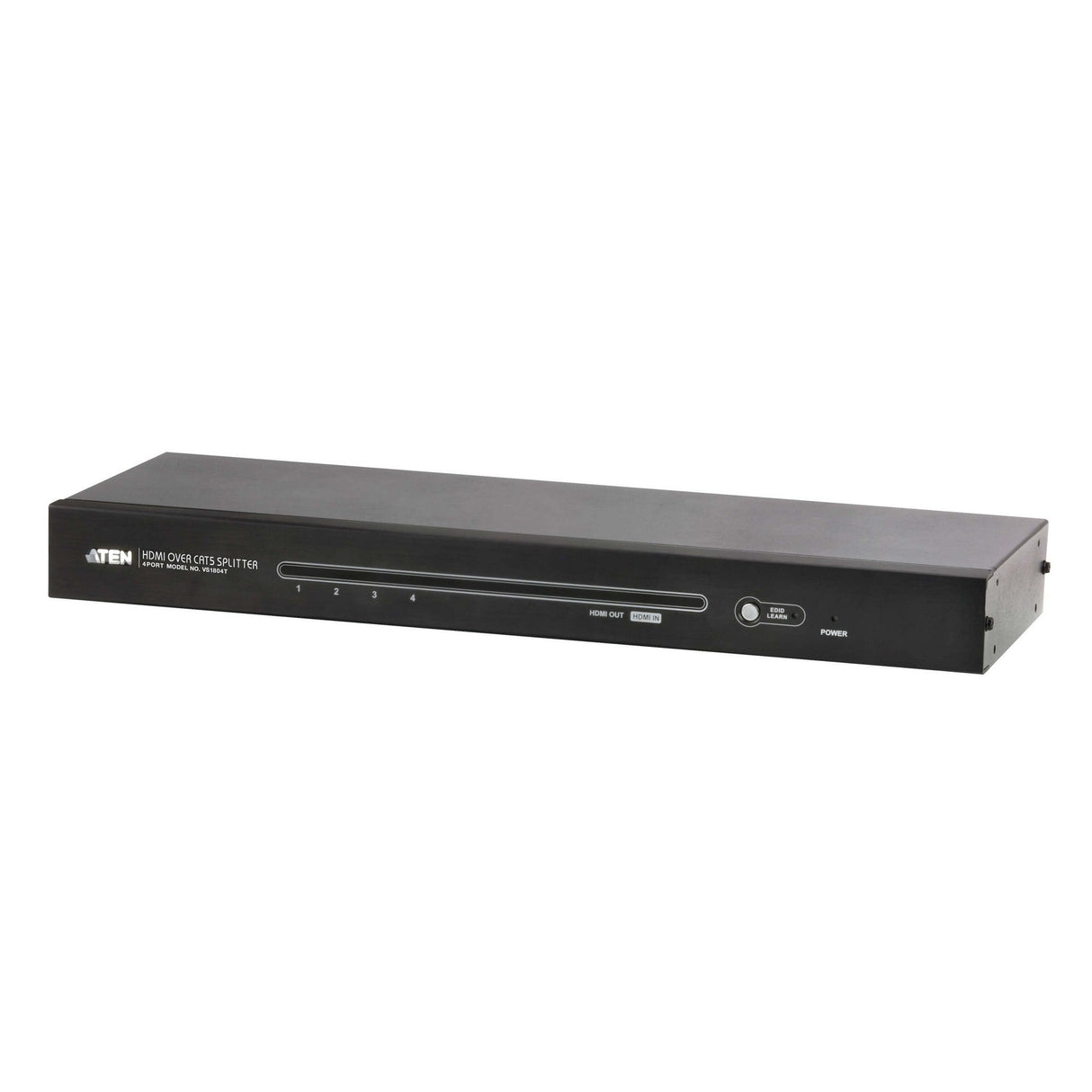

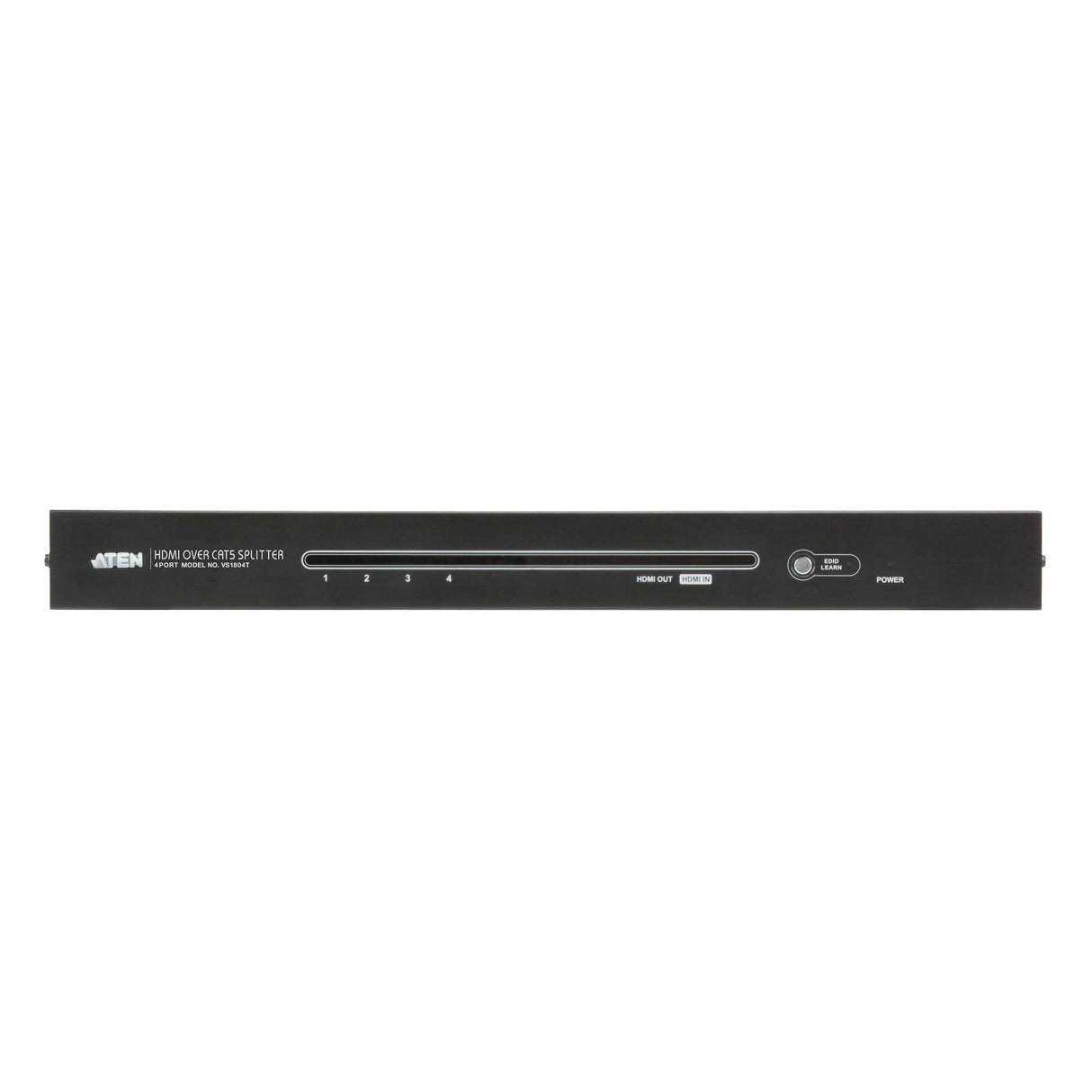

ATEN VS1804T 4 Port HD Video Audio Cat5e Cat6 Splitter RS-232
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
ATEN VS1804T 4 Port HD Video Audio Cat5e Cat6 Splitter RS-232
The VS1804T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as:
In-store or tradeshow digital signage
Broadcasting information to public locations (news, airline and train schedule and arrival/departure information)
Sporting events
Theater and lecture overview rooms
Classroom and company training facilities
Note*: Compatible receiving device is VE800R
Key Features
- One HDMI input to 4 HDMI outputs via Cat 5e cables
- Extends displays up to 198 ft
- Supports HDMI (3D, Deep color)
- Offers local HDMI output
- HDCP compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Cascadable to three levels
- Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- EDID mode selection
- Rack-mountable
Technical Specifications

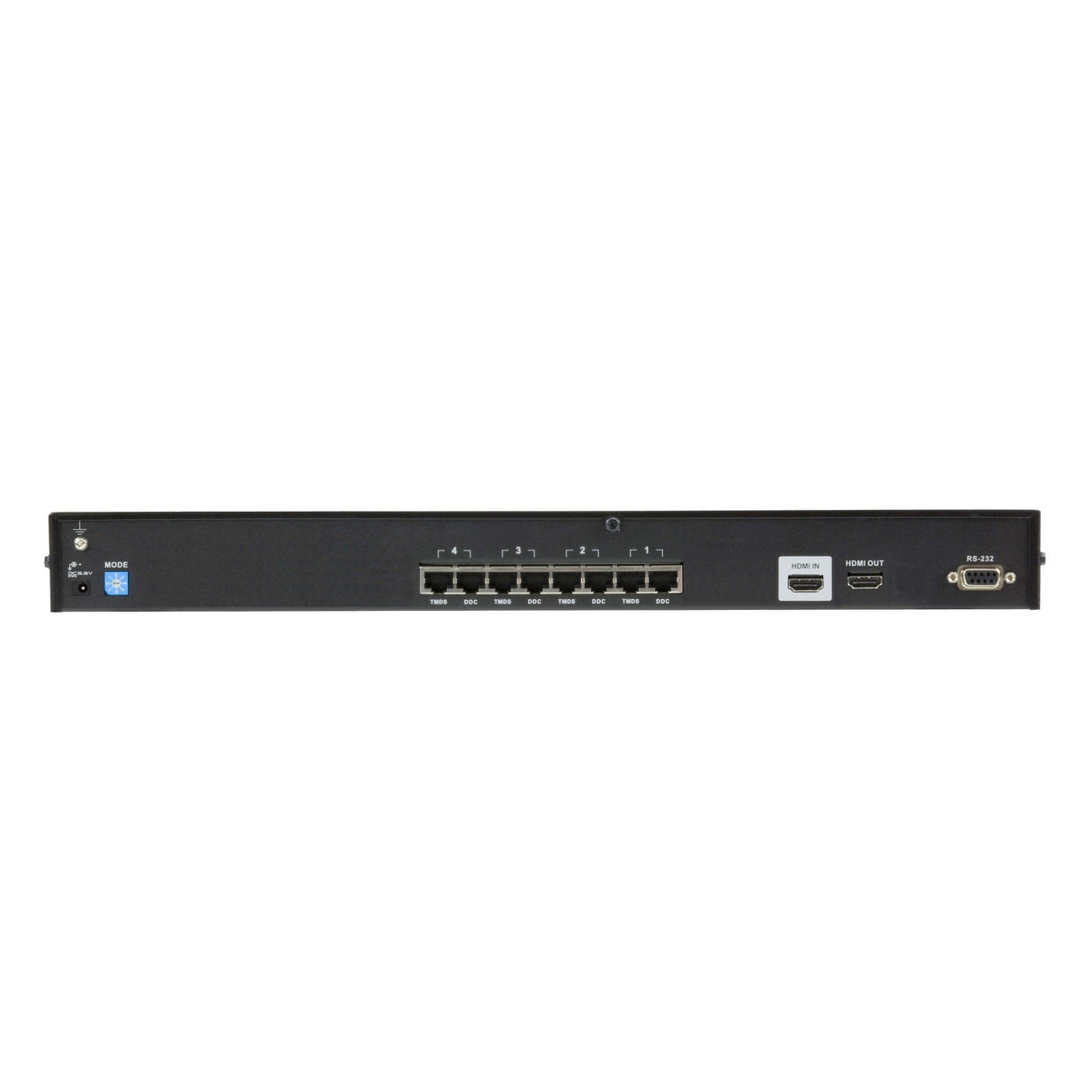

Connectors
HDMI In : 1 x HDMI Type A Female (Black)
HDMI Out
Local : 1 x HDMI Type A Female (Black)
Line Out (Cat 5)
TMDS : 4 x RJ-45 Female
DDC : 4 x RJ-45 Female
RS-232 : 1 x DB-9 Female (Black)
Power : 1 x DC Jack
Switches
EDID Mode : 1 x 8-Position Switch
EDID Learn Mode : 1 x Pushbutton
LEDs
Power : 1 (Green)
HDMI In : 1 (Green)
HDMI Out : 1 (Green)
EDID Learn : 1 (Green / Red)
Line Out : 4 (Green)
Video : 1080p @ 130 ft; 1080i @ 198 ft
Power Consumption : DC5.3V, 8W
Environment
Operating Temp. : 0-50°C
Storage Temp. : -20-60°C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 4.6 lb (2.10 kg)
Dimensions ( L x W x H )
17 x 6.1 x 1.7 in.
(43.24 x 15.41 x 4.40 cm)
