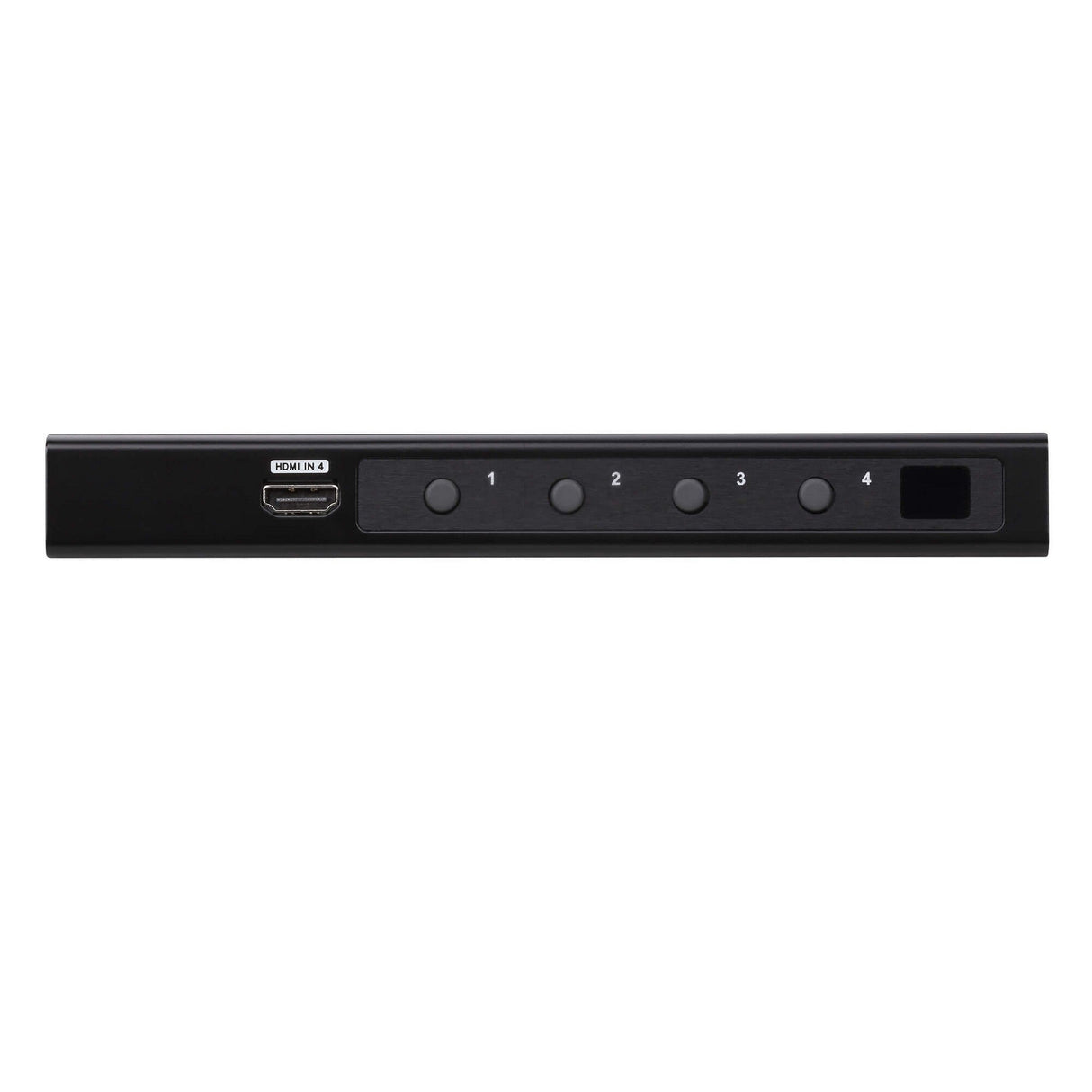

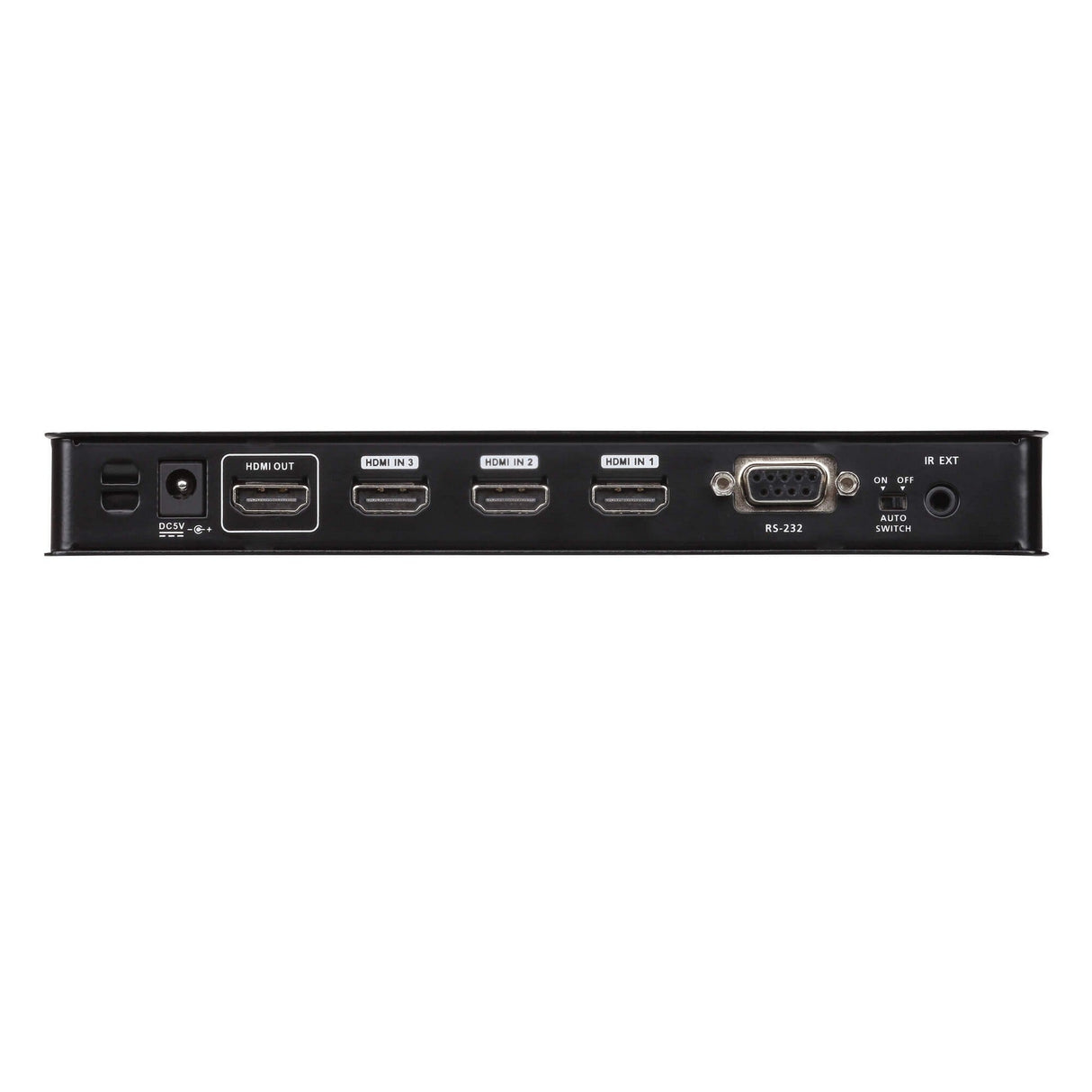

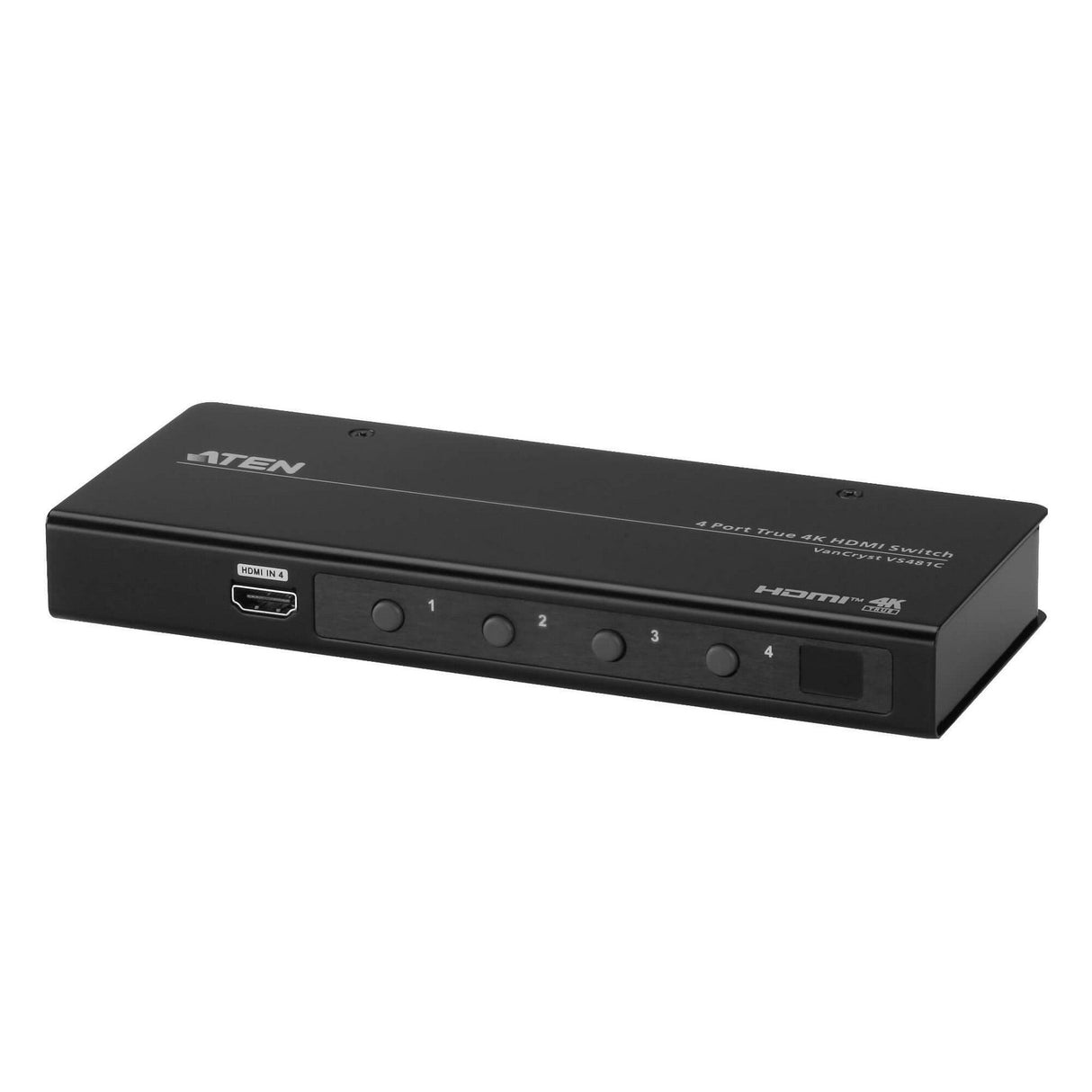

ATEN VS481C 4-Port True 4K HDMI Switch
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Key Features
- Allows up to 4 HDMI sources to be connected to one HDMI display
- HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
- Supports HDR10+
- Supports IR extension
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- LED indication of source device status
- Plug-and-play
Technical Specifications
Switches
DIP
Auto Switch ON/OFF
Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color, 4K)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution
4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232
Connector
1 x DB-9 Female (Black)
Baud Rate
19200 / Data Bits 8 / Stop Bits 1 / Parity NO / Flow Control NO
IR
1 x Mini Stereo Jack Female (Black)
1 x IR Receiver
Connectors
Power
1 x DC Jack (with locking)
Power Consumption
DC5V:0. 924W:20BTU
Environmental
Operating Temperature
0-40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.47 kg (1.04 lb)
Dimensions (L x W x H)
20.00 x 8.21 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
Carton Lot
10 pcs
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
