ATEN VS491 | 4 Port Video Switch
ATEN VS491 | 4 Port Video Switch

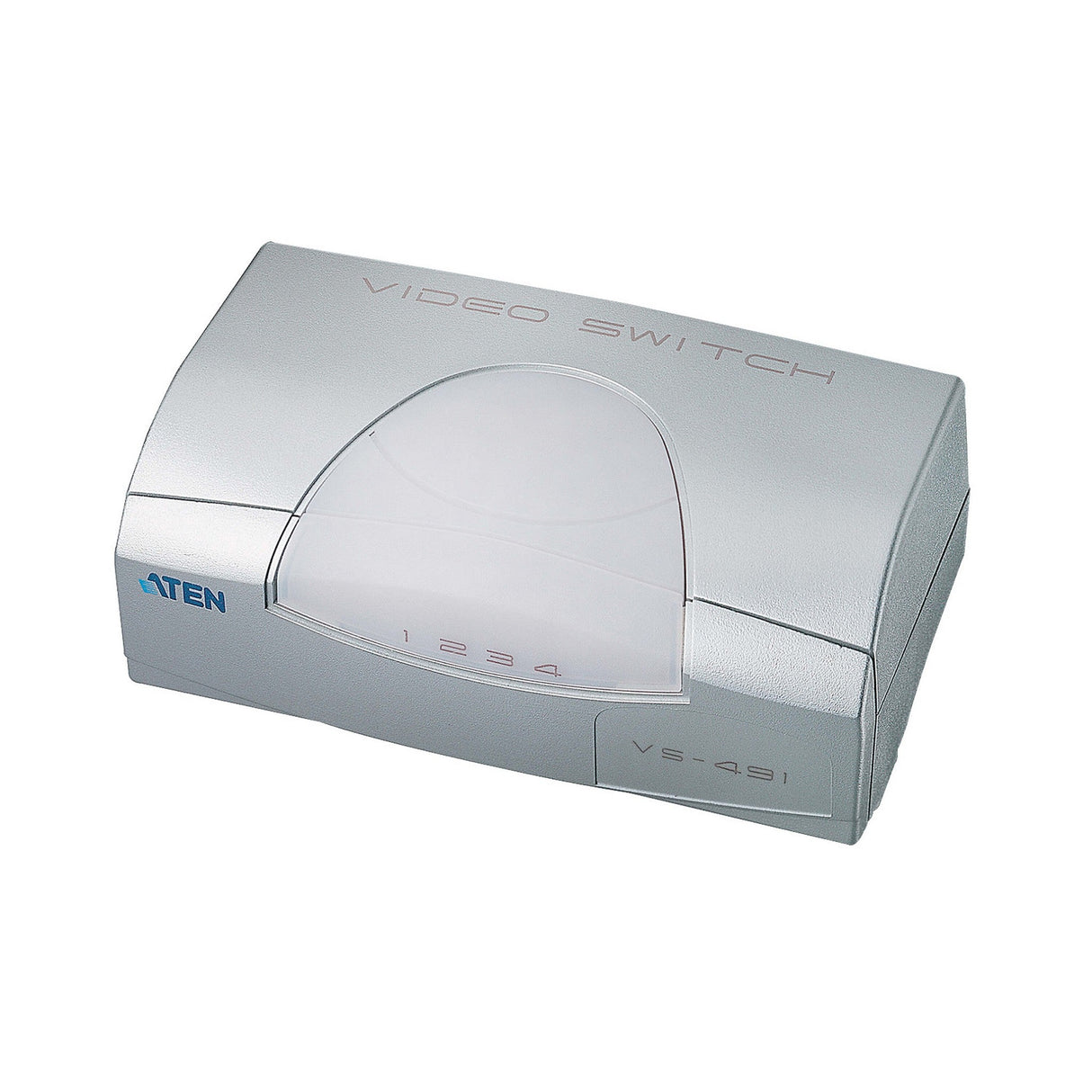

ATEN VS491 4 Port Video Switch
VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
Key Features
- Displays the video output of four computers on a single monitor or projector.
- Computer selection via pushbutton switch.
- Electronic switching for greater reliability and durability.
- Easy Installation - No Software Required.
- Long distance transmission - up to 10m
- High resolution video - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible.
- Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Technical Specifications
Computer Connections : 4
Port Selection : Pushbutton

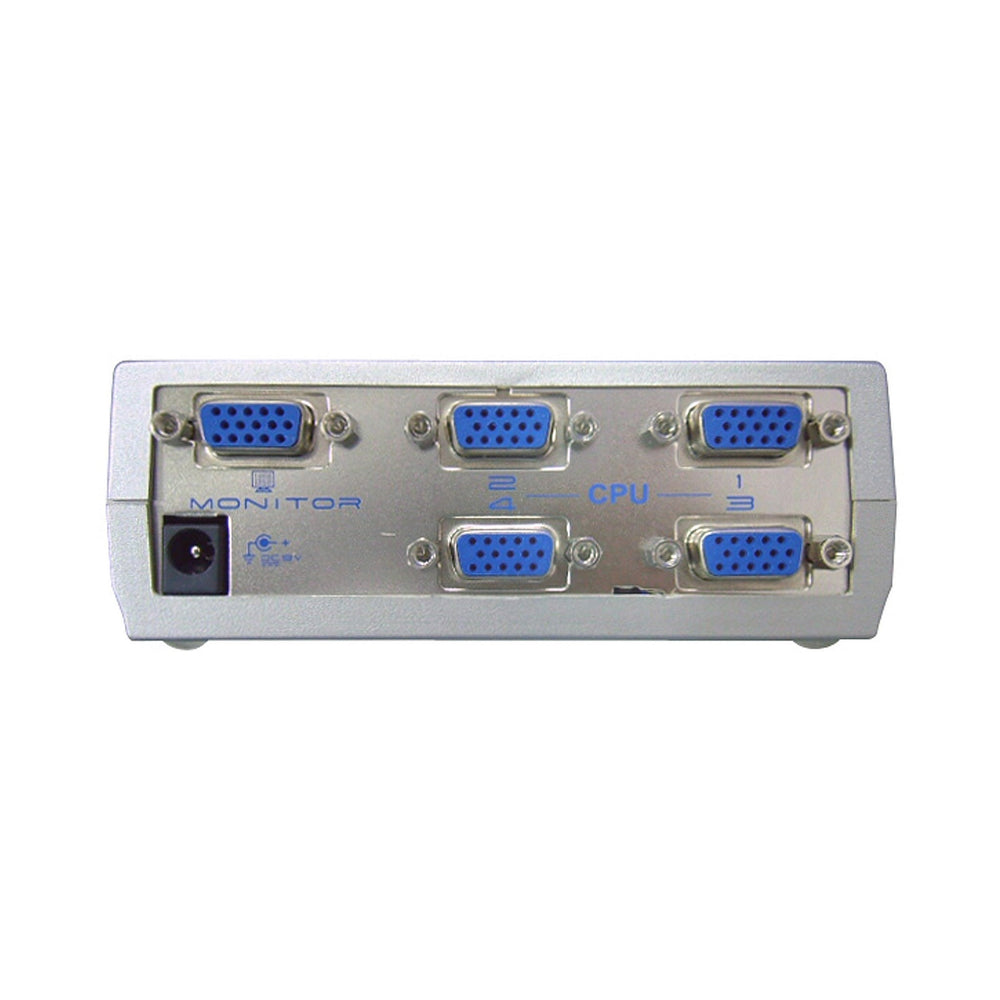

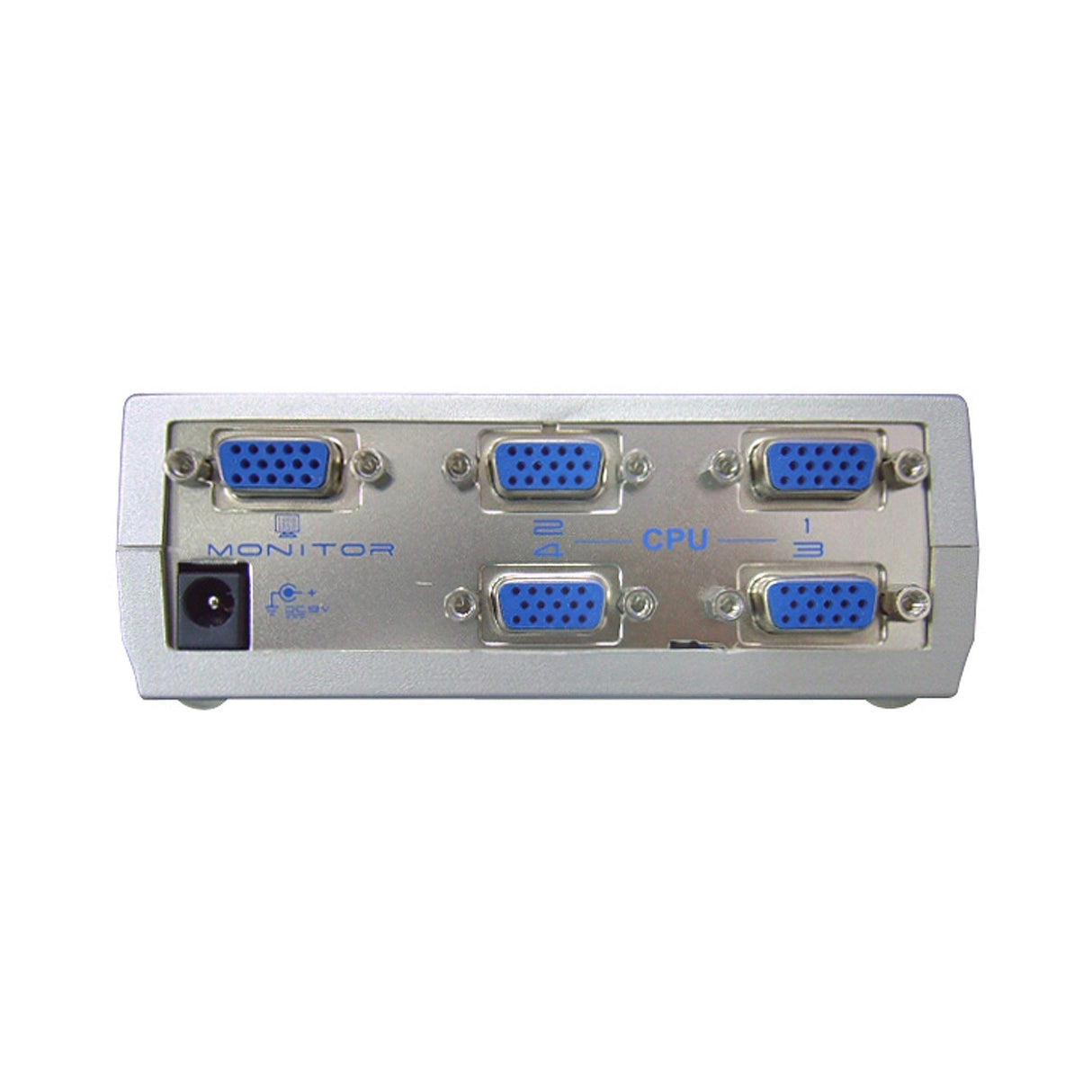

Connectors
Video In : 4 x HDB-15 Female (Blue)
Video Out : 1 x HDB-15 Female (Blue)
Power : 1 x DC Jack
Switches
Port : 1 x Pushbutton
LEDs : Selected 4
Video : 1920 x 1440 @ 60Hz
Signal Range : Up to 10m (33')
Power Consumption : DC9V, 1.35W (Max.)
Environment
Operating Temp. : 0-50Ā°C
Storage Temp. : -20-60Ā°C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Plastic/Metal
Weight : 0.18 kg
Dimensions ( L x W x H )
12.00 x 6.50 x 4.40 cm
