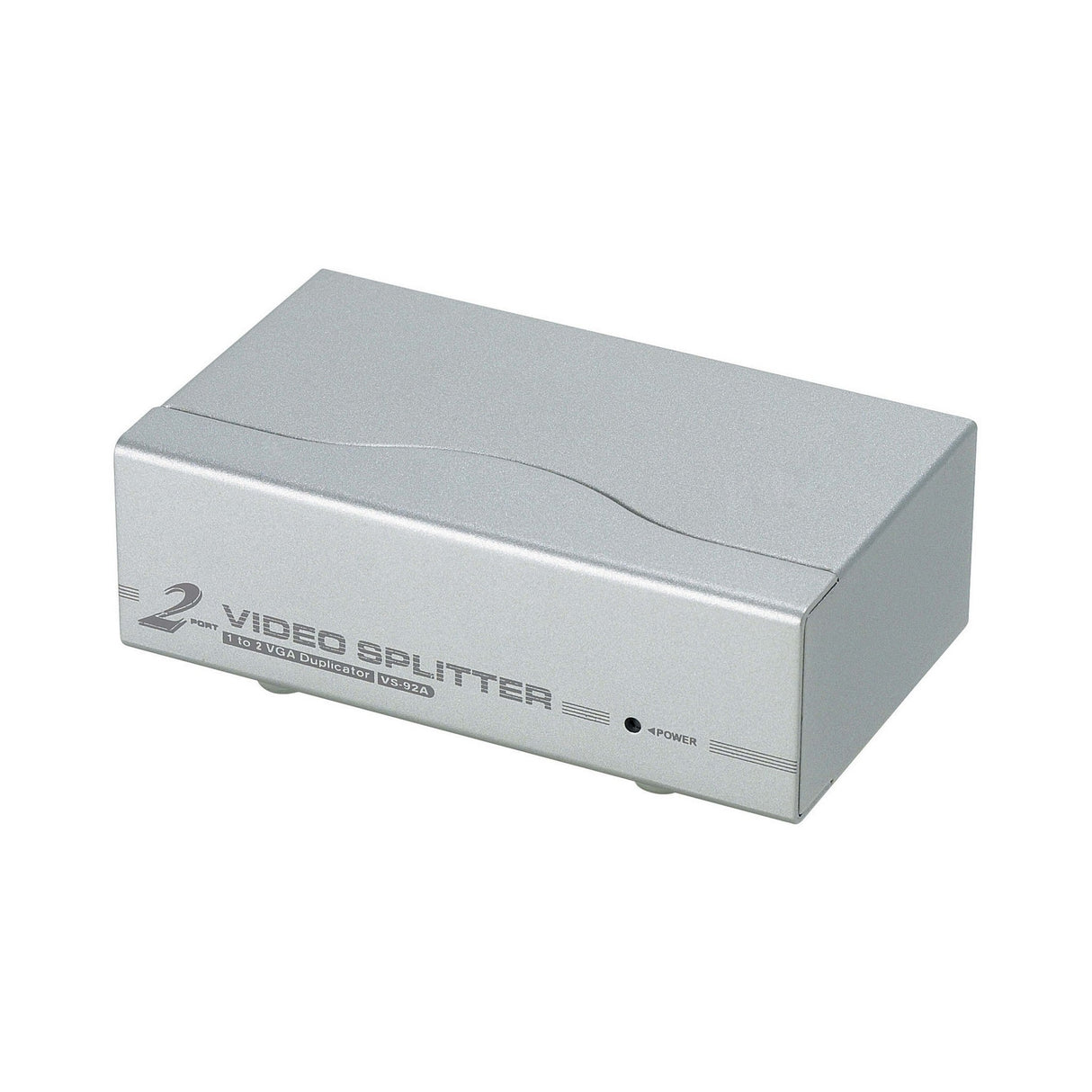

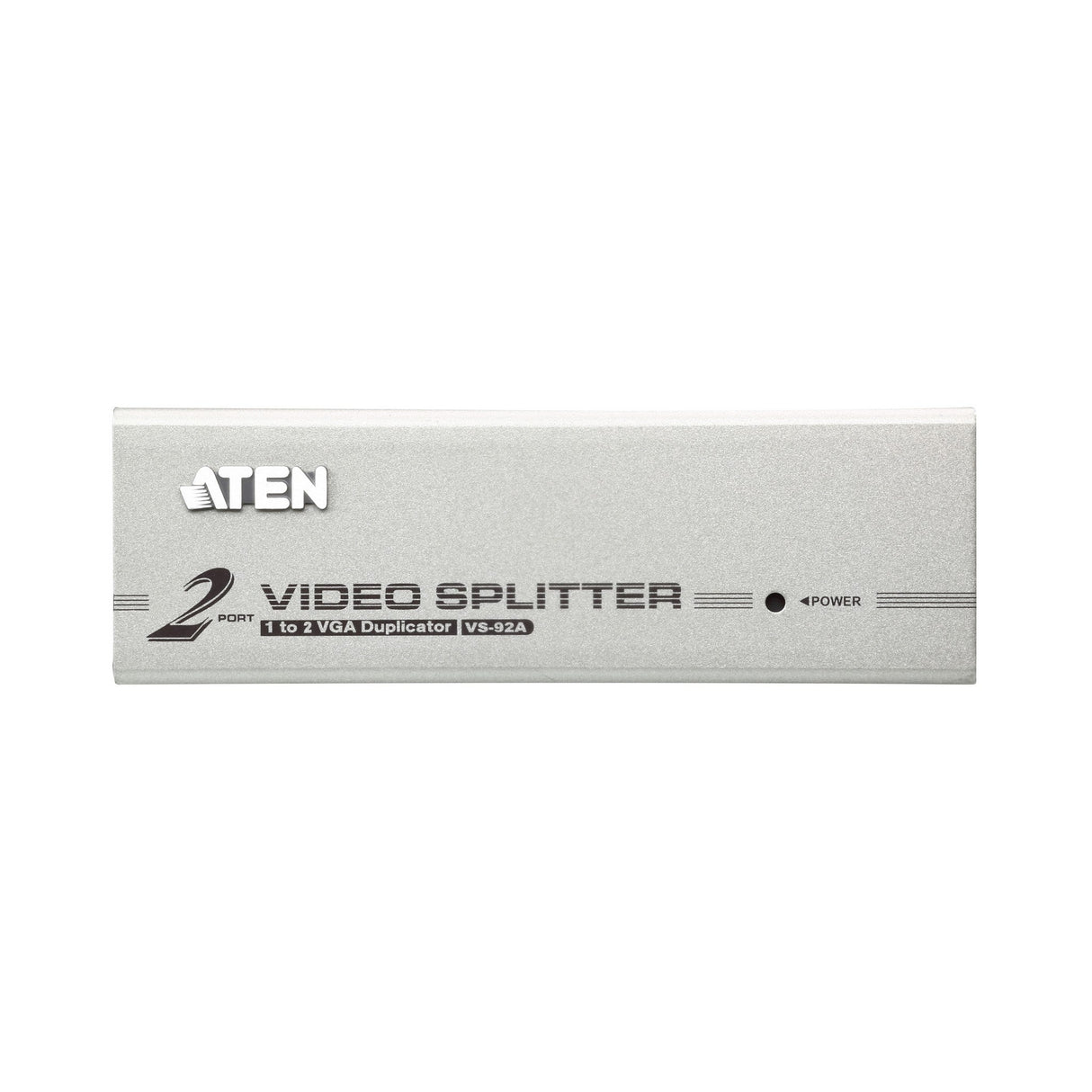

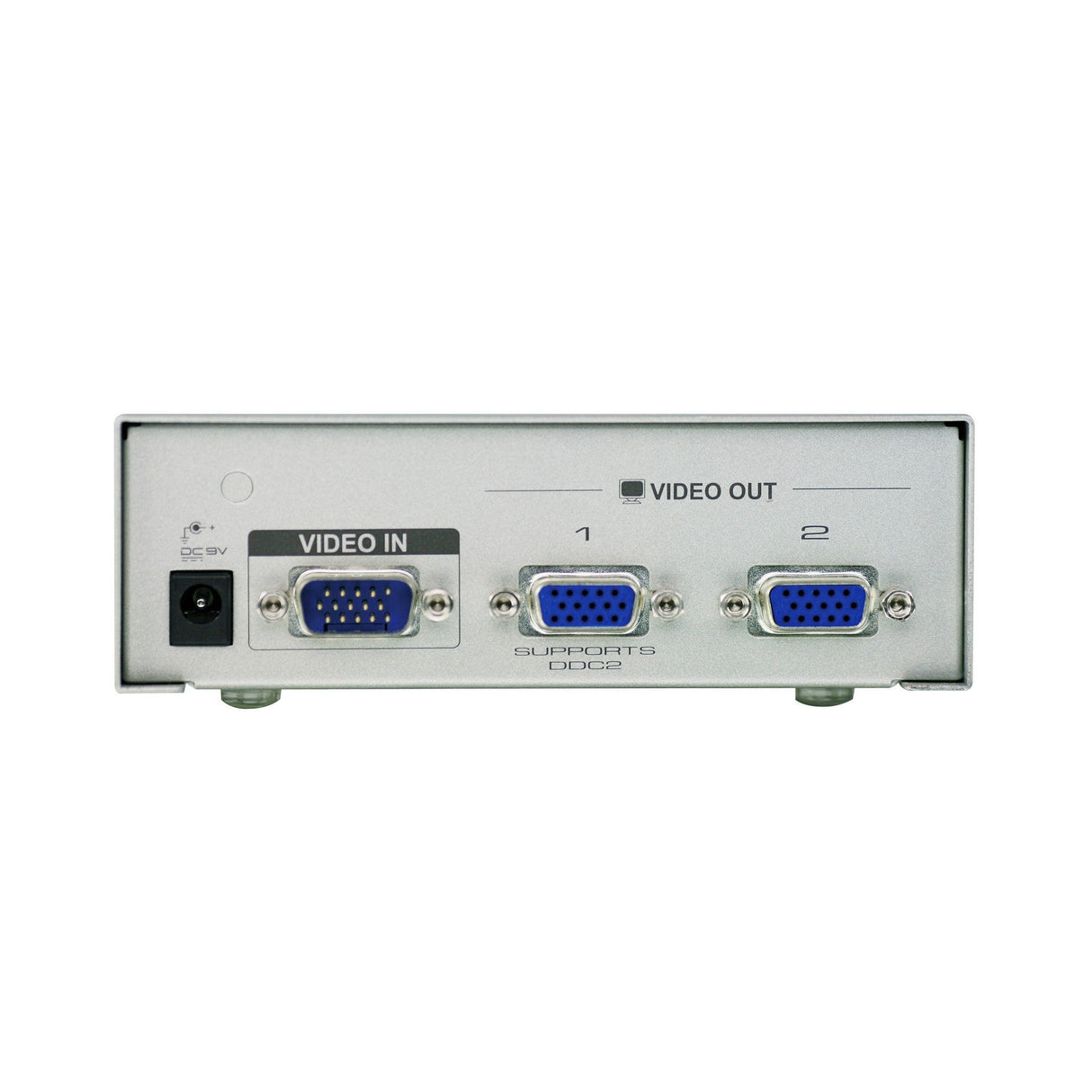

ATEN VS92A 2 Port Video Splitter
ATEN VS92A 2 Port Video Splitter
ATEN VS92A 2 Port Video Splitter
The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Key Features
- One video input to 2 video outputs
- Cascadable to 3 levels - provides up to 8 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 65 m
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
Technical Specifications
Video Input
Interface: 1 x HDB-15 Male (Blue)
Impedance: 75 ohm
Max Distance: 1.8 m
Video Output
Interface: 2 x HDB-15 Female (Blue)
Impedance: 75 ohm
Video
Max. Bandwidth: 350 MHz
Max. Resolutions: Up to 1920 x 1440
Max Distance: Up to 30 m
Power
Connector: 1 x DC Jack
Consumption: 9 VDC, 1.24W
Environment
Operating Temp.: 0-50 deg C
Storage Temp.: -20 - 60 deg C
Humidity
0-80% RH, Non-Condensing
Housing
Metal
Weight
0.42 kg
Dimensions (L x W x H)
13.00 x 7.59 x 4.40 cm
