Atlas HPA602 Dual Channel 600 Watt 70 Volt Power Amplifier, 2 RU

Atlas HPA602 Dual Channel 600 Watt 70 Volt Power Amplifier, 2 RU

The AtlasIED High Power Amplifier “HPA” Series is designed for use in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle multiple impedance loads. The HPA is compact and lightweight in comparison to other models delivering similar power levels. The HPA Series features Generation II Class D Output topology that provides great efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode, global auto sensing design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load.

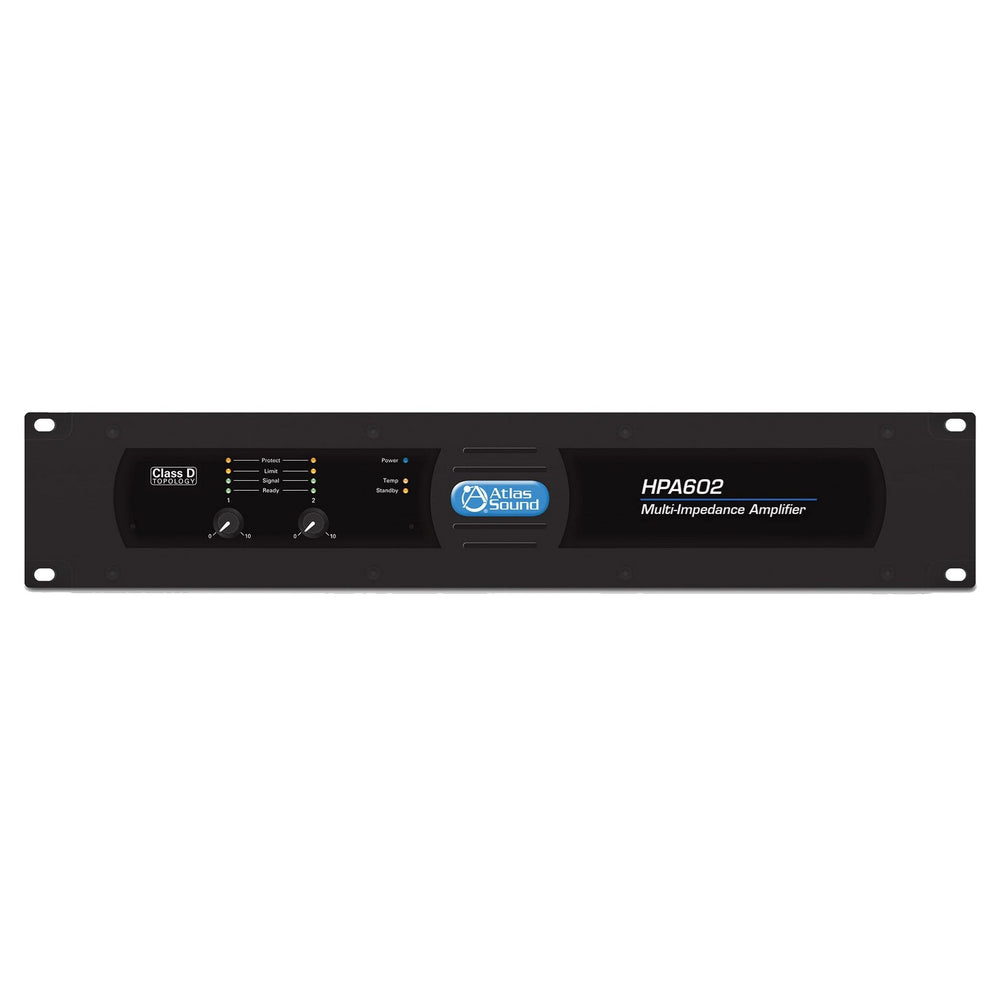

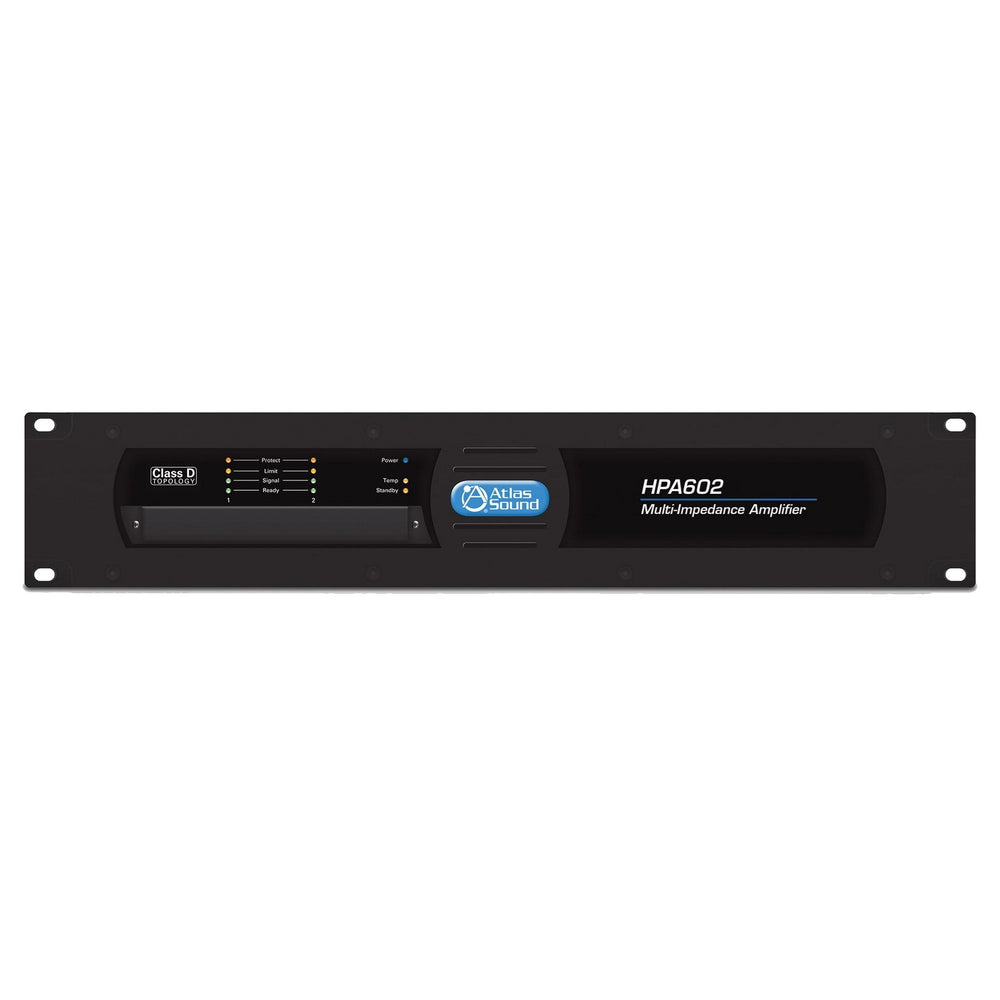

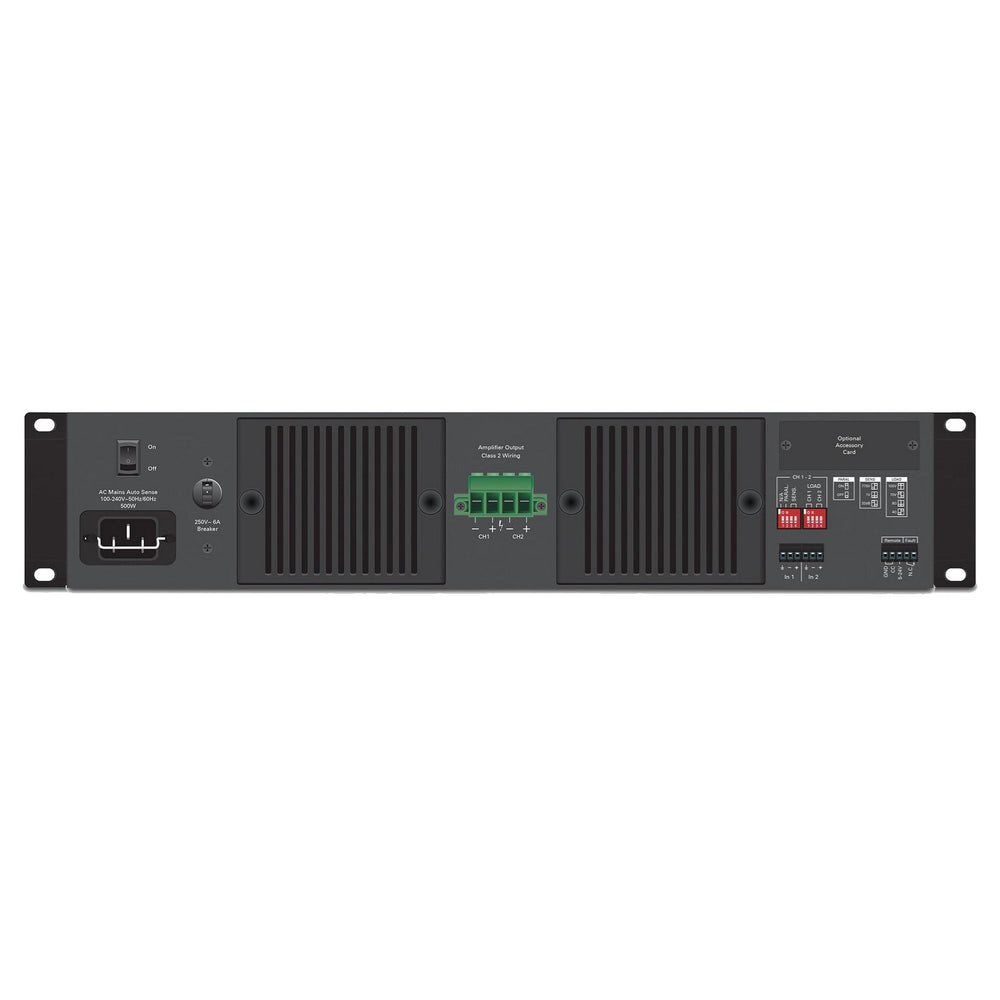

The HPA Series features front panel detente level controls with a security cover, remote turn on, balanced inputs, fault reporting and a rear panel accessory card slot for an optional Dante 2-channel digital audio interface. HPA Series amplifiers feature a unique output stage, low resistance direct coupled thermal transfer design that effectively maintains optimal temperature across all loads and output levels. HPA Series amplifiers are also energy efficient and meet Energy Star standards, drawing only 1W of power in standby mode.

Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification needs.

Key Features

• 4-, 8-ohms, 70.7V, & 100V Operation
• Balanced Inputs Euro Block Phoenix Style Connector
• Accessory Card Slot for Optional Dante Digital Network Audio Card
• Short-Circuit, Temperature, and DC Offset Protection
• Auto Sensing 100V-240V~ AC Mains Power Supply
• Stepped Attenuators with Security Covers

Technical Specifications

Audio Channels
2
Classification
D
Maximum Frequency Response (Hz)
20000
Minimum Frequency Response (Hz)
20
AUDIO
Maximum Frequency Response
20 kHz
Minimum Frequency Response
20 Hz
RMS Output Power
600 W
RMS Output Power (W)
600
Total Harmonic Distortion (THD)
0.2%
Total Harmonic Distortion (THD) (%)
0.15
ENERGY & PERFORMANCE
Operating Power Consumption
500 W
Operating Power Consumption (W)
500
PHYSICAL CHARACTERISTICS
Color
Black
Depth
9.3”
Depth (mm)
236.22
Height
3.5”
Height (mm)
88.9
Product Color
Black
Weight (Approximate)
14.80 lb
Width
19”
Width (mm)
482.6
WARRANTY
Limited Warranty
3 Year
MISCELLANEOUS
Energy Star
Yes
Environmental Certification
RoHS, WEEE
Environmentally Friendly
Yes
