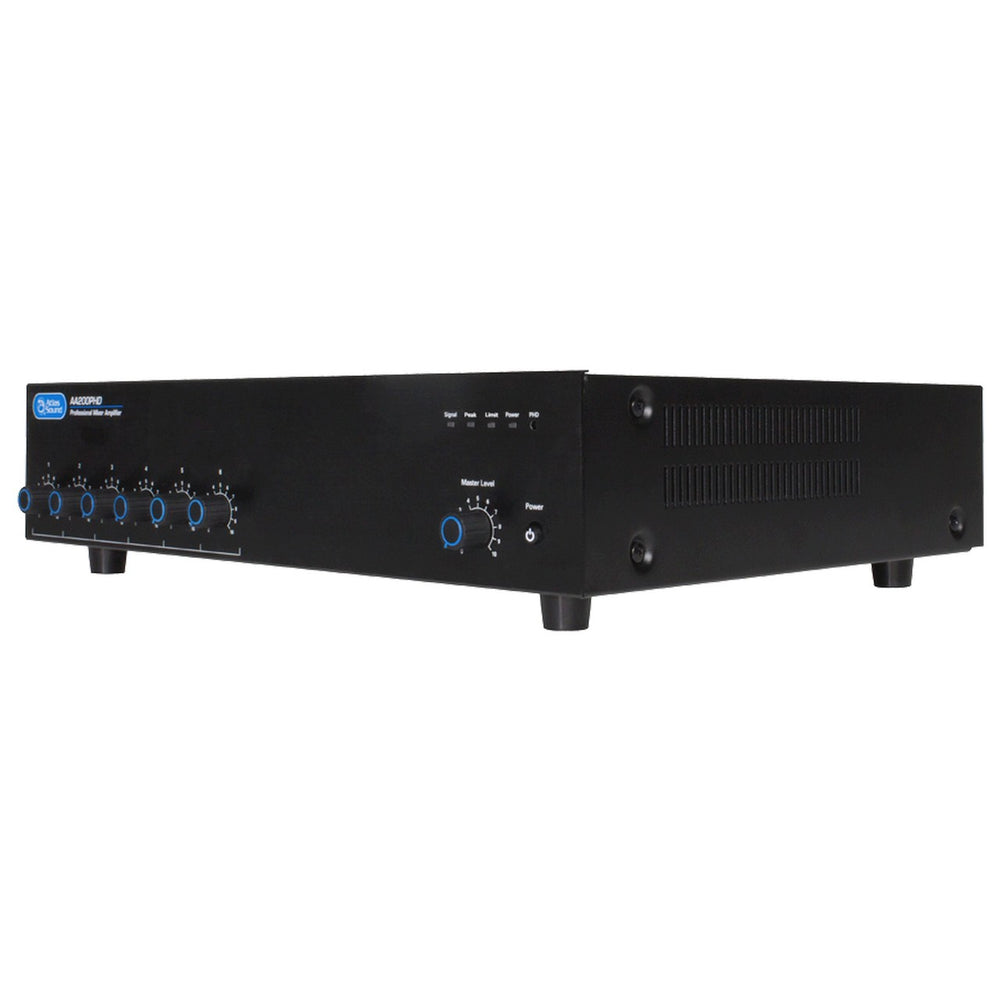

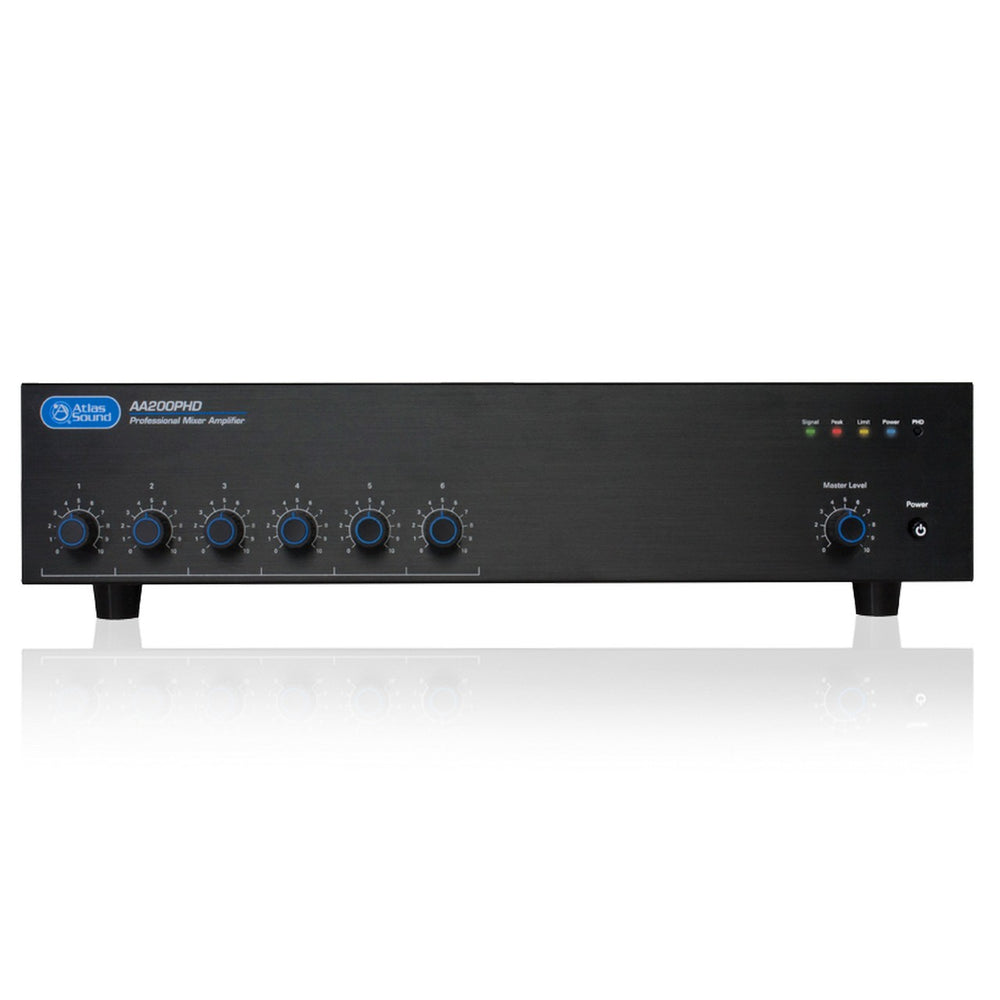

Atlas Sound AA200PHD 6-Input, 200-Watt Mixer Amplifier with Automatic System Test

The AA200PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With four balanced microphone/line inputs and two stereo summing line inputs, the AA200PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

What Sets the AAPHD Series Apart?

The AA200PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8 OHM, and the speaker wire is free from shorts.

The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (AtlasIED model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

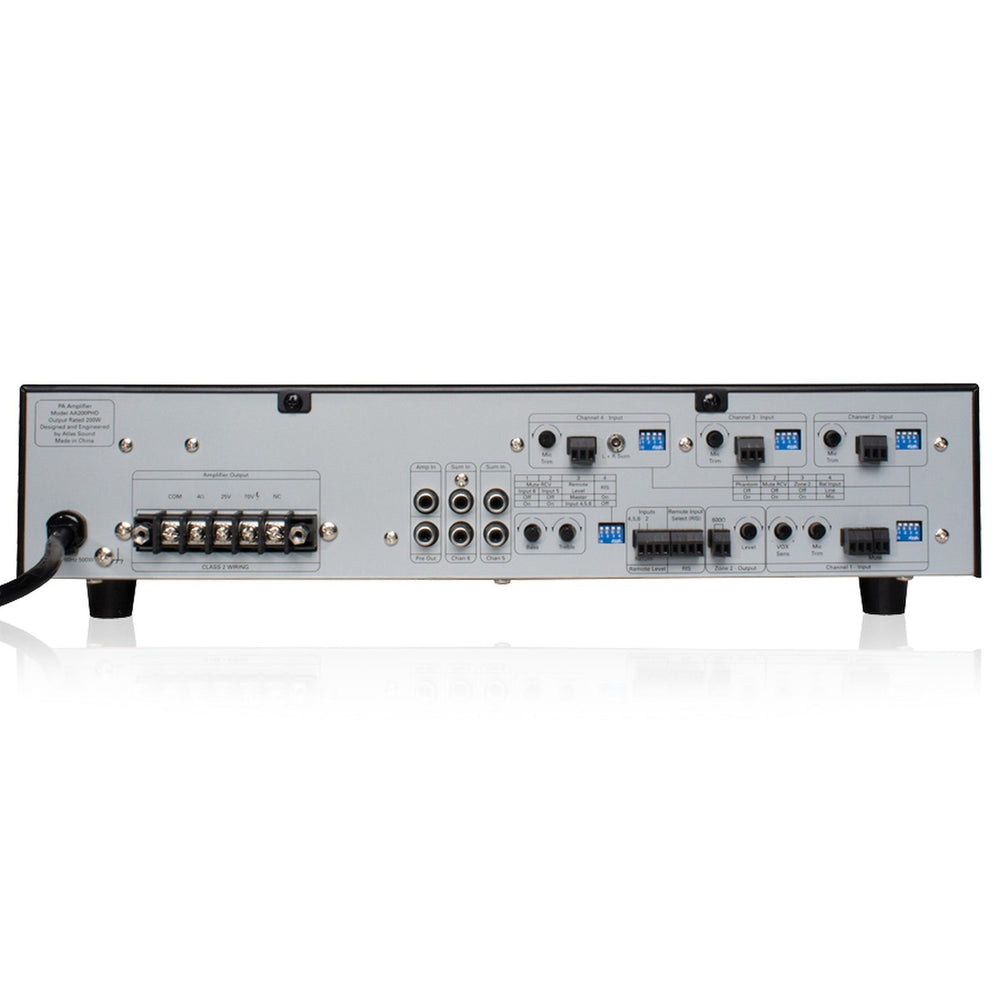

The AA200PHD provides 200-watts output power into 25V, 70.7V, or 4 OHM speaker systems. Rear panel DIP switch allows for creation of Zone 2 output mix using any or all of inputs 1-4. Unit can also be set-up to mute Inputs 2 through 6 on signal from Input 1 for paging applications where other input sources need to be muted during a page. Inputs 1-4 are either Mic or Line input selectable and Phantom Power is an option when using them as a microphone input.

Key Features

• 200W into 25V/70.7V and 4 OHM Loads
• Automated Diagnostic System Test (Push Here Diagnostic)
• Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
• Input Assignable Zone 2 Output
• Remote Level Control
• Remote Input Select (RIS)
• Line Output
• Preamp In for External Processors
• Variable Mute Sensitivity Control for Input 1
• Contact Closure Mute Terminals
• Optional Rack Mount Kit Available - Model AARMK2-0

Technical Specifications

FREQUENCY RESPONSE
50Hz - 15kHz
CONNECTOR TYPE
4 Position Phoenix 3.5mm Pitch
POWER OUTPUT
Max. Average Power @ 50Hz-15kHz with .5% THD, 4 OHM 200W RMS
HEIGHT
3.66" (93mm)
WIDTH
16.54" (420mm)
DEPTH
14.6" (422mm)
WEIGHT
26lb
VOLTAGE COMPATIBILITY
110V - 120V
