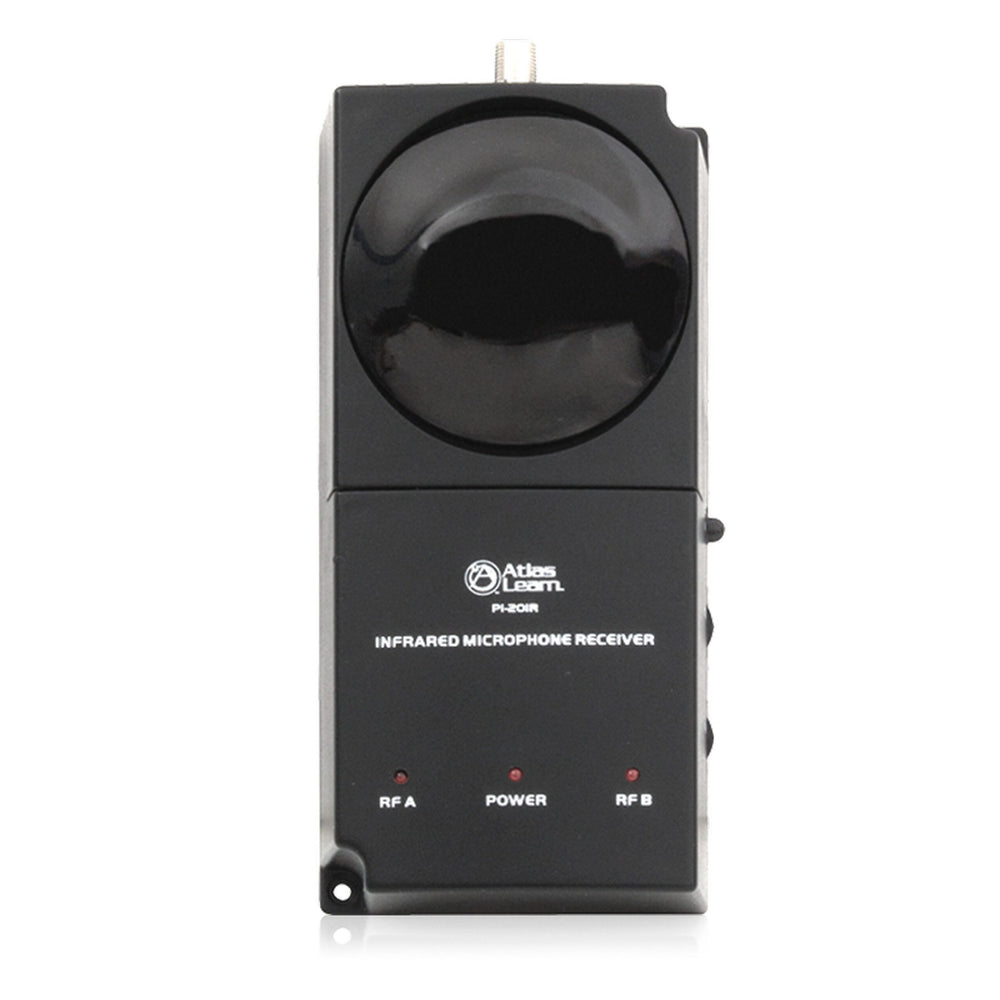

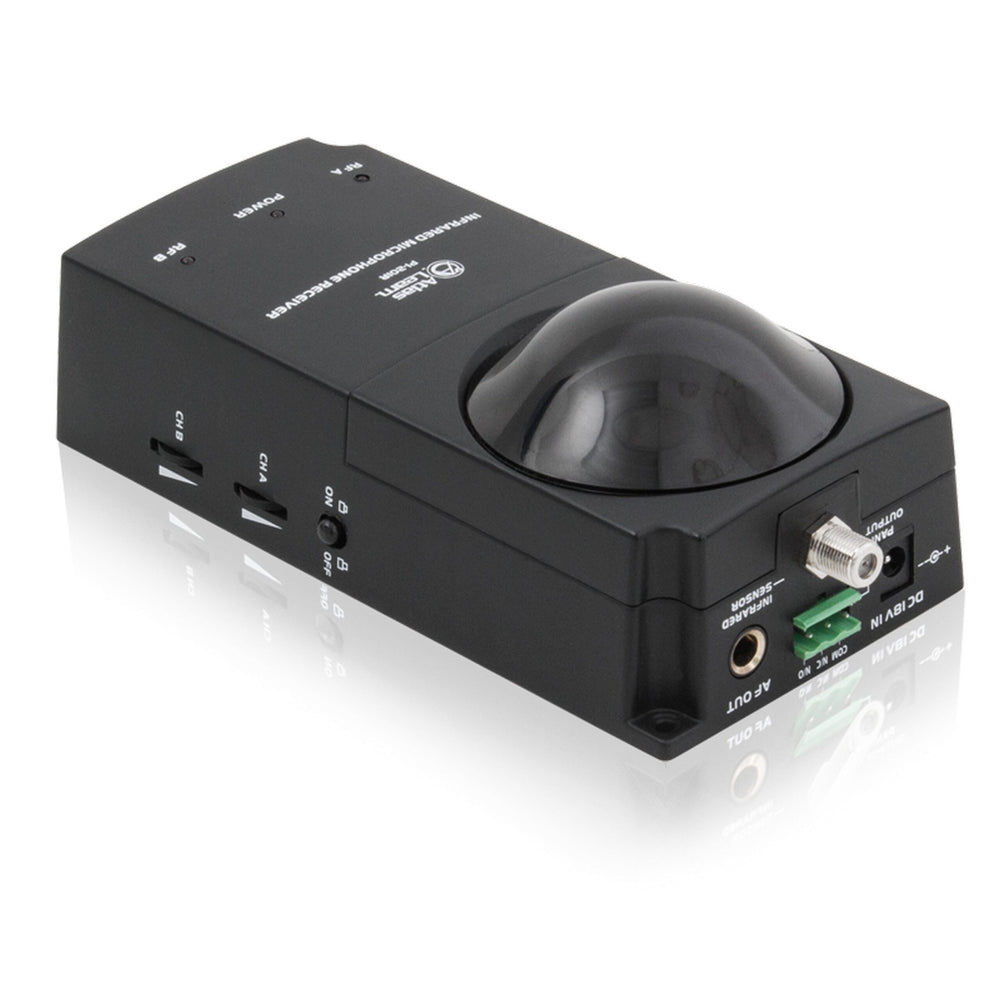

Atlas Sound AL-EAGLE Atlas Learn 2 Channel Infrared Dome Receiver
The Atlas Learn AL-EAGLE infrared receiver is a two channel infrared receiver that is designed to work with Atlas Learn infrared infrared microphones, AL-MAGPIE and AL-MYNA. The AL-EAGLE connects via RCA output to almost any local audio amplifier. This allows teachers and students to walk freely around the classroom with the infrared microphones/system control units and project their voices through connected, installed speakers.
Key Features
- Works in Conjunction with Secondary Systems to Provide Enhanced Classroom Security
- Easily Integrates into Any Existing Classroom Sound Reinforcement System
- Works with Both AL-MYNA and AL-MAGPIE Wireless Infrared Transmitters
- Supports 2 Separate Transmitters with Independent Level/Mix Controls
- Remote Antenna Input Allows for Connection of Second AL-IRDS Infrared Dome Sensor
Technical Specifications
LINE OUTPUT CONNECTOR
RCA
IR FREQUENCIES
2.35mHz - 2.8mHz
LINE OUTPUT VOLTAGE
1.3V
PSU TYPE
100V-240V In, 18VDC/1A Out
IR INPUT IMPEDANCE
75
IR INPUT CONNECTION TYPE
F-Pin Connector
INDICATOR LEDS
Power, RF A, RF B
HEIGHT
7.75" (19.69cm)
WIDTH
3.33" (8.46cm)
DEPTH
2.50" (6.35kg)
WEIGHT
0.5 lbs. (0.23kg)
