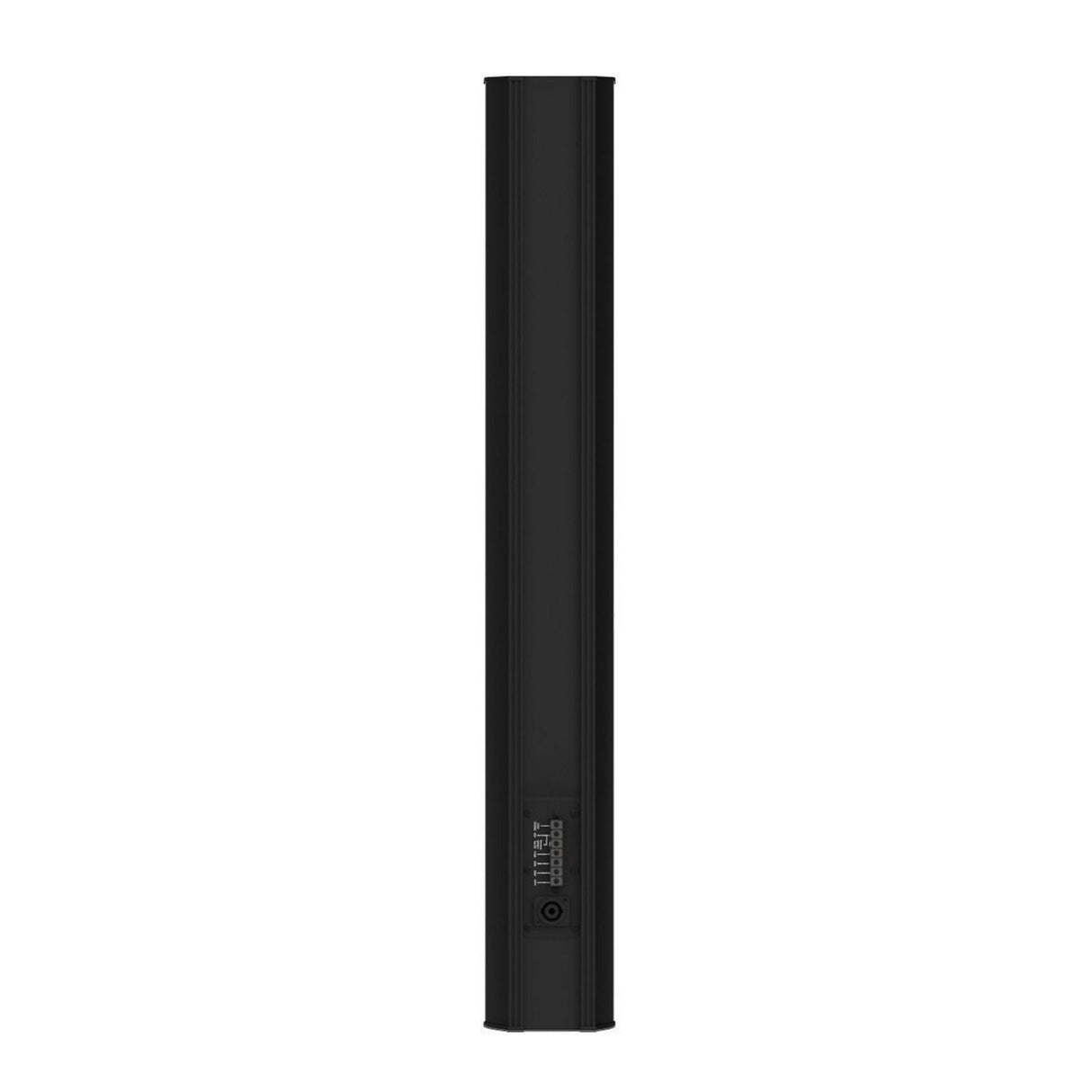

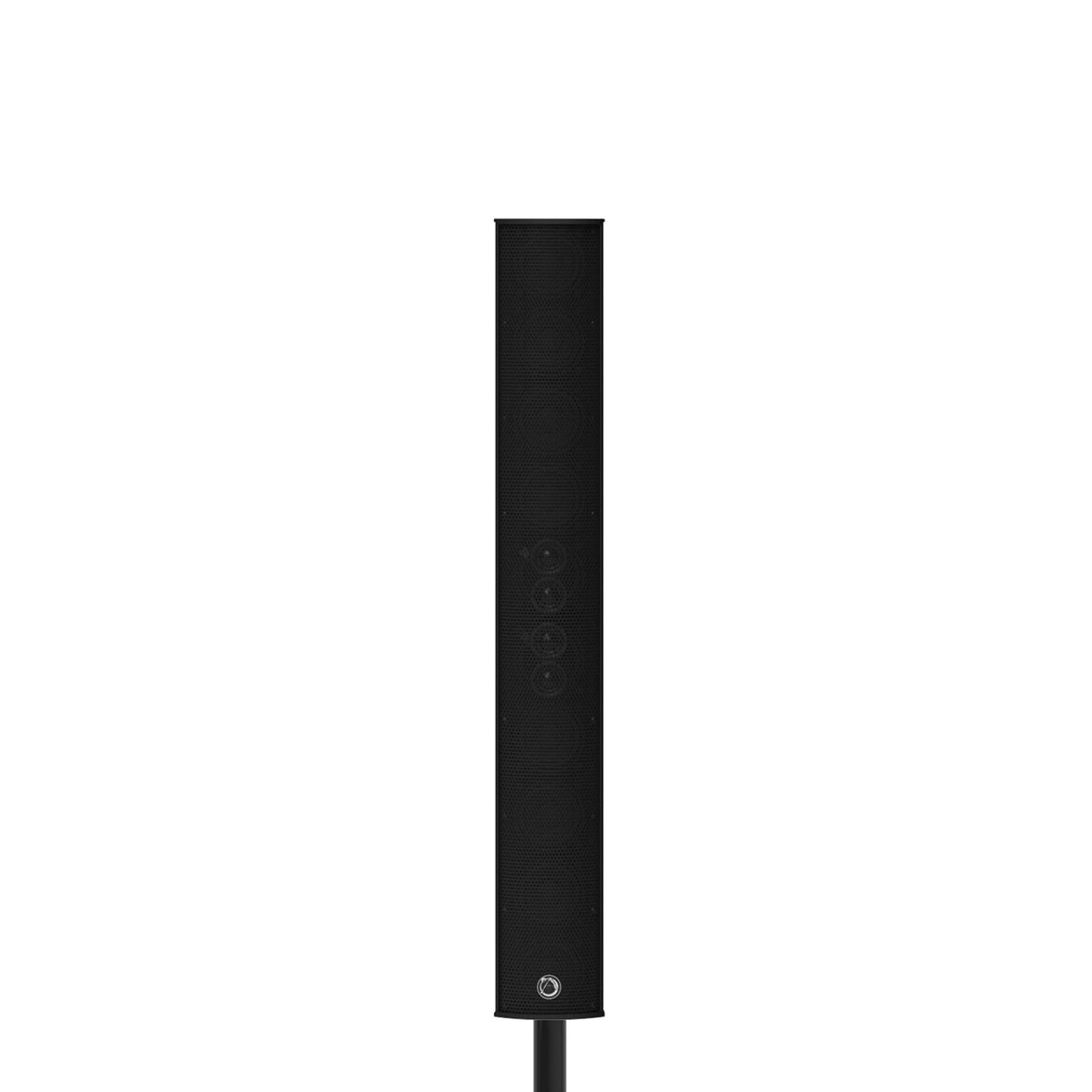

Atlas Sound ALA10T-B Full Range Line Array 10 Speaker System, Black

The ALA10T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10T-B’s transducer configuration combines ten tight packed 3" full range drivers and four 25mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable

Key Features

• Use In Fixed Install or Portable Applications
• 135 Horizontal Coverage
• 40 Vertical Coverage
• 70.7V Or 8 Operation
• Ten (10) Proprietary 3" Full Range Transducers
• Four (4) High Frequency Tweeters
• Barrier Strip And NL-4 Terminals
• Lightweight Aluminum Housing
• IP32 Environmental Rating
• Wall Mount Bracket Included
• Pole Mount Accessory Sold Separately

Technical Specifications

70.7V POWER TAPS
7.5, 15, 30, & 60 Watts
DISPERSION
135 H x 40 V
SENSITIVITY
96dB 1W/1m
FREQUENCY RESPONSE
125Hz - 20kHz
HEIGHT
32.9" (835.7mm)
DEPTH
5.43" (137.9mm)
WIDTH
4.61" (117mm)
