Atlas Sound ALA20T Full Range Line Array 20 Speaker System, Silver
Atlas Sound ALA20T Full Range Line Array 20 Speaker System, Silver
Atlas Sound ALA20T Full Range Line Array 20 Speaker System, Silver

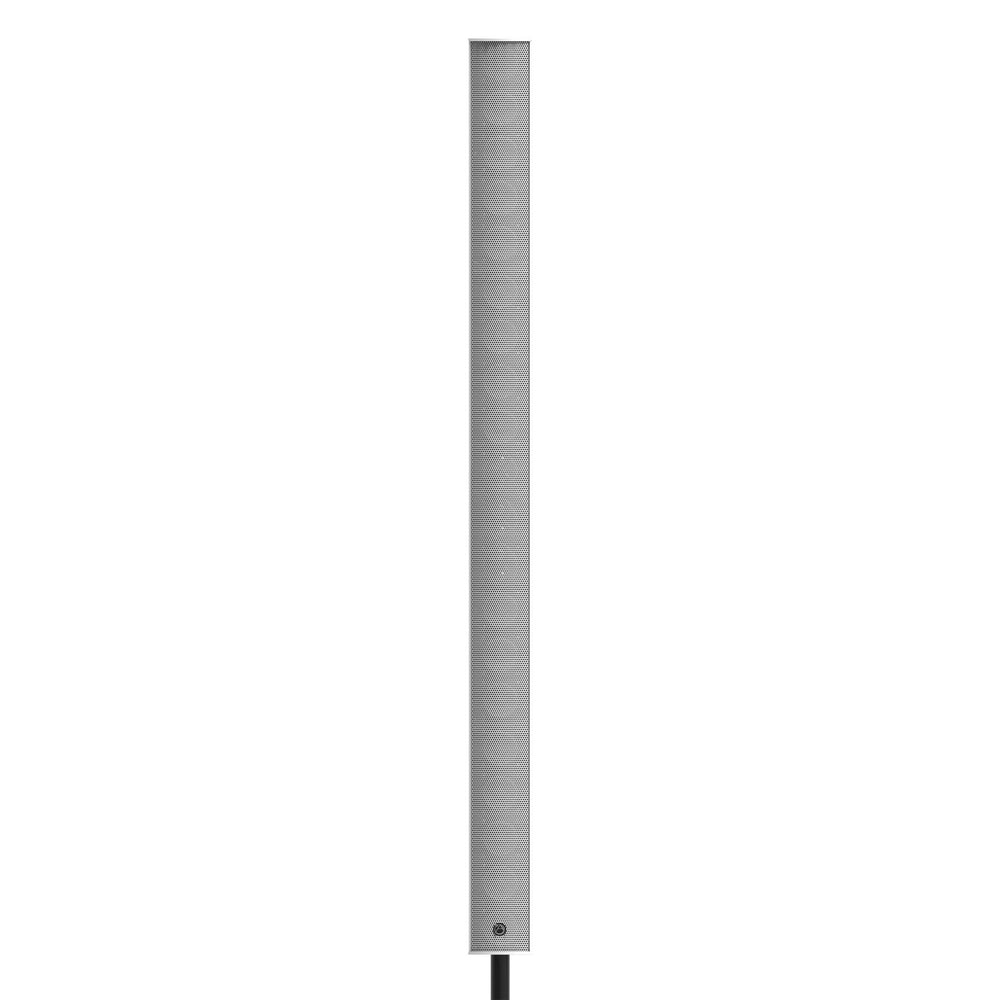

The ALA20T column line array speaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T’s transducer configuration combines twenty tight packed 3" full range drivers and six 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.
Key Features
- Twenty Proprietary 3" Full Range Drivers
- 135 Horizontal Coverage
- 40 Vertical Coverage
- Six High-Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Mounting System Included
Technical Specifications
8 RMS POWER
500 Watts
70.7V POWER TAPS
7.5, 15, 30, & 60 Watts
DISPERSION
135 H & 40 V
SENSITIVITY
97dB 1W/1m
FREQUENCY RESPONSE
90Hz - 20kHz
HEIGHT
65.75" (1670mm)
DEPTH
5.43" (137.9mm)
WIDTH
4.61" (117mm)
