Atlas Sound ALA5T-B Full Range Line Array 5 Speaker System, Black

Atlas Sound ALA5T-B Full Range Line Array 5 Speaker System, Black

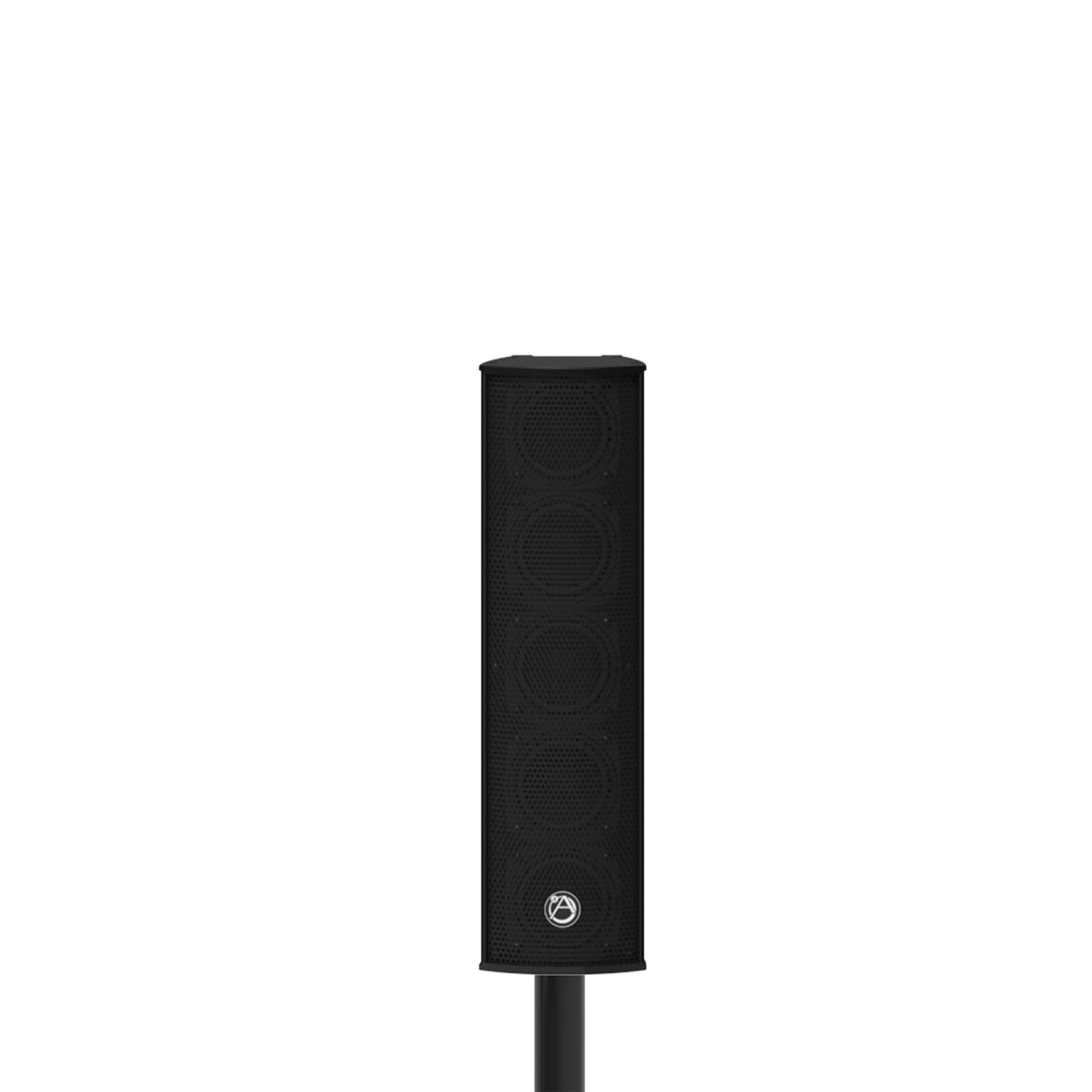

The ultra-compact ALA5T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5T-B's transducer configuration combines five tight packed 3" full range drivers and two 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

Key Features

• 70.7V or 8 Operation
• Mounting System Included
• Five Proprietary 3" Full Range Drivers
• Two High-Frequency Tweeters
• 45 Vertical Coverage
• 135 Horizontal Coverage

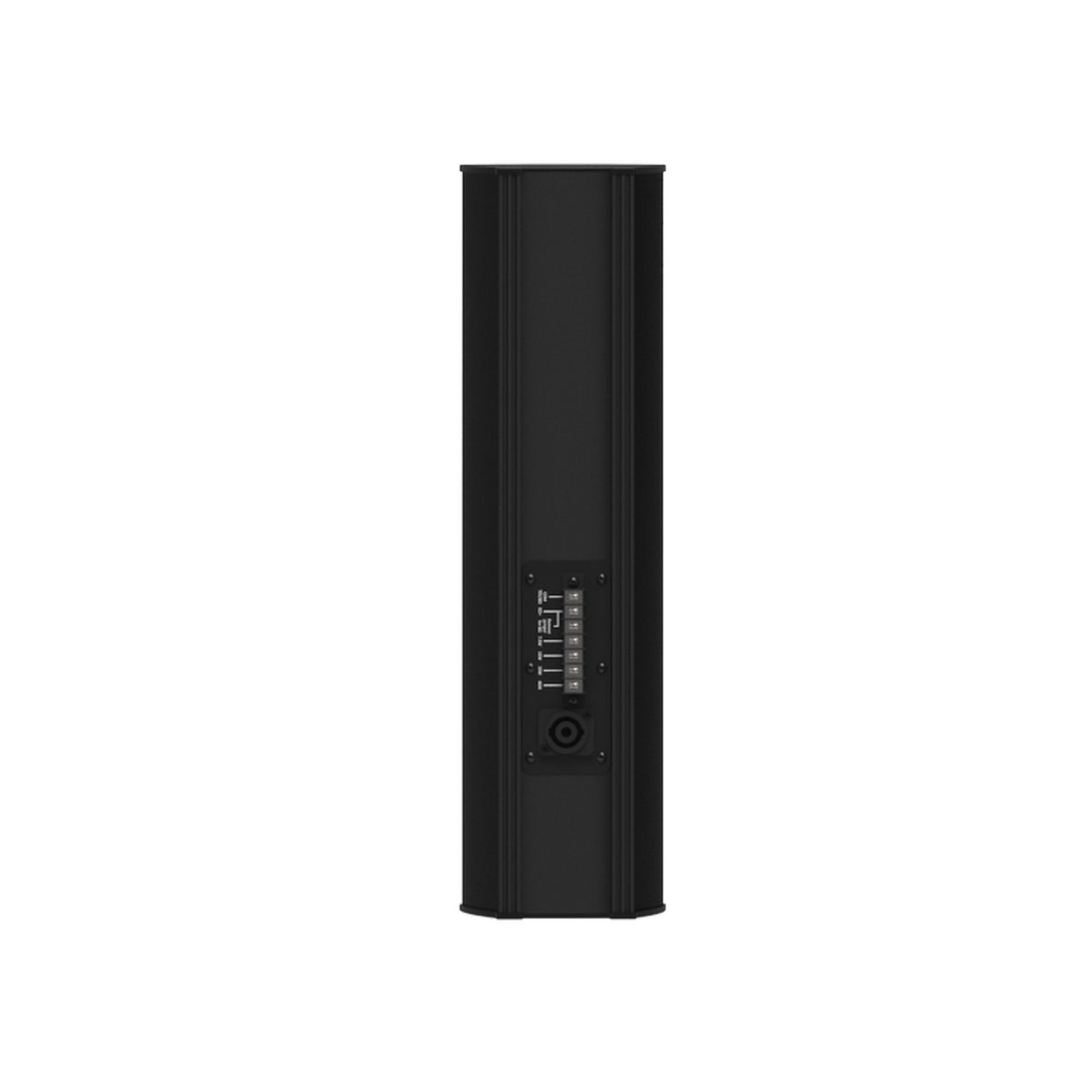

• Barrier Strip and NL-4 Terminals
• Lightweight Aluminum Housing

Technical Specifications

8 RMS POWER
125 Watts
70.7V POWER TAPS
7.5, 15, 30, & 60 Watts
DISPERSION
135 H x 45 V
SENSITIVITY
92dB 1W/1m
FREQUENCY RESPONSE
125Hz - 20kHz
HEIGHT
16.61" (422mm)
DEPTH
5.43" (137.9mm)
WIDTH
4.61" (117mm)
