Atlas Sound AP-15T 15Watt 70V Horn Loudspeaker

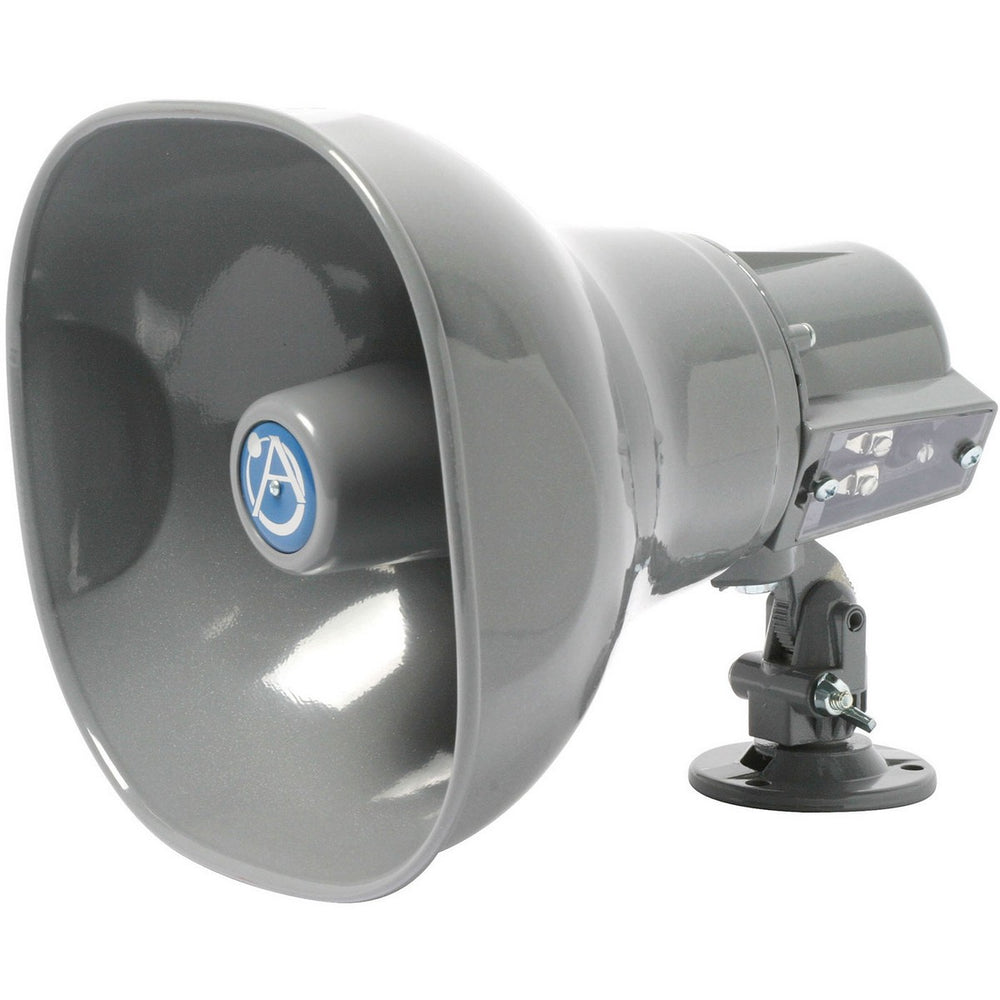

Model AP-15T is a double re-entrant loudspeakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
Key Features
- Grey Finish
- Environment Resistant for Outdoor and Indoor Use
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
- World Recognized for Quality and Dependability
Technical Specifications
Frequency Response
400Hz - 14kHz
Power Taps
1, 2, 3.8, 7.5, 15 @ 70.7V
Dispersion
70 degree
Sensitivity
106dB
Operating Range
-40 to 70C
Height
8 3/4 inch (22.225 cm)
Width
7 7/8 inch (20.0025 cm)
Depth
9 5/16 inch (23.65502 cm)
Shipping Weight
5.00 lbs (2.27 kgs)
UL Listed/Standard
1480
