Atlas Sound AT100-PA 1 Gang Plate Mounted 100W Attenuator

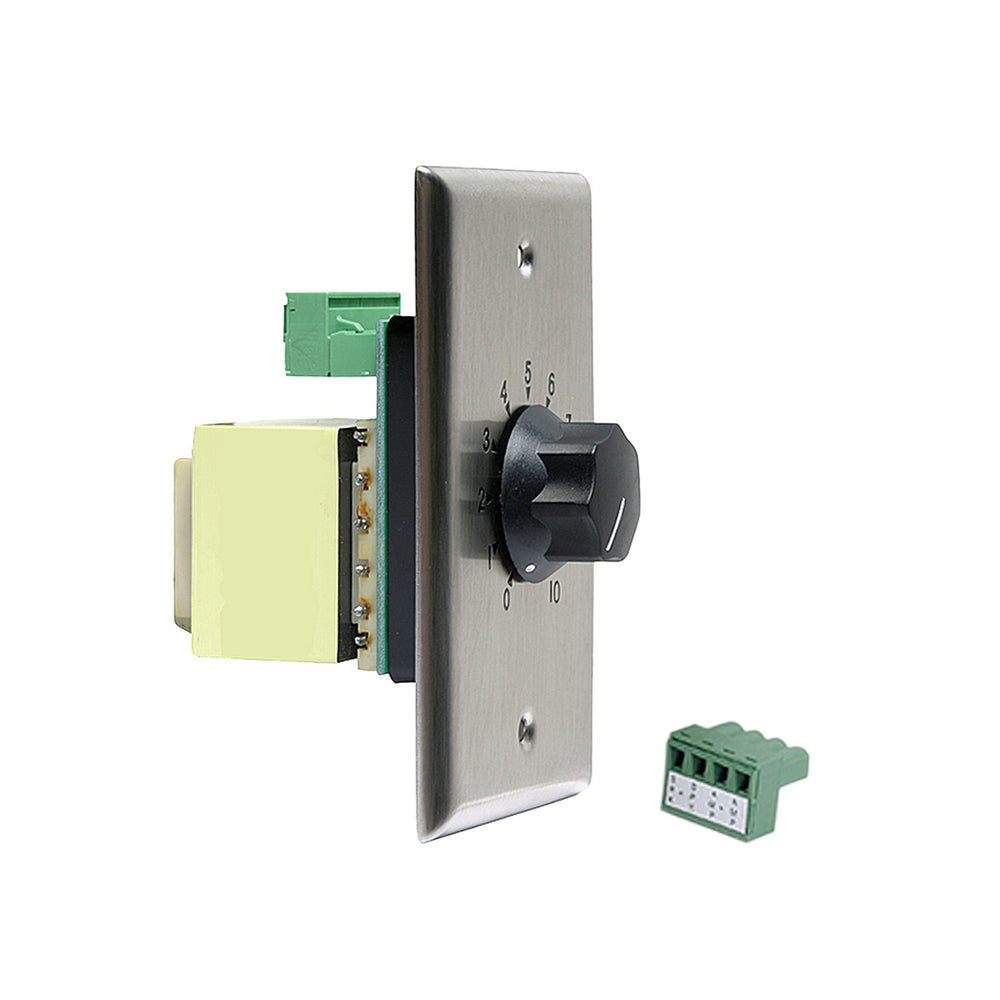

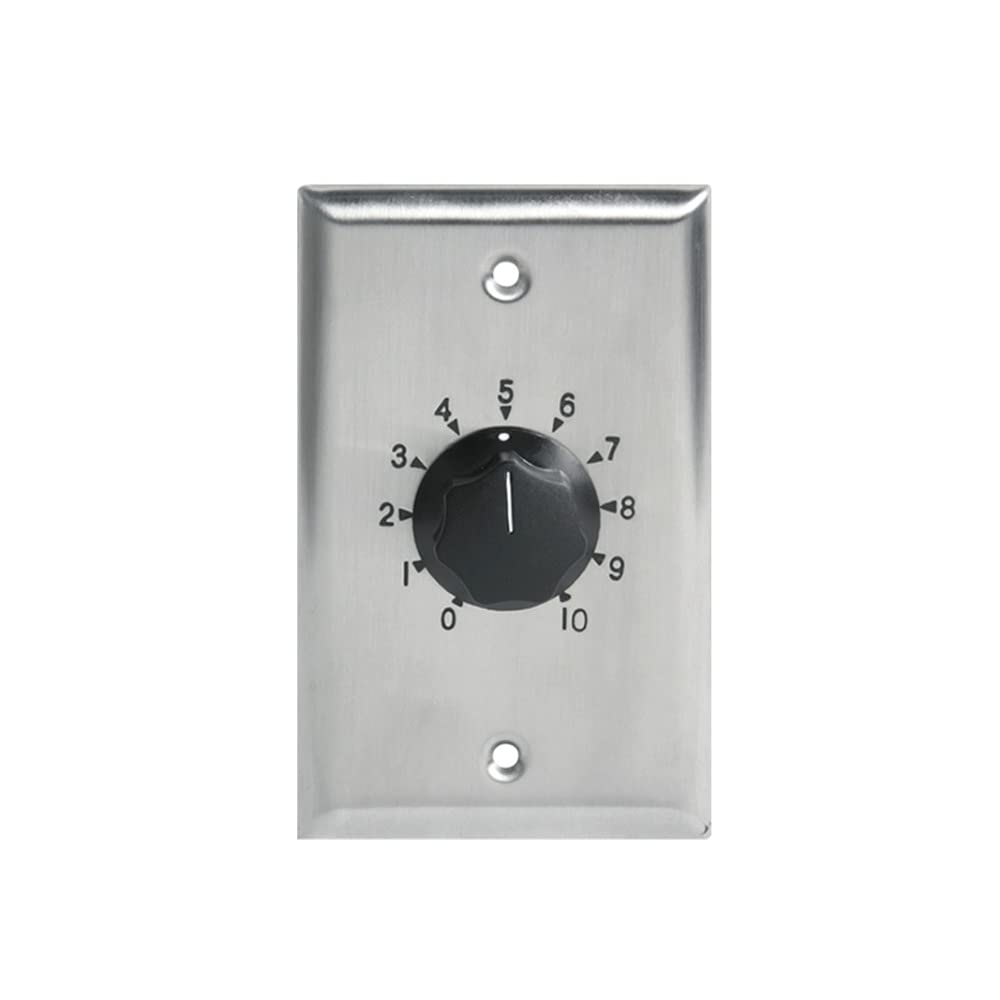

High-quality auto transformer AT100-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.
Key Features
- Mount into Most 1-Gang E.O. Boxes
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
- UL Listed
Technical Specifications
PLATE SIZE: 1 gang
PLATE TYPE: Stainless Steel
POWER RATING: 100W
TOTAL ATTENUATION: 27dB
HEIGHT: 4 1/2 inch (11.43 cm)
WIDTH: 2 3/4 inch (6.99 cm)
DEPTH: 2 1/2 inch (6.35 cm)
SHIPPING WEIGHT: 1.60 lbs (0.73 kgs)
SAFETY LISTED: 813, 2043
