Atlas Sound FAP8CXT 8 Inch Compression Driver Coaxial In-Ceiling Speaker

The AtlasIED FAP8CXT is a true compression driver premium performance 70.7V / 100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications -especially applications where high ceilings require speakers with increased efficiency and tighter pattern control. The FAP8CXT's 90 dispersion angle (in the 2kHz octave band) is perfect for higher ceiling applications where tighter pattern control is required. Tight pattern control (not exceeding 90) is important for high ceiling applications. Speakers exhibiting wider dispersion than 90 will exceed 6dB of drop off at the edge of the coverage pattern causing excessive SPL variances. Using more of the same wide coverage speaker in a high ceiling application to compensate only worsens the situation as comb filtering from multi-path arrivals will result.

Key Features

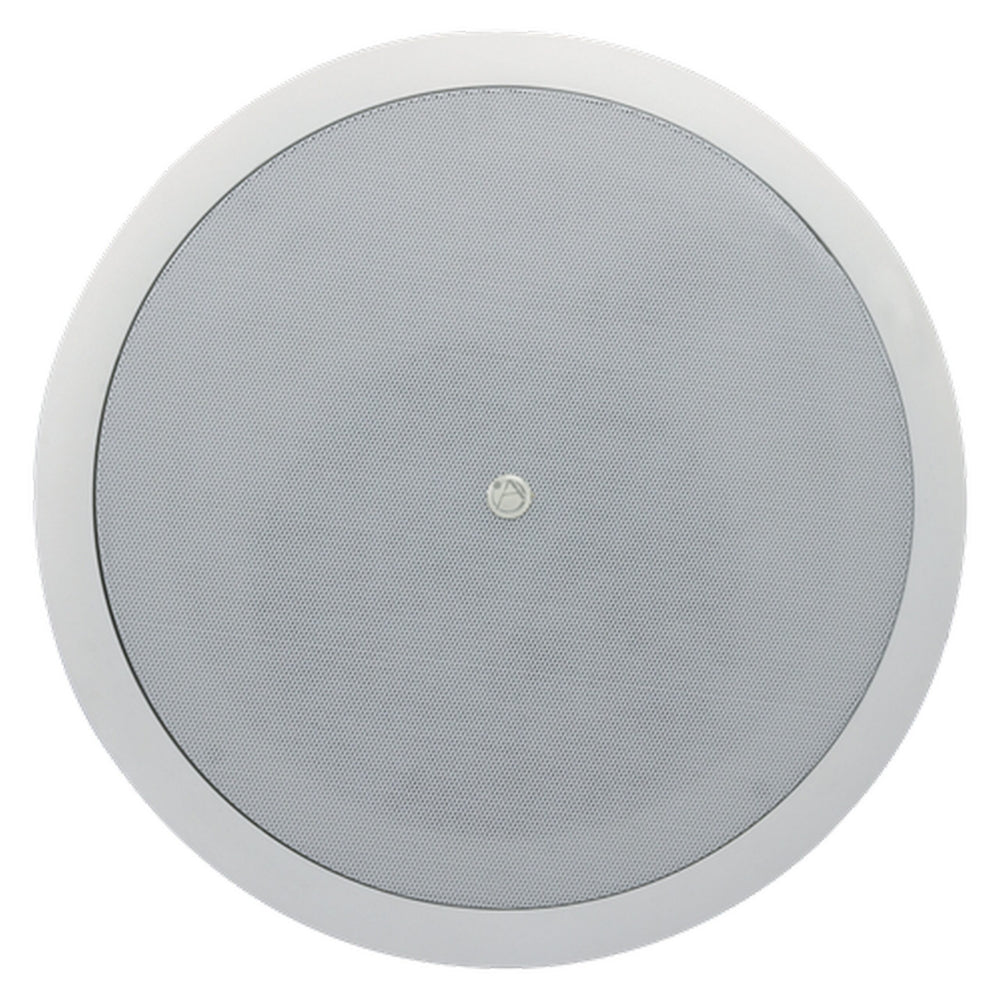

• "Press -Fit" Grille to Better Blend into Contemporary Architecture
• 1" Exit Compression High Frequency Driver Coupled to a Specially Designed Conical Wave-Guide Horn Provides Exceptional Output & Accurate High Frequency Reproduction
• 90 Degree Conical Dispersion (2kHz Octave Band)

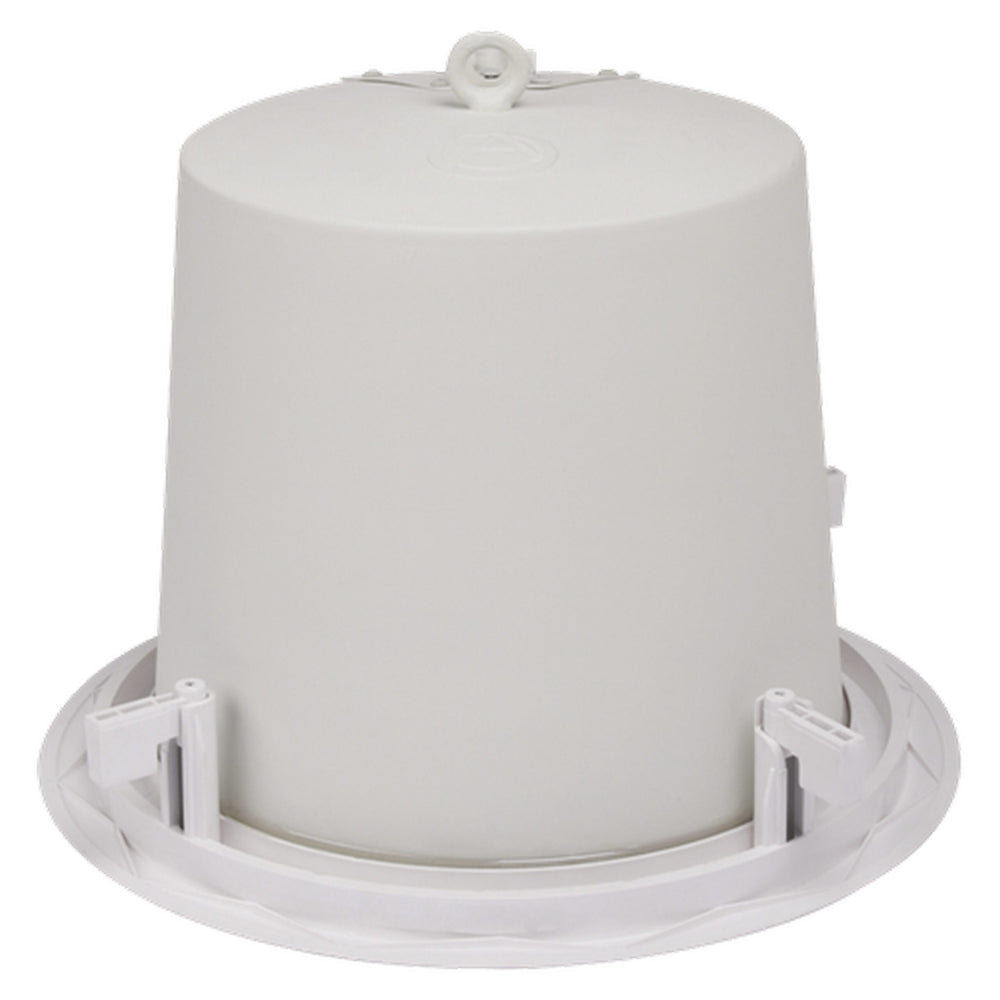

• Extended Low Frequency Response from the Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure (937 Cubic Inches)

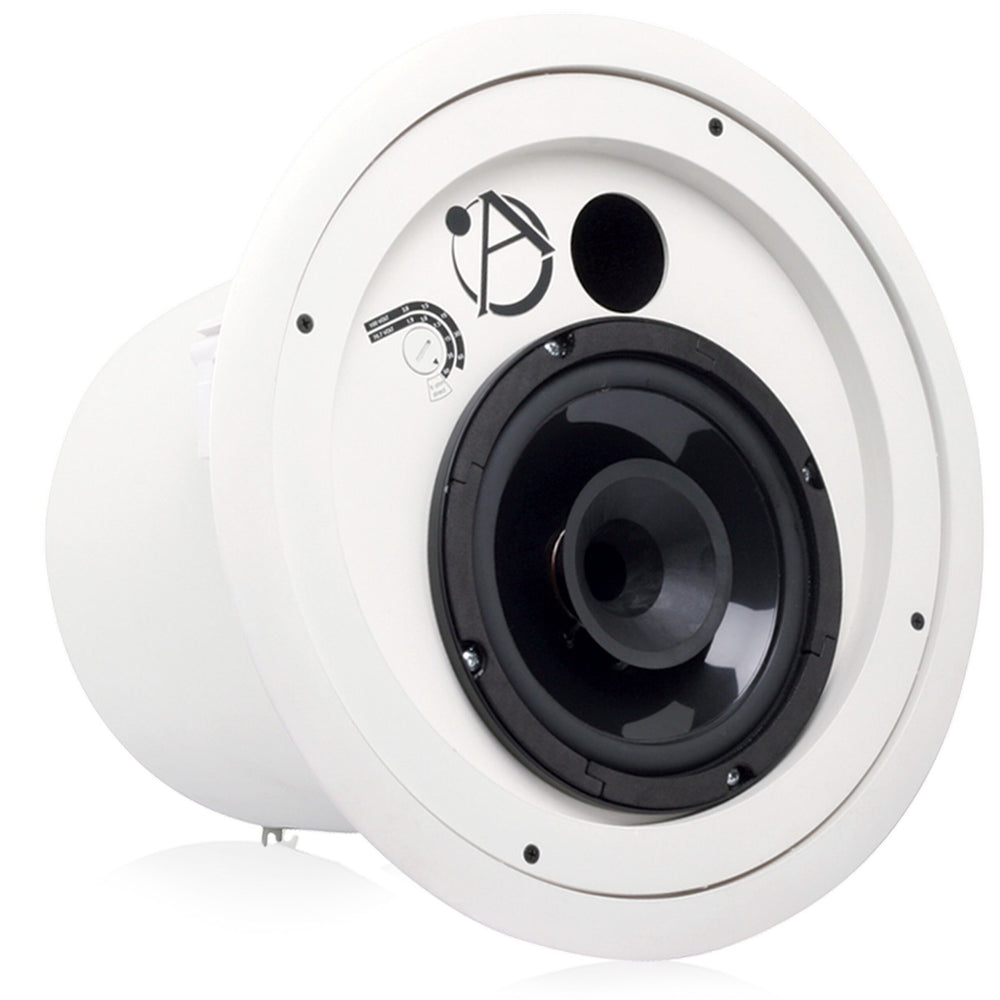

• Front Mounted Tap Selector Switch for Easy System Tuning Adjustments (1.9W to 60W @ 70.7V Plus 8 ohm Setting)
• Includes C-ring/V-rail Tile Bridge Mounting Hardware
• Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

Technical Specifications

Speaker Type
Coaxial
Sensitivity
92dB Average
Power Taps
1.9, 3.8, 7.5, 15, 30, 60 Watts & 8
Frequency Response
60Hz - 15kHz
Dispersion
90
Diameter
15 3/4" (40.005 cm)
Certified to Safety Listing
UL 1480
