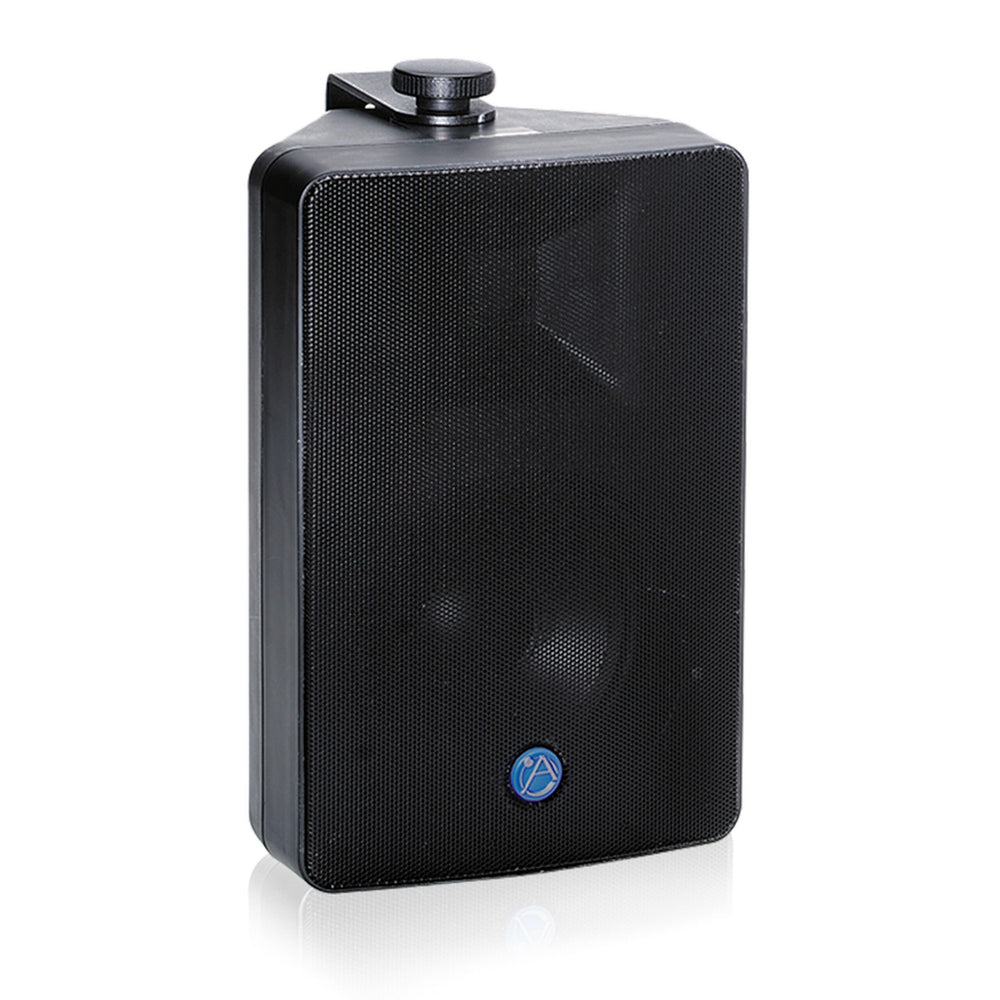

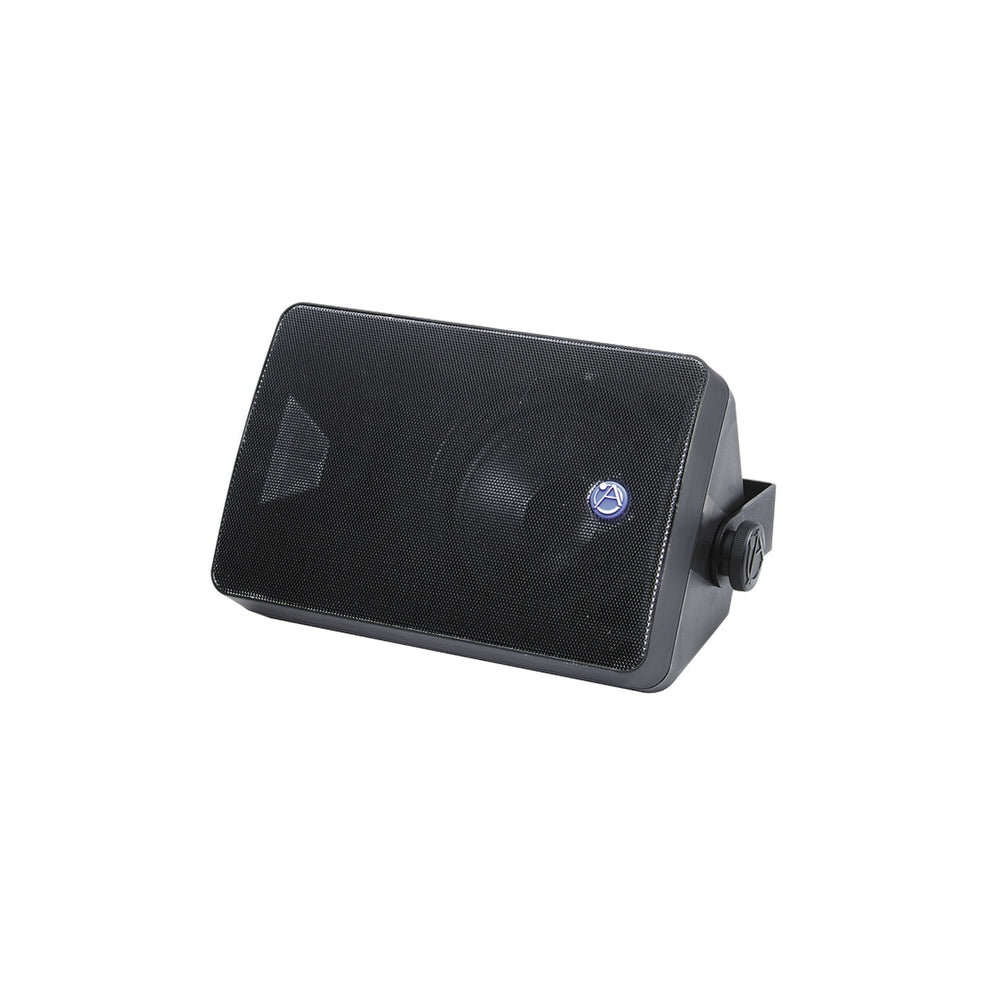

Atlas Sound SM52T-B 5.25 Inch 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer, Pair

Environment-resistant SM Series speaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and FerroFluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage (90H x 90V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard protection circuit. The SM52T includes an internally mounted 30 Watt 70.7V/100V line matching transformer with 8 bypass and screwdriver adjustable tap selection for use in distributed sound applications.

Key Features

• 1" Ferrofluid Cooled Dome Tweeter
• 100HR Salt Spray Test Per ASTM B117
• All "-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
• Atlas Sound POLYGUARD High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
• Atlas Sound TRX WAVEGUIDE- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
• Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
• Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
• Five-Year Warranty
• Weather-Resistant Construction for Year-Round Indoor or Outdoor Use: UV-Resistant Talc Impregnated Polypropylene, Injection
• Molded, Weatherproof Enclosure Powder Coated Aluminum Grilles and All Brass Hardware Inserts
• OMNIMOUNT Compatible

Technical Specifications

Speaker Type
Surface Mount
Sensitivity
90dB
Power Taps
.94, 1.9, 3.7, 7.5, 15, 30 & 6 bypass
Height
10 3/16" (28.5 cm)
Depth
5 7/8" (14.8 cm)
Width
6 7/8" (17.46 cm)
Shipping Weight
8.50 lbs (3.86 kgs)
