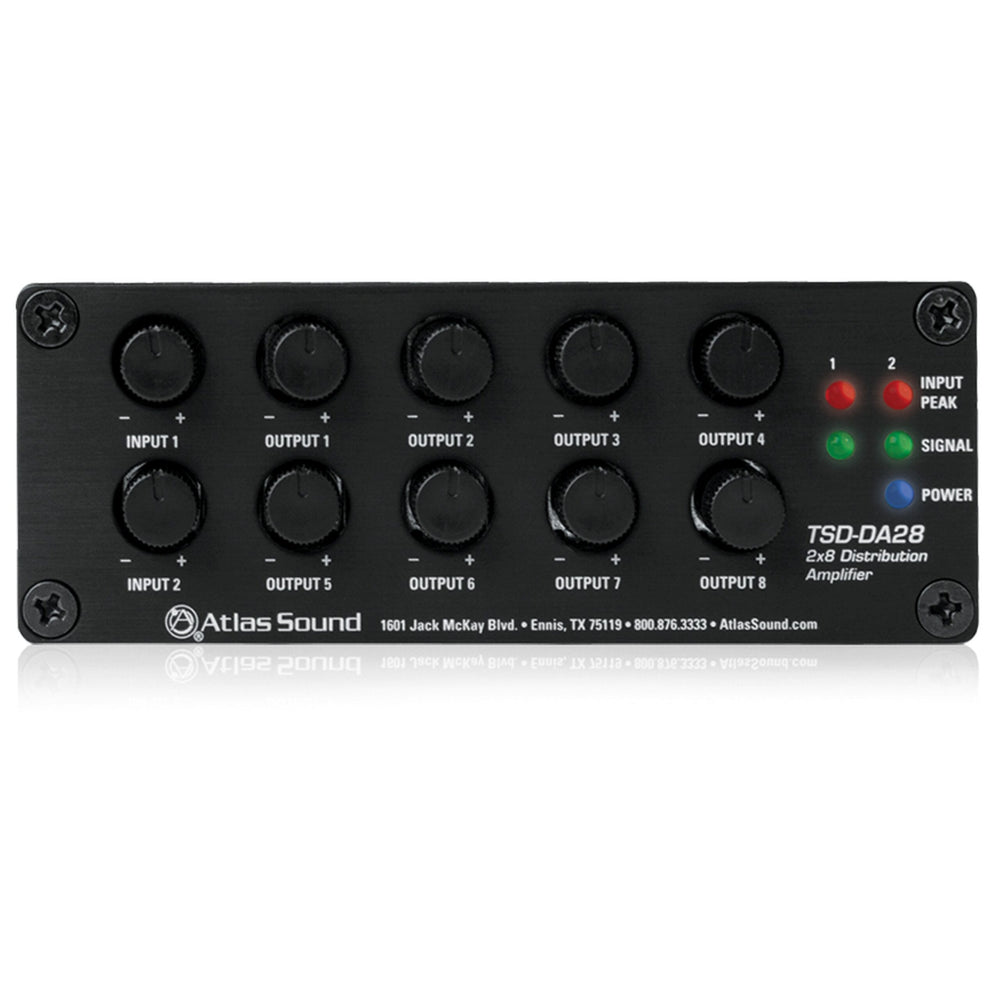

Atlas Sound TSD-DA28 2 x 8 Distribution Amplifier
The TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.
Key Features
- Two (2) Balanced Line Inputs
- Eight (8) Isolated Balanced Line Outputs
- Signal & Peak Indicator LED's for Each Channel
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections

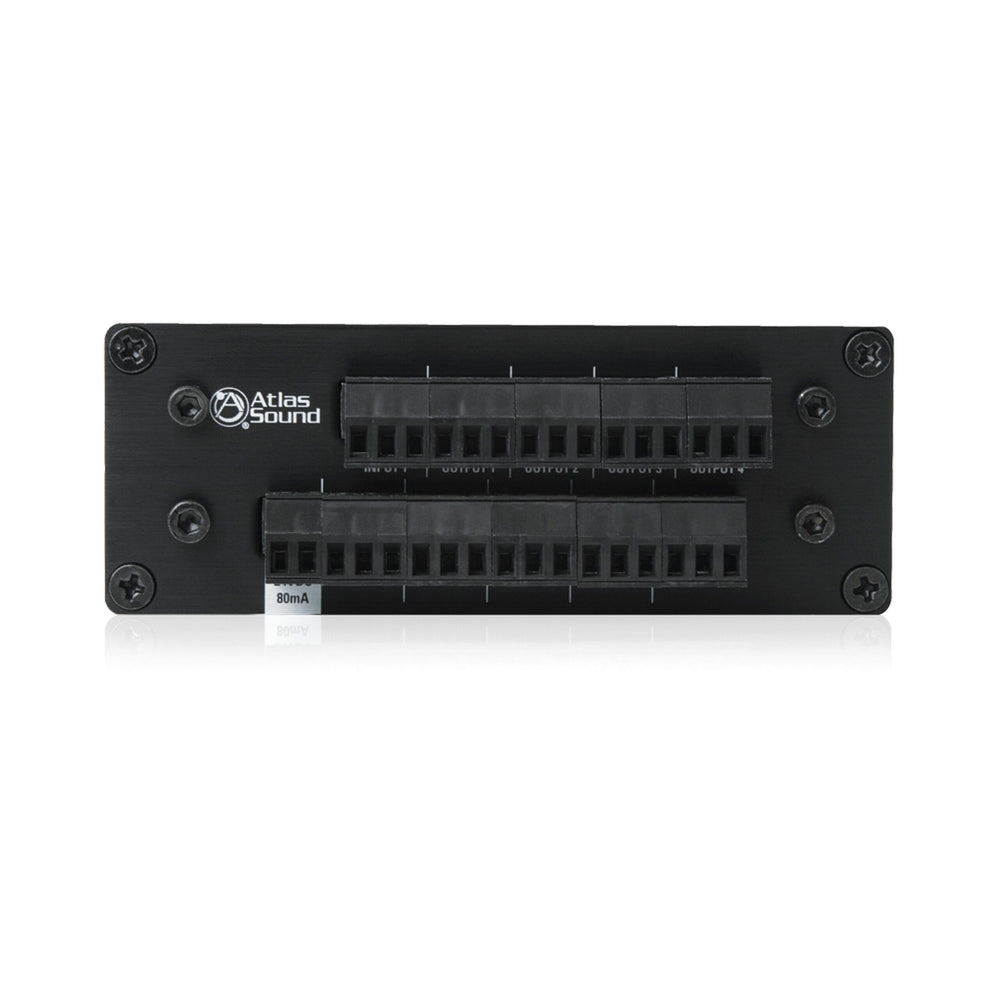

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Energy Efficient
- Power Supply Sold Separately
Technical Specifications
Frequency Response
20Hz - 20kHz
Input impedance
10K Balanced, 5K Unbalanced
Output impedance
300 Balanced, 150 Unbalanced
Signal to Noise Ratio
90dB
Height
1.5" (3.81 cm)
Width
4" (10.16 cm)
Depth
2.5" (6.35 cm)
Weight
6oz., .165kg
Voltage Compatibility
24V
