Atlas Sound WPD-RISRL Wall Plate Input Select Switch with Volume Control

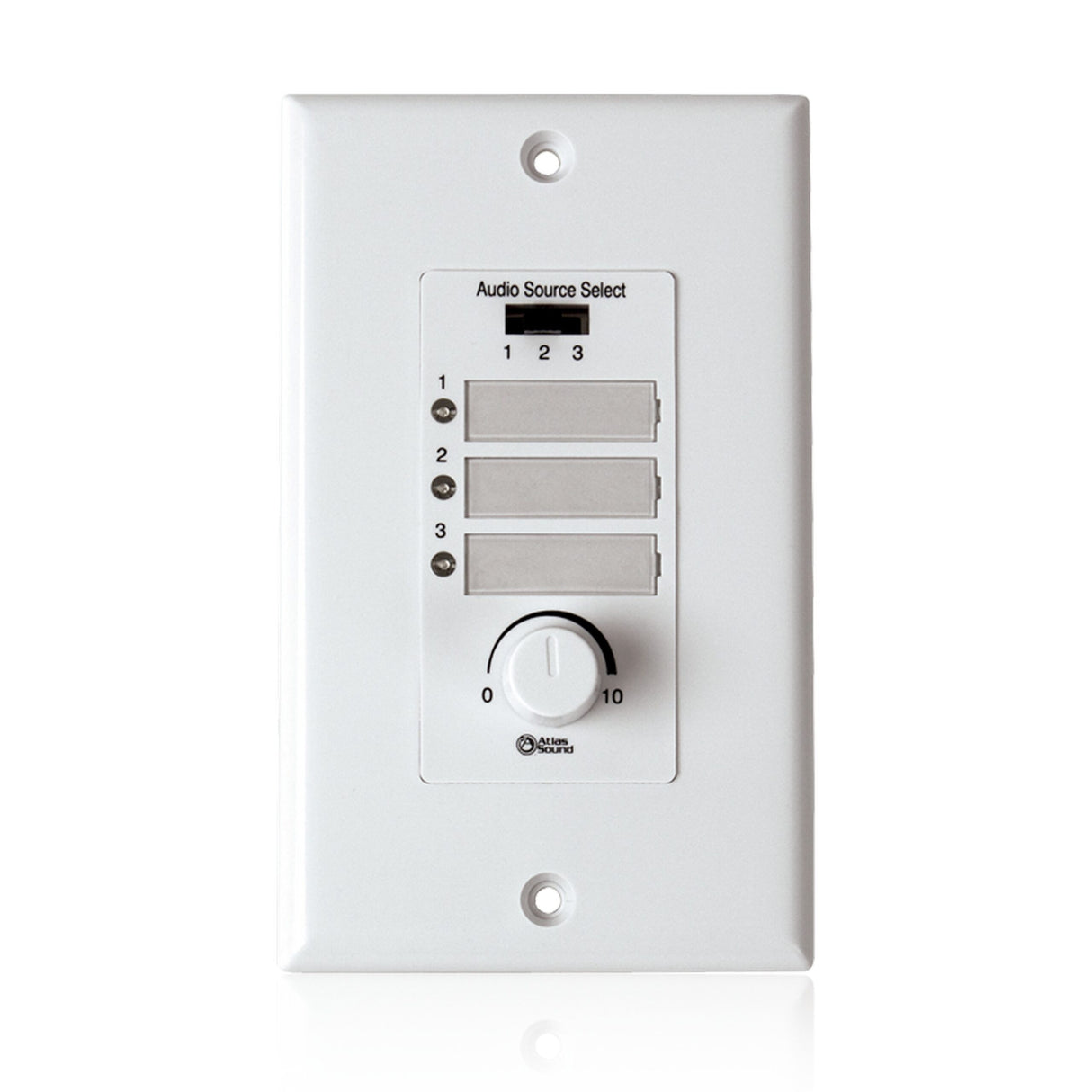

The WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.
Key Features
- Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
- Input Select Slide Switch
- Level Control Via On Board 10k Potentiometer
- System Status Indicator (Red)
- 8-Conductor Interface Connection
- Label Guard
Technical Specifications
Height
4.5" (114mm)
Width
2.5" (63mm)
Depth
0.24" (6.4mm)
