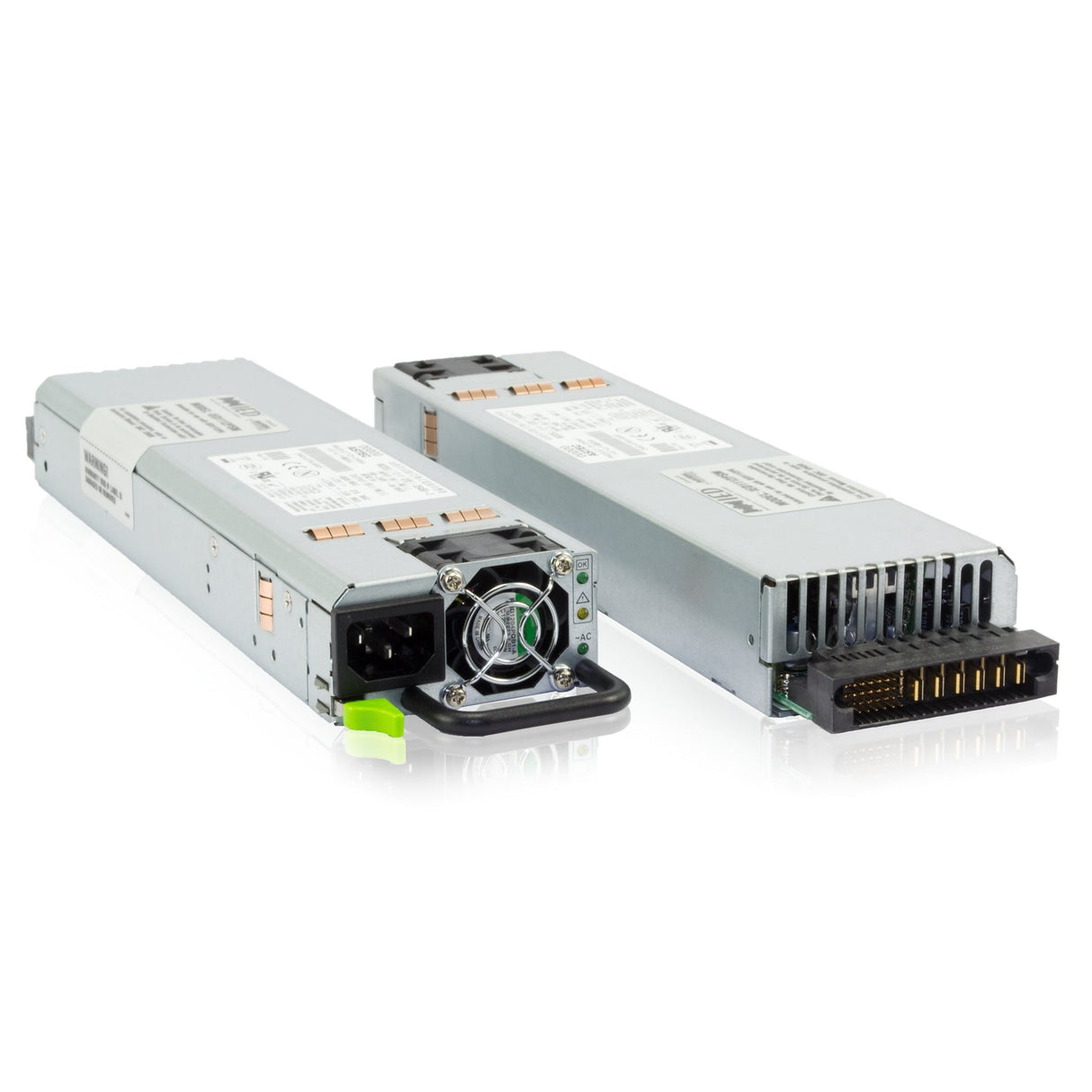

AtlasIED 1112PSM 12VDC Power Module for 1112PS Rack Supply
The AtlasIED 1112PSM is a high-efficiency, plug-in power supply module engineered for use with the 1112PS rack mount chassis. Each module provides up to 37 amps of +12V DC power and supports redundant load sharing when two modules are installed in the same chassis. If one module fails, the second automatically assumes the full load while communicating a fault to the system.
Designed for global use, the 1112PSM accepts universal AC input and integrates built-in cooling fans with variable speed control. Diagnostic LEDs indicate AC input, DC output, and fault status. Its compact design ensures compatibility with AtlasIED power management hardware in mission-critical AV and life safety environments.
Key Features
- High Output: Supplies up to 37 amps of +12V DC power
- Redundant Operation: Two modules in tandem ensure uninterrupted load delivery
- Thermal Management: Integrated fans with auto speed control for optimal cooling
- Built-In Diagnostics: Rear-panel LEDs indicate input/output/fault status
- Global Input Range: Accepts 100–240VAC for worldwide installation
Technical Specifications
- Model: 1112PSM
- Dimensions: 13.29 x 3.07 x 1.52 inches (338 x 78 x 39 mm)
- Weight: 2.6 lbs (1.2 kg)
- Input Voltage: 100–240VAC, 50–60 Hz, 8 amps max
- Output Voltage: +12VDC (±5%)
- Output Current: 37 amps
- Input Connector: IEC 60320 Type C-13
- Output Connector: FCI Power Blade
- Warranty: 36 months from date of purchase
