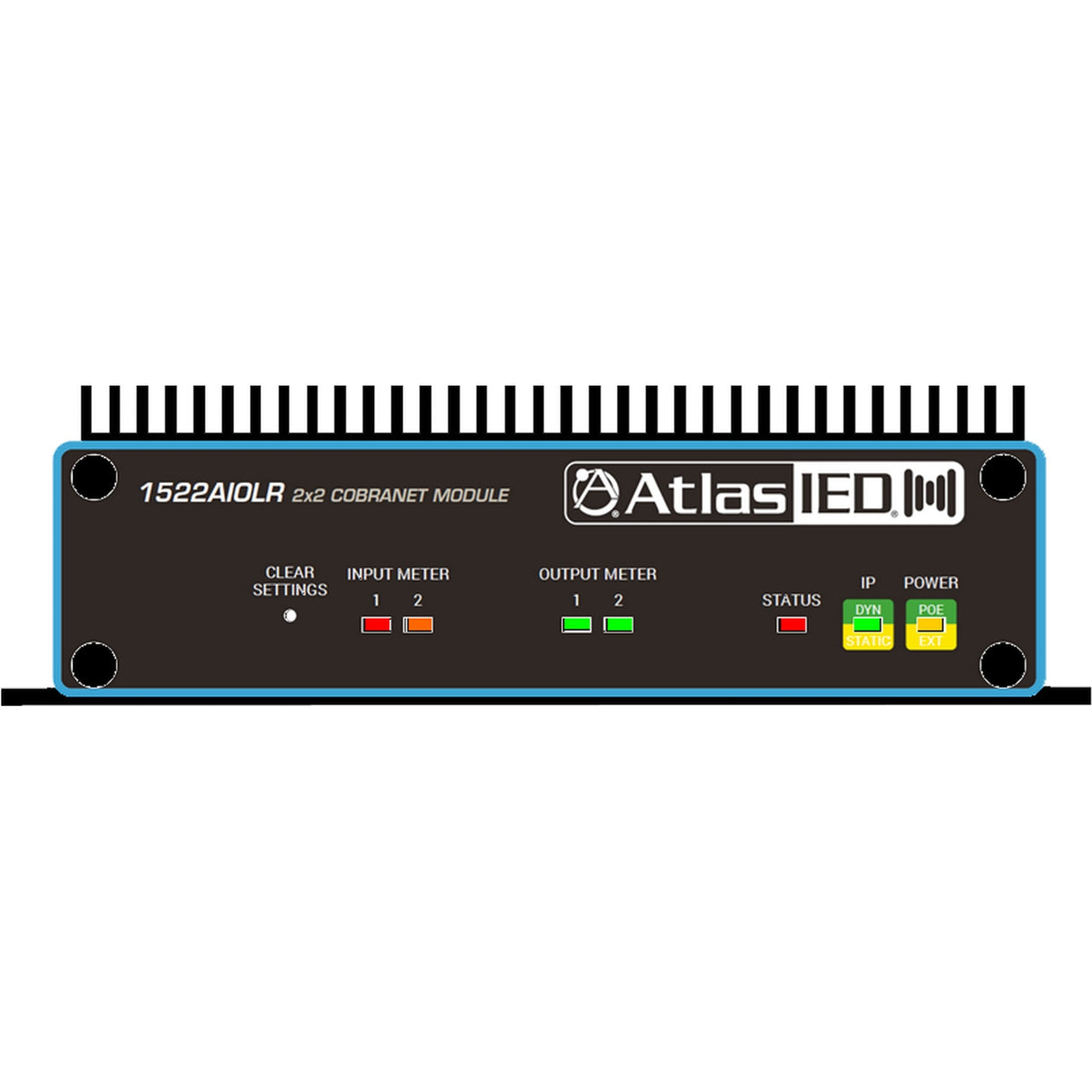

AtlasIED 1522AIOLR 2x2 CobraNet Audio Module with DSP and Control I/O
The IED1522AIOLR is a versatile 2-input, 2-output CobraNet audio interface engineered for seamless integration into professional sound systems. It converts two balanced mic/line analog inputs into CobraNet digital audio while simultaneously decoding two CobraNet channels into balanced line-level outputs. Ideal for expanding existing CobraNet systems, this module offers rich control and processing capabilities.
Featuring individually selectable 48V phantom power, software-adjustable input/output levels, and built-in DSP—including parametric EQ, delay, and compander/limiter—the 1522AIOLR is suitable for precision audio environments. With four opto-isolated GPIO inputs and four relay outputs, it also supports external triggering and control. The unit is powered via IEEE 802.3af PoE and supports redundant CobraNet connectivity.
Key Features
- 2x2 Audio I/O: Simultaneous analog-to-CobraNet and CobraNet-to-analog conversion
- Mic/Line Inputs: Balanced, software-controlled levels from -50 to +24dBu with 48V phantom
- Balanced Outputs: Line-level with adjustable output up to +24dBu
- Integrated DSP: EQ, delay, and dynamic processing on each channel

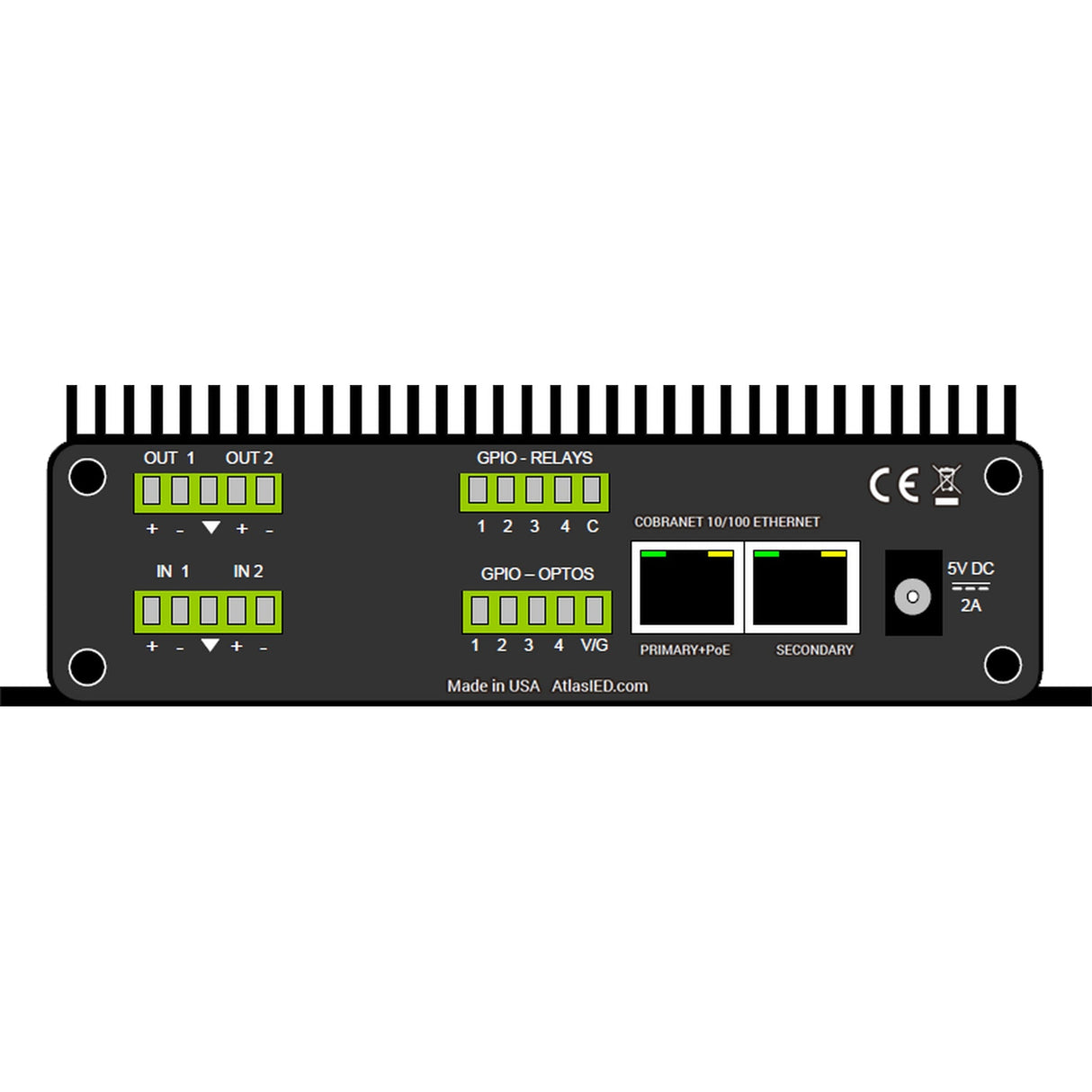

- GPIO: 4 opto-isolated inputs and 4 relay outputs for external control
- Redundant CobraNet: Ensures robust network audio performance
- PoE Powered: Compliant with IEEE 802.3af
Technical Specifications
- Model: 1522AIOLR
- Input/Output: 2 Balanced Mic/Line In, 2 Balanced Line Out
- Input Level: -50 to +24 dBu (1dB increments)
- Output Level: -10 to +24 dBu (1dB steps)
- Dynamic Range: >100 dB
- THD+N: < -88 dB
- Sample Rate: 48kHz
- CobraNet: 100BaseT Ethernet, RJ-45, 1.33–5.33ms latency
- Power: IEEE 802.3af PoE
- Warranty: 36 months from date of purchase
