AtlasIED 221-25 25.5-Inch Welded Rack, 21RU, Front Door Not Included

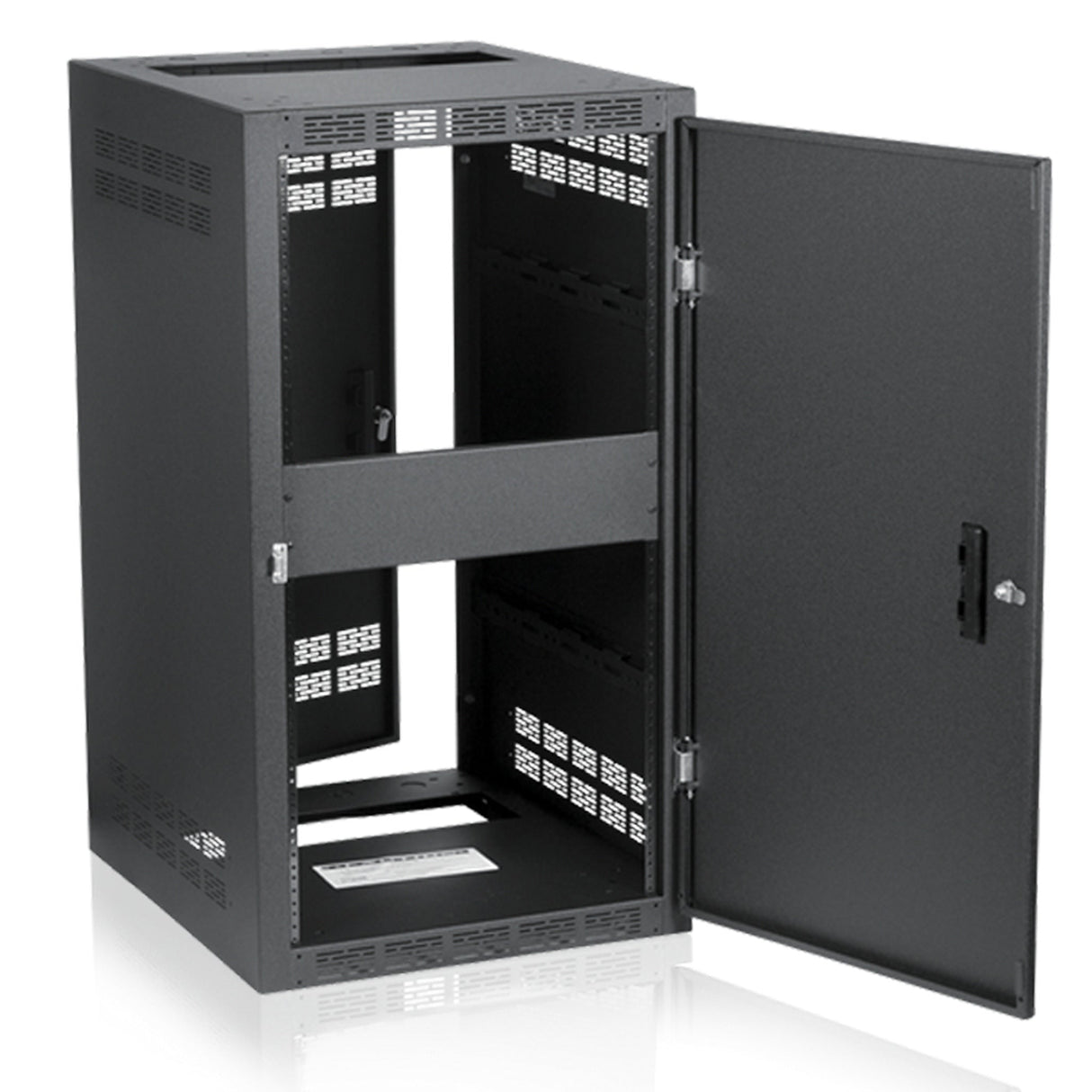

The AtlasIED 221‑25 is a deluxe 21RU floor-standing rack cabinet optimized for professional audio, IT, broadcast, and security installations. Built from rugged 16-gauge cold-rolled steel and finished with textured black epoxy, this welded cabinet ships fully assembled—base, top, side panels, adjustable rails, and rear door—ready for immediate deployment. Its expanded 25½″ depth delivers extra internal space for bulky equipment.
Installation is streamlined with a quick-release rear door featuring a cylinder lock and 180° swing capability. Adjustable 11-gauge CRS mounting rails are tapped for 10‑32 and recessed 11/16″, complete with RU indicator hash marks for precise gear mounting. With a 6RU openable top and bottom, dual conduit knockout arrays, and perforated vented panels on all sides, the cabinet ensures effective cable management and air convection for equipment cooling.
Key Features
- Fully Welded 16‑Gauge CRS Frame: Durable steel chassis with textured black epoxy finish.
- Adjustable Mounting Rails: One pair of 11‑gauge CRS rails, tapped 10‑32 and recessed 11/16″, with hash marks.
- Dual Cable/Vent Openings: 6RU openable sections on top and bottom for airflow or cable access.
- Versatile Rear Door: Quick-release hinges allow 180° swing, with cylinder lock and flush handle.
- Conduit Knockout Arrays: Multiple knockouts on top, bottom, and flange surfaces (1″ and concentric sizes).
- 360° Ventilation: Stamped, perforated vents on all sides and door for optimal air convection.
Technical Specifications
- Rack Units: 21 RU
- Height: 41″ (104.14 cm)
- Width: 22 5/16″ (56.67 cm)
- Depth: 25 ½″ (64.77 cm)
- Usable Depth: 24″ (60.96 cm)
- Shipping Weight: 90 lbs (40.82 kg)
- Safety Listing: UL 1678 compliant
- Warranty: 60-month limited from date of purchase
Included in the Box
- Fully assembled 221‑25 floor rack cabinet (base, top, sides)
- Pair of 11‑gauge CRS adjustable rack-mounting rails
- Removable rear door with cylinder lock and flush pull handle
- 6RU top and bottom removable panels for cable/vent use
- Pre-cut conduit knockout panels on top, bottom, and rear flanges
- Perforated vent panels installed on sides and rear foot
