AtlasIED 324‑15 19-Inch Wall‑Mount Rack Cabinet, 24RU

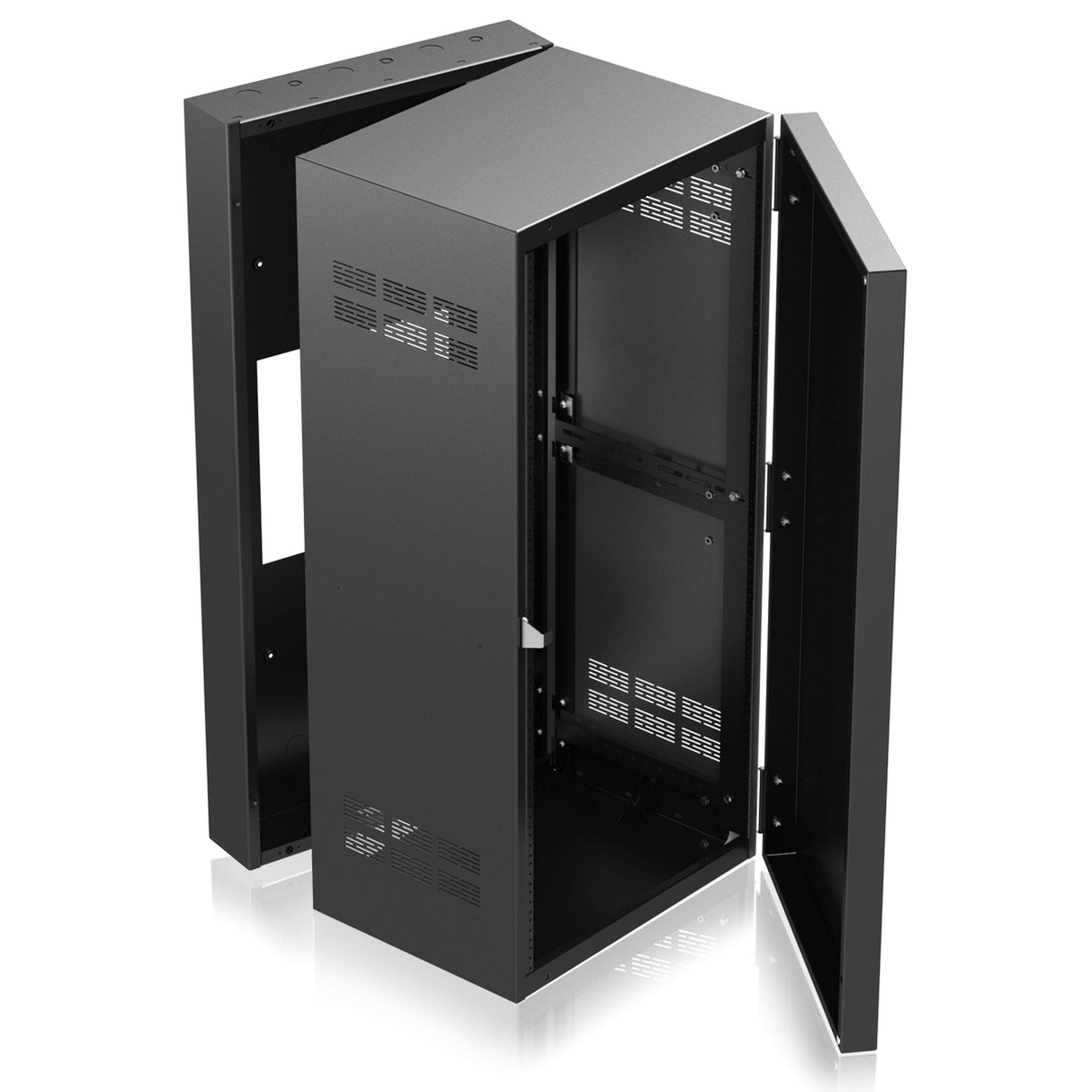

The AtlasIED 324‑15 delivers a high-capacity wall-mount rack solution for AV, IT, or security installations that require reliable equipment housing in tight spaces. Constructed from heavy-duty 16-gauge cold-rolled steel and coated in a durable black epoxy finish, this sectional cabinet features a three-section design: a 2″ solid front door, a 15″ deep center section with adjustable mounting rails, and a 4½″ rear door. Reinforced frame flanges, corner brace supports, plug-welded panels, and electric-welded seams offer exceptional rigidity and help prevent sagging—even under full gear weight.
Perfect for high-density setups, the 324‑15 provides 24 rack units of EIA-standard 19″ mounting space, complete with adjustable rails tapped 10‑32. Equipment protection and organization are further enhanced by internal wire-management raceways, six boss-type field detents for mounting sub-plates, and 20 conduit knockouts strategically placed on the rear and flanges. Perforated vents located on both sides help maintain airflow for thermal management, while an 11-gauge center-section guide plate supports weight distribution and ensures precise door alignment.
Included in the Box
- Fully assembled three-section wall rack cabinet (2″ front door, 15″ center, 4½″ rear door)
- One pair of adjustable EIA-standard front rack rails (tapped 10‑32)
Key Features
- 24 RU 19″ rack space for dense equipment installation
- 15″ deep center section accommodates deeper components
- Adjustable rails tapped 10‑32 for mounting flexibility
- Reinforced construction with frame flanges, corner braces, plug-welded panels and welded seams
- 11‑gauge guide plate prevents center-section sag and aligns doors smoothly
- Internal wire‑management raceways and boss detents allow custom accessory mounting
- 20 conduit knockouts for versatile cable routing
- Perforated side vents at top and bottom for efficient airflow
Technical Specifications
- Rack Units: 24 RU
- Height: 45″
- Width: 20.625″
- Total Depth: 21.5″
- Center Section Depth: 15″
- Shipping Weight: 139 lbs
- Finish: Black epoxy
- Conduit Knockouts: 20 (rear & flanges)
- Boss Detents: 6 for sub-plate mounting
