AtlasIED 500 Series Standalone/Gangable Floor Cabinets
The AtlasIED 500 Series is a premium line of standalone or gangable floor cabinets designed to house and protect audio, video, networking, and control systems equipment in professional AV, IT, and broadcast environments. These rugged enclosures are constructed of 16-gauge cold-rolled steel and ship fully assembled, offering optimal durability and fast deployment. With models ranging from 35RU to 44RU, the series supports various integration needs and installation sizes while maintaining a consistent footprint width and depth.
Each model comes with rear doors, top openings for fan panels or cable pass-through, and options for solid, plexiglass, or micro-perforated front doors. Whether deployed individually or ganged together for large installations, these enclosures provide robust cable management, security, and ventilation support, making them ideal for mission-critical rackmount applications.
Key Features (All Models)
- Fully Assembled: Ships ready to install with no on-site assembly required
- Rack Space Options: Choose from 35, 40, or 44 rack units
- High Durability: Fabricated from 16-gauge CRS (Cold-Rolled Steel)
- Secure Rear Doors: Lockable and included standard with all models
- Front Door Options: Choose from plexiglass, solid, or vented micro-perf designs
- Top Cable/Fan Opening: 6RU opening supports cable pass-through or fan panels
- Accessory Compatible: Accepts caster kits, bus bars, lacing bars, and side panels
Model Comparison and Technical Specifications

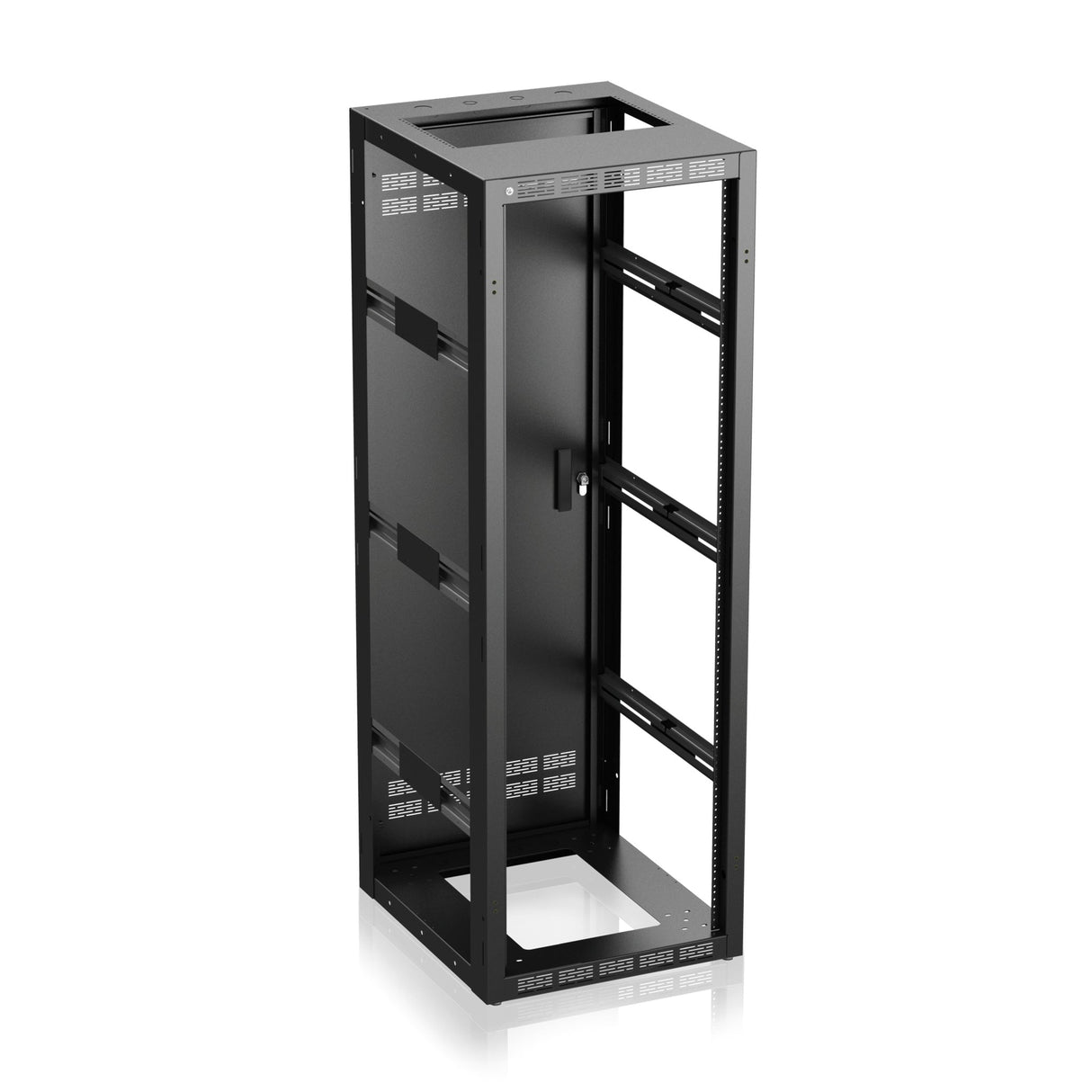

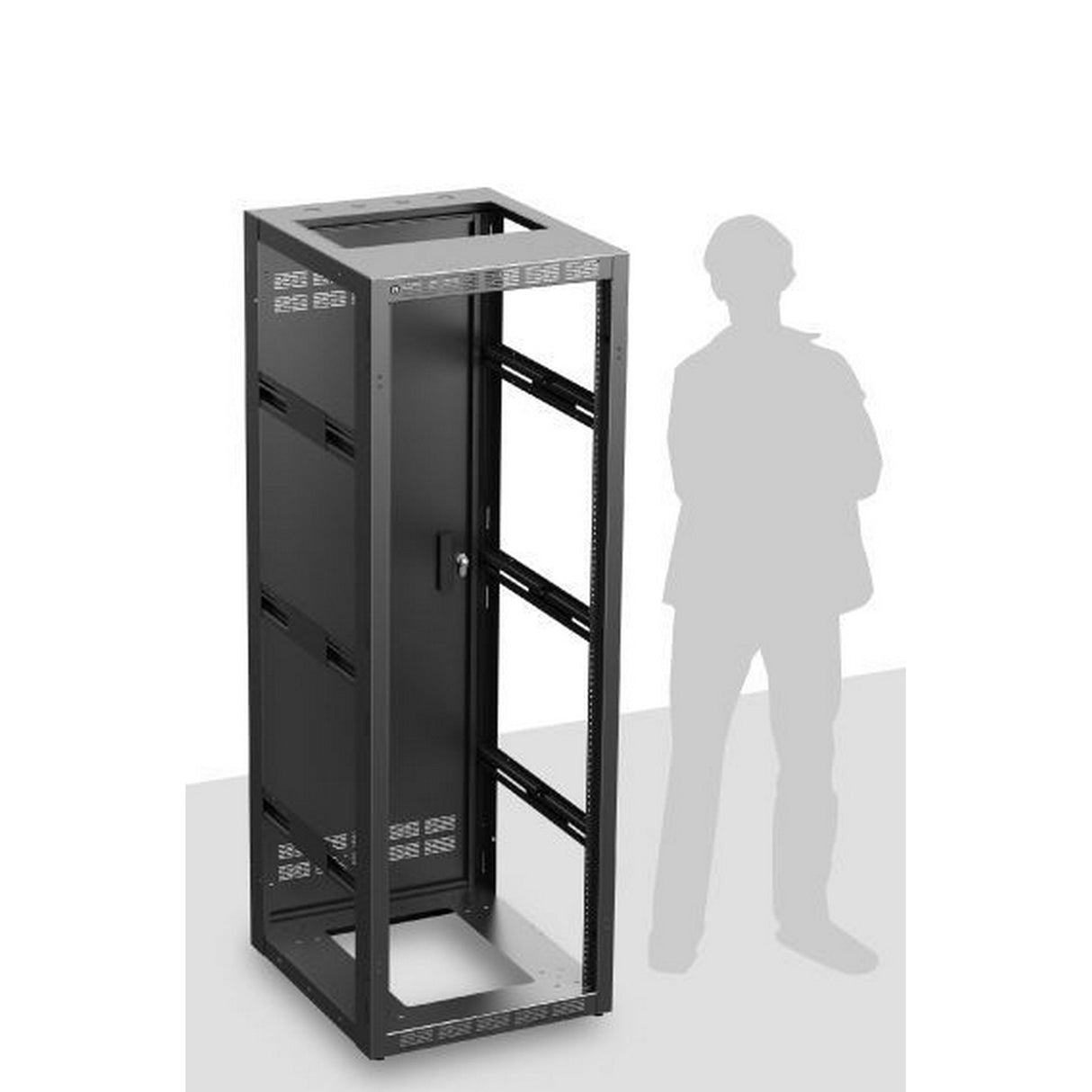

Model: AtlasIED 535-25
- Rack Units: 35 RU
- Height: 65.5 inches
- Width: 22.31 inches
- Depth: 25.5 inches
- Usable Depth: 23.53 inches
- Panel Space: 61.25 inches
- Side Panels: SPS35-25
- Caster Kit: RCK-25

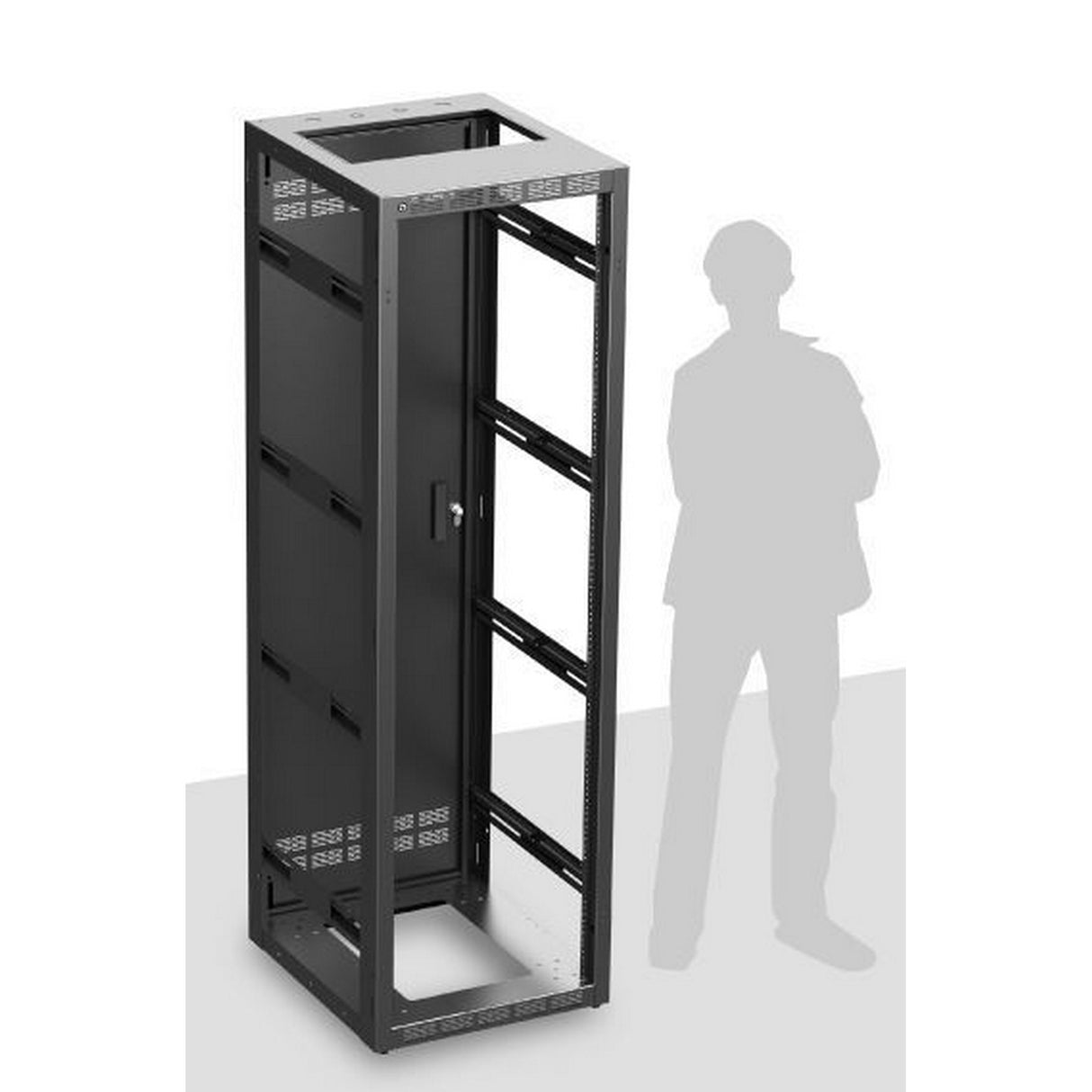

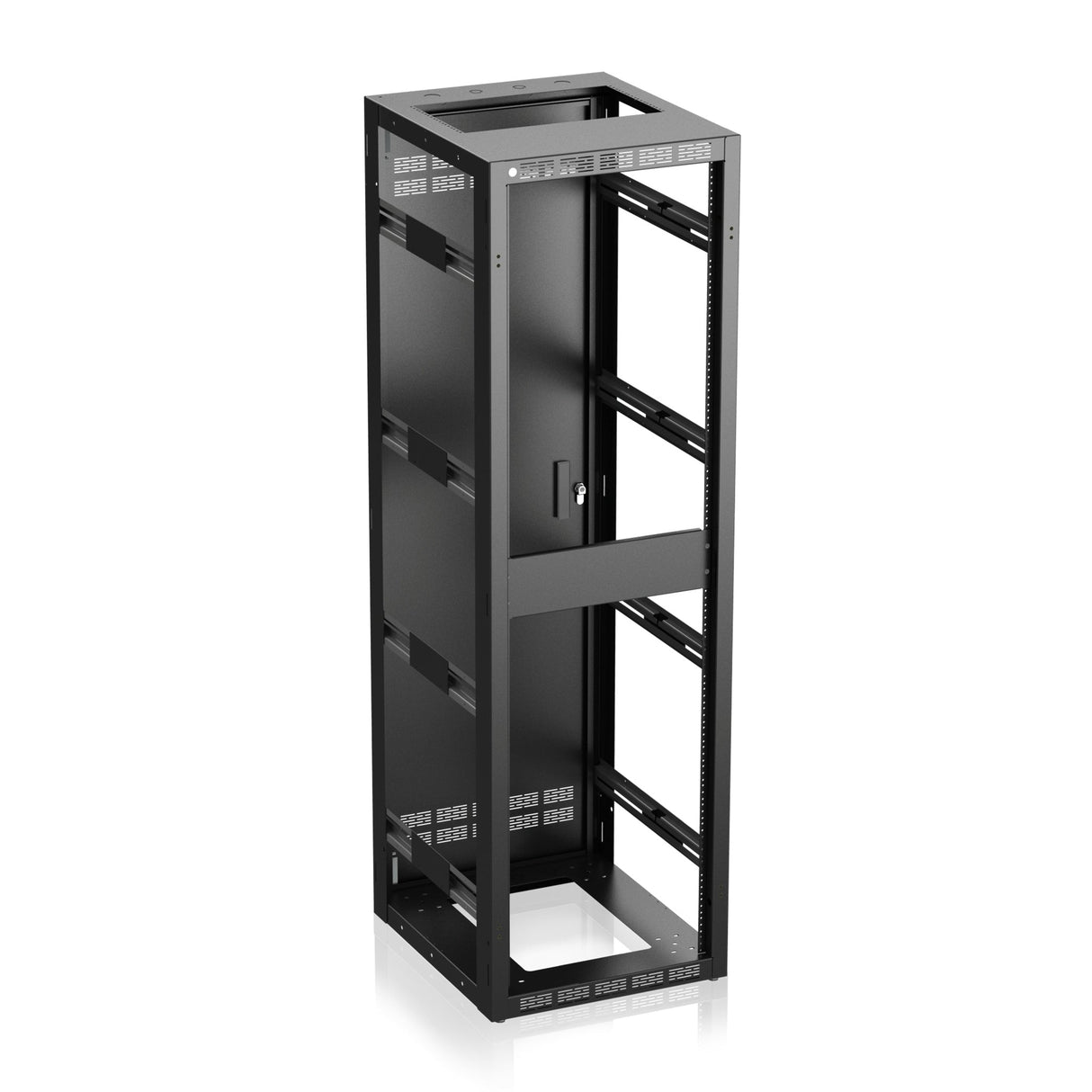

Model: AtlasIED 540-25
- Rack Units: 40 RU
- Height: 74.25 inches
- Width: 22.31 inches
- Depth: 25.5 inches
- Usable Depth: 23.53 inches
- Panel Space: 70.13 inches
- Side Panels: SPS40-25
- Caster Kit: RCK-25

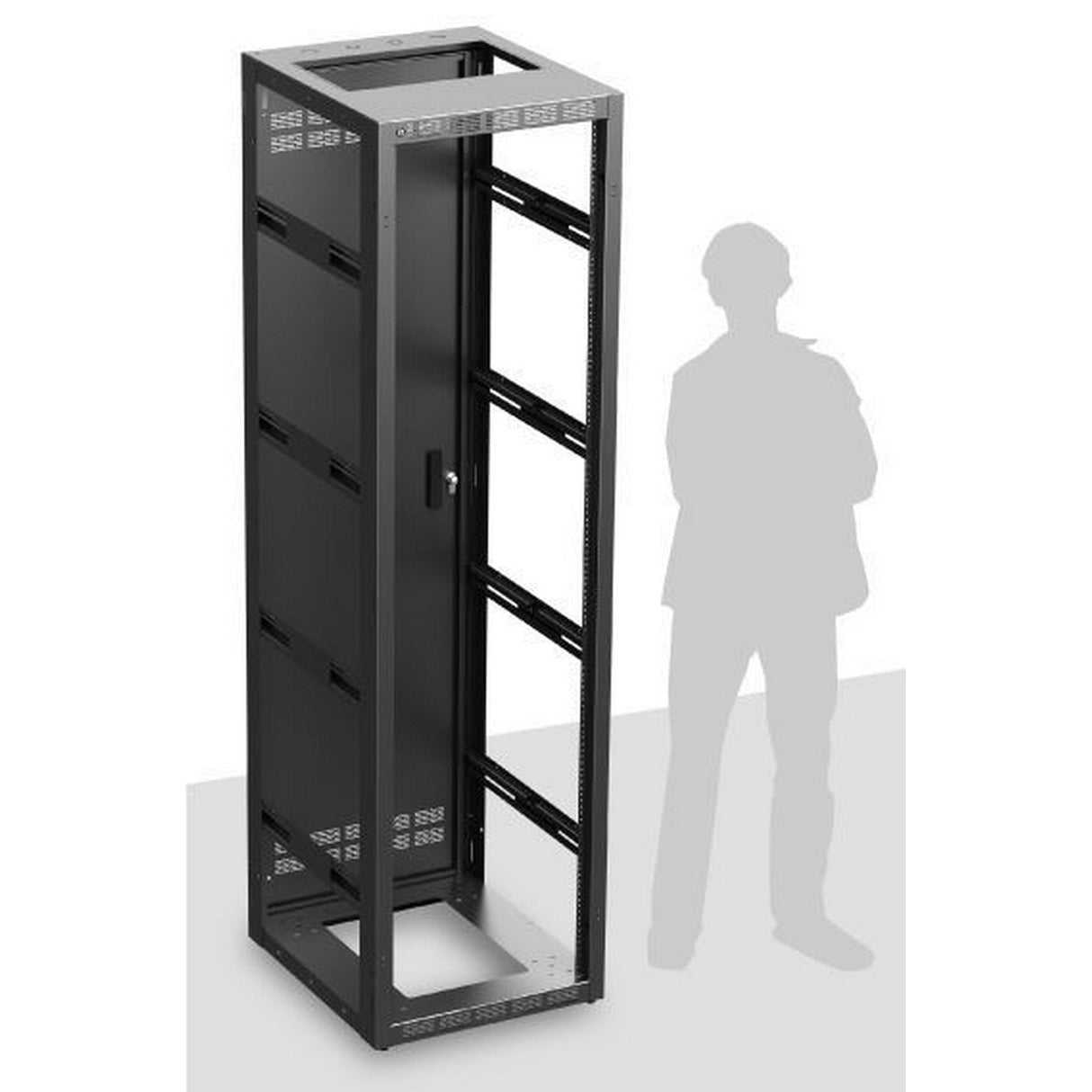

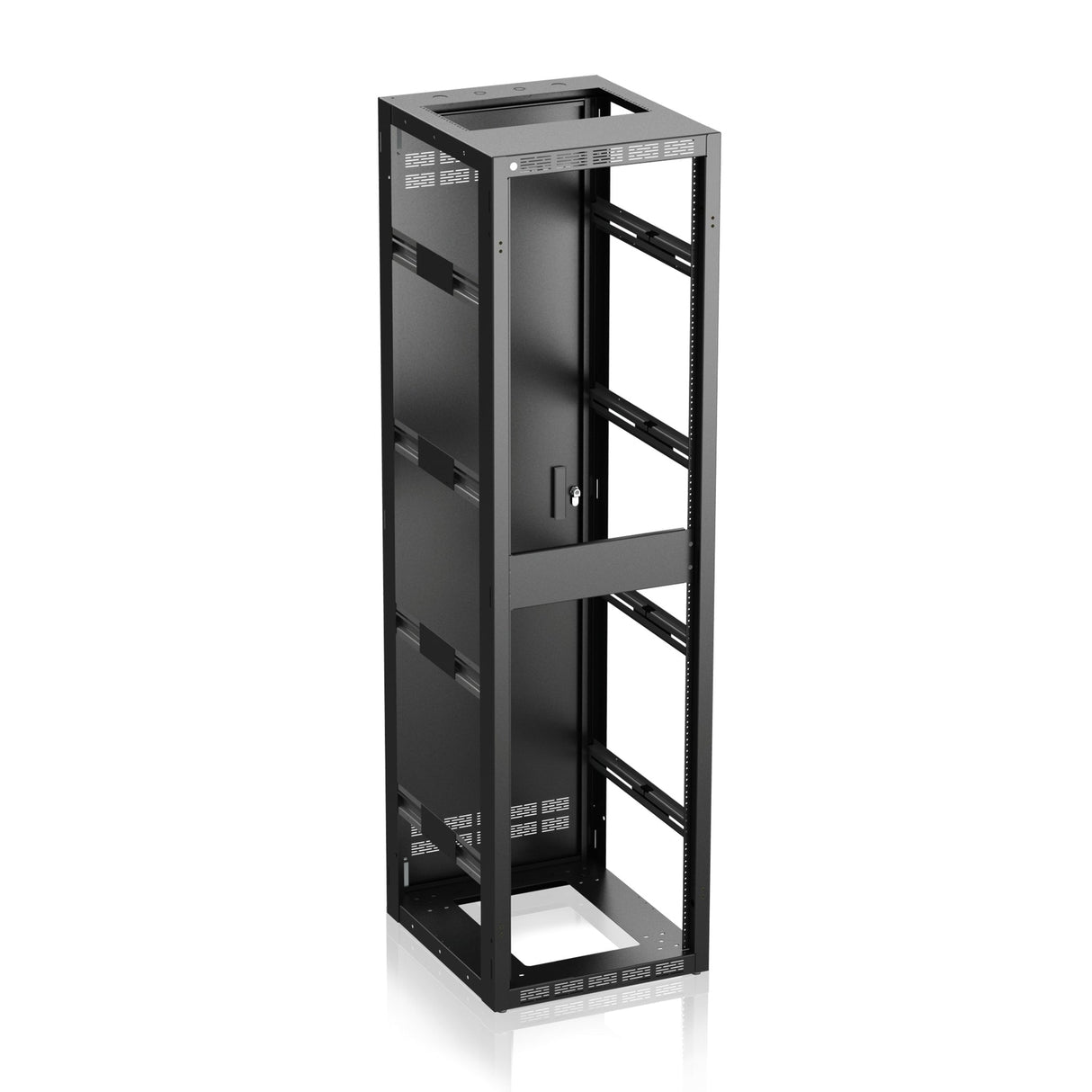

Model: AtlasIED 544-25
- Rack Units: 44 RU
- Height: 81.25 inches
- Width: 22.31 inches
- Depth: 25.5 inches
- Usable Depth: 23.53 inches
- Panel Space: 77.13 inches
- Side Panels: SPS44-25
- Caster Kit: RCK-25

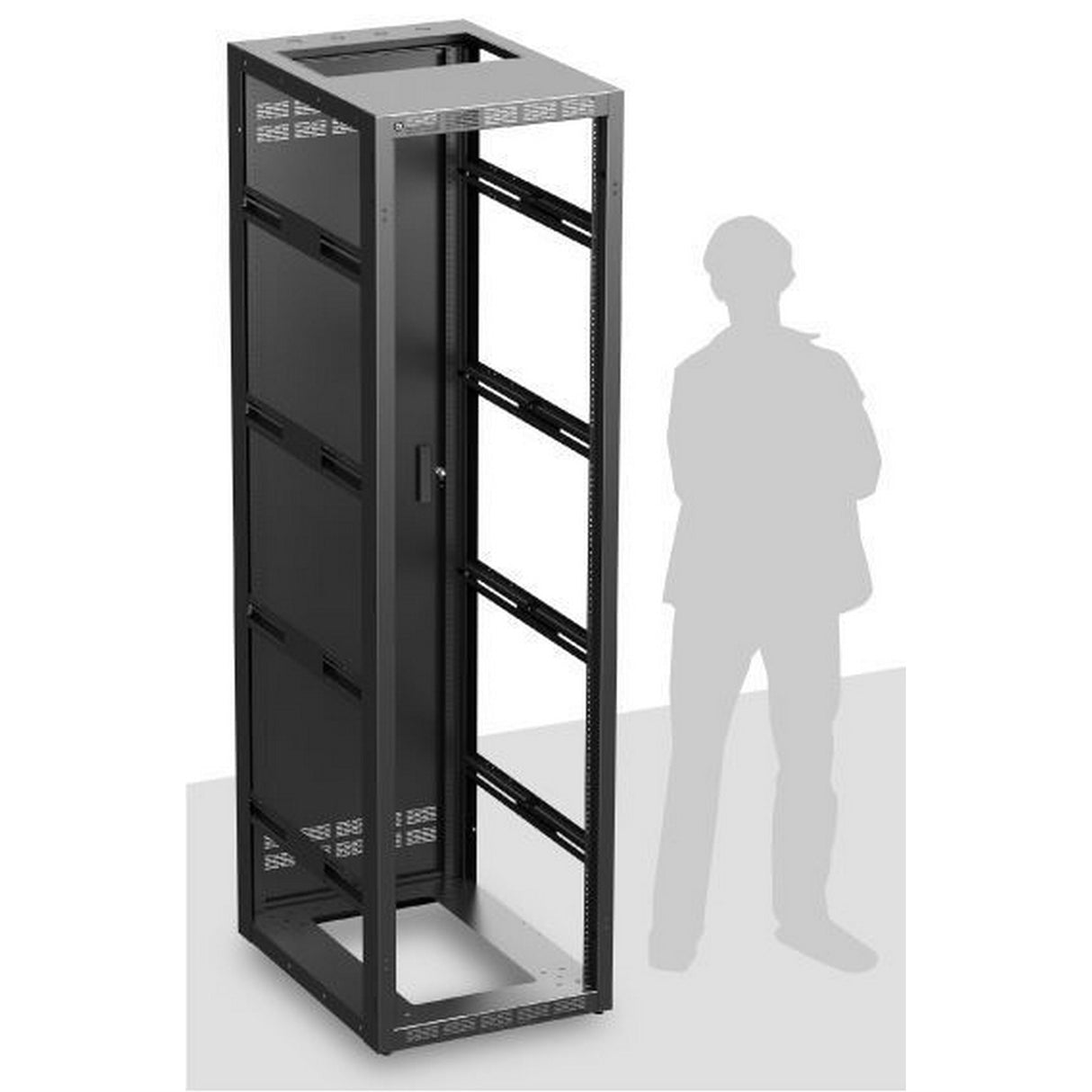

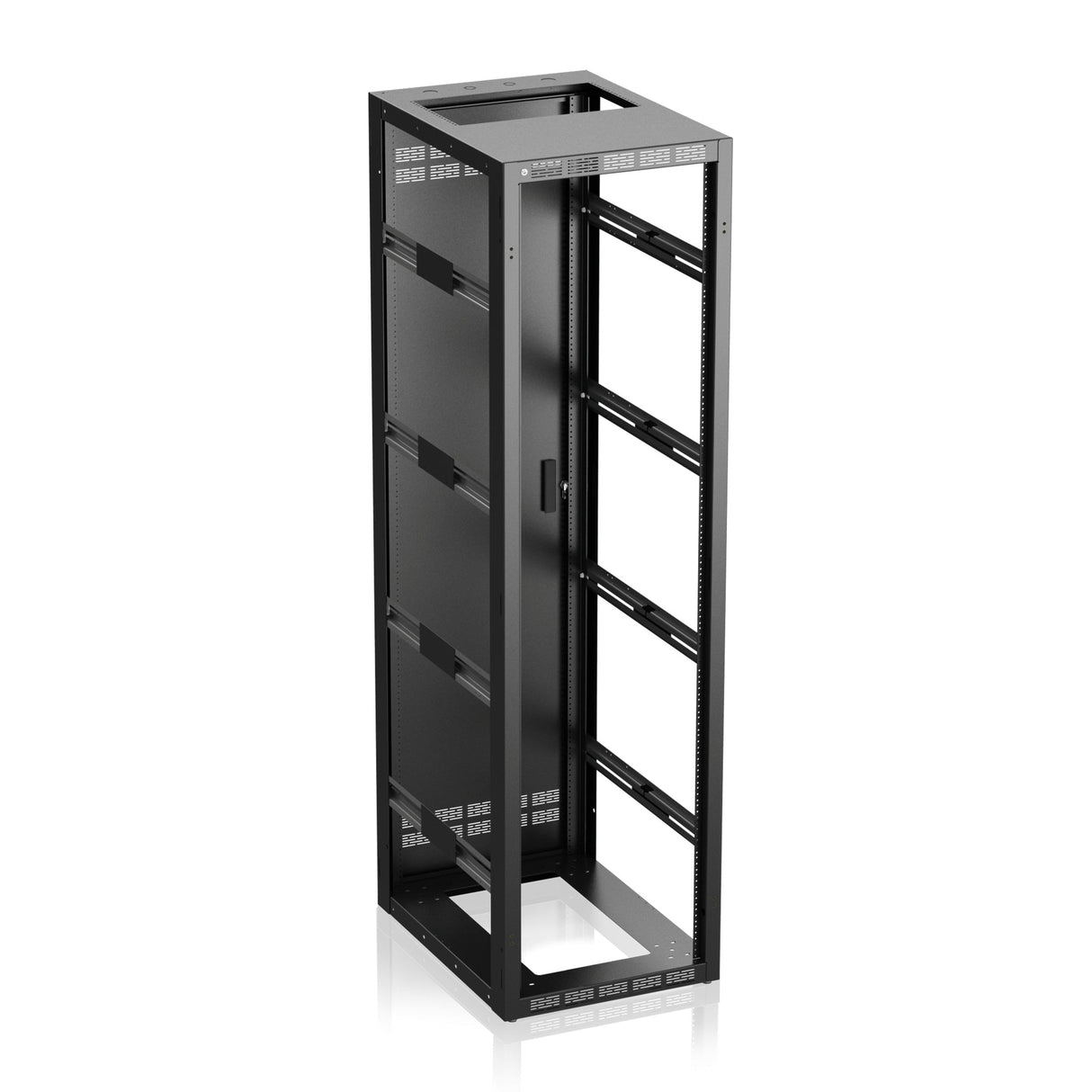

Model: AtlasIED 544-30
- Rack Units: 44 RU
- Height: 81.25 inches
- Width: 22.31 inches
- Depth: 30 inches
- Usable Depth: 28.03 inches
- Panel Space: 77.13 inches
- Side Panels: SPS44-30
- Caster Kit: RCK-30
What's Included (All Models)
- Fully Assembled 500 Series Floor Cabinet
- Lockable Rear Door (left/right configurable)
- Top Opening (6RU)
- Pre-installed Rack Rails
- Standard Conduit Knockouts
