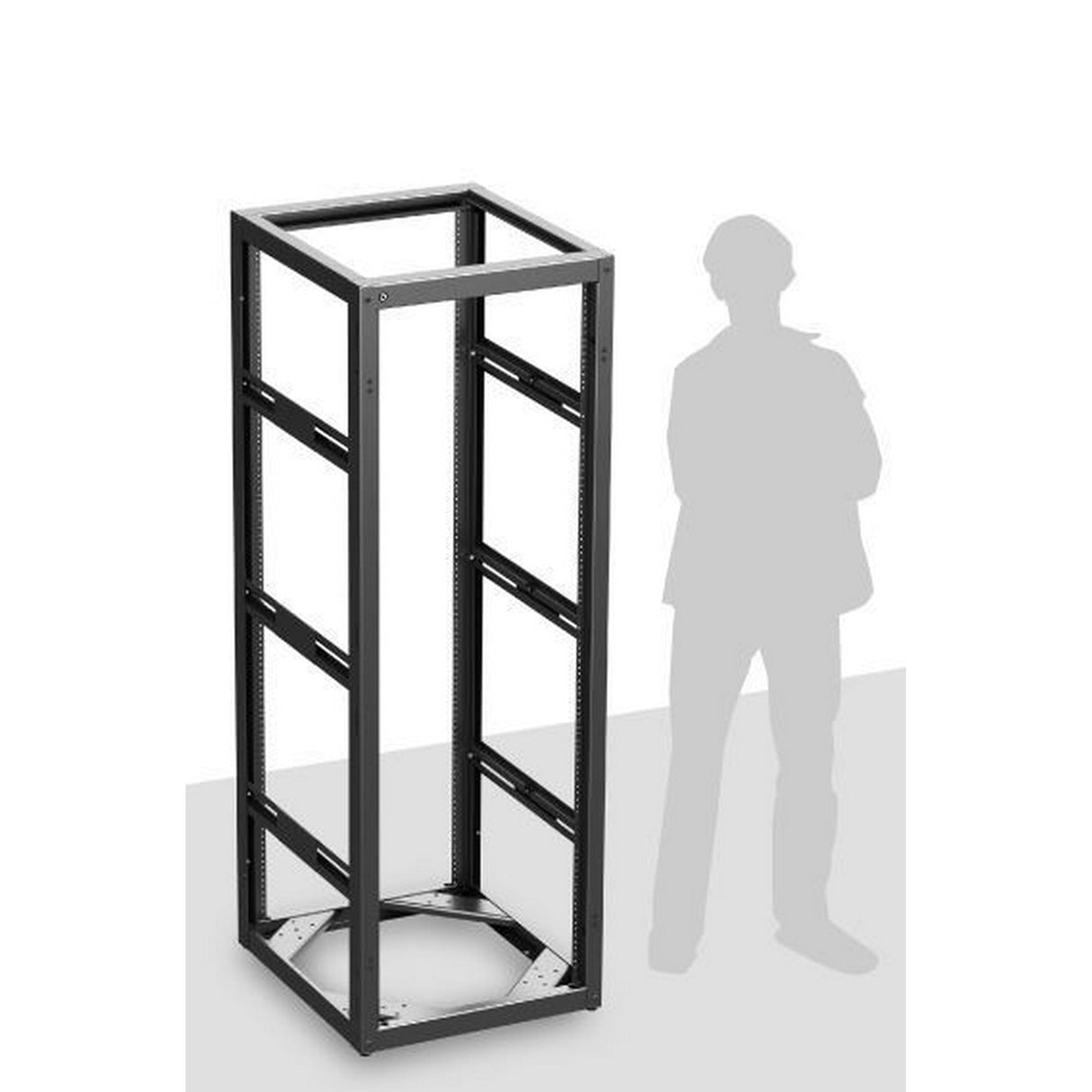

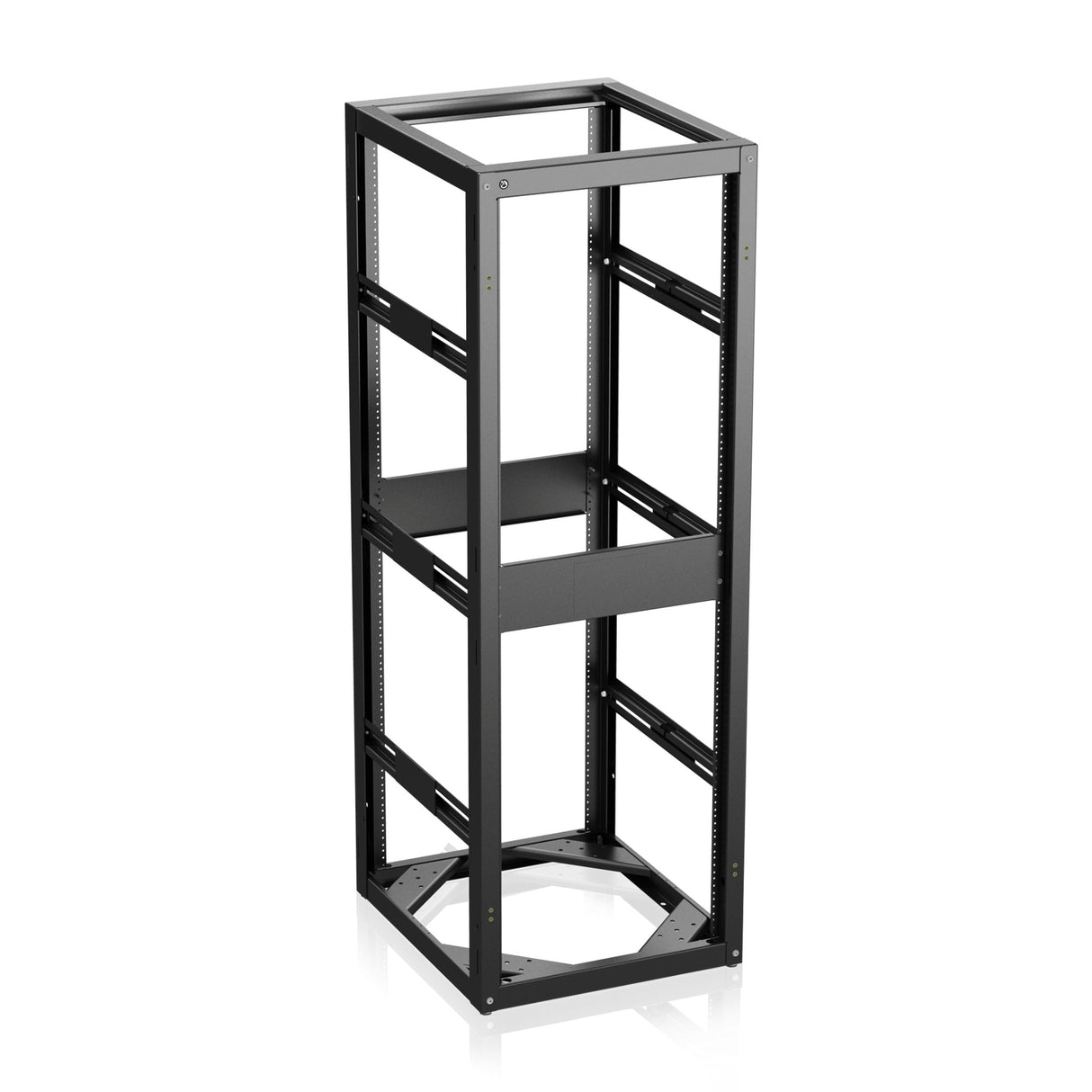

AtlasIED 735‑25 Stand‑Alone/Gangable Floor Rack, 35RU
The AtlasIED 735‑25 is a heavy-duty 35RU floor rack cabinet engineered for high-load and deep-equipment installations. Built with a 14‑gauge cold-rolled steel frame and reinforced 11‑gauge caster gussets, its welded and multi-formed frame provides exceptional strength and stability—ideal for mission-critical AV, broadcast, networking, and data applications.
Measuring 65½″ high, 22½″ wide, and 25″ deep (usable depth of 23 9⁄16″), this rack includes two 3RU blank panels and fully adjustable front-to-rear mounting rails tapped 10‑32 with EIA-standard spacing. The base accepts optional leg levelers or casters, and can be bolted directly to the floor. Shipped unassembled in a rugged box, the rack accommodates secure airflow design and optional seismic bracing for added protection.
Key Features
- Heavy-Duty Construction: 14‑gauge CRS frame with welded 11‑gauge caster gussets
- Deep, Spacious Design: 35RU rack space with 23 9⁄16″ usable depth
- Adjustable Rails: Front-to-rear 10‑32 tapped rails, recessed 1 3⁄16″
- Base Options: Accepts leg levelers (LL‑1), caster installation, or permanent floor mounting
- Accessory-Ready: Supports seismic brackets (SBK‑700), top openings, and IR repeater mounting
Technical Specifications
- Rack Units: 35 RU
- Height: 65.5 in (1664 mm)
- Width: 22.5 in (571 mm)
- Depth: 25 in (635 mm)
- Usable Depth: 23.56 in (598 mm)
- Weight: Not specified
- Frame Material: 14‑gauge CRS
- Caster Gussets: 11‑gauge CRS reinforced corners
- Rack Rail Spacing: EIA standard, recessed 1 3⁄16″
- Mounting Rails: Adjustable, tapped 10‑32 with RU markings
What’s Included
- AtlasIED 735‑25 Floor Rack Cabinet (35 RU)
- Two 3RU blank panels
- Adjustable front-to-rear rack rails tapped 10‑32
- Base with caster/leveler/floor-mount provisions
