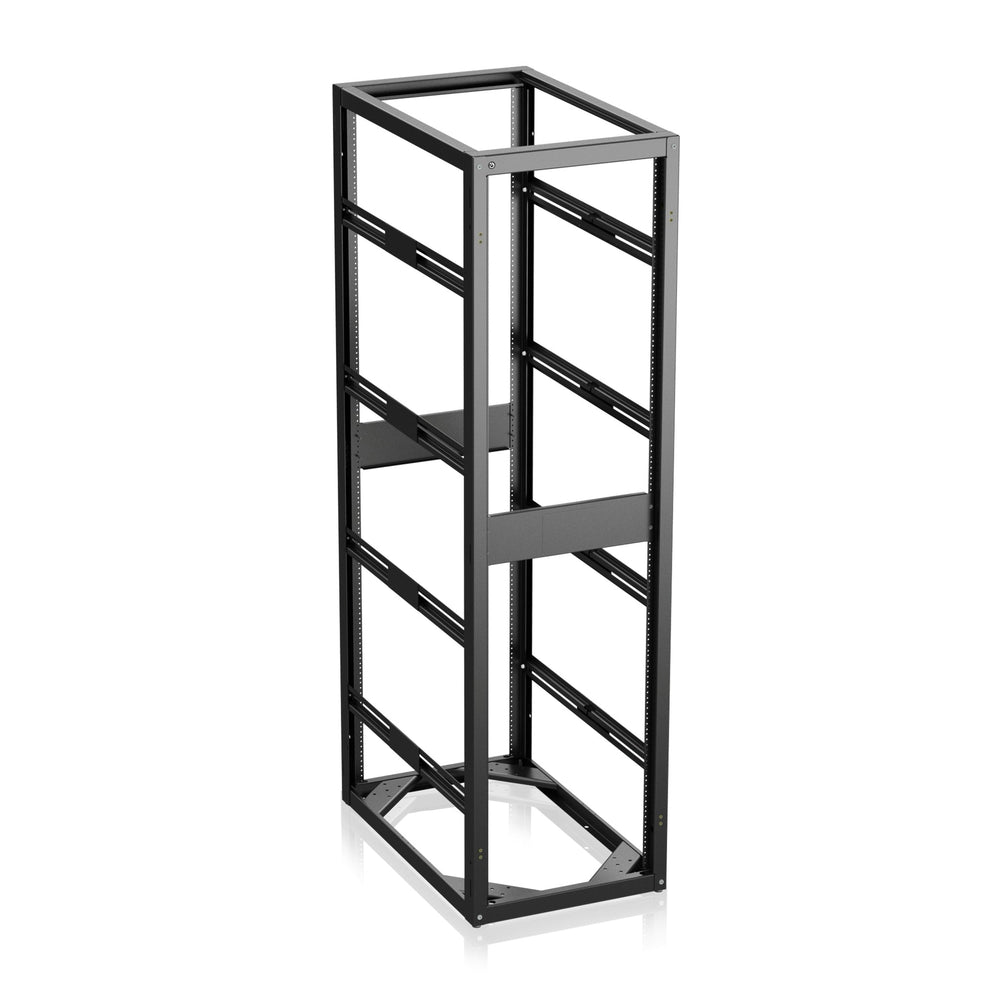

AtlasIED 744-36 Heavy‑Duty Floor Rack Cabinet with 36-Inch Depth, 44RU
The AtlasIED 744‑36 is a heavy-duty floor rack cabinet designed for demanding AV, IT, and broadcast installations requiring substantial depth and load-bearing capacity. Constructed with a 14-gauge cold-rolled steel frame and reinforced with 11-gauge caster gussets, this 44 RU cabinet offers exceptional strength and durability. Its multi-formed and welded frame members provide superior load-bearing capability, making it ideal for single and multiple bay configurations that demand extended depths and additional weight capacity.

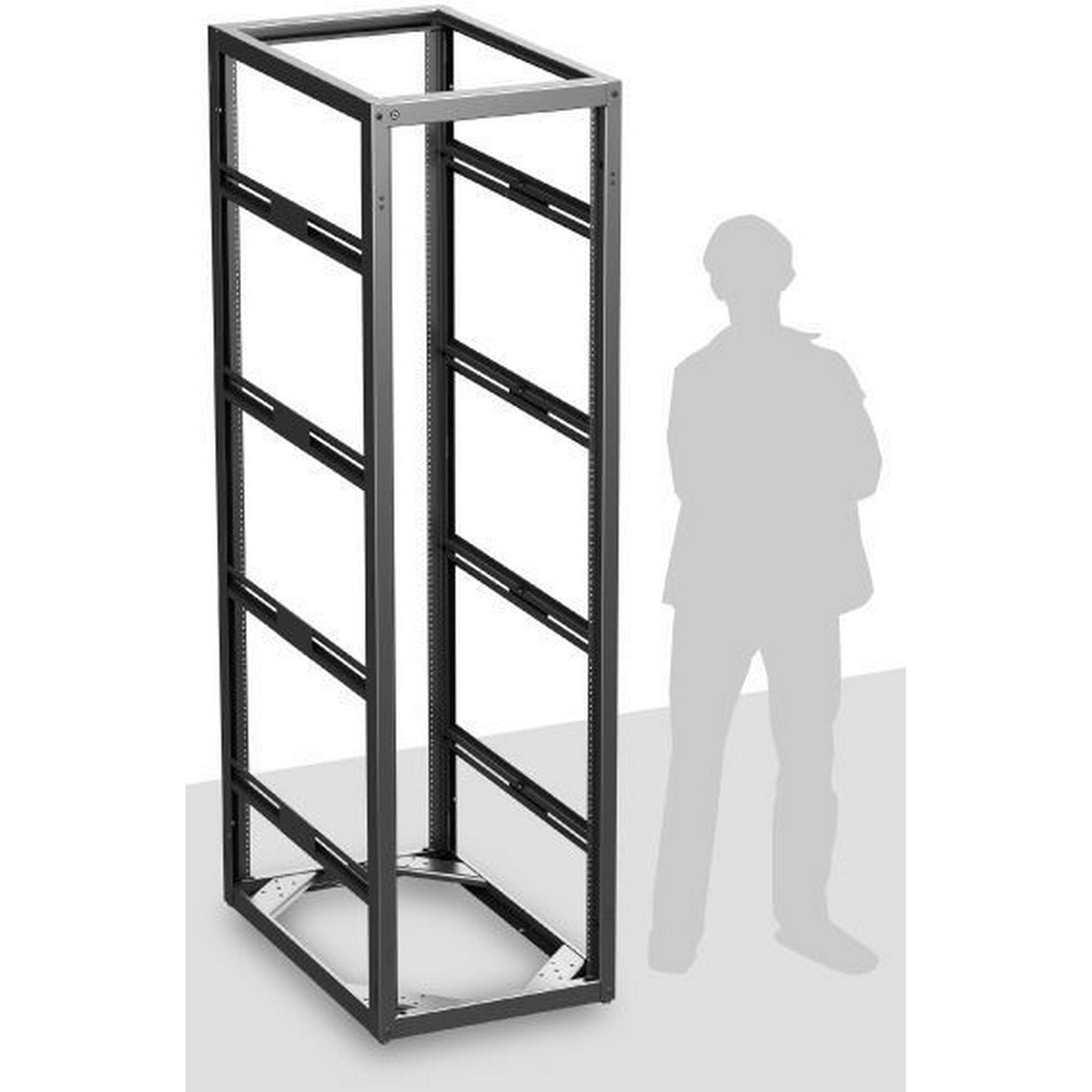

Measuring 81.25″ high, 22.5″ wide, and 36″ deep (usable depth: 34.03″), the 744‑36 provides ample vertical and rear equipment space while maintaining a standard footprint. The solid, vent-free design allows for precise thermal control and protection against contaminants. The cabinet ships with two sets of fully adjustable 11-gauge, 10-32 tapped rack rails with RU indicators, and includes base-leveling sockets with caster-ready gussets for flexible installation options—whether stationary, mobile, or seismic-braced. Optional seismic brackets (SBK‑700) are available to meet NEBS Zone 4 certification requirements, ensuring the rack can withstand rigorous real-world dynamic tests comparable to a Richter magnitude 8.0 earthquake.
Key Features
- Heavy-Duty Construction: 14-gauge cold-rolled steel frame with 11-gauge caster gussets for superior strength.
- 44 RU Capacity: Accommodates extensive rack-mounted systems.
- 36″ Depth: Offers a usable depth of 34.03″ to accommodate deep equipment installations.
- Adjustable Rack Rails: Two sets of 11-gauge, fully adjustable rack rails, tapped 10-32 with RU markings.
- Solid Enclosure: No vent holes—ideal for custom airflow management or sealed environments.
- Flexible Base: Threaded leveling sockets and punch-outs for caster installation or floor anchoring.
- Seismic Upgrade Ready: Compatible with SBK‑700 bracket to meet NEBS Zone 4 certification.
- UL 1678 Listed: Meets UL safety standards for industrial rack installations.
Technical Specifications
- Rack Units: 44 RU
- Height: 81.25″ (206.4 cm)
- Width: 22.5″ (57.2 cm)
- Depth: 36″ (91.4 cm)
- Usable Depth: 34.03″ (86.5 cm)
- Frame Material: 14-gauge cold-rolled steel
- Caster Gussets: Reinforced 11-gauge steel
- Rail Spacing: EIA standard, recessed 1 3/16″; fully adjustable 10-32 rails
- Safety Listing: UL 1678 certified
What’s Included
- AtlasIED 744‑36 Floor Rack Cabinet (44 RU, 36″ depth)
- Two pairs of adjustable 11-gauge rack rails, tapped 10-32 with RU markings
- Two 3-RU blank panels (5¼″ total)
- Base with threaded leveling sockets and caster-ready gussets
