AtlasIED 8CXT60 8-Inch In-Ceiling Coaxial Compression Driver with 60W 70V/100V Transformer
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

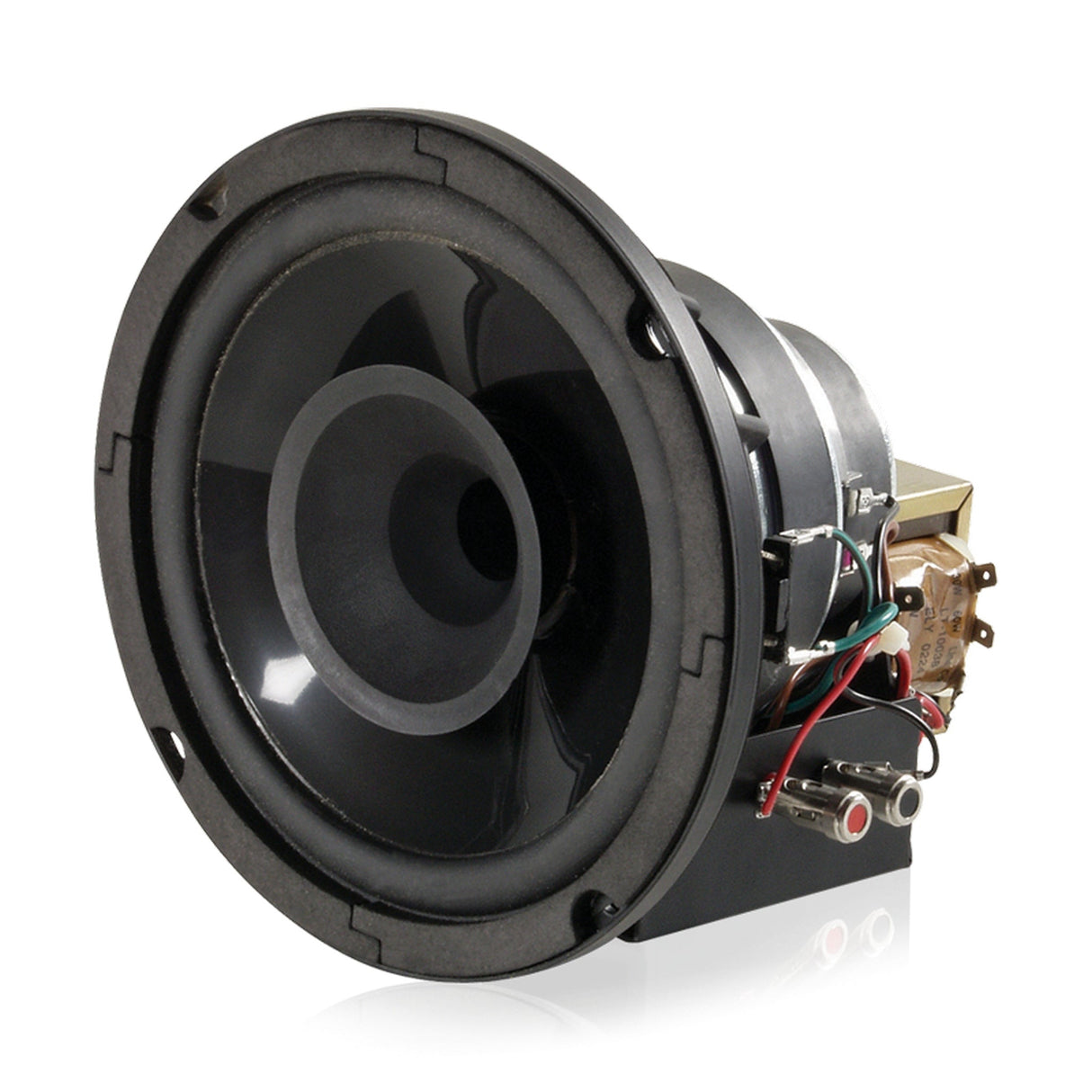

AtlasIED 8CXT60 8-Inch In-Ceiling Coaxial Compression Driver with 60W 70V/100V Transformer
The AtlasIED 8CXT60 is a high-performance 8" coaxial compression driver designed for in-ceiling applications, offering exceptional audio clarity and coverage. This 150-watt speaker combines an 8" low-frequency transducer with a 1" exit true compression driver, featuring a curvilinear polypropylene cone for reduced harmonic distortion. The built-in crossover network ensures seamless frequency transition between the two drivers, delivering a wide frequency response range of 33Hz to 21kHz and a sensitivity of 92dB at 1W/1m.
Equipped with a factory-installed, high-efficiency 60W 70V/100V step-down line transformer, the 8CXT60 offers power taps at 7.5, 15, 30, and 60 watts, providing versatility for various installation needs. Its 90° conical dispersion pattern ensures uniform sound distribution, making it ideal for use with Atlas Sound "Q" Series enclosures. The speaker's compact design and robust construction make it suitable for a wide range of commercial audio applications, including retail spaces, educational institutions, and corporate environments.
Key Features
- Coaxial Compression Driver: Combines an 8" low-frequency transducer with a 1" exit true compression driver for enhanced audio performance.
- Wide Frequency Response: Operates within a frequency range of 33Hz to 21kHz, ensuring full-range sound reproduction.
- High Sensitivity: Achieves a sensitivity of 92dB at 1W/1m, delivering clear and loud audio output.
- Factory-Installed Transformer: Includes a 60W 70V/100V step-down line transformer with power taps at 7.5, 15, 30, and 60 watts.
- Wide Dispersion Angle: Provides a 90° conical dispersion pattern for uniform sound coverage.
- Durable Construction: Features a curvilinear polypropylene cone for reduced harmonic distortion and long-lasting performance.
Technical Specifications
- Speaker Type: Coaxial Compression Driver
- Frequency Response: 33Hz - 21kHz
- Sensitivity: 92dB (at 1W/1m)
- Power Taps: 7.5, 15, 30, 60 watts (@70.7V)
- Dispersion Angle: 90° conical (2kHz octave band)
- Transformer: 60W 70V/100V step-down line transformer (factory installed)
- Diameter: 8" (20.32 cm)
- Depth: 5.5" (13.97 cm)
- Shipping Weight: Approximately 5 lbs
- Warranty: 60 months from date of purchase
What's Included in the Box
- 1 × AtlasIED 8CXT60 Coaxial Compression Driver
- 1 × 60W 70V/100V Step-Down Line Transformer (factory installed)
- 1 × User Manual
