AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit
AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit
Free Shipping
AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit - Advanced Noise Filtering and Surge Protection
The AP-S15A and AP-S15LA power strips are engineered to offer exceptional protection against both Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). These models are essential for safeguarding sensitive electronic equipment from disruptive noise that can be introduced into AC lines by nearby radio transmitters, wireless products, electric motors, and switching power supplies. The integrated EMI filters effectively minimize noise, while the advanced noise filtering capabilities ensure a stable and clean power supply for your devices.
In addition to combating interference, these power strips are designed to handle unstable AC mains voltage, which is a common cause of equipment failure. They are equipped to manage high-energy spikes that can reach up to 6kV or 3000A. The AP-S15A and AP-S15LA feature rapid response circuitry that suppresses unwanted energy within a nanosecond and maintains suppression for up to 2 milliseconds. This ensures robust protection against voltage surges and minimizes the risk of damage to connected equipment. The AP-S15A and AP-S15LA also come with a 12-foot removable IEC cord and a retainer bracket for convenient setup. Notably, the AP-S15LA model includes a front panel pull-out dimmable LED tube light to illuminate your rack, adding an extra layer of functionality.
Key Features
- 9 Total Outlets

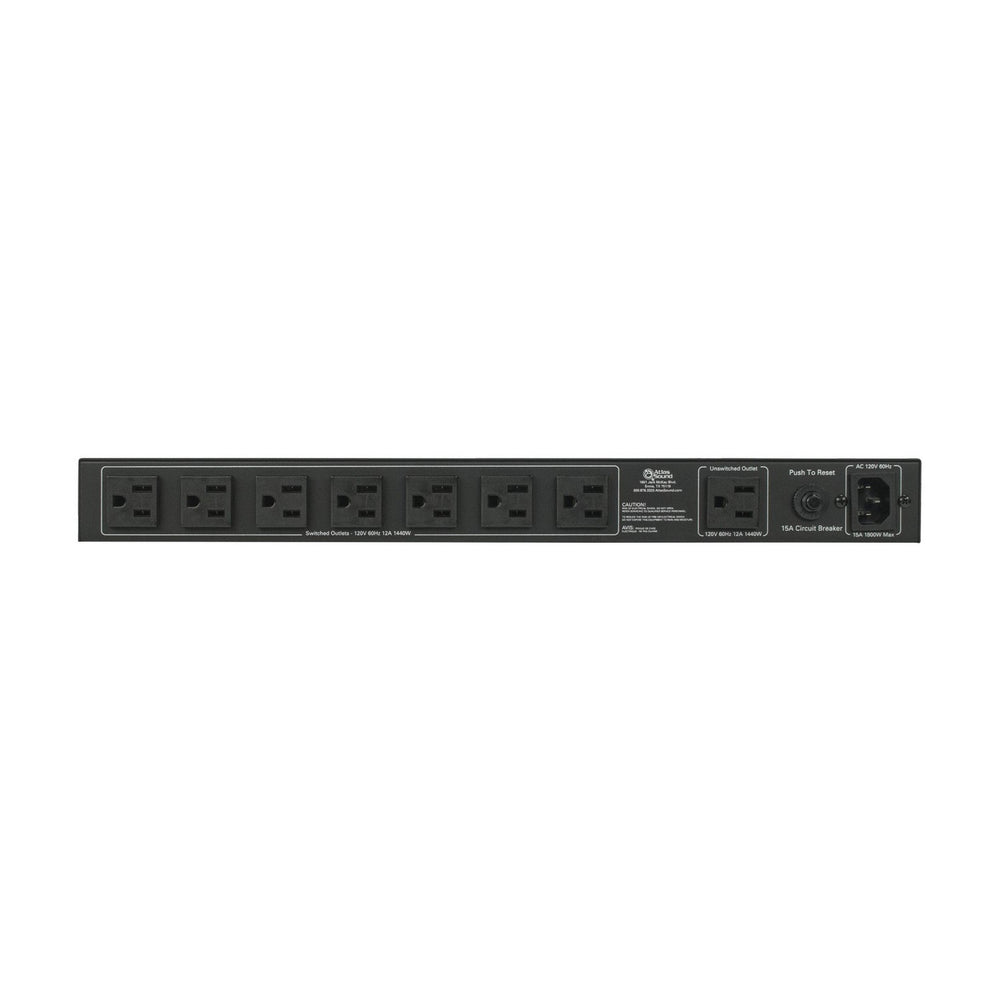

- 8 Rear Panel Outlets: 7 Switched and 1 Unswitched

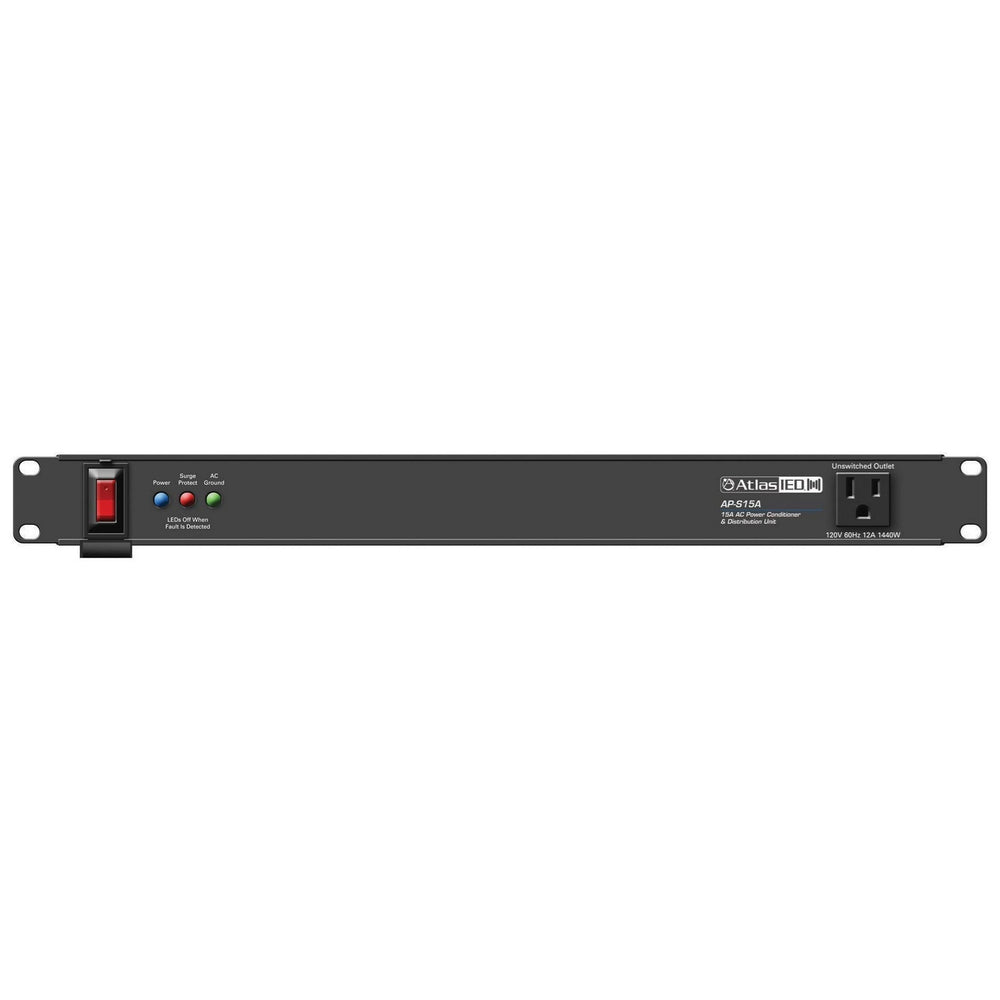

- 1 Front Panel Outlet, Unswitched
- Spike Suppression Up to 6000V
- Removable IEC Power Cord with a Retainer Bracket
Technical Specifications
Load Rating: 15 Amps
Certified to Safety Listing: UL 60950-1 Standard
Operating Voltage: 102-132VAC
Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
Maximum Spike Clamping Voltage: 6000kV
Power Consumption: 6 Watts
AC Mains Power Cord: 12' (4m)
Height: 1.75" (44.5mm)
Width: 19" (482.6mm)
Depth: 5" (127mm)
Weight: 5 lbs. (2.27 kg)
Warranty Period: 60 months from date of purchase
