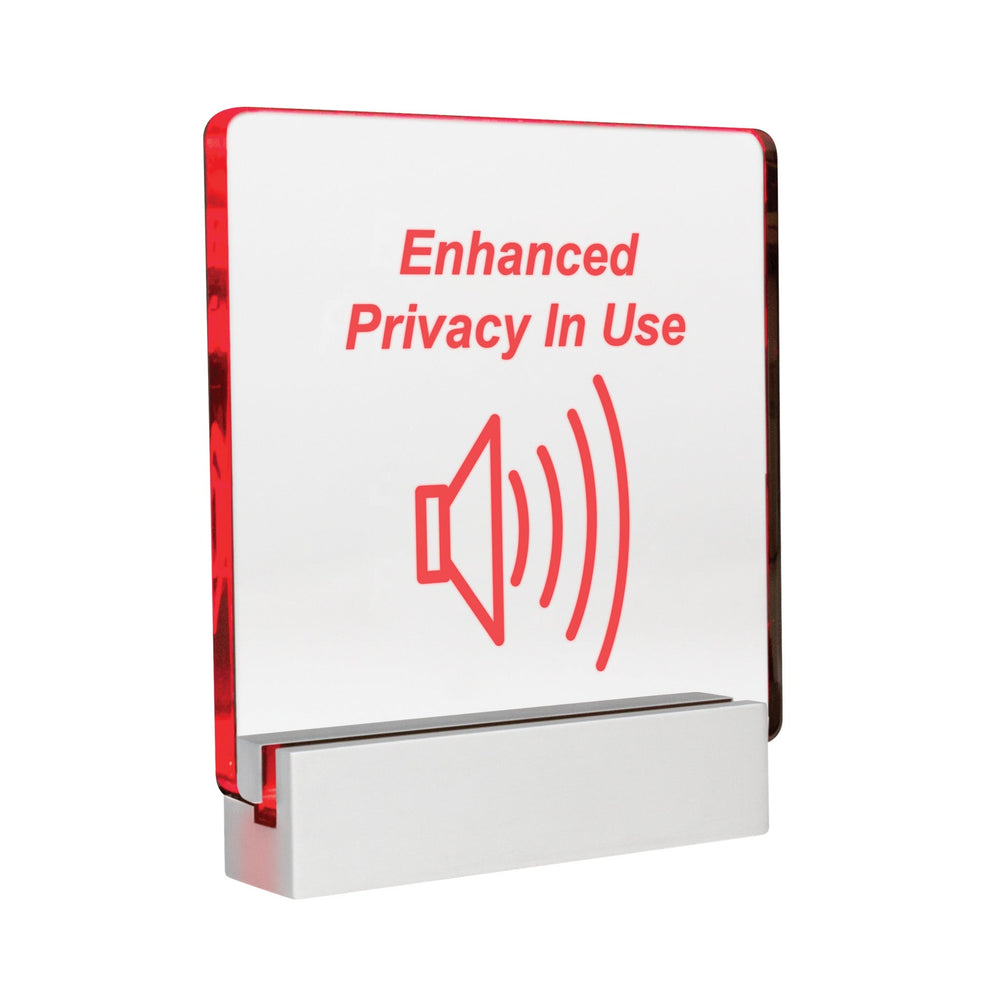

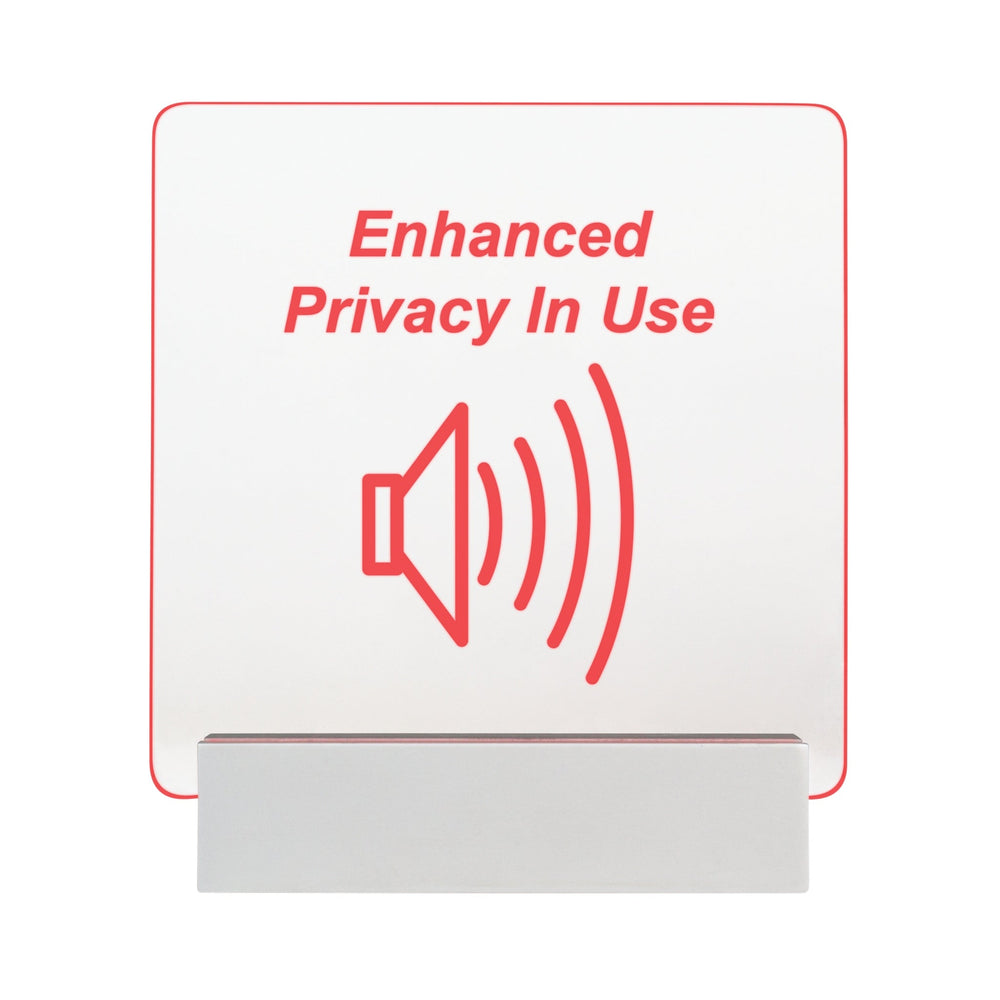

AtlasIED ASP‑MG2240S Enhanced Privacy LED Sign
The AtlasIED ASP‑MG2240S is a LED‑diffusion privacy sign designed to integrate seamlessly with AtlasIED sound‑masking controllers, providing a clear visual indicator when speech privacy is engaged. Crafted from polished aluminum with a clear acrylic faceplate, the sign illuminates red when powered (10‑12 V DC, <30 mA), alerting occupants that enhanced privacy is active.
Designed for flexible installation, the sign supports flush mounting on walls or within single‑gang electrical boxes. It includes mounting hardware—locking collets, anchors, and a stainless‑steel wall plate—for easy orientation and secure installation. The ASP‑MG2240S is ideal for medical offices, conference rooms, and any space needing a professional visual privacy signal.
Key Features
- Clear “Enhanced Privacy In Use” acrylic faceplate
- Polished aluminum LED base with multi-orientation mounting
- Flush wall or single‑gang electrical box mounting
- Includes mounting hardware and stainless‑steel gang plate
- Illuminates red at 10‑12 V DC, drawing under 30 mA
Technical Specifications
- Sign Dimensions: 4.5‑Inch × 4.5‑Inch
- Base Dimensions: 1‑Inch × 1‑Inch × 4‑Inch
- Overall Size (with base): 5‑Inch (H) × 4.5‑Inch (W)
- LED Voltage: 10‑12 V DC
- Current Draw: <30 mA
- Termination: 24‑Inch, 22‑gauge red (+) and black (–) wires
- Mounting Hole Spacing: 3.30‑Inch centers (blind locking collet)
- Shipping Weight: 1 lb (0.45 kg)
- Warranty Period: 60 months from date of purchase
