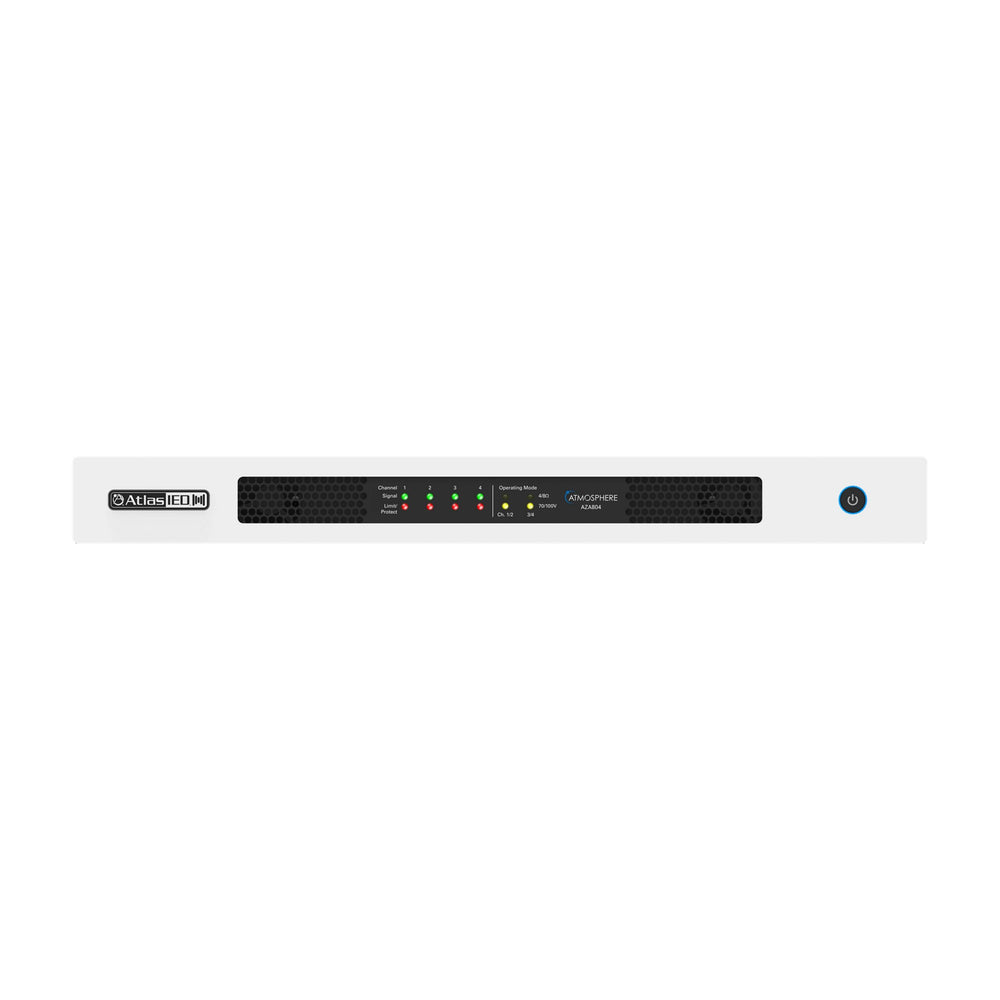

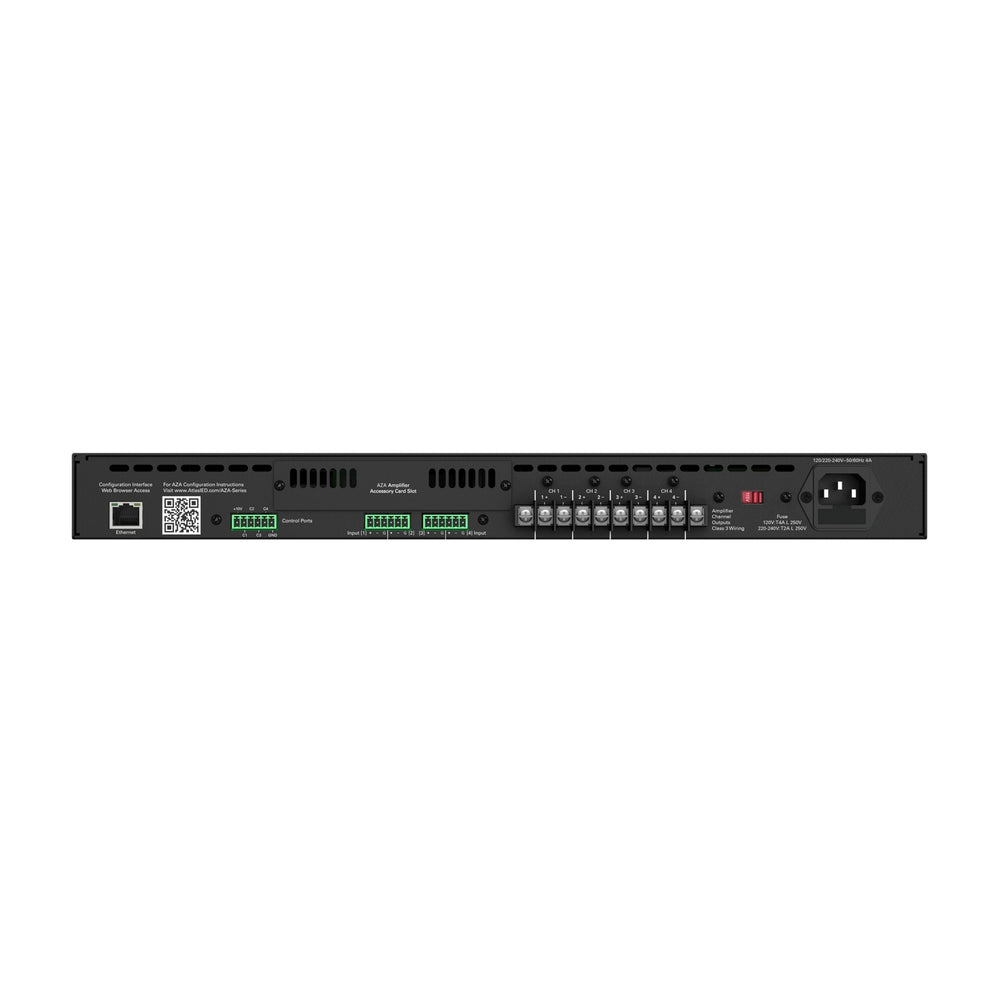

AtlasIED AZA804 800 Watt Networkable 4 Channel Power Amplifier
AtlasIED AZA804 800 Watt Networkable 4 Channel Power Amplifier
The AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4/8/70V/100V). The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.
Key Features
- 70V, 100V, 8, or 4 functionality, configurable in channel pairs
- Up to 200W per channel (4 x 200W)
- Four (4) balanced inputs
- Web interface to change output modes and additional monitoring/processing
Technical Specifications
POWER OUTPUT
4 x 200-Watts @ 70.7V
POWER OUTPUT
4 x 200-Watts @ 100V
POWER OUTPUT
4 x 150-Watts @ 8
POWER OUTPUT
4 x 100-Watts @ 4
POWER OUTPUT
2 x 200-Watts @ 70.7V, 2 x 150-Watts @ 8
POWER OUTPUT
2 x 200-Watts @ 100V, 2 x 100-Watts @ 4
AMPLIFIER TOPOLOGY
Class AB Switching Hybrid -BASH
INPUT SENSITIVITY
750mV Balanced, 0dBU
INPUT IMPEDANCE
Balanced 40k
MAXIMUM INPUT SIGNAL
+14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante
THD
1% @ Rated Output
FREQUENCY RESPONSE
20Hz - 20kHz (DSP Filters Set to Flat)
SIGNAL TO NOISE RATIO
>100dB Below Rated output (A-Weighted)
CROSSTALK
73dB @ 1kHz
VOLTAGE
110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
RACK UNITS
1
HEIGHT
1.75" (45mm)
WIDTH
19" (483mm)
DEPTH
15.5" (394mm)
WEIGHT
13 lbs. (5.92kg)
