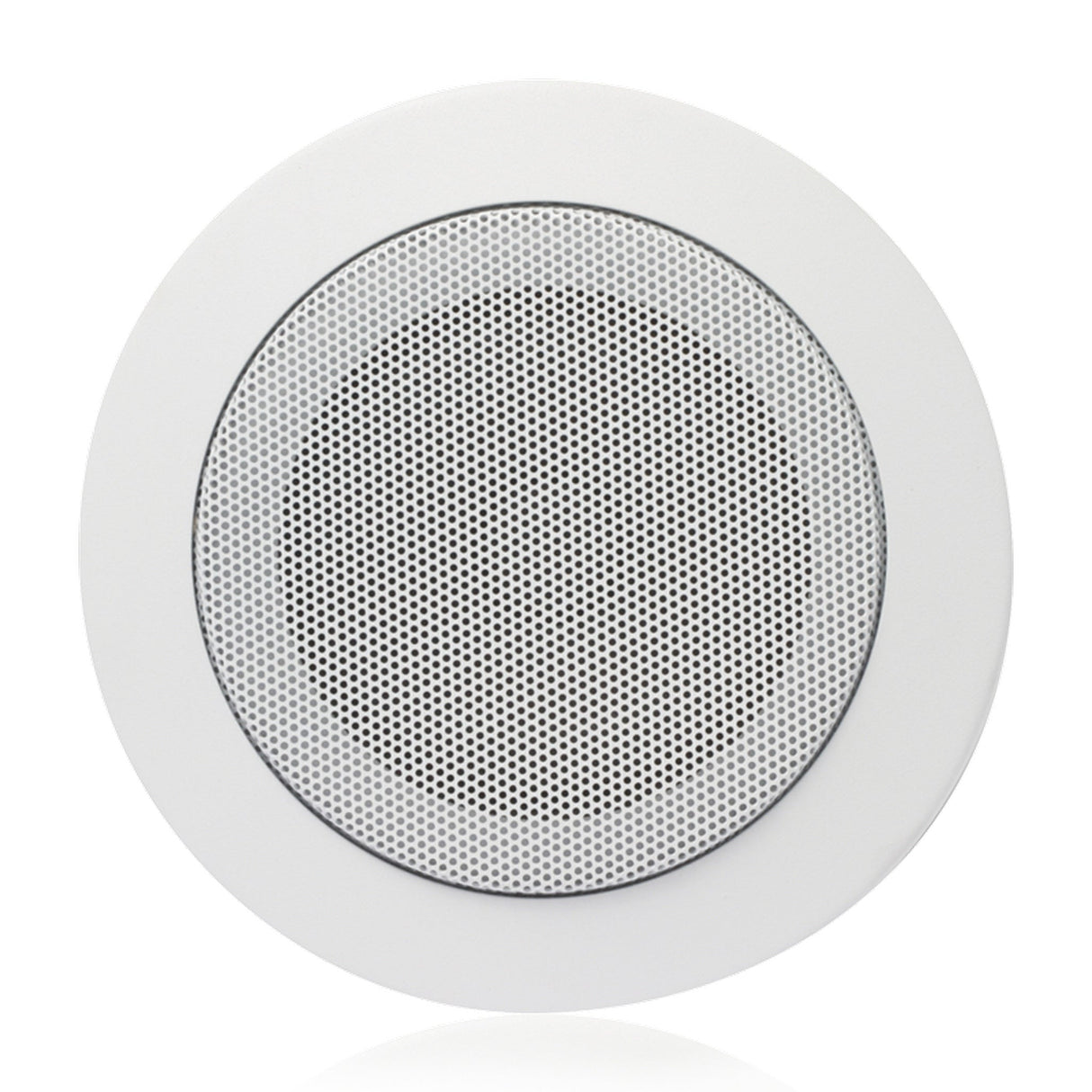

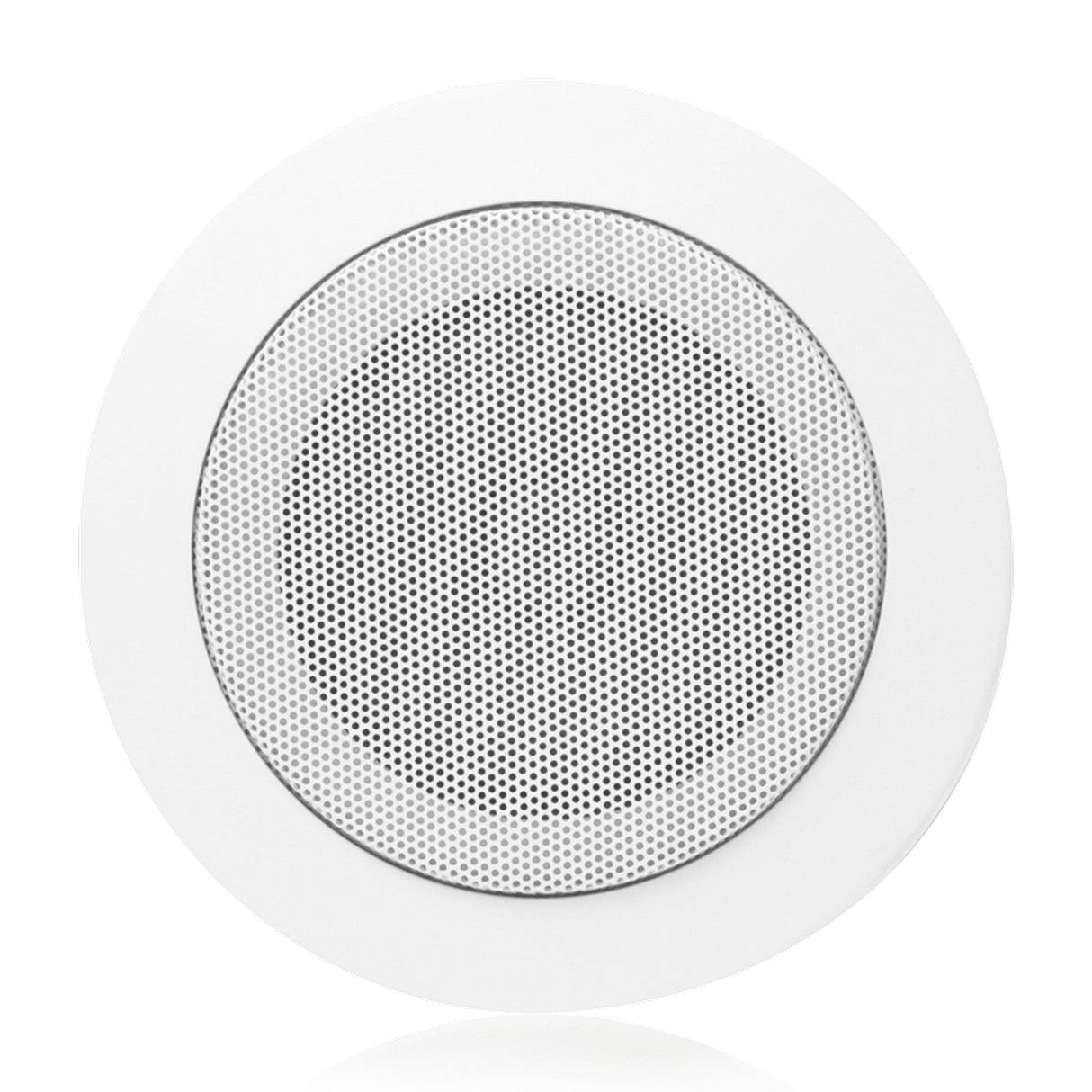

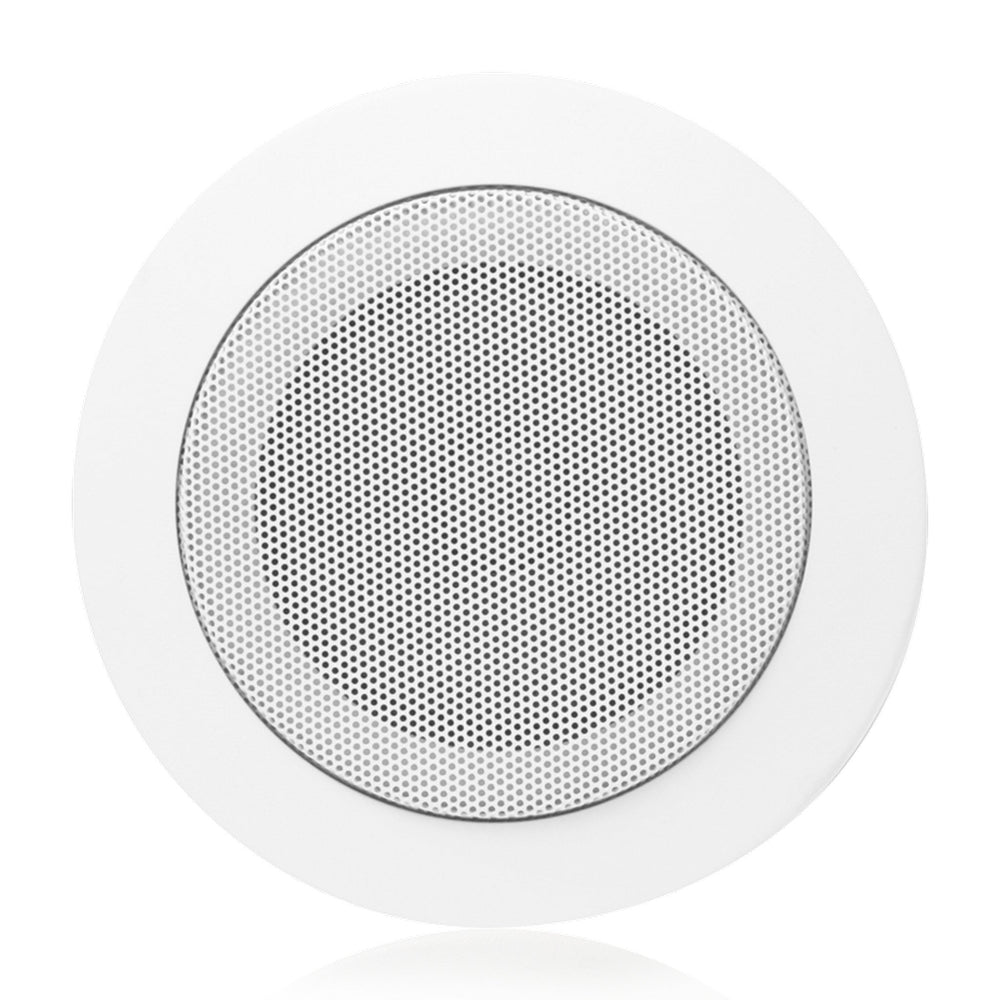

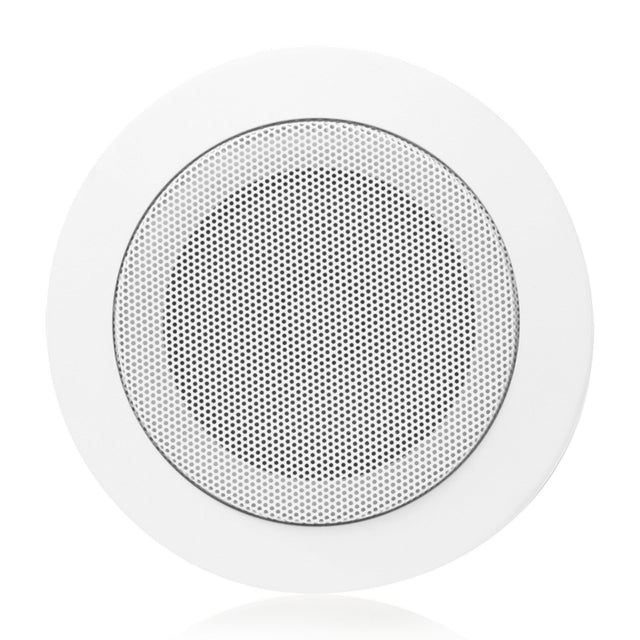

AtlasIED BT720-4 Series 4-Inch In-Ceiling Speaker Package - 4-Inch Speaker with Transformer and Standard Grille
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
AtlasIED BT720-4 Series 4-Inch In-Ceiling Speaker Packages
The AtlasIED BT720-4 and BT720-4-T47 are high-performance 4-Inch in-ceiling loudspeaker packages designed for commercial paging and background music (BGM) applications. Both models feature the renowned AtlasIED FC104 high compliance loudspeaker, delivering full-range voice and music reproduction with wide-angle sound dispersion to provide excellent coverage with fewer speakers in distributed audio systems. Each package includes a factory-mounted dual-voltage transformer and grille, ready for efficient installation and reliable audio performance.
The BT720-4 variation boasts an attractive white finish and offers a broader range of power taps, including a low .25 watt setting for fine volume control. It is ideal for applications where aesthetic integration and flexible power options are critical. In contrast, the BT720-4-T47 emphasizes ease of installation with its torsion spring grille and patented EZ-Mount support system designed for suspended ceiling tile installations. This model provides power taps starting at .5 watt and is optimized for quick, secure mounting, making it perfect for fast-paced job sites.
Choosing between the two depends on your specific project needs: opt for the BT720-4 when a white finish and the lowest power tap are required, or select the BT720-4-T47 for streamlined installation convenience and EZ-Mount compatibility.
Key Features
- Factory-assembled 4-Inch high compliance loudspeaker with transformer and baffle
- Wide 135Ā° dispersion for full-range voice and music reproduction
- BT720-4 features an attractive white finish
- BT720-4-T47 includes torsion spring grille and EZ-Mount support system
- Dual-voltage 25V/70.7V or 70.7V transformers factory-mounted
- Power taps: BT720-4 (.25, .5, 1, 2, 4 Watts), BT720-4-T47 (.5, 1, 2, 4 Watts)
- Easy installation with options for screw mount or torsion spring grille
- Suitable for commercial paging and background music systems
Technical Specifications
- Speaker Type: 4" (102mm) High Compliance Loudspeaker Transformer / Baffle Assemblies
- Sensitivity: 94dB (1W/1M)
- Frequency Response: 150Hz - 17kHz
- Dispersion: 135Ā° / -6dB, 2kHz Octave Band
- Power Taps: BT720-4 (.25, .5, 1, 2, 4 Watts), BT720-4-T47 (.5, 1, 2, 4 Watts)
- Depth: BT720-4 - 3.64-Inch (62.5 mm), BT720-4-T47 - 3.64-Inch (63 mm)
- Diameter: 4-Inch (10.16 cm)
- Warranty Period: 60 months from date of purchase
