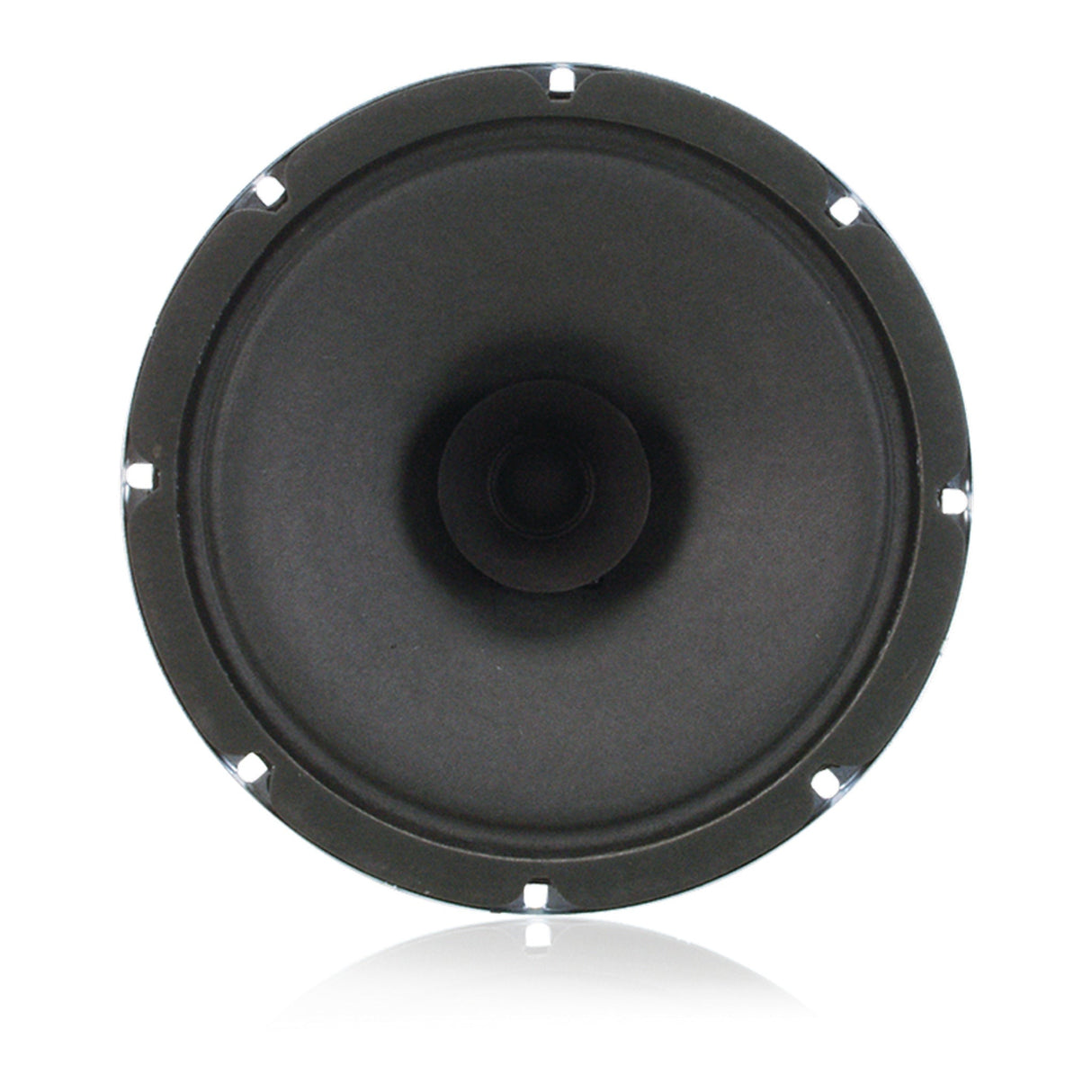

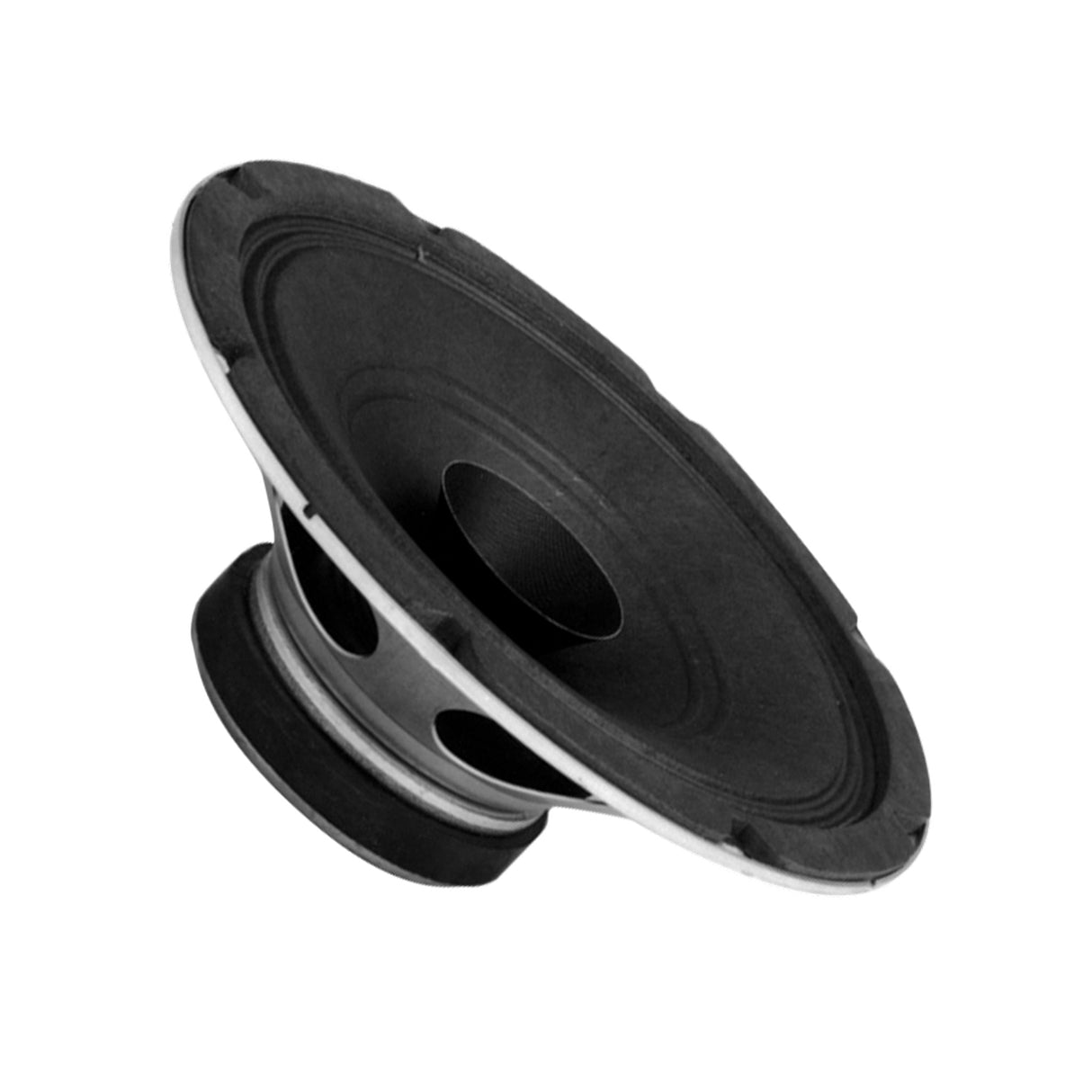

AtlasIED C10AT25 8-Inch Dual Cone In-Ceiling Speaker with 25V Transformer and 10oz Magnet
The AtlasIED C10AT25 is an 8-Inch dual cone in-ceiling speaker designed for versatile commercial, industrial, and institutional audio applications. It features a 25-watt power capacity with a factory-installed 25V 5W line-matching transformer, making it an efficient choice for distributed sound systems. The speaker utilizes a 10-ounce ceramic magnet and a curvilinear treated paper cone that reduces harmonic distortion for clear, natural sound reproduction. Equipped with a full 1-Inch copper voice coil and black anodized aluminum former, the C10AT25 ensures enhanced power dissipation and long-lasting reliability.
Operating within a frequency response of 100Hz to 10kHz and a wide 105-Degree dispersion angle, this speaker delivers balanced audio coverage for broad installation environments. It mounts easily on a wide selection of AtlasIED round and square baffles and enclosures, allowing for flexible and aesthetically pleasing installation options.
The C10AT25 is an acoustically proven general-purpose loudspeaker, ideal for multi-purpose paging and background music systems. Its hydrophobic optional treatment further enhances durability, making it suitable for demanding environments where moisture resistance is beneficial.
Key Features
- 8-Inch dual cone in-ceiling loudspeaker with 25-watt power capacity
- Includes factory-installed 25V 5W line-matching transformer (LT-25)
- Curvilinear treated paper cone for reduced harmonic distortion
- 1-Inch copper voice coil with anodized aluminum former for better power dissipation
- Wide 105-Degree dispersion angle for broad sound coverage
- Mounts a wide selection of AtlasIED round and square baffles
- Hydrophobic treatment available as an option
Technical Specifications
- Speaker Type: Treated paper dual cone
- Sensitivity: 97dB Peak, 94dB Average
- Frequency Response: 100Hz - 10kHz nominal
- Power Taps: .5, 1, 2, & 5 Watts
- Dispersion: 105-Degree
- Depth: 2 7/8-Inch (7.3 cm)
- Diameter: 8-Inch (20.32 cm)
- Shipping Weight: 3.00 lbs (1.36 kgs)
- Warranty Period: 60 months from date of purchase
